cs231 循环神经网络RNN (计算图)
from __future__ import print_function, division
from builtins import range
import numpy as np
"""
This file defines layer types that are commonly used for recurrent neural
networks.
"""
def rnn_step_forward(x, prev_h, Wx, Wh, b):
"""
Run the forward pass for a single timestep of a vanilla RNN that uses a tanh
activation function.
The input data has dimension D, the hidden state has dimension H, and we use
a minibatch size of N.
Inputs:
- x: Input data for this timestep, of shape (N, D).
- prev_h: Hidden state from previous timestep, of shape (N, H)
- Wx: Weight matrix for input-to-hidden connections, of shape (D, H)
- Wh: Weight matrix for hidden-to-hidden connections, of shape (H, H)
- b: Biases of shape (H,)
Returns a tuple of:
- next_h: Next hidden state, of shape (N, H)
- cache: Tuple of values needed for the backward pass.
"""
next_h, cache = None, None
##############################################################################
# TODO: Implement a single forward step for the vanilla RNN. Store the next #
# hidden state and any values you need for the backward pass in the next_h #
# and cache variables respectively. #
##############################################################################
#pass
#x:(N, D);prev_h:(N, H);Wx: (D, H) Wh:(H, H) b:(H,)
h=np.dot(prev_h,Wh) # (N,H) (H,H)--->(N,H)
out =np.dot(x,Wx) + b # (N,D) (D,H) -->(N,H)
next_h = out + h #(N,H)
next_h=np.tanh(next_h)#(N,H)
cache = (x, prev_h, Wx, Wh, next_h)
##############################################################################
# END OF YOUR CODE #
##############################################################################
return next_h, cache
def rnn_step_backward(dnext_h, cache):
"""
Backward pass for a single timestep of a vanilla RNN.
Inputs:
- dnext_h: Gradient of loss with respect to next hidden state, of shape (N, H)
- cache: Cache object from the forward pass
Returns a tuple of:
- dx: Gradients of input data, of shape (N, D)
- dprev_h: Gradients of previous hidden state, of shape (N, H)
- dWx: Gradients of input-to-hidden weights, of shape (D, H)
- dWh: Gradients of hidden-to-hidden weights, of shape (H, H)
- db: Gradients of bias vector, of shape (H,)
"""
dx, dprev_h, dWx, dWh, db = None, None, None, None, None
##############################################################################
# TODO: Implement the backward pass for a single step of a vanilla RNN. #
# #
# HINT: For the tanh function, you can compute the local derivative in terms #
# of the output value from tanh. #
##############################################################################
#pass
#dnext_h: (N, H)
#dx:(N, D);dprev_h:(N, H);dWx: (D, H) dWh:(H, H) db:(H,)

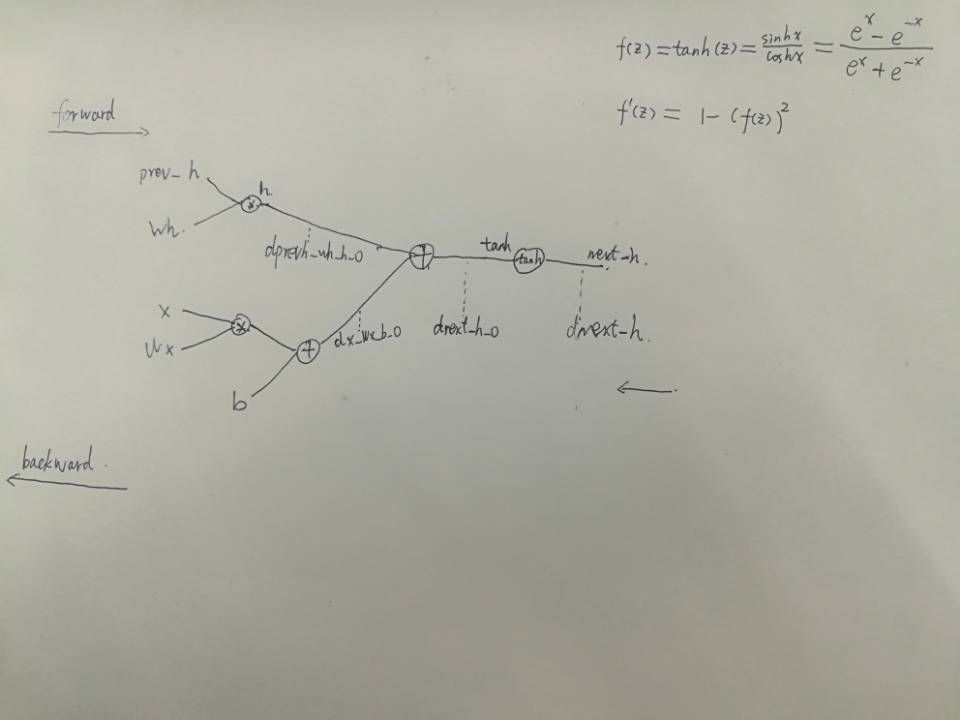

#f(z) = tanh(z) 求导：f(z)' = 1 − (f(z))^2
x, prev_h, Wx, Wh, next_h =cache
dnext_h_o = dnext_h * (1-next_h**2) #(N, H)
dprevh_Wh_h_o = dnext_h_o #(N, H)
dx_Wx_b_o =dnext_h_o #(N, H)
db = np.sum(dx_Wx_b_o,axis=0) #(N, H)--->(H,)
dx = np.dot(dx_Wx_b_o , Wx.T) #(N, H) (D, H).T--->(N,D)
dWx = np.dot(x.T,dx_Wx_b_o ) # (N, D).T (N, H) ---- (D, H)
#dprev_h = np.dot( dprevh_Wh_h_o ,Wh) # (N, H) (H, H) ---> (N, H) 误差为1
dprev_h = np.dot( dprevh_Wh_h_o ,Wh.T) # (N, H) (H, H) ---> (N, H)
#dWh = np.dot( dprevh_Wh_h_o.T , prev_h) #(N, H).T (N, H) -->(H, H) 误差为1
dWh = np.dot( prev_h.T , dprevh_Wh_h_o) #(N, H).T (N, H) -->(H, H)
##############################################################################
# END OF YOUR CODE #
##############################################################################
return dx, dprev_h, dWx, dWh, db
def rnn_forward(x, h0, Wx, Wh, b):
"""
Run a vanilla RNN forward on an entire sequence of data. We assume an input
sequence composed of T vectors, each of dimension D. The RNN uses a hidden
size of H, and we work over a minibatch containing N sequences. After running
the RNN forward, we return the hidden states for all timesteps.
Inputs:
- x: Input data for the entire timeseries, of shape (N, T, D).
- h0: Initial hidden state, of shape (N, H)
- Wx: Weight matrix for input-to-hidden connections, of shape (D, H)
- Wh: Weight matrix for hidden-to-hidden connections, of shape (H, H)
- b: Biases of shape (H,)
Returns a tuple of:
- h: Hidden states for the entire timeseries, of shape (N, T, H).
- cache: Values needed in the backward pass
"""
h, cache = None, None
##############################################################################
# TODO: Implement forward pass for a vanilla RNN running on a sequence of #
# input data. You should use the rnn_step_forward function that you defined #
# above. You can use a for loop to help compute the forward pass. #
##############################################################################
#pass
N, T, D =x.shape
hidden = h0
hiddens=[]
for i in range(T):
input = x[:,i,:] # (N,i,D)----> (N,D)
hidden, cache = rnn_step_forward(input, hidden, Wx, Wh, b)
#hidden :(N,H)
hiddens.append(hidden)
h = np.stack(hiddens,axis=1) # (N,T,H)
cache =(x, h0, Wh, Wx, b, h)
##############################################################################
# END OF YOUR CODE #
##############################################################################
return h, cache
def rnn_backward(dh, cache):
"""
Compute the backward pass for a vanilla RNN over an entire sequence of data.
Inputs:
- dh: Upstream gradients of all hidden states, of shape (N, T, H).
NOTE: 'dh' contains the upstream gradients produced by the
individual loss functions at each timestep, *not* the gradients
being passed between timesteps (which you'll have to compute yourself
by calling rnn_step_backward in a loop).
Returns a tuple of:
- dx: Gradient of inputs, of shape (N, T, D)
- dh0: Gradient of initial hidden state, of shape (N, H)
- dWx: Gradient of input-to-hidden weights, of shape (D, H)
- dWh: Gradient of hidden-to-hidden weights, of shape (H, H)
- db: Gradient of biases, of shape (H,)
"""
dx, dh0, dWx, dWh, db = None, None, None, None, None
##############################################################################
# TODO: Implement the backward pass for a vanilla RNN running an entire #
# sequence of data. You should use the rnn_step_backward function that you #
# defined above. You can use a for loop to help compute the backward pass. #
##############################################################################
#h: (N,T,H)
x, h0, Wh, Wx, b, h = cache
_, T, _ = dh.shape
dx = np.zeros_like(x)
dWx = np.zeros_like(Wx)
dWh = np.zeros_like(Wh)
db = np.zeros_like(b)
dprev_h = 0
for i in range(T):
t = T - 1 - i
xt = x[:, t, :] #(N, T, D)--->(N,D)
dht = dh[:, t, :]#(N, T, H)--->(N,H)
if t > 0:
prev_h = h[:, t-1, :] # # (N,T,H) --->(N,H)
else:
prev_h = h0 #(N, H)
next_h = h[:, t, :]
#dht:从某一时刻的 loss 传递到该时刻隐状态的梯度值
#dprev_h:从后一时刻隐状态传递到该时刻隐状态的梯度值
dx[:, t, :], dprev_h, dwx, dwh, db_ = rnn_step_backward(dht + dprev_h, (xt, prev_h, Wx, Wh, next_h))
dWx += dwx
dWh += dwh
db += db_
dh0 = dprev_h
##############################################################################
# END OF YOUR CODE #
##############################################################################
return dx, dh0, dWx, dWh, db
