Extended kalman filter (EKF) localization sample
“”"
import numpy as np
import math
import matplotlib.pyplot as plt
Estimation parameter of EKF
Q = np.diag([0.1, 0.1, np.deg2rad(1.0), 1.0])**2 # predict state covariance of process noise
R = np.diag([1.0, 1.0])**2 # Observation x,y position covariance at time t
Simulation parameter
Qsim = np.diag([1.0, np.deg2rad(30.0)])**2
Rsim = np.diag([0.5, 0.5])**2
DT = 0.1 # time tick [s]
SIM_TIME = 50.0 # simulation time [s]
show_animation = True
def calc_input():
v = 1.0 # [m/s]
yawrate = 0.1 # [rad/s]
u = np.array([[v, yawrate]]).T
return u
‘’‘the observation function generates the input and observation vector with noice’’’
def observation(xTrue, xd, u):
xTrue = motion_model(xTrue, u)
'''the robot has a GNSS sensor. it means that the robot can observe x-y position at each time'''
# add noise to gps x-y
zx = xTrue[0, 0] + np.random.randn() * Rsim[0, 0]
zy = xTrue[1, 0] + np.random.randn() * Rsim[1, 1]
z = np.array([[zx, zy]]).T
'''the robot has a speed sensor and s gyro sensor'''
# add noise to input
ud1 = u[0, 0] + np.random.randn() * Qsim[0, 0]
ud2 = u[1, 0] + np.random.randn() * Qsim[1, 1]
ud = np.array([[ud1, ud2]]).T
xd = motion_model(xd, ud)
return xTrue, z, xd, ud
def motion_model(x, u):
F = np.array([[1.0, 0, 0, 0],
[0, 1.0, 0, 0],
[0, 0, 1.0, 0],
[0, 0, 0, 0]])
B = np.array([[DT * math.cos(x[2, 0]), 0],
[DT * math.sin(x[2, 0]), 0],
[0.0, DT],
[1.0, 0.0]])
'''the motion model is x(t+1) = F*x(t) + B*u(t)'''
x = F@x + B@u
return x
def observation_model(x):
‘’‘the robot get x-y position information from GNSS’’’
H = np.array([
[1, 0, 0, 0],
[0, 1, 0, 0]
])
z = H@x
return z
def jacobF(x, u):
"""
Jacobian of Motion Model
motion model
x_{t+1} = x_t+v*dt*cos(yaw)
y_{t+1} = y_t+v*dt*sin(yaw)
yaw_{t+1} = yaw_t+omega*dt
v_{t+1} = v{t}
so
dx/dyaw = -v*dt*sin(yaw)
dx/dv = dt*cos(yaw)
dy/dyaw = v*dt*cos(yaw)
dy/dv = dt*sin(yaw)
"""
yaw = x[2, 0]
v = u[0, 0]
jF = np.array([
[1.0, 0.0, -DT * v * math.sin(yaw), DT * math.cos(yaw)],
[0.0, 1.0, DT * v * math.cos(yaw), DT * math.sin(yaw)],
[0.0, 0.0, 1.0, 0.0],
[0.0, 0.0, 0.0, 1.0]])
return jF
def jacobH(x):
# Jacobian of Observation Model
jH = np.array([
[1, 0, 0, 0],
[0, 1, 0, 0]
])
return jH
'''Localization process using Extendted Kalman Filter:EKF:...'''
def ekf_estimation(xEst, PEst, z, u):

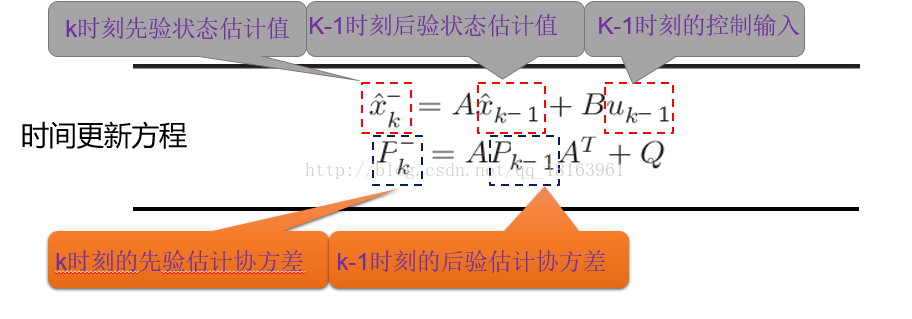

# Predict
xPred = motion_model(xEst, u)
jF = jacobF(xPred, u)
PPred = jF@[email protected] + Q
# Update
jH = jacobH(xPred)
zPred = observation_model(xPred)
y = z - zPred
S = jH@[email protected] + R
K = [email protected]@np.linalg.inv(S)
xEst = xPred + K@y
PEst = (np.eye(len(xEst)) - K@jH)@PPred
return xEst, PEst
def plot_covariance_ellipse(xEst, PEst): # pragma: no cover
Pxy = PEst[0:2, 0:2]
eigval, eigvec = np.linalg.eig(Pxy)
if eigval[0] >= eigval[1]:
bigind = 0
smallind = 1
else:
bigind = 1
smallind = 0
t = np.arange(0, 2 * math.pi + 0.1, 0.1)
a = math.sqrt(eigval[bigind])
b = math.sqrt(eigval[smallind])
x = [a * math.cos(it) for it in t]
y = [b * math.sin(it) for it in t]
angle = math.atan2(eigvec[bigind, 1], eigvec[bigind, 0])
R = np.array([[math.cos(angle), math.sin(angle)],
[-math.sin(angle), math.cos(angle)]])
fx = R@(np.array([x, y]))
px = np.array(fx[0, :] + xEst[0, 0]).flatten()
py = np.array(fx[1, :] + xEst[1, 0]).flatten()
plt.plot(px, py, "--r")
def main():
print(__file__ + " start!!")
time = 0.0
# State Vector [x y yaw v]'x,y are a 2D x-y position yaw is orientation and v is velocity
xEst = np.zeros((4, 1))
xTrue = np.zeros((4, 1))
PEst = np.eye(4)
xDR = np.zeros((4, 1)) # Dead reckoning
# history
hxEst = xEst
hxTrue = xTrue
hxDR = xTrue
hz = np.zeros((2, 1))
while SIM_TIME >= time:
time += DT
u = calc_input()
xTrue, z, xDR, ud = observation(xTrue, xDR, u)
xEst, PEst = ekf_estimation(xEst, PEst, z, ud)
# store data history
hxEst = np.hstack((hxEst, xEst))
hxDR = np.hstack((hxDR, xDR))
hxTrue = np.hstack((hxTrue, xTrue))
hz = np.hstack((hz, z))
if show_animation:
plt.cla()
plt.plot(hz[0, :], hz[1, :], ".g")
plt.plot(hxTrue[0, :].flatten(),
hxTrue[1, :].flatten(), "-b")
plt.plot(hxDR[0, :].flatten(),
hxDR[1, :].flatten(), "-k")
plt.plot(hxEst[0, :].flatten(),
hxEst[1, :].flatten(), "-r")
plot_covariance_ellipse(xEst, PEst)
plt.axis("equal")
plt.grid(True)
plt.pause(0.001)
if __name__ == '__main__':
main()
reference:
PROBABILISTIC-ROBOTICS.ORG
