平衡二叉树(AVL树)
上述二叉排序树和单链表一样,查询速度很慢,完全发挥不出来二叉排序树的优势,速度甚至比单链表还满
由此引出解决方案:平衡二叉树(AVL)
1. 基本介绍
-
平衡二叉树也称平衡二叉搜索树,AVL树,其可以保证查询效率较高
-

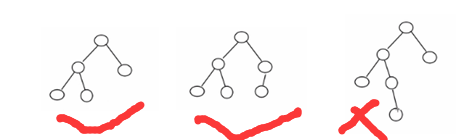

其特点是:它是一颗空树或者它的左右两个子树的高度差的绝对值不超过1,并且左右连哥哥子树都是一颗平衡二叉树
-
平衡二叉树的常用实现方法有红黑树、AVL、替罪羊树、Treap、伸展树等
2. 单旋转(左旋转)
对结点A进行左旋转的步骤
- 将A结点的右结点的左结点指向A结点
- 将A结点的右结点,指向A结点的右结点的左结点
{4, 3, 6, 5, 7, 8}
//左旋转方法
private void leftRotate() {
//创建新的结点,以当前根结点的值
Node newNode = new Node(value);
//把新的结点的左子树设置为当前结点的左子树
newNode.left = left;
//把新的结点的右子树设置成当前节点的右子树的左子树
newNode.right = right.left;
//把当前结点的值替换成右子结点的值
value = right.value;
//把当前结点的右子树设置成右子树的右子树
right = right.right;
//把当前结点的左子结点设置成新的结点
left = newNode;
}
//递归添加结点,(满足二叉排序树的要求!)
public void add(Node node) {
if(node == null) {
return;
}
//判断传入的结点的值,和当前子树的根结点的值关系
if(node.value < this.value) {
//若当前结点的左子结点为null
if(this.left == null) {
this.left = node;
}else {
//递归的向左子树添加
this.left.add(node);
}
}else { //添加的结点的值大于当前结点的值
if(this.right == null) {
this.right = node;
}else {
//递归的向右子树添加
this.right.add(node);
}
}
//当添加完一个结点后,若 (右子树高度 - 左子树的高度) > 1,左旋转
if (rightHeight() - leftHeight() > 1) {
leftRotate();
}
}
注意:
3. 单旋转(右旋转)
{10, 12, 8, 9, 7, 6}
//右旋转
public void rightRote() {
Node newNode = new Node(value);
newNode.right = right;
newNode.left = left.right;
value = left.value;
left = left.left;
right = newNode;
}
//当添加完一个结点后,若 (左子树高度 - 右子树的高度) > 1,右旋转
if (leftHeight() - rightHeight() > 1) {
rightRotate();
}
4. 双旋转
有时候,单旋转无法解决问题!例如{10, 11, 7, 6, 8, 9}
问题分析
- 当符合右旋转的条件时
- 若其左子树的右子树高度大于其左子树的高度
- 先对当前这个结点的左结点进行左旋转
- 在对当前结点进行右旋转即可
//当添加完一个结点后,若 (右子树高度 - 左子树的高度) > 1,右旋转
if (leftHeight() - rightHeight() > 1) {
//若其左子树的右子树高度大于其左子树的高度
if(left != null && left.rightHeight() > left.leftHeight()) {
//先对当前结点的左结点进行左旋转
left.leftRotate();
//再对当前结点进行右旋转
}
rightRotate();
return ;
}
//当添加完一个结点后,若 (左子树高度 - 右子树的高度) > 1,左旋转
if (rightHeight() - leftHeight() > 1) {
//若其右子树的左子树高度大于其右子树的高度
if(right != null && right.leftHeight() > right.rightHeight()) {
//先对当前结点的右结点进行右旋转
right.rightRotate();
//再对当前结点进行左旋转
}
leftRotate();
return;
}
5. 所有代码
package cn.imut;
import java.util.zip.DeflaterOutputStream;
public class AVLTreeDemo {
public static void main(String[] args) {
int[] arr = {10, 11, 7, 6, 8, 9};
//创建一个AVLTree对象
AVLTree avlTree = new AVLTree();
//添加结点
for (int value : arr) {
avlTree.add(new Node(value));
}
//遍历
System.out.println("中序遍历");
avlTree.infixOrder();
System.out.println("在平衡处理之后~~");
System.out.println("树的高度 = " + avlTree.getRoot().height()); //3
System.out.println("左子树的高度 = " + avlTree.getRoot().leftHeight()); //2
System.out.println("右子树的高度 = " + avlTree.getRoot().rightHeight()); //2
System.out.println("当前的根结点 = " + avlTree.getRoot()); //8
System.out.println("根结点的左子结点 = " + avlTree.getRoot().left); //7
}
}
//创建AVLTree
class AVLTree {
private Node root;
public Node getRoot() {
return root;
}
//查找要删除的结点
public Node search(int value) {
if(root == null) {
return null;
}else {
return root.search(value);
}
}
//查找父结点
public Node searchParent(int value) {
if(root == null) {
return null;
}else {
return root.searchParent(value);
}
}
/**
* 返回以 node 为根结点的二叉排序树的最小结点的值
* 删除node 为根结点的二叉排序树的最小结点
* @param node 传入的结点(根结点)
* @return 返回的 以node为结点的二叉排序树的最小结点的值
*/
public int delRightTreeMin(Node node) {
Node target = node;
//循环查找左子结点,就会找到最小值
while (target.left != null) {
target = target.left;
}
//此时target就指向了最小结点
//删除这个最小结点
delNode(target.value);
return target.value;
}
// 删除结点
public void delNode(int value) {
if (root != null) {
// 1.需求先去找到要删除的结点 targetNode
Node targetNode = search(value);
// 如果没有找到要删除的结点
if (targetNode == null) {
return;
}
// 如果我们发现当前这颗二叉排序树只有一个结点
if (root.left == null && root.right == null) {
root = null;
return;
}
// 去找到targetNode的父结点
Node parent = searchParent(value);
// 如果要删除的结点是叶子结点
if (targetNode.left == null && targetNode.right == null) {
// 判断targetNode 是父结点的左子结点,还是右子结点
if (parent.left != null && parent.left.value == value) { // 是左子结点
parent.left = null;
} else if (parent.right != null && parent.right.value == value) {// 是由子结点
parent.right = null;
}
} else if (targetNode.left != null && targetNode.right != null) { // 删除有两颗子树的节点
targetNode.value = delRightTreeMin(targetNode.right);
} else { // 删除只有一颗子树的结点
// 如果要删除的结点有左子结点
if (targetNode.left != null) {
if (parent != null) {
// 如果 targetNode 是 parent 的左子结点
if (parent.left.value == value) {
parent.left = targetNode.left;
} else { // targetNode 是 parent 的右子结点
parent.right = targetNode.left;
}
} else {
root = targetNode.left;
}
} else { // 如果要删除的结点有右子结点
if (parent != null) {
// 如果 targetNode 是 parent 的左子结点
if (parent.left.value == value) {
parent.left = targetNode.right;
} else { // 如果 targetNode 是 parent 的右子结点
parent.right = targetNode.right;
}
} else {
root = targetNode.right;
}
}
}
}
}
// 添加结点的方法
public void add(Node node) {
if (root == null) {
root = node;// 如果root为空则直接让root指向node
} else {
root.add(node);
}
}
// 中序遍历
public void infixOrder() {
if (root != null) {
root.infixOrder();
} else {
System.out.println("二叉排序树为空,不能遍历");
}
}
}
//结点
class Node {
int value;
Node left;
Node right;
public Node(int value) {
this.value = value;
}
//返回左子树的高度
public int leftHeight() {
if(left == null) {
return 0;
}
return left.height();
}
//返回右子树的高度
public int rightHeight() {
if(right == null) {
return 0;
}
return right.height();
}
//返回当前结点的高度,以该结点为根结点的树的高度
public int height() {
//必须加1,结点本身也算一层=
return Math.max(left == null ? 0 : left.height(), right == null? 0 : right.height()) + 1;
}
//左旋转方法
private void leftRotate() {
//创建新的结点,以当前根结点的值
Node newNode = new Node(value);
//把新的结点的左子树设置为当前结点的左子树
newNode.left = left;
//把新的结点的右子树设置成当前节点的右子树的左子树
newNode.right = right.left;
//把当前结点的值替换成右子结点的值
value = right.value;
//把当前结点的右子树设置成右子树的右子树
right = right.right;
//把当前结点的左子结点设置成新的结点
left = newNode;
}
//右旋转
public void rightRotate() {
Node newNode = new Node(value);
newNode.right = right;
newNode.left = left.right;
value = left.value;
left = left.left;
right = newNode;
}
/**
* 查找要删除的结点
* @param value 希望删除结点的值
* @return 如果找到,返回该结点否则返回null
*/
public Node search(int value) {
if(value == this.value) { //就是此结点,找到
return this;
}else if(value < this.value) { //若要查找的值小于此结点,向左子树递归查找
//若左子树为空
if(this.left == null) {
return null;
}
return this.right.search(value);
} else { //若要查找的值不小于当前结点,向右子树递归查找
if(this.right == null) {
return null;
}
return this.right.search(value);
}
}
/**
* 查找要删除结点的父结点
* @param value 要删除结点的父结点
* @return 返回要删除结点的父结点,没有则返回null
*/
public Node searchParent(int value) {
//若当前结点就是要删除结点的父结点,则直接返回
if((this.left != null && this.left.value == value) || (this.right != null && this.right.value == value)) {
return this;
}else {
//若要查找的值小于当前结点的值,并且当前结点的左子结点不为空
if(value < this.value && this.left != null) {
return this.left.searchParent(value); //向左子树递归查找
}else if(value >= this.value && this.right != null) {
return this.right.searchParent(value); //向右子树递归查找
}else {
return null;
}
}
}
@Override
public String toString() {
return "Node{" +
"value=" + value +
'}';
}
//递归添加结点,(满足二叉排序树的要求!)
public void add(Node node) {
if(node == null) {
return;
}
//判断传入的结点的值,和当前子树的根结点的值关系
if(node.value < this.value) {
//若当前结点的左子结点为null
if(this.left == null) {
this.left = node;
}else {
//递归的向左子树添加
this.left.add(node);
}
}else { //添加的结点的值大于当前结点的值
if(this.right == null) {
this.right = node;
}else {
//递归的向右子树添加
this.right.add(node);
}
}
//当添加完一个结点后,若 (右子树高度 - 左子树的高度) > 1,右旋转
if (leftHeight() - rightHeight() > 1) {
//若其左子树的右子树高度大于其左子树的高度
if(left != null && left.rightHeight() > left.leftHeight()) {
//先对当前结点的左结点进行左旋转
left.leftRotate();
//再对当前结点进行右旋转
}
rightRotate();
return ;
}
//当添加完一个结点后,若 (左子树高度 - 右子树的高度) > 1,左旋转
if (rightHeight() - leftHeight() > 1) {
//若其右子树的左子树高度大于其右子树的高度
if(right != null && right.leftHeight() > right.rightHeight()) {
//先对当前结点的右结点进行右旋转
right.rightRotate();
//再对当前结点进行左旋转
}
leftRotate();
return;
}
}
//中序遍历
public void infixOrder() {
if(this.left != null) {
this.left.infixOrder();
}
System.out.println(this);
if(this.right != null) {
this.right.infixOrder();
}
}
}
