本篇博客属于机器学习入门系列博客,主要讲述 KNN (K近邻算法) 的基本原理和 Python 代码实现,KNN由于思想极度简单,应用数学知识比较少,效果好等优点,常用来作为入门机器学习的第一课,可以完整的解释机器学习算法使用过程中的很多细节问题,更加完整的刻画机器学习应用的流程。
KNN 算法
K-Nearest-Neighbors ,中文翻译为 K近邻算法。主要思想就是假设样本在特征空间中的距离越近,属于同一类的可能性就越大。算法在执行过程中,设置一个K值,对于一个新输入的待预测的样本,找到距离它最近的K个点(也就是K个最近的邻居)统计K个点分别所属的类别,数量最多的类别就是最终的预测类别结果。
举例说明如下:

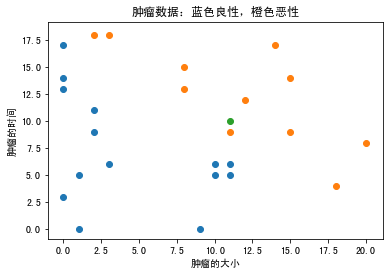

下图表示患者肿瘤类别预测,横轴代表肿瘤大小,纵轴代表肿瘤发现时间,蓝色表示良性肿瘤,橙色表示恶性肿瘤。
图中的绿色点代表要预测的点,对于该点,我们需要找到距离它最近的K个点,统计这K个点中的类别的数量。根据经验,K往往取值为3 ,在图示中就是找到 3 个距离绿色点最近的点进行统计,易得预测的结果是恶性肿瘤。
上图生成代码如下:
import numpy as np
import matplotlib.pyplot as plot
data=np.asarray([[ 1 , 0],[ 0 ,14],[ 2 ,18],[11 , 6],
[ 2, 11],[ 0 ,17],[12 ,12],[10 , 5],[18 , 4],[ 8 ,13],
[14 ,17],[ 8 ,15],[ 0 , 3],[ 3 , 6],[11 , 9],[20 , 8],
[ 2 , 9],[ 1 , 5],[15, 14],[ 3 ,18],[10 , 6],[11 , 5],
[15 , 9],[ 9 , 0],[ 0 ,13]])
x=data[:,0]
y=data[:,1]
index=np.argsort(x)
x=x[index]
y=y[index]
Rx=[]
Ry=[]
Gx=[]
Gy=[]
for i in range(len(x)):
if x[i]+y[i]<20:
Rx.append(x[i])
Ry.append(y[i])
else:
Gx.append(x[i])
Gy.append(y[i])
plot.scatter(Rx,Ry)
plot.scatter(Gx,Gy)
plot.scatter([11],[10])
plot.title('肿瘤数据:蓝色良性,橙色恶性')
plot.ylabel('肿瘤的时间')
plot.xlabel('肿瘤的大小')
plot.savefig(figsize=[10,10],fname="haha.png")
plot.show()
KNN 算法实现(python)
仿照sklearn 的写法,自行实现一个KNN 的分类器。
fit 函数用于生成模型(对于KNN算法,其实数据就是模型,与其它算法不大一样),predict函数用于返回测试数据的预测结果。
score 函数用于进行准确度统计,用来评估模型预测结果的好坏。
"""
knn.py
write by qianqianjun
"""
import numpy as np
from math import sqrt
from collections import Counter
class kNNClassifier:
def __init__(self,k):
"""
初始化knn 分类器
:param k: knn 算法中的k
"""
assert k>=1,"k must be valid"
self.k=k
self._x_train=None
self._y_train=None
def fit(self,x_train,y_train):
"""
根据训练集数据和训练集lable 来训练数据
:param x_train: 训练集的数据 np.array
:param y_train: 训练集的label np.array
:return: 返回对象本身
"""
assert x_train.shape[0]==y_train.shape[0],\
"the size of the x_train must be equal to the y_train"
assert self.k<=x_train.shape[0],\
"the size of the x_train must be k"
self._x_train=x_train
self._y_train=y_train
return self
def predict(self,x_predict):
"""
对测试集中的数据进行预测
:param x_predict: 测试集的数据 np.array
:return: 返回的是通过模型计算出的预测结果数组 np.array
"""
assert self._x_train is not None and self._y_train is not None,\
"must fit before predict"
assert x_predict.shape[1]==self._x_train.shape[1],\
"the feature number of the x_train must be equal to the x_preduction"
y_predict=[self._predict(x) for x in x_predict]
return np.array(y_predict)
def _predict(self,x):
"""
返回一个值
:param x: 用来计算每一个样例的预测结果。
:return: 返回每一个样例的预测结果。
"""
distences=[sqrt(np.sum((train_x-x)**2)) for train_x in self._x_train]
votes=Counter(self._y_train[np.argsort(distences)[:self.k]])
return votes.most_common(1)[0][0]
def score(self,x_test,y_test):
"""
根据传入的测试集,来预测准确度为多少
:param x_test: 测试集的数据
:param y_test: 测试集的label
:return: 返回的是准确度
"""
assert x_test.shape[0]==y_test.shape[0],\
"the size of the x_test must be equal to the y_test"
y_predict=self.predict(x_test)
return np.sum(y_predict==y_test)/len(y_test)
使用这个KNN 分类器进行分类预测,代码如下:
首先根据上图的数据构造标记结果,这里设置 x+y<20 就是良性肿瘤。
label=[]
for p in data:
if p[0]+p[1]<20:
label.append(0)
else:
label.append(1)
print(label)
完整的测试代码如下
import numpy as np
import matplotlib.pyplot as plot
data=np.asarray([[ 1 , 0],[ 0 ,14],[ 2 ,18],[11 , 6],
[ 2, 11],[ 0 ,17],[12 ,12],[10 , 5],[18 , 4],[ 8 ,13],
[14 ,17],[ 8 ,15],[ 0 , 3],[ 3 , 6],[11 , 9],[20 , 8],
[ 2 , 9],[ 1 , 5],[15, 14],[ 3 ,18],[10 , 6],[11 , 5],
[15 , 9],[ 9 , 0],[ 0 ,13]])
x=data[:,0]
y=data[:,1]
index=np.argsort(x)
x=x[index]
y=y[index]
Bx=[]
By=[]
Gx=[]
Gy=[]
for i in range(len(x)):
if x[i]+y[i]<20:
Bx.append(x[i])
By.append(y[i])
else:
Gx.append(x[i])
Gy.append(y[i])
plot.scatter(Bx,By)
plot.scatter(Gx,Gy)
plot.scatter([11],[10])
plot.title('肿瘤数据:蓝色良性,橙色恶性')
plot.ylabel('肿瘤的时间')
plot.xlabel('肿瘤的大小')
plot.savefig(figsize=[10,10],fname="haha.png")
plot.show()
## 设置label
label=[]
for p in data:
if p[0]+p[1]<20:
label.append(0)
else:
label.append(1)
print(label)
from knn.py import kNNClassifier
knn=kNNClassifier(3)
knn.fit(data,np.asarray(label))
## 预测一下 (11,10) 和 (5,5) 分别属于哪一类
predict=knn.predict(np.asarray([[11,10],[5,5]]))
print(predict)
使用sklearn 中的KNN分类器
KNN算法由于其简单并且效果好的特点,被很多主流机器学习库实现,下面展示 sklearn 中的KNN算法
这里我们使用的数据集是一个叫做鸢尾花的数据集,数据集的信息如下:
Iris plants dataset
--------------------
**Data Set Characteristics:**
:Number of Instances: 150 (50 in each of three classes)
:Number of Attributes: 4 numeric, predictive attributes and the class
:Attribute Information:
- sepal length in cm
- sepal width in cm
- petal length in cm
- petal width in cm
- class:
- Iris-Setosa
- Iris-Versicolour
- Iris-Virginica
可知,该数据集有四个特征:sepal length,sepal width,petal length,petal width;单位都是厘米,类别一共有 3类。一共有150个样本,每一类样本有50个。
使用 KNN 算法进行预测,并计算最终准确度
import sklearn.datasets as datasets
import numpy as np
from sklearn.model_selection import train_test_split
from sklearn.neighbors import KNeighborsClassifier
iris=datasets.load_iris()
data=iris.data
label=iris.target
# 打乱顺序
perm=np.random.permutation(data.shape[0])
data=data[perm]
label=label[perm]
# 分开训练集和测试集
x_train,x_test,y_train,y_test=train_test_split(data,label,test_size=0.2,random_state=666)
# 使用 sklearn 的KNN 算法进行预测。
knn=KNeighborsClassifier(3)
knn.fit(x_train,y_train)
score=knn.score(x_test,y_test)
print("准确度为: {0}".format(score))
输出结果: 准确度为: 0.9666666666666667
由输出结果可知,KNN虽然思想简单,但是效果不差。
