MxNet封装实现经典深度网络框架 LeNet,Alex-Net,Google-Net,ResNet

LeNet

import d2l
from mxnet import autograd, gluon, init, np, npx
from mxnet.gluon import nn
npx.set_np()

train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size=256)

## 定义模型

net = nn.Sequential()
net.add(nn.Conv2D(channels=6, kernel_size=5, padding=2, activation='sigmoid'),
        nn.AvgPool2D(pool_size=2, strides=2),
        nn.Conv2D(channels=16, kernel_size=5, activation='sigmoid'),
        nn.AvgPool2D(pool_size=2, strides=2),
        nn.Dense(120, activation='sigmoid'),
        nn.Dense(84, activation='sigmoid'),
        nn.Dense(10))

打印每一层的输出形状

X = np.random.uniform(size=(1, 1, 28, 28))
net.initialize()
for layer in net:
    X = layer(X)
    print(layer.name, 'output shape:\t', X.shape)

conv0 output shape: (1, 6, 28, 28)
pool0 output shape: (1, 6, 14, 14)
conv1 output shape: (1, 16, 10, 10)
pool1 output shape: (1, 16, 5, 5)
dense0 output shape: (1, 120)
dense1 output shape: (1, 84)
dense2 output shape: (1, 10)

在GPU上计算精度

def evaluate_accuracy_gpu(net, data_iter, ctx=None):
    if not ctx:  # 查看第一个权重的第一个设备。
        ctx = list(net.collect_params().values())[0].list_ctx()[0]
    metric = d2l.Accumulator(2)  # 正确的样本数，总样本数。
    for X, y in data_iter:
        X, y = X.as_in_context(ctx), y.as_in_context(ctx)
        metric.add(d2l.accuracy(net(X), y), y.size)
    return metric[0]/metric[1]

在GPU上训练

def train_ch5(net, train_iter, test_iter, num_epochs, lr, ctx=d2l.try_gpu()):
    net.initialize(force_reinit=True, ctx=ctx, init=init.Xavier())
    loss = gluon.loss.SoftmaxCrossEntropyLoss()
    trainer = gluon.Trainer(net.collect_params(), 'sgd', {'learning_rate': lr})
    animator = d2l.Animator(xlabel='epoch', xlim=[0,num_epochs],
                            legend=['train loss','train acc','test acc'])
    timer = d2l.Timer()
    for epoch in range(num_epochs):
        metric = d2l.Accumulator(3)  # 训练损失和，训练精度和，样本数。
        for i, (X, y) in enumerate(train_iter):
            timer.start()
            # 这是跟 train_epoch_ch3 的唯一区别。
            X, y = X.as_in_context(ctx), y.as_in_context(ctx)
            with autograd.record():
                y_hat = net(X)
                l = loss(y_hat, y)
            l.backward()
            trainer.step(X.shape[0])
            metric.add(l.sum(), d2l.accuracy(y_hat, y), X.shape[0])
            timer.stop()
            train_loss, train_acc = metric[0]/metric[2], metric[1]/metric[2]
            if (i+1) % 50 == 0:
                animator.add(epoch + i/len(train_iter),
                             (train_loss, train_acc, None))
        test_acc = evaluate_accuracy_gpu(net, test_iter)
        animator.add(epoch+1, (None, None, test_acc))
    print('loss %.3f, train acc %.3f, test acc %.3f' % (
        train_loss, train_acc, test_acc))
    print('%.1f exampes/sec on %s'%(metric[2]*num_epochs/timer.sum(), ctx))

训练模型

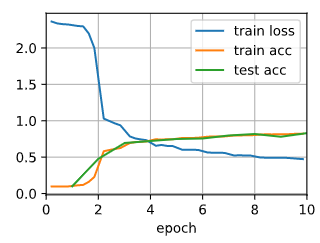

train_ch5(net, train_iter, test_iter, num_epochs=10, lr=0.9)

loss 0.472, train acc 0.822, test acc 0.829
60080.8 exampes/sec on gpu(0)

AlexNet（2012）

import d2l
from mxnet import gluon, np, npx
from mxnet.gluon import nn
npx.set_np()

train_iter, test_iter = d2l.load_data_fashion_mnist(
    batch_size=128, resize=224)

定义模型

net = nn.Sequential()
net.add(# 使用较大的11 x 11窗口来捕获大物体。
        nn.Conv2D(96, kernel_size=11, strides=4, activation='relu'),
        nn.MaxPool2D(pool_size=3, strides=2),
        # 减小卷积窗口，使用填充为2来使得输入与输出的高和宽一致，且增大输出通道数
        nn.Conv2D(256, kernel_size=5, padding=2, activation='relu'),
        nn.MaxPool2D(pool_size=3, strides=2),
        # 连续3个卷积层，且使用更小的卷积窗口。除了最后的卷积层外，进一步增大了输出通道数。
        # 前两个卷积层后不使用池化层来减小输入的高和宽
        nn.Conv2D(384, kernel_size=3, padding=1, activation='relu'),
        nn.Conv2D(384, kernel_size=3, padding=1, activation='relu'),
        nn.Conv2D(256, kernel_size=3, padding=1, activation='relu'),
        nn.MaxPool2D(pool_size=3, strides=2),
        # 这里全连接层的输出个数比LeNet中的大数倍。使用丢弃层来缓解过拟合
        nn.Dense(4096, activation="relu"), nn.Dropout(0.5),
        nn.Dense(4096, activation="relu"), nn.Dropout(0.5),
        nn.Dense(10))

查看每一层的输出形状

X = np.random.uniform(size=(1, 1, 224, 224))
net.initialize()
for layer in net:
    X = layer(X)
    print(layer.name, 'output shape:\t', X.shape)

conv0 output shape: (1, 96, 54, 54)
pool0 output shape: (1, 96, 26, 26)
conv1 output shape: (1, 256, 26, 26)
pool1 output shape: (1, 256, 12, 12)
conv2 output shape: (1, 384, 12, 12)
conv3 output shape: (1, 384, 12, 12)
conv4 output shape: (1, 256, 12, 12)
pool2 output shape: (1, 256, 5, 5)
dense0 output shape: (1, 4096)
dropout0 output shape: (1, 4096)
dense1 output shape: (1, 4096)
dropout1 output shape: (1, 4096)
dense2 output shape: (1, 10)

训练

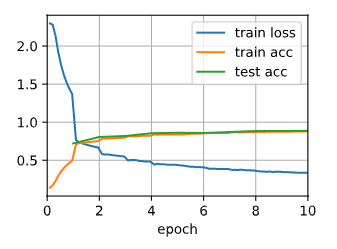

d2l.train_ch5(net, train_iter, test_iter, num_epochs=10, lr=0.01)

loss 0.335, train acc 0.878, test acc 0.889
4070.5 exampes/sec on gpu(0)

VGG

import d2l
from mxnet import gluon, np, npx
from mxnet.gluon import nn
npx.set_np()

train_iter, test_iter = d2l.load_data_fashion_mnist(
    batch_size=128, resize=224)

VGG块

def vgg_block(num_convs, num_channels):
    blk = nn.Sequential()
    for _ in range(num_convs):
        blk.add(nn.Conv2D(num_channels, kernel_size=3,
                          padding=1, activation='relu'))
    blk.add(nn.MaxPool2D(pool_size=2, strides=2))
    return blk

定义模型

onv_arch = ((1, 64), (1, 128), (2, 256), (2, 512), (2, 512))

def vgg(conv_arch):
    net = nn.Sequential()
    # 卷积层部分。
    for (num_convs, num_channels) in conv_arch:
        net.add(vgg_block(num_convs, num_channels))
    # 全连接层部分。
    net.add(nn.Dense(4096, activation='relu'), nn.Dropout(0.5),
            nn.Dense(4096, activation='relu'), nn.Dropout(0.5),
            nn.Dense(10))
    return net

net = vgg(conv_arch)

使用一个窄版本来训练

ratio = 4
small_conv_arch = [(pair[0], pair[1] // ratio) for pair in conv_arch]
net = vgg(small_conv_arch)

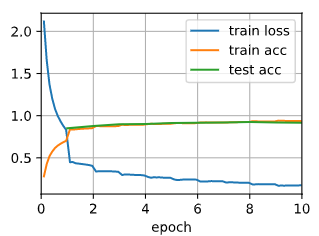

d2l.train_ch5(net, train_iter, test_iter, num_epochs=10, lr=0.05)

loss 0.174, train acc 0.936, test acc 0.916
1839.6 exampes/sec on gpu(0)

GoogLeNet

import d2l
from mxnet import gluon, np, npx
from mxnet.gluon import nn
npx.set_np()

train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size=128, resize=96)

Inception块

class Inception(nn.Block):
    # c1 - c4 为每条线路里的层的输出通道数
    def __init__(self, c1, c2, c3, c4, **kwargs):
        super(Inception, self).__init__(**kwargs)
        # 线路1，单1 x 1卷积层
        self.p1_1 = nn.Conv2D(c1, kernel_size=1, activation='relu')
        # 线路2，1 x 1卷积层后接3 x 3卷积层
        self.p2_1 = nn.Conv2D(c2[0], kernel_size=1, activation='relu')
        self.p2_2 = nn.Conv2D(c2[1], kernel_size=3, padding=1, activation='relu')
        # 线路3，1 x 1卷积层后接5 x 5卷积层
        self.p3_1 = nn.Conv2D(c3[0], kernel_size=1, activation='relu')
        self.p3_2 = nn.Conv2D(c3[1], kernel_size=5, padding=2, activation='relu')
        # 线路4，3 x 3最大池化层后接1 x 1卷积层
        self.p4_1 = nn.MaxPool2D(pool_size=3, strides=1, padding=1)
        self.p4_2 = nn.Conv2D(c4, kernel_size=1, activation='relu')
    def forward(self, x):
        p1 = self.p1_1(x)
        p2 = self.p2_2(self.p2_1(x))
        p3 = self.p3_2(self.p3_1(x))
        p4 = self.p4_2(self.p4_1(x))
        # 在通道维上连结输出
        return np.concatenate((p1, p2, p3, p4), axis=1)

Inception模型，第一阶段

b1 = nn.Sequential()
b1.add(nn.Conv2D(64, kernel_size=7, strides=2, padding=3, activation='relu'),
       nn.MaxPool2D(pool_size=3, strides=2, padding=1))

Inception模型，第二阶段

b2 = nn.Sequential()
b2.add(nn.Conv2D(64, kernel_size=1),
       nn.Conv2D(192, kernel_size=3, padding=1),
       nn.MaxPool2D(pool_size=3, strides=2, padding=1))

Inception模型，第三阶段

b3 = nn.Sequential()
b3.add(Inception(64, (96, 128), (16, 32), 32),
       Inception(128, (128, 192), (32, 96), 64),
       nn.MaxPool2D(pool_size=3, strides=2, padding=1))

Inception模型，第四阶段

b4 = nn.Sequential()
b4.add(Inception(192, (96, 208), (16, 48), 64),
       Inception(160, (112, 224), (24, 64), 64),
       Inception(128, (128, 256), (24, 64), 64),
       Inception(112, (144, 288), (32, 64), 64),
       Inception(256, (160, 320), (32, 128), 128),
       nn.MaxPool2D(pool_size=3, strides=2, padding=1))

Inception 模型 - 第五阶段

b5 = nn.Sequential()
b5.add(Inception(256, (160, 320), (32, 128), 128),
       Inception(384, (192, 384), (48, 128), 128),
       nn.GlobalAvgPool2D())

net = nn.Sequential()
net.add(b1, b2, b3, b4, b5, nn.Dense(10))

查看网络

X = np.random.uniform(size=(1, 1, 96, 96))
net.initialize()
for layer in net:
    X = layer(X)
    print(layer.name, 'output shape:\t', X.shape)

sequential0 output shape: (1, 64, 24, 24)
sequential1 output shape: (1, 192, 12, 12)
sequential2 output shape: (1, 480, 6, 6)
sequential3 output shape: (1, 832, 3, 3)
sequential4 output shape: (1, 1024, 1, 1)
dense0 output shape: (1, 10)

训练

d2l.train_ch5(net, train_iter, test_iter, num_epochs=5, lr=0.1)

loss 0.336, train acc 0.873, test acc 0.879
2732.2 exampes/sec on gpu(0)

ResNet

import d2l
from mxnet import gluon, np, npx
from mxnet.gluon import nn
npx.set_np()

train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size=256, resize=96)

残差块

class Residual(nn.Block):
    def __init__(self, num_channels, use_1x1conv=False, strides=1, **kwargs):
        super(Residual, self).__init__(**kwargs)
        self.conv1 = nn.Conv2D(num_channels, kernel_size=3, padding=1, strides=strides)
        self.conv2 = nn.Conv2D(num_channels, kernel_size=3, padding=1)
        self.conv3 = None
        if use_1x1conv:
            self.conv3 = nn.Conv2D(num_channels, kernel_size=1, strides=strides)
        self.bn1 = nn.BatchNorm()
        self.bn2 = nn.BatchNorm()

    def forward(self, X):
        Y = npx.relu(self.bn1(self.conv1(X)))
        Y = self.bn2(self.conv2(Y))
        if self.conv3:
            X = self.conv3(X)
        return npx.relu(Y + X)

当输入和输出形状一样时

blk = Residual(3)
blk.initialize()
X = np.random.uniform(size=(4, 3, 6, 6))
blk(X).shape

减半输出高和宽，并增加输出通道。

blk = Residual(6, use_1x1conv=True, strides=2)
blk.initialize()

resnet块

def resnet_block(num_channels, num_residuals, first_block=False):
    blk = nn.Sequential()
    for i in range(num_residuals):
        if i == 0 and not first_block:
            blk.add(Residual(num_channels, use_1x1conv=True, strides=2))
        else:
            blk.add(Residual(num_channels))
    return blk

整个模块

net = nn.Sequential()
net.add(nn.Conv2D(64, kernel_size=7, strides=2, padding=3),
        nn.BatchNorm(), nn.Activation('relu'),
        nn.MaxPool2D(pool_size=3, strides=2, padding=1),
        resnet_block(64, 2, first_block=True),
        resnet_block(128, 2),
        resnet_block(256, 2),
        resnet_block(512, 2),
        nn.GlobalAvgPool2D(),
        nn.Dense(10))

训练

d2l.train_ch5(net, train_iter, test_iter, num_epochs=10, lr=0.05)

loss 0.013, train acc 0.997, test acc 0.879
4900.2 exampes/sec on gpu(0)
