图像修复实例解析（三）

本篇基于SIGGRAPH 2017 (ACM ToG)的 Globally and Locally Consistent Image Completion

(CE中加入Global+Local两个判别器的改进)，

proj:http://hi.cs.waseda.ac.jp/~iizuka/projects/completion/

Github代码:

1)https://github.com/satoshiiizuka/siggraph2017_inpaintinggithub.com

2)https://github.com/shinseung428/GlobalLocalImageCompletion_TF

其中第二个实现稍微不同于原论文。但是展示效果非常棒。第一个是官方代码。

因此，我这边主要以2）中的代码解析为例。先看看readme.

Tensorflow implementation of Globally and Locally Consistent Image Completion on celebA dataset.

因此数据集采用的是celebA自行下载即可。当然也可以自己准备数据集，后面时间充足的情况下，我准备利用亚洲人脸重新训练此模型。

What's different from the paper

smaller image input size (64x64)
smaller patch sizes
less number of training iteration (500,000 iterations in the paper)
Adam optimizer used instead of Adadelta

Requirements

Opencv 2.4
Tensorflow 1.4

Folder Setting

-data
  -img_align_celeba
    -...

Train

$ python train.py

To continue training

$ python train.py --continue_training=True

Test

Download pretrained weights

$ python download.py

$ python test.py --img_path=./data/test/test_img.jpg

简单如上，dataset直接解压后放到指定目录，比如我的直接放到了

/home/gavin/Dataset/，那么训练的时候加上参数即可：

 python3 train.py --continue_training=True --data /home/gavin/Dataset/

由于原版是Python2 版本，可能有些写法需要修改，我这边小修小改已经改成了python3版本，

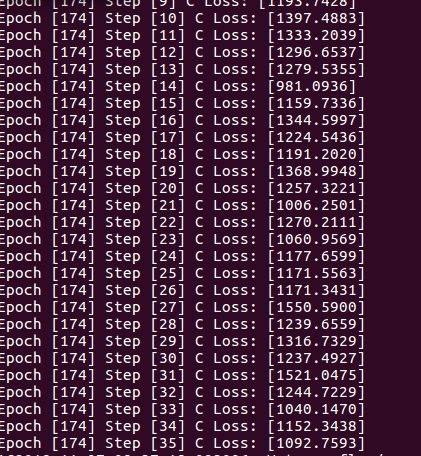

训练截图如下：

最后是test，代码如下：

import tensorflow as tf
import numpy as np
from config import *
from network import *


drawing = False # true if mouse is pressed
ix,iy = -1,-1
color = (255,255,255)
size = 10

def erase_img(args, img):

    # mouse callback function
    def erase_rect(event,x,y,flags,param):
        global ix,iy,drawing

        if event == cv2.EVENT_LBUTTONDOWN:
            drawing = True
            if drawing == True:
                # cv2.circle(img,(x,y),10,(255,255,255),-1)
                cv2.rectangle(img,(x-size,y-size),(x+size,y+size),color,-1)
                cv2.rectangle(mask,(x-size,y-size),(x+size,y+size),color,-1)

        elif event == cv2.EVENT_MOUSEMOVE:
            if drawing == True:
                # cv2.circle(img,(x,y),10,(255,255,255),-1)
                cv2.rectangle(img,(x-size,y-size),(x+size,y+size),color,-1)
                cv2.rectangle(mask,(x-size,y-size),(x+size,y+size),color,-1)
        elif event == cv2.EVENT_LBUTTONUP:
            drawing = False
            # cv2.circle(img,(x,y),10,(255,255,255),-1)
            cv2.rectangle(img,(x-size,y-size),(x+size,y+size),color,-1)
            cv2.rectangle(mask,(x-size,y-size),(x+size,y+size),color,-1)


    cv2.namedWindow('image')
    cv2.setMouseCallback('image',erase_rect)
    #cv2.namedWindow('mask')
    #cv2.setMouseCallback('mask',erase_rect)
    mask = np.zeros(img.shape)


    while(1):
        img_show = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
        cv2.imshow('image',img_show)
        k = cv2.waitKey(1) & 0xFF
        if k == 27:#esc ord('q')
            break

    test_img = cv2.resize(img, (args.input_height, args.input_width))/127.5 - 1
    test_mask = cv2.resize(mask, (args.input_height, args.input_width))/255.0
    #fill mask region to 1
    test_img = (test_img * (1-test_mask)) + test_mask

    cv2.destroyAllWindows()
    return np.tile(test_img[np.newaxis,...], [args.batch_size,1,1,1]), np.tile(test_mask[np.newaxis,...], [args.batch_size,1,1,1])




def test(args, sess, model):
    #saver
    saver = tf.train.Saver()
    last_ckpt = tf.train.latest_checkpoint(args.checkpoints_path)
    saver.restore(sess, last_ckpt)
    ckpt_name = str(last_ckpt)
    print("Loaded model file from " + ckpt_name)

    img = cv2.imread(args.img_path)
    img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
    orig_test = cv2.resize(img, (args.input_height, args.input_width))/127.5 - 1
    orig_test = np.tile(orig_test[np.newaxis,...],[args.batch_size,1,1,1])
    orig_test = orig_test.astype(np.float32)

    orig_w, orig_h = img.shape[0], img.shape[1]
    test_img, mask = erase_img(args, img)
    test_img = test_img.astype(np.float32)

    print("Testing ...")
    res_img = sess.run(model.test_res_imgs, feed_dict={model.single_orig:orig_test,
                                                       model.single_test:test_img,
                                                       model.single_mask:mask})


    orig = cv2.resize((orig_test[0]+1)/2, (orig_h//2, orig_w//2) )
    test = cv2.resize((test_img[0]+1)/2, (orig_h//2, orig_w//2))
    recon = cv2.resize((res_img[0]+1)/2, (orig_h//2, orig_w//2))

    res = np.hstack([orig,test,recon])
    res = cv2.cvtColor(res, cv2.COLOR_BGR2RGB)

    '''
    orig = cv2.cvtColor(orig, cv2.COLOR_BGR2RGB)
    cv2.imshow("orig", orig)
    test = cv2.cvtColor(test, cv2.COLOR_BGR2RGB)
    cv2.imshow("test", test)
    recon = cv2.cvtColor(recon, cv2.COLOR_BGR2RGB)
    cv2.imshow("recon", recon)
    '''

    cv2.imshow("result", res)
    cv2.waitKey()
    cv2.destroyAllWindows()

    print("Done.")


def main(_):
    run_config = tf.ConfigProto()
    run_config.gpu_options.allow_growth = True

    with tf.Session(config=run_config) as sess:
        init_op = tf.group(tf.global_variables_initializer(), tf.local_variables_initializer())
        sess.run(init_op)
        model = network(args)
        print('Start Testing...')
        test(args, sess, model)

main(args)

效果展示：

运行后，出现原图，然后鼠标点击可以涂mask，最后按住Esc完成操作，程序自动进行修复。

Alt text
