基于keras实现多标签分类（multi-label classification）

首先讨论多标签分类数据集（以及如何快速构建自己的数据集）。

之后简要讨论SmallerVGGNet，我们将实现的Keras神经网络架构，并用于多标签分类。

然后我们将实施SmallerVGGNet并使用我们的多标签分类数据集对其进行训练。

最后，我们将通过在示例图像上测试我们的网络，并讨论何时适合多标签分类，包括需要注意的一些注意事项。

multi-label classification dataset

---

数据集包含六个类别的2,167个图像，包括：

黑色牛仔裤（344图像）
蓝色连衣裙（386图像）
蓝色牛仔裤（356图像）
蓝色衬衫（369图像）
红色连衣裙（380图像）
红色衬衫（332图像）

6类图像数据可以通过python爬虫在网站上抓取得到。

为了方便起见，可以通过使用Bing图像搜索API（Microsoft’s Bing Image Search API）建立图像数据（需要在线注册获得api key，使用key进行图像搜索），python代码：

# import the necessary packages
from requests import exceptions
import argparse
import requests
import cv2
import os

# construct the argument parser and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-q", "--query", required=True,
	help="search query to search Bing Image API for")
ap.add_argument("-o", "--output", required=True,
	help="path to output directory of images")
args = vars(ap.parse_args())

# set your Microsoft Cognitive Services API key along with (1) the
# maximum number of results for a given search and (2) the group size
# for results (maximum of 50 per request)
API_KEY = "YOUR_API_KEY_GOES_HERE"
MAX_RESULTS = 250
GROUP_SIZE = 50

# set the endpoint API URL
URL = "https://api.cognitive.microsoft.com/bing/v7.0/images/search"

# when attempting to download images from the web both the Python
# programming language and the requests library have a number of
# exceptions that can be thrown so let's build a list of them now
# so we can filter on them
EXCEPTIONS = set([IOError, FileNotFoundError,
	exceptions.RequestException, exceptions.HTTPError,
	exceptions.ConnectionError, exceptions.Timeout])

# store the search term in a convenience variable then set the
# headers and search parameters
term = args["query"]
headers = {"Ocp-Apim-Subscription-Key" : API_KEY}
params = {"q": term, "offset": 0, "count": GROUP_SIZE}

# make the search
print("[INFO] searching Bing API for '{}'".format(term))
search = requests.get(URL, headers=headers, params=params)
search.raise_for_status()

# grab the results from the search, including the total number of
# estimated results returned by the Bing API
results = search.json()
estNumResults = min(results["totalEstimatedMatches"], MAX_RESULTS)
print("[INFO] {} total results for '{}'".format(estNumResults,
	term))

# initialize the total number of images downloaded thus far
total = 0

# loop over the estimated number of results in `GROUP_SIZE` groups
for offset in range(0, estNumResults, GROUP_SIZE):
	# update the search parameters using the current offset, then
	# make the request to fetch the results
	print("[INFO] making request for group {}-{} of {}...".format(
		offset, offset + GROUP_SIZE, estNumResults))
	params["offset"] = offset
	search = requests.get(URL, headers=headers, params=params)
	search.raise_for_status()
	results = search.json()
	print("[INFO] saving images for group {}-{} of {}...".format(
		offset, offset + GROUP_SIZE, estNumResults))

    # loop over the results
	for v in results["value"]:
		# try to download the image
		try:
			# make a request to download the image
			print("[INFO] fetching: {}".format(v["contentUrl"]))
			r = requests.get(v["contentUrl"], timeout=30)

			# build the path to the output image
			ext = v["contentUrl"][v["contentUrl"].rfind("."):]
			p = os.path.sep.join([args["output"], "{}{}".format(
				str(total).zfill(8), ext)])

			# write the image to disk
			f = open(p, "wb")
			f.write(r.content)
			f.close()

		# catch any errors that would not unable us to download the
		# image
		except Exception as e:
			# check to see if our exception is in our list of
			# exceptions to check for
			if type(e) in EXCEPTIONS:
				print("[INFO] skipping: {}".format(v["contentUrl"]))
				continue

        # try to load the image from disk
		image = cv2.imread(p)

		# if the image is `None` then we could not properly load the
		# image from disk (so it should be ignored)
		if image is None:
			print("[INFO] deleting: {}".format(p))
			os.remove(p)
			continue

		# update the counter
		total += 1

新建一个文件夹dataset：mkdir dataset

mkdir dataset/charmander
python search_bing_api.py --query "charmander" --output dataset/charmander
[INFO] searching Bing API for 'charmander'
[INFO] 250 total results for 'charmander'
[INFO] making request for group 0-50 of 250...
[INFO] saving images for group 0-50 of 250...
[INFO] fetching: http://fc06.deviantart.net/fs70/i/2012/355/8/2/0004_c___charmander_by_gaghiel1987-d5oqbts.png
[INFO] fetching: http://th03.deviantart.net/fs71/PRE/f/2010/067/5/d/Charmander_by_Woodsman819.jpg
[INFO] fetching: http://fc05.deviantart.net/fs70/f/2011/120/8/6/pokemon___charmander_by_lilnutta10-d2vr4ov.jpg
...
[INFO] making request for group 50-100 of 250...
[INFO] saving images for group 50-100 of 250...
...
[INFO] fetching: http://38.media.tumblr.com/f0fdd67a86bc3eee31a5fd16a44c07af/tumblr_nbhf2vTtSH1qc9mvbo1_500.gif
[INFO] deleting: dataset/charmander/00000174.gif
...

mkdir dataset/pikachu
python search_bing_api.py --query "pikachu" --output dataset/pikachu
[INFO] searching Bing API for 'pikachu'
[INFO] 250 total results for 'pikachu'
[INFO] making request for group 0-50 of 250...
[INFO] saving images for group 0-50 of 250...
[INFO] fetching: http://www.mcmbuzz.com/wp-content/uploads/2014/07/025Pikachu_OS_anime_4.png
[INFO] fetching: http://images4.fanpop.com/image/photos/23300000/Pikachu-pikachu-23385603-814-982.jpg
[INFO] fetching: http://images6.fanpop.com/image/photos/33000000/pikachu-pikachu-33005706-895-1000.png
...

mkdir dataset/pikachu
python search_bing_api.py --query "pikachu" --output dataset/pikachu
[INFO] searching Bing API for 'pikachu'
[INFO] 250 total results for 'pikachu'
[INFO] making request for group 0-50 of 250...
[INFO] saving images for group 0-50 of 250...
[INFO] fetching: http://www.mcmbuzz.com/wp-content/uploads/2014/07/025Pikachu_OS_anime_4.png
[INFO] fetching: http://images4.fanpop.com/image/photos/23300000/Pikachu-pikachu-23385603-814-982.jpg
[INFO] fetching: http://images6.fanpop.com/image/photos/33000000/pikachu-pikachu-33005706-895-1000.png
...

mkdir dataset/squirtle
python search_bing_api.py --query "squirtle" --output dataset/squirtle
[INFO] searching Bing API for 'squirtle'
[INFO] 250 total results for 'squirtle'
[INFO] making request for group 0-50 of 250...
[INFO] saving images for group 0-50 of 250...
[INFO] fetching: http://fc03.deviantart.net/fs71/i/2013/082/1/3/007_squirtle_by_pklucario-d5z1gj5.png
[INFO] fetching: http://fc03.deviantart.net/fs70/i/2012/035/b/2/squirtle_by_maii1234-d4oo1aq.jpg
[INFO] fetching: http://3.bp.blogspot.com/-yeK-y_dHCCQ/TWBkDZKi6vI/AAAAAAAAABU/_TVDXBrxrkg/s1600/Leo%2527s+Squirtle.jpg
...

mkdir dataset/bulbasaur
python search_bing_api.py --query "bulbasaur" --output dataset/bulbasaur
[INFO] searching Bing API for 'bulbasaur'
[INFO] 250 total results for 'bulbasaur'
[INFO] making request for group 0-50 of 250...
[INFO] saving images for group 0-50 of 250...
[INFO] fetching: http://fc06.deviantart.net/fs51/f/2009/261/3/e/Bulbasaur_by_elfaceitoso.png
[INFO] skipping: http://fc06.deviantart.net/fs51/f/2009/261/3/e/Bulbasaur_by_elfaceitoso.png
[INFO] fetching: http://4.bp.blogspot.com/-b-dLFLsHtm4/Tq9265UAmjI/AAAAAAAAHls/CrkUUFrj6_c/s1600/001Bulbasaur+pokemon+firered+leafgreen.png
[INFO] skipping: http://4.bp.blogspot.com/-b-dLFLsHtm4/Tq9265UAmjI/AAAAAAAAHls/CrkUUFrj6_c/s1600/001Bulbasaur+pokemon+firered+leafgreen.png
[INFO] fetching: http://fc09.deviantart.net/fs71/i/2012/088/9/6/bulbasaur_by_songokukai-d4gecpp.png
...

使用find方法得到下载的图像数据数目

find . -type d -print0 | while read -d '' -r dir; do
> files=("$dir"/*)
> printf "%5d files in directory %s\n" "${#files[@]}" "$dir"
> done
    2 files in directory .
    5 files in directory ./dataset
  235 files in directory ./dataset/bulbasaur
  245 files in directory ./dataset/charmander
  245 files in directory ./dataset/mewtwo
  238 files in directory ./dataset/pikachu
  230 files in directory ./dataset/squirtle

之后打开下载的数据，进行一些手工剔除不相关的数据。数据制作over。

---

多标签分类multi-label classsification

---

这里给出的是项目的文件结构

├── classify.py
├── dataset
│   ├── black_jeans [344 entries
│   ├── blue_dress [386 entries]
│   ├── blue_jeans [356 entries]
│   ├── blue_shirt [369 entries]
│   ├── red_dress [380 entries]
│   └── red_shirt [332 entries]
├── examples
│   ├── example_01.jpg
│   ├── example_02.jpg
│   ├── example_03.jpg
│   ├── example_04.jpg
│   ├── example_05.jpg
│   ├── example_06.jpg
│   └── example_07.jpg
├── fashion.model
├── mlb.pickle
├── plot.png
├── pyimagesearch
│   ├── __init__.py
│   └── smallervggnet.py
├── search_bing_api.py
└── train.py

多标签分类的网络结构--smallervggnet【Very Deep Convolutional Networks for Large Scale Image Recognition.】

https://arxiv.org/pdf/1409.1556/

smallervggnet.py

# import the necessary packages
from keras.models import Sequential
from keras.layers.normalization import BatchNormalization
from keras.layers.convolutional import Conv2D
from keras.layers.convolutional import MaxPooling2D
from keras.layers.core import Activation
from keras.layers.core import Flatten
from keras.layers.core import Dropout
from keras.layers.core import Dense
from keras import backend as K

class SmallerVGGNet:
	@staticmethod
	def build(width, height, depth, classes, finalAct="softmax"):
		# initialize the model along with the input shape to be
		# "channels last" and the channels dimension itself
		model = Sequential()
		inputShape = (height, width, depth)
		chanDim = -1

		# if we are using "channels first", update the input shape
		# and channels dimension
		if K.image_data_format() == "channels_first":
			inputShape = (depth, height, width)
			chanDim = 1

ti-label classification with KerasPython

		# CONV => RELU => POOL
		model.add(Conv2D(32, (3, 3), padding="same",
			input_shape=inputShape))
		model.add(Activation("relu"))
		model.add(BatchNormalization(axis=chanDim))
		model.add(MaxPooling2D(pool_size=(3, 3)))
		model.add(Dropout(0.25))

		# CONV => RELU => POOL
		model.add(Conv2D(32, (3, 3), padding="same",
			input_shape=inputShape))
		model.add(Activation("relu"))
		model.add(BatchNormalization(axis=chanDim))
		model.add(MaxPooling2D(pool_size=(3, 3)))
		model.add(Dropout(0.25))

	    # (CONV => RELU) * 2 => POOL
		model.add(Conv2D(64, (3, 3), padding="same"))
		model.add(Activation("relu"))
		model.add(BatchNormalization(axis=chanDim))
		model.add(Conv2D(64, (3, 3), padding="same"))
		model.add(Activation("relu"))
		model.add(BatchNormalization(axis=chanDim))
		model.add(MaxPooling2D(pool_size=(2, 2)))
		model.add(Dropout(0.25))

		# (CONV => RELU) * 2 => POOL
		model.add(Conv2D(128, (3, 3), padding="same"))
		model.add(Activation("relu"))
		model.add(BatchNormalization(axis=chanDim))
		model.add(Conv2D(128, (3, 3), padding="same"))
		model.add(Activation("relu"))
		model.add(BatchNormalization(axis=chanDim))
		model.add(MaxPooling2D(pool_size=(2, 2)))
		model.add(Dropout(0.25))

	    # first (and only) set of FC => RELU layers
		model.add(Flatten())
		model.add(Dense(1024))
		model.add(Activation("relu"))
		model.add(BatchNormalization())
		model.add(Dropout(0.5))

		# use a *softmax* activation for single-label classification
		# and *sigmoid* activation for multi-label classification
		model.add(Dense(classes))
		model.add(Activation(finalAct))

		# return the constructed network architecture
		return model

train.py

# set the matplotlib backend so figures can be saved in the background
import matplotlib
matplotlib.use("Agg")

# import the necessary packages
from keras.preprocessing.image import ImageDataGenerator
from keras.optimizers import Adam
from keras.preprocessing.image import img_to_array
from sklearn.preprocessing import MultiLabelBinarizer
from sklearn.model_selection import train_test_split
from pyimagesearch.smallervggnet import SmallerVGGNet
import matplotlib.pyplot as plt
from imutils import paths
import numpy as np
import argparse
import random
import pickle
import cv2
import os

# construct the argument parse and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-d", "--dataset", required=True,
	help="path to input dataset (i.e., directory of images)")
ap.add_argument("-m", "--model", required=True,
	help="path to output model")
ap.add_argument("-l", "--labelbin", required=True,
	help="path to output label binarizer")
ap.add_argument("-p", "--plot", type=str, default="plot.png",
	help="path to output accuracy/loss plot")
args = vars(ap.parse_args())

# initialize the number of epochs to train for, initial learning rate,
# batch size, and image dimensions
EPOCHS = 75
INIT_LR = 1e-3
BS = 32
IMAGE_DIMS = (96, 96, 3)

# grab the image paths and randomly shuffle them
print("[INFO] loading images...")
imagePaths = sorted(list(paths.list_images(args["dataset"])))
random.seed(42)
random.shuffle(imagePaths)

# initialize the data and labels
data = []
labels = []

# loop over the input images
for imagePath in imagePaths:
	# load the image, pre-process it, and store it in the data list
	image = cv2.imread(imagePath)
	image = cv2.resize(image, (IMAGE_DIMS[1], IMAGE_DIMS[0]))
	image = img_to_array(image)
	data.append(image)

	# extract set of class labels from the image path and update the
	# labels list
	l = label = imagePath.split(os.path.sep)[-2].split("_")
	labels.append(l)

run

python
>>> import os
>>> labels = []
>>> imagePath = "dataset/red_dress/long_dress_from_macys_red.png"
>>> l = label = imagePath.split(os.path.sep)[-2].split("_")
>>> l
['red', 'dress']
>>> labels.append(l)
>>>
>>> imagePath = "dataset/blue_jeans/stylish_blue_jeans_from_your_favorite_store.png"
>>> l = label = imagePath.split(os.path.sep)[-2].split("_")
>>> labels.append(l)
>>>
>>> imagePath = "dataset/red_shirt/red_shirt_from_target.png"
>>> l = label = imagePath.split(os.path.sep)[-2].split("_")
>>> labels.append(l)
>>>
>>> labels
[['red', 'dress'], ['blue', 'jeans'], ['red', 'shirt']]

继续preprocessing

# scale the raw pixel intensities to the range [0, 1]
data = np.array(data, dtype="float") / 255.0
labels = np.array(labels)
print("[INFO] data matrix: {} images ({:.2f}MB)".format(
	len(imagePaths), data.nbytes / (1024 * 1000.0)))

# binarize the labels using scikit-learn's special multi-label
# binarizer implementation
print("[INFO] class labels:")
mlb = MultiLabelBinarizer()
labels = mlb.fit_transform(labels)

# loop over each of the possible class labels and show them
for (i, label) in enumerate(mlb.classes_):
	print("{}. {}".format(i + 1, label))

run

python
>>> from sklearn.preprocessing import MultiLabelBinarizer
>>> labels = [
...     ("blue", "jeans"),
...     ("blue", "dress"),
...     ("red", "dress"),
...     ("red", "shirt"),
...     ("blue", "shirt"),
...     ("black", "jeans")
... ]
>>> mlb = MultiLabelBinarizer()
>>> mlb.fit(labels)
MultiLabelBinarizer(classes=None, sparse_output=False)
>>> mlb.classes_
array(['black', 'blue', 'dress', 'jeans', 'red', 'shirt'], dtype=object)
>>> mlb.transform([("red", "dress")])
array([[0, 0, 1, 0, 1, 0]])

构建训练和测试数据集，做数据增强

# partition the data into training and testing splits using 80% of
# the data for training and the remaining 20% for testing
(trainX, testX, trainY, testY) = train_test_split(data,
	labels, test_size=0.2, random_state=42)

# construct the image generator for data augmentation
aug = ImageDataGenerator(rotation_range=25, width_shift_range=0.1,
	height_shift_range=0.1, shear_range=0.2, zoom_range=0.2,
	horizontal_flip=True, fill_mode="nearest")

构建模型，初始化Adam优化器

# initialize the model using a sigmoid activation as the final layer
# in the network so we can perform multi-label classification
print("[INFO] compiling model...")
model = SmallerVGGNet.build(
	width=IMAGE_DIMS[1], height=IMAGE_DIMS[0],
	depth=IMAGE_DIMS[2], classes=len(mlb.classes_),
	finalAct="sigmoid")

# initialize the optimizer
opt = Adam(lr=INIT_LR, decay=INIT_LR / EPOCHS)

编译模型，开始训练

# compile the model using binary cross-entropy rather than
# categorical cross-entropy -- this may seem counterintuitive for
# multi-label classification, but keep in mind that the goal here
# is to treat each output label as an independent Bernoulli
# distribution
model.compile(loss="binary_crossentropy", optimizer=opt,
	metrics=["accuracy"])

# train the network
print("[INFO] training network...")
H = model.fit_generator(
	aug.flow(trainX, trainY, batch_size=BS),
	validation_data=(testX, testY),
	steps_per_epoch=len(trainX) // BS,
	epochs=EPOCHS, verbose=1)

训练后保存模型，并二值化标签

# save the model to disk
print("[INFO] serializing network...")
model.save(args["model"])

# save the multi-label binarizer to disk
print("[INFO] serializing label binarizer...")
f = open(args["labelbin"], "wb")
f.write(pickle.dumps(mlb))
f.close()

绘制出acc,loss

# plot the training loss and accuracy
plt.style.use("ggplot")
plt.figure()
N = EPOCHS
plt.plot(np.arange(0, N), H.history["loss"], label="train_loss")
plt.plot(np.arange(0, N), H.history["val_loss"], label="val_loss")
plt.plot(np.arange(0, N), H.history["acc"], label="train_acc")
plt.plot(np.arange(0, N), H.history["val_acc"], label="val_acc")
plt.title("Training Loss and Accuracy")
plt.xlabel("Epoch #")
plt.ylabel("Loss/Accuracy")
plt.legend(loc="upper left")
plt.savefig(args["plot"])

绘制好的结果会保存成图片格式保存。

---

多标签分类模型训练

---

python train.py --dataset dataset --model fashion.model --labelbin mlb.pickle

---

使用训练完成的模型预测新的图像

---

classify.py

# import the necessary packages
from keras.preprocessing.image import img_to_array
from keras.models import load_model
import numpy as np
import argparse
import imutils
import pickle
import cv2
import os

# construct the argument parse and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-m", "--model", required=True,
	help="path to trained model model")
ap.add_argument("-l", "--labelbin", required=True,
	help="path to label binarizer")
ap.add_argument("-i", "--image", required=True,
	help="path to input image")
args = vars(ap.parse_args())

# load the image
image = cv2.imread(args["image"])
output = imutils.resize(image, width=400)

# pre-process the image for classification
image = cv2.resize(image, (96, 96))
image = image.astype("float") / 255.0
image = img_to_array(image)
image = np.expand_dims(image, axis=0)

# load the trained convolutional neural network and the multi-label
# binarizer
print("[INFO] loading network...")
model = load_model(args["model"])
mlb = pickle.loads(open(args["labelbin"], "rb").read())

# classify the input image then find the indexes of the two class
# labels with the *largest* probability
print("[INFO] classifying image...")
proba = model.predict(image)[0]
idxs = np.argsort(proba)[::-1][:2]

# loop over the indexes of the high confidence class labels
for (i, j) in enumerate(idxs):
	# build the label and draw the label on the image
	label = "{}: {:.2f}%".format(mlb.classes_[j], proba[j] * 100)
	cv2.putText(output, label, (10, (i * 30) + 25),
		cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 0), 2)

# show the probabilities for each of the individual labels
for (label, p) in zip(mlb.classes_, proba):
	print("{}: {:.2f}%".format(label, p * 100))

# show the output image
cv2.imshow("Output", output)
cv2.waitKey(0)

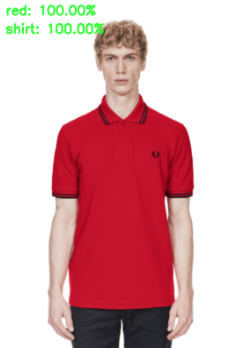

最终显示出预测的分类结果

python classify.py --model fashion.model --labelbin mlb.pickle \
    --image examples/example_01.jpg

使用Keras执行多标签分类非常简单，包括两个主要步骤：

1.使用sigmoid激活替换网络末端的softmax激活
2.二值交叉熵作为分类交叉熵损失函数

 shortcomings:

网络无法预测没有在训练集中出现过的数据样品，如果出现的次数过少，预测的效果也不会很好，解决办法是增大数据集，这样可能非常不容易，还有一种用的已经很多的方法用在大的数据集上训练得到的权重数据对网络做初始化，提高模型的泛化能力。
