一、二叉排序树
从今天起,就给大家分享二叉排序树的代码啦,首先给大家简单讲解一下相关概念。
二叉排序树也称为二叉查找树,二叉排序树是一棵空树或具有如下性质:
(1)若左子树不空,则左子树上所有结点的值均小于它的根结点的值;
(2)若右子树不空,则右子树上所有结点的值均大于它的根结点的值;
(3)左、右子树也分别为二叉排序树;
(4)没有键值相等的节点。
二叉排序树有这样一个特点:左子树结点值<根结点<右子树结点。所以对二叉树进行中序遍历会得到一个递增的序列。
废话不多说,接下来上代码,本次给大家分享的是二叉排序树的创建及遍历。
二、示例
利用递归算法将下列一组数据存入二叉排序树中,通过先序及中序遍历访问每个结点的编号,数据及所有的孩子结点。
{ 41,22,14,35,56,23,47,28,69,10,61,12 }
三、代码
#include<iostream>
#include<malloc.h>
using namespace std;
typedef struct BiSTNode {
int data;
int number;
struct BiSTNode *lChild, *rChild, *parent;
}BiSTNode,*BiSortTree;
int numData[] = { 41,22,14,35,56,23,47,28,69,10,61,12 };
int length = sizeof(numData) / sizeof(int);
int number = 0;
BiSortTree treeParent = NULL;
int OperationBiSortTree(BiSortTree &BST,int data) {
BST = (BiSortTree)malloc(sizeof(BiSTNode));
if (!BST)
{
cout << "空间分配失败(Allocate space failure.)" << endl;
exit(OVERFLOW);
}
BST->data = data;
BST->number = number++;
BST->lChild = NULL;
BST->rChild = NULL;
return 1;
}
int EstablishBiSortTree(BiSortTree &BST) {
BiSortTree p = BST;
if (!BST)
{
OperationBiSortTree(BST, numData[number]);
}
else if (BST->data == numData[number])
{
cout << "This data \" " << BST->data << " \" is existing.\n";
number++;
return 0;
}
else if (BST->data > numData[number])
EstablishBiSortTree(BST->lChild);
else
EstablishBiSortTree(BST->rChild);
return 1;
}
void VisitBiSortTree(BiSortTree &BST) {
cout << "The number of present node is :" << BST->number << "; ";
cout << "\tdata is :" << BST->data << "; ";
if (BST->lChild)
cout << "\n\tlChild's number is :" << BST->lChild->number << ",\tdata is :" << BST->lChild->data << ";";
if (BST->rChild)
cout << "\n\trChild's number is :" << BST->rChild->number << ",\tdata is :" << BST->rChild->data << ";";
cout << endl;
}
void PreOrderVisitTree(BiSortTree &BST) {
VisitBiSortTree(BST);
if (BST->lChild)
PreOrderVisitTree(BST->lChild);
if (BST->rChild)
PreOrderVisitTree(BST->rChild);
}
void InOrderVisitTree(BiSortTree &BST) {
if (BST->lChild)
InOrderVisitTree(BST->lChild);
VisitBiSortTree(BST);
if (BST->rChild)
InOrderVisitTree(BST->rChild);
}
void main() {
BiSortTree BST = NULL;
while (number<length)
{
EstablishBiSortTree(BST);
}

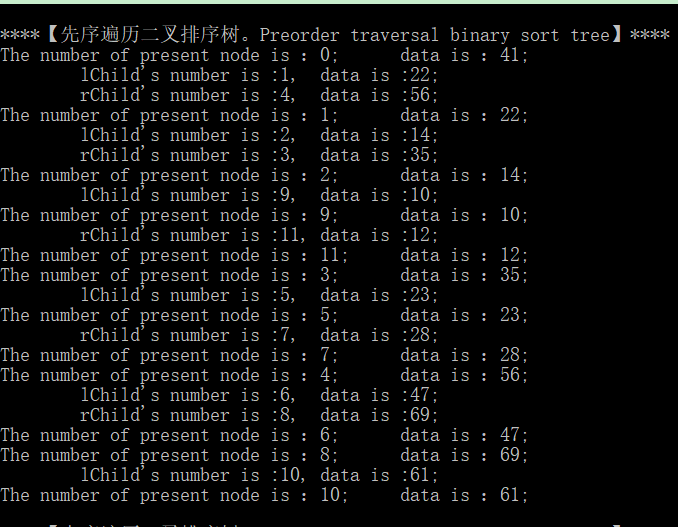

cout << "\n********【先序遍历二叉排序树。Preorder traversal binary sort tree】********" << endl;
PreOrderVisitTree(BST);

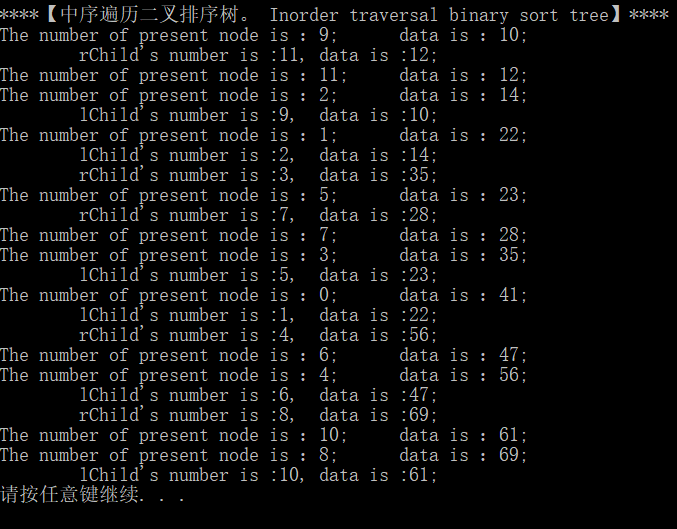

cout << "\n********【中序遍历二叉排序树。Inorder traversal binary sort tree】********" << endl;
InOrderVisitTree(BST);
}
