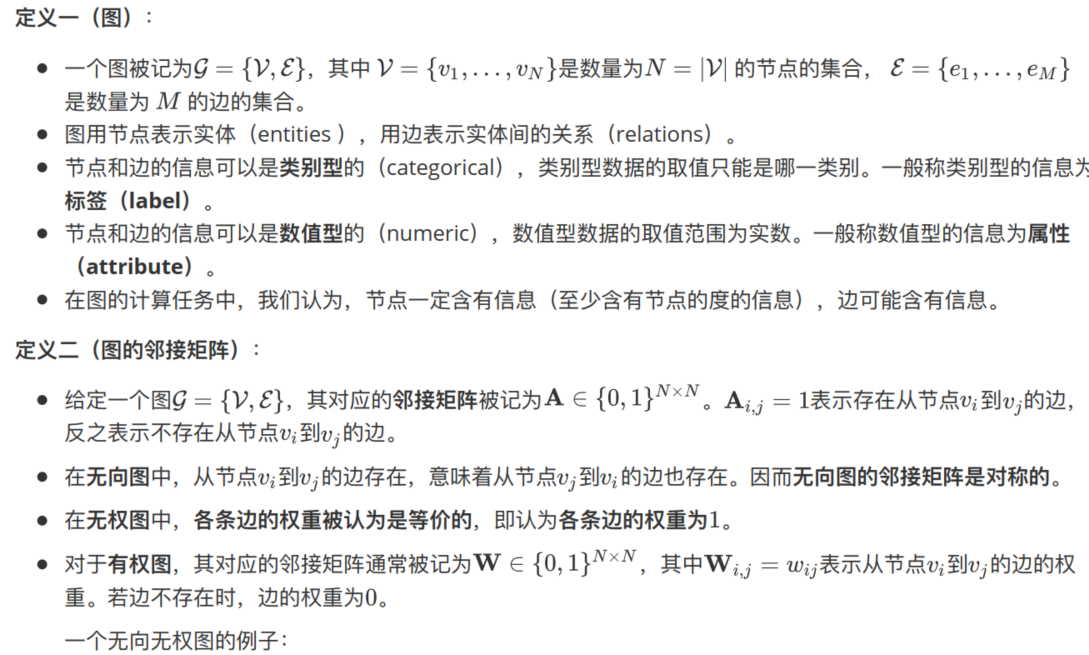

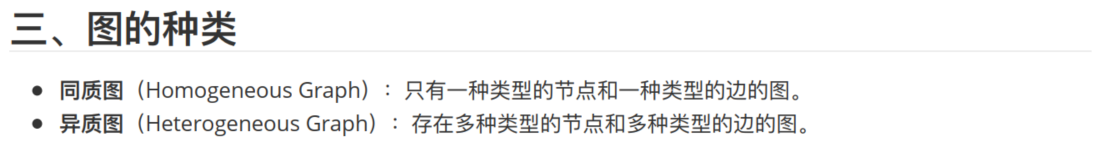

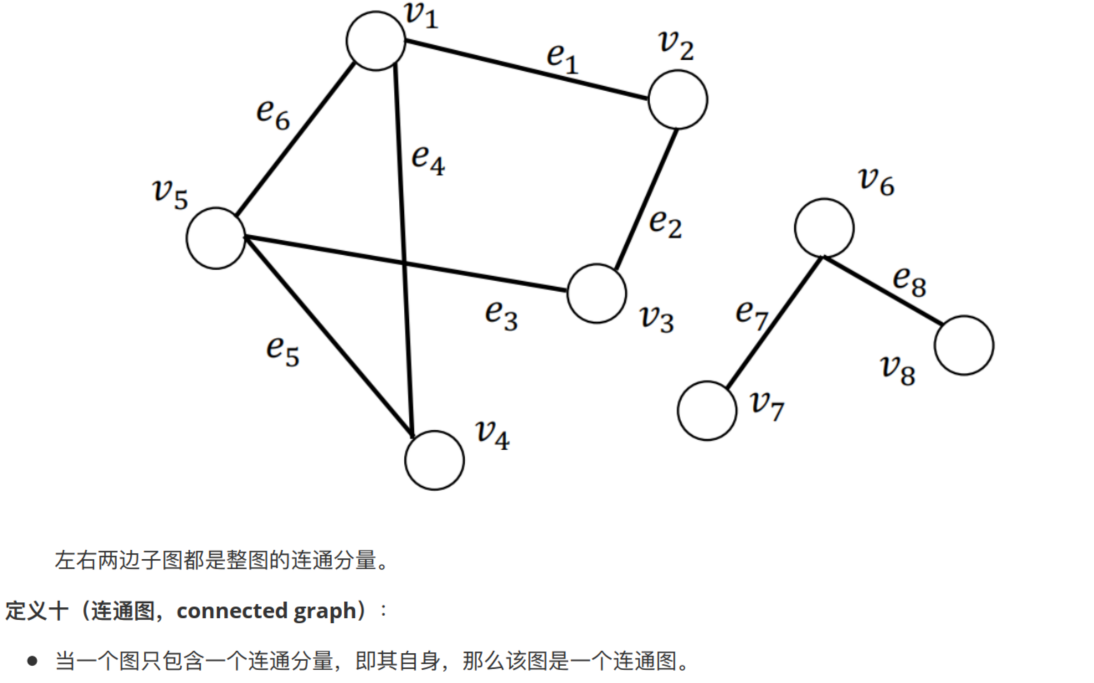

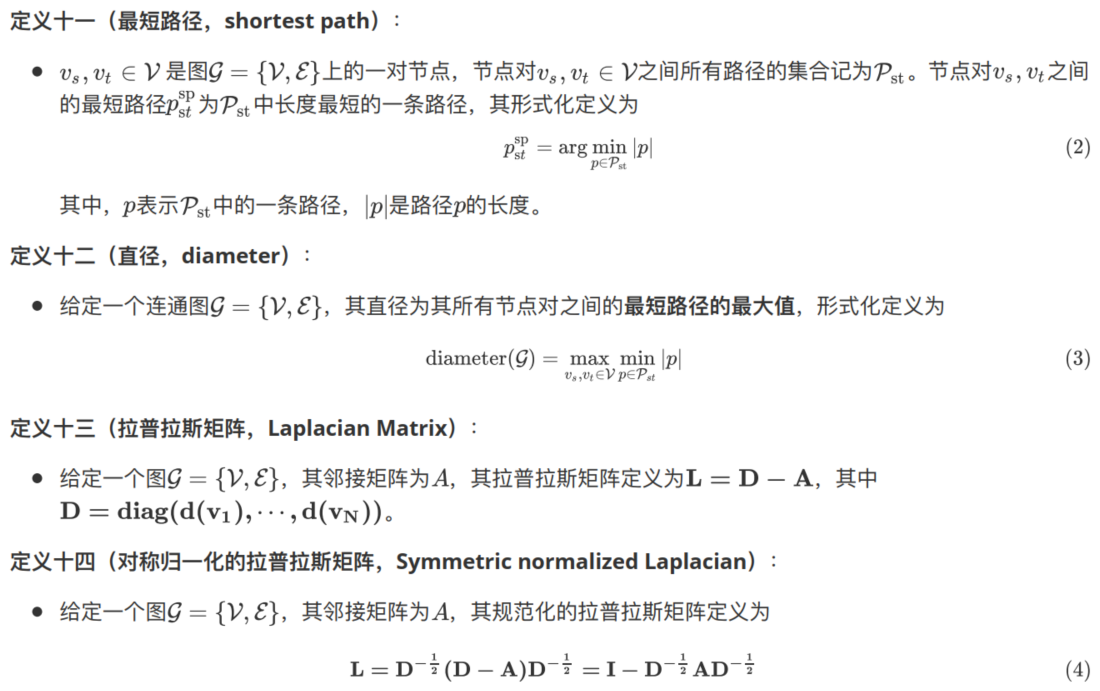

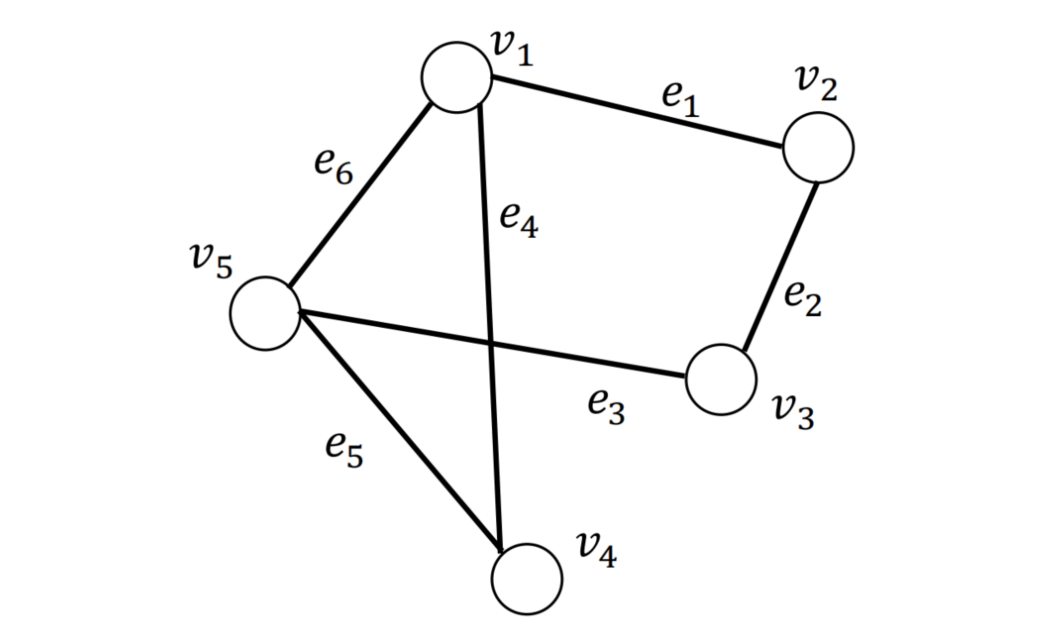

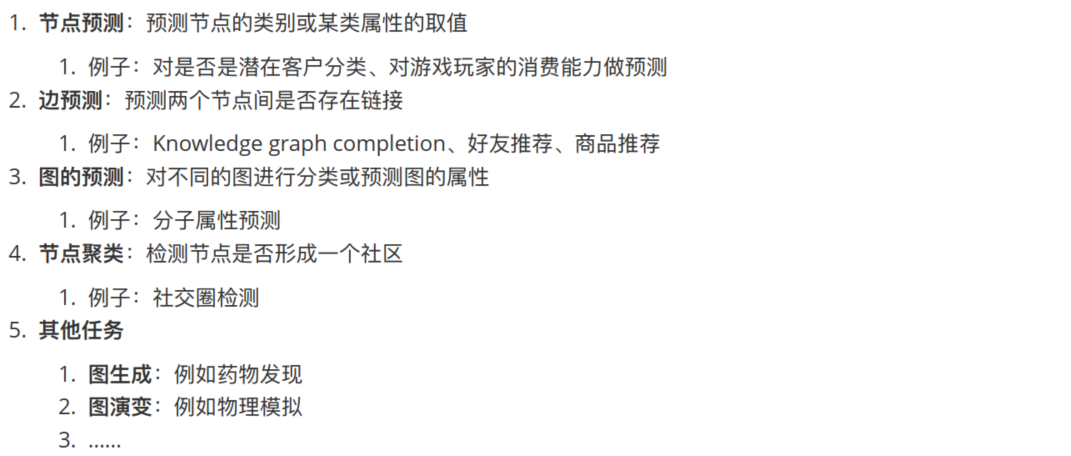

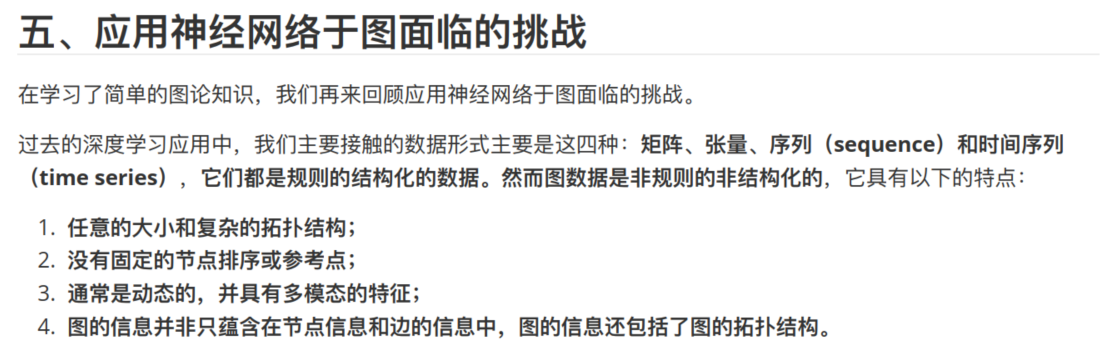

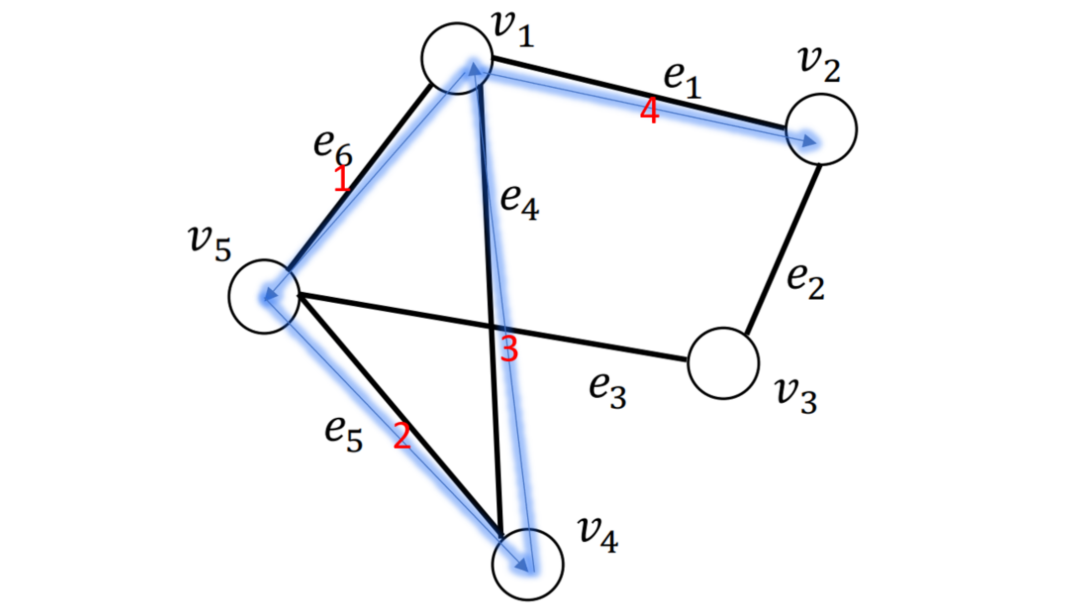

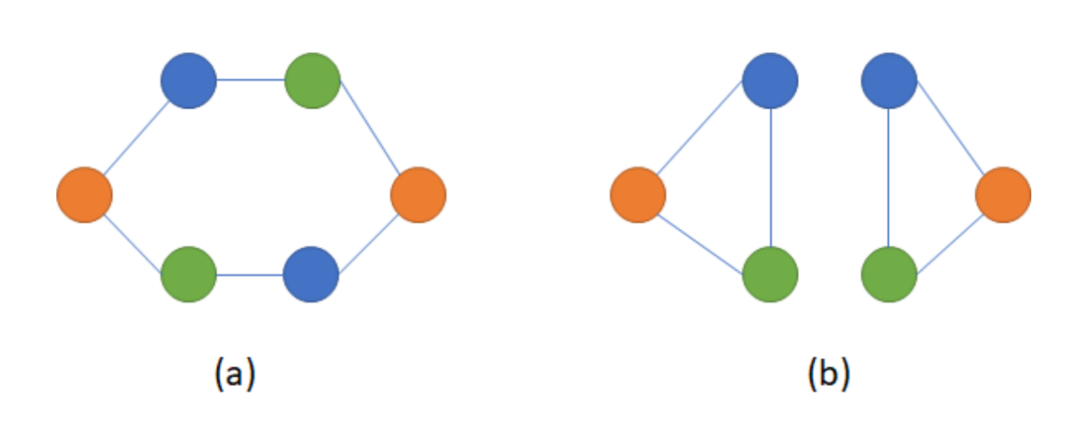

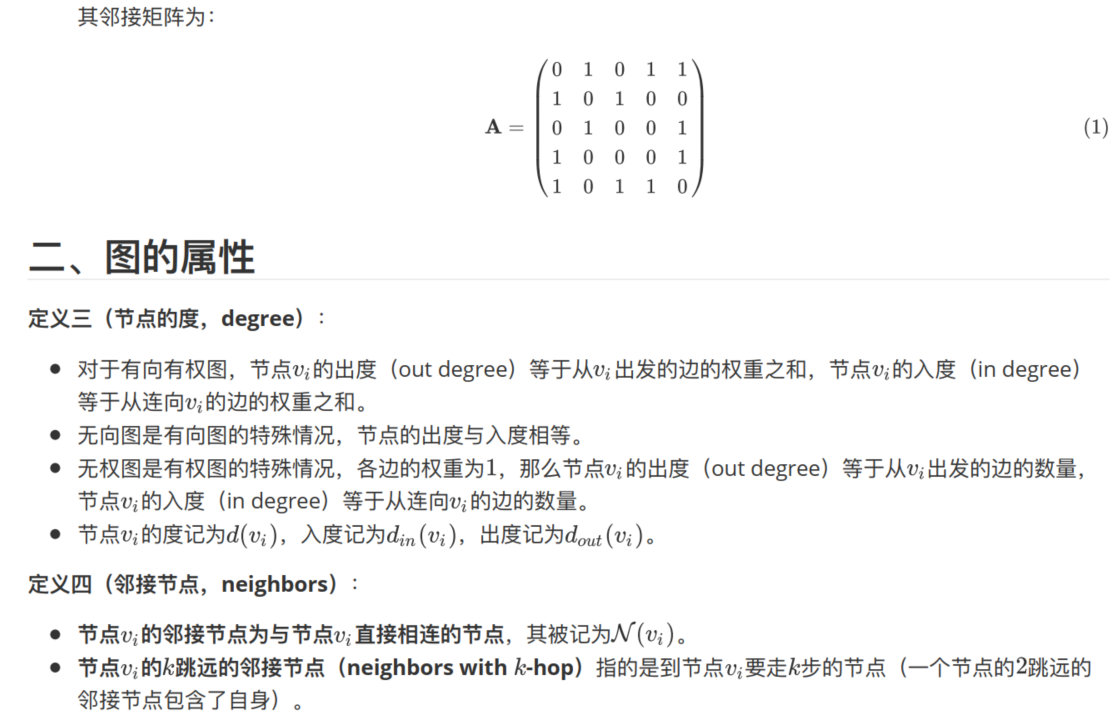

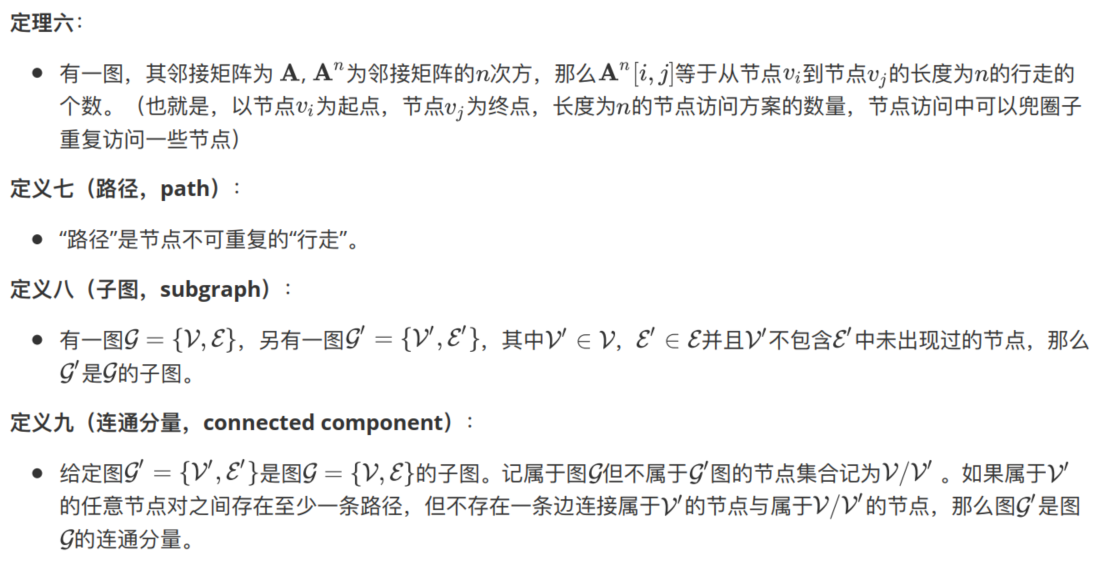

一、图的表示
该内容大多是来自于https://cse.msu.edu/~mayao4/dlg_book/chapters/chapter2.pdf
二、pytorch环境配置
1.安装1.8.1版本的pytorch和11.1版本的cudatoolkit。
conda install pytorch torchvision torchaudio cudatoolkit=11.1 -c pytorch-lts -c nvidia
2.确认是否正确安装
python -c "import torch; print(torch.__version__)"
python -c "import torch; print(torch.version.cuda)"
3.安装正确版本的PyG
pip install torch-scatter -f https://pytorch-geometric.com/whl/torch-1.8.0+cu111.html
pip install torch-sparse -f https://pytorch-geometric.com/whl/torch-1.8.0+cu111.html
pip install torch-cluster -f https://pytorch-geometric.com/whl/torch-1.8.0+cu111.html
pip install torch-spline-conv -f https://pytorch-geometric.com/whl/torch-1.8.0+cu111.html
pip install torch-geometric
Data类——PyG中图的表示及其使用
以作业为例
from torch_geometric.data import Data
import torch
'论文-机构-作者网络'
class Data(object):
'继承data并重写一些函数'
def __init__(self, x_org=None,x_author=None,x_thesis=None, edge_author_org_index=None, edge_author_thesis_index=None, edge_author_org_attr=None,edge_author_thesis_attr=None, y=None, **kwargs):
'''
:param x_org:表示机构,节点属性矩阵,大小为[num_nodes,num_node_features]
:param x_author:表示作者,节点属性矩阵,大小为[num_nodes,num_node_features]
:param x_thesis:表示论文,节点属性矩阵,大小为[num_nodes,num_node_features]
:param edge_author_org_index:表示作者-机构的边,边索引矩阵,大小为`[2, num_edges]`,第0行为尾节点,第1行为头节点,头指向尾
:param edge_author_thesis_index:表示作者-论文的边,边索引矩阵,大小为`[2, num_edges]`,第0行为尾节点,第1行为头节点,头指向尾
:param edge_author_org_attr:对应边的属性矩阵,大小为`[num_edges, num_edge_features]`,默认无属性None
:param edge_author_thesis_attr:对应边的属性矩阵,大小为`[num_edges, num_edge_features]`,默认无属性None
:param y:(Tensor, optional)节点、图或者是边的标签,任意大小
:param kwargs:其他参数
'''
#用不用的属性存储不同节点的属性
self.x_org = x_org#机构类节点
self.x_author=x_author#作者类节点
self.x_thesis=x_thesis#论文类节点
self.edge_author_org_index = edge_author_org_index#作者-机构边的序号
self.edge_author_thesis_index = edge_author_thesis_index#作者-论文边的序号
self.edge_author_org_attr = edge_author_org_attr
self.edge_author_thesis_attr = edge_author_thesis_attr
self.y = y#标签
for key, item in kwargs.items():
if key == 'num_nodes':
self.__num_nodes__ = item
else:
self[key] = item
@property
def num_nodes_org(self):
return self.x_org.shape[0]
@property
def num_nodes_author(self):
return self.x_author.shape[0]
@property
def num_nodes_thesis(self):
return self.x_thesis.shape[0]
@classmethod
def from_dict(cls, dictionary):
r"""Creates a data object from a python dictionary."""
data = cls()
for key, item in dictionary.items():
data[key] = item
return data
if __name__ == "__main__":
# 假设机构为4,作者为5,论文共6篇
x_org = torch.randn(4, 10)
x_author = torch.randn(5, 7)
x_thesis = torch.randn(6, 9)
# 节点连接关系
edge_author_org = torch.tensor([
[0, 1, 2, 3, 4],
[5, 5, 5, 6, 7],
])
edge_author_thesis = torch.tensor([
[8, 9, 10, 11],
[5, 6, 7, 5],
])
data = Data(x_org, x_author, x_thesis, edge_author_org_index=edge_author_org, edge_author_thesis_index=edge_author_thesis)
print("机构节点的个数是"+str(data.num_nodes_org))
print("作者节点的个数是"+str(data.num_nodes_author))
print("论文节点的个数是"+str(data.num_nodes_thesis))
Dataset类——PyG中图数据集的表示及其使⽤
⽣成数据集对象并分析数据集
如下⽅代码所示,在PyG中⽣成⼀个数据集是简单直接的。 在第⼀次⽣成PyG内置的数据集时,程序⾸先下载原始⽂件,然后将原始⽂件处理成包含 Data 对象的 Dataset 对象并保存到⽂件。
from torch_geometric.datasets import Planetoid
dataset = Planetoid(root='/dataset/Cora', name='Cora')
# Cora()
len(dataset)
# 1
dataset.num_classes
# 7
dataset.num_node_features
# 1433
data = dataset[0]
# Data(edge_index=[2, 10556], test_mask=[2708],
# train_mask=[2708], val_mask=[2708], x=[2708, 1433], y=[2708])
data.is_undirected()
# True
data.train_mask.sum().item()
# 140
data.val_mask.sum().item()
# 500
data.test_mask.sum().item()
# 1000
该数据集包含的唯一的图,有2708个节点,节点特征为1433维,有10556条边,有140个用作训练集的节点,有500个用作验证集的节点,有1000个用作测试集的节点。
定义好图神经网络模型之后就可以用来训练了。
model = Net().to(device)
data = dataset[0].to(device)
optimizer = torch.optim.Adam(model.parameters(), lr=0.01, weight_decay=5e-4)
model.train()
for epoch in range(200):
optimizer.zero_grad()
out = model(data)
loss = F.nll_loss(out[data.train_mask], data.y[data.train_mask])
loss.backward()
optimizer.step()
作业已经在Data类的构建中体现出来了。
其实自己可以具体思考图论与谱聚类的一个区别和联系是什么,为什么谱聚类需要用到图的关系呢?
参考链接:https://www.cnblogs.com/pinard/p/6221564.html
