文中若有代码、术语等错误,欢迎指正
文章目录
代码维护
抽象父类要加虚析构函数
-
简要说明
因为是shared_ptr是指针,而指针的类型是父类
若父类未写虚析构函数(程序会给一个默认的析构函数)那么delete时将不会执行 “运行时”选择派生类的析构函数再运行父类的析构函数功能
会直接调用父类的析构函数,忽略子类的析构函数。
-
例子
-

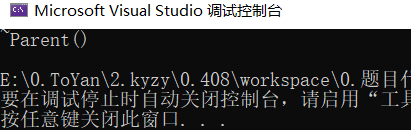

未加virtual 析构函数,只是普通的析构函数
#include <iostream> using namespace std; class Parent { public: ~Parent() { cout << "~Parent()" << endl; } }; class Child : public Parent { public: // 写了virtual的话,delete p 会报错。。。不写virtual也能说明问题 ~Child() { cout << "~Child()" << endl; } }; void main() { Parent* p = new Child; delete p; // 只会执行父类的析构函数 }
-

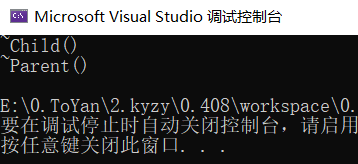

加了virtual
#include <iostream> using namespace std; class Parent { public: virtual ~Parent() { cout << "~Parent()" << endl; } }; class Child : public Parent { public: virtual ~Child() { cout << "~Child()" << endl; } }; void main() { Parent* p = new Child; delete p; // 执行子类再是父类的析构函数 }
-
-
结论
所以要给:Event、Input、Framebuffer、GraphicsContext、RendererAPI加上虚析构函数。
input类 修改
-
简要说明
在某个平台的输入不需要在运行时选择另一个平台输入,不存在这种动态情况
比如:我在安卓上不可能存在用window的输入,只有安卓上的输入。
但渲染需要运行时选择哪个api,是opengl还是directx、vulkan,因为windows的操作是支持这三个渲染api的。
-
当前项目Input的类似结构
Ref<Input> Input::Create() { switch (Renderer::GetPlatform()) { case RendererAPI::API::None: HZ_CORE_ASSERT(false, "RendererAPI:None is currently not supported!"); return nullptr; case RendererAPI::API::Window: return std::make_shared<WindowInput>(); case RendererAPI::API::Linux: return std::make_shared<LinuxInput>(); case RendererAPI::API::Mac: return std::make_shared<MacInput>(); } HZ_CORE_ASSERT(false, "UnKnown RendererAPI!"); return nullptr; }
可推:
一个input.h,一个input.cpp,有windowsinput.cpp、linuxinput.cpp、macinput.cpp文件。
编译后有:input.obj,windowsinput.obj,linuxinput.obj,macinput.obj
是用虚函数,动态运行时使用哪个子类
-
在项目中修改后Input的类后
一个input.h,有windowsinput.cpp、linuxinput.cpp、macinput.cpp文件,由宏在编译前决定编译哪一个cpp文件
编译后有:input.obj文件,这样就减少了三个cpp的obj文件
input中声明静态函数,在其他三个cpp中定义静态函数
-
例子
#include <iostream> using namespace std; class Input { public: static void GetMouseX(); // 静态函数 声明 }; #if LinuxInput using namespace std; void Input::GetMouseX() { // Input的GetMouseX函数定义 cout << "Windows GetMouseX" << endl; } #endif #define WindowsInput 1 #if WindowsInput using namespace std; void Input::GetMouseX() { // Input的GetMouseX函数定义 cout << "Windows GetMouseX" << endl; } #endif void main() { Input::GetMouseX(); }
-
项目如何修改
- 删除input.cpp、windowsinput.h
- windowsinput.cpp、linuxinput.cpp、macinput.cpp中定义input.h声明的函数(当前只支持window,可以不用后两个cpp)
-
记录项目修改时的小bug
error LNK2019: 无法解析的外部符号 "public: static bool __cdecl Hazel::Input::IsKeyPressed(int)
input.h: inline static bool IsKeyPressed(int keycode);
WindowsInput.cpp bool Input::IsKeyPressed(int keycode) { auto window = static_cast<GLFWwindow*>(Application::Get().GetWindow().GetNativeWindow()); auto state = glfwGetKey(window, keycode); return state == GLFW_PRESS || state == GLFW_REPEAT; }
因为input.h的IsKeyPressed函数用了inline,而WindowsInput.cpp又定义了IsKeyPressed函数,所以报错(需要删除inline声明)。
Imgui Event
当ImGuiLayer没有OnEvent处理事件函数时界面存在bug
-
Bug1
在ImGui的一个视口wasd,输出帧缓冲场景的ImGui视口(EditorLayer)也会响应
-
Bug2
在ImGui的一个视口滚轮滚动,输出帧缓冲场景的ImGui视口(EditorLayer)也会响应
应该改为只在对应的ImGui视口响应。
-
提下ImGuiLayer的OnEvent
-
在016节本来有OnEvent处理事件的
旧ImGui版本,所以需要手动写捕捉事件处理
-
但在022节又删掉了OnEvent函数
新ImGui版本,因为托管给ImGui去处理事件,不需要手动处理
-
现在此节又要加上是
因为如果托管给ImGui自己去处理事件,会造成上述的两个Bug,所以有部分事件需要手动处理。
-
WASD Bug
摄像机的OnUpdate,是放在update里的,所以每帧都会执行
因为一直在update,所以不管哪个ImGui视口在wasd 摄像机都会移动的。
void EditorLayer::OnUpdate(Timestep ts)
{
HZ_PROFILE_FUNCTION();
m_CameraController.OnUpdate(ts);
滚轮滚动Bug
需要提的是:EditorLayer层在OnImGuiRender函数中渲染了两个ImGui视口
-
当两个ImGui视口都在窗口同一个平面上会造成此Bug
[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-HCETIbD8-1690730651987)(https://raw.githubusercontent.com/liujianjie/Image/main/ImgFloder/202307302308319.png)]
-
文字讲解事件流程
-
当用户鼠标滚轮滚动时
-
窗口将滚动事件发给Application
(需注意:ImGuiLayer类中注册了依赖此窗口,所以也会ImGui视口不通过OnEvent函数也可以接收到窗口事件(所以在022节删掉了ImGuiLayer类的OnEvent函数,让ImGui自己去处理窗口事件))
-
Application再给EditorLayer层去处理
-
而EditorLayer层的OnEvent中调用摄像机的OnEvent
-
摄像机的Event会去捕捉鼠标滚动事件并且处理(更新宽高比)
-
-
代码讲解事件流程(复习为了给解决此Bug铺垫)
-
层级
Application的LayerStack m_LayerStack;
在GameEngineEditorApp.cpp构造函数中PushLayer(new EditorLayer());
在前面插入了EditorLayer层级。
-
Application.cpp处理事件
void Application::OnEvent(Event& e) { HZ_PROFILE_FUNCTION(); ...... // 从后往前 for (auto it = m_LayerStack.end(); it != m_LayerStack.begin();) { if (e.Handled) break; (*--it)->OnEvent(e); } }
-
在EditorLayer层级类的OnEvent函数中调用了摄像机事件
void EditorLayer::OnEvent(Event& event) { // 摄像机事件 m_CameraController.OnEvent(event); }
-
在OrthographicCameraController类中的OnEvent函数捕捉鼠标滚轮事件并且处理
void Hazel::OrthographicCameraController::OnEvent(Event& e) { HZ_PROFILE_FUNCTION(); EventDispatcher dispatcher(e); dispatcher.Dispatch<MouseScrolledEvent>(HZ_BIND_EVENT_FN(OrthographicCameraController::OnMouseScrolled)); dispatcher.Dispatch<WindowResizeEvent>(HZ_BIND_EVENT_FN(OrthographicCameraController::OnWindowResized)); } bool Hazel::OrthographicCameraController::OnMouseScrolled(MouseScrolledEvent& e) { HZ_PROFILE_FUNCTION(); m_ZoomLevel -= e.GetYOffset() * 0.25f; m_ZoomLevel = std::max(m_ZoomLevel, 0.25f); CalculateView(); return false; }
-
-
-
但是当两个ImGui视口**不在窗口同一个平面**上不会造成此Bug
即当在setting视口上滚动鼠标,Viewport摄像机不会调整宽高比
-
解释前需要了解
窗口将滚动事件发给Application,虽然没有发送给ImGui
但是需注意:ImGuiLayer类中注册了依赖此窗口,所以也会ImGui视口不通过OnEvent函数也可以接收到窗口事件
(所以在022节删掉了ImGuiLayer类的OnEvent函数,让ImGui自己去处理窗口事件)
-
当把setting与Viewport不在同一个平面时
-
用户在setting滚动滚轮,窗口有滚动事件
-
Setting视口接收窗口滚动事件(ImGui内部实现不清如何传递给ImGui视口)
-
在ImGui内部,应该让Setting视口处理此窗口滚动事件
由于setting与viewport不在同一个平面,所以被内部设置为已处理,没有下一个ImGui视口需要处理,所以不会给Viewport视口(猜测)(可以认为被setting视口堵塞此事件)
-
-
为了解决上述两个Bug所做
-
提前需要了解:层级Application的LayerStack m_LayerStack;
在构造函数中PushOverlay(m_ImGuiLayer);
在末尾放入了imguilayer
在GameEngineEditorApp.cpp构造函数中PushLayer(new EditorLayer());
在前面插入了EditorLayer。
-
为了解决上述两个Bug所做:在ImGuiLayer中添加OnEvent函数
class HAZEL_API ImGuiLayer :public Layer { public: ImGuiLayer(); ~ImGuiLayer(); virtual void OnAttach() override; virtual void OnDetach() override; virtual void OnImGuiRender() override; virtual void OnEvent(Event& event) override;// 新添加
void ImGuiLayer::OnEvent(Event& e) { ImGuiIO& io = ImGui::GetIO(); e.Handled |= e.IsInCategory(EventCategoryMouse) & io.WantCaptureMouse; e.Handled |= e.IsInCategory(EventCategoryKeyboard) & io.WantCaptureKeyboard; } /* imgui视口会阻塞鼠标滚轮事件,即ImGuiLayer视口处理了鼠标滚轮事件,不会传入给下一级Layer的OnEvent。 for (auto it = m_LayerStack.end(); it != m_LayerStack.begin();) { if (e.Handled) break; (*--it)->OnEvent(e); } */
-
添加OnEvent函数的目的是
在setting视口按下wasd键
-
窗口发送滚轮滚动事件给Application
-
Application循环LayerStack,执行层级的OnEvent函数
-
由于ImGuiLayer层级在最末尾,是最先处理事件的层级
-
在ImGuiLayer层的OnEvent函数中
e.Handled = e.handled | true & true; 结果为true
所以上述的Application中循环处理滚轮滚动 event事件会跳出,而不会执行EditorLayer的onevent函数
所以在viewport视口无法接收到滚轮滚动事件,摄像机也不会接收到滚轮滚动事件,调整宽高比。
-
-
但具有新问题
-
问题1
注意上一小点,没有写上按键按下事件是因为,这个在OnUpdate函数中每帧处理,无法通过事件阻止
-
新问题是
无论在viewport还是setting视口滚轮滚动,摄像机都不会接收滚轮滚动事件,从而调整宽高比
因为被ImGuiLayer的OnEvent函数堵塞了滚轮滚动事件,不会传递给EditorLayer层级。
-
解决ImGuiLayer有OnEvent函数后的问题
-
解决思路
由ImGui视口能获取焦点和鼠标停留bool值,用这两个bool值来处理新bug和wasd bug。
-
解决新bug具体代码思路
-
获取焦点和鼠标停留bool,并通过这两个组合来设置是否阻塞事件
void EditorLayer::OnImGuiRender(){ // 注意是获取Viewport视口下的bool值,来决定settings视口是否需要堵塞相应事件 ImGui::Begin("Viewport"); m_ViewportFocused = ImGui::IsWindowFocused(); m_ViewportHovered = ImGui::IsWindowHovered(); Application::Get().GetImGuiLayer()->BlockEvents(!m_ViewportFocused || !m_ViewportHovered); /* bool canshu = !m_ViewportFocused || !m_ViewportHovered; m_ViewportFocused = true, m_ViewportHovered = true; canshu = false, m_BlockEvents:false-> viewport视口 能 接收滚轮事件(即用户在settings视口上操作时,viewport视口无法接收事件) m_ViewportFocused = false, m_ViewportHovered = true;canshu = true, m_BlockEvents:true-> viewport视口 不 能接收滚轮事件 m_ViewportFocused = true, m_ViewportHovered = true; canshu = true, m_BlockEvents:true-> viewport视口 不 能接收滚轮事件 */
-
用m_ViewportFocused解决在另外一个窗口wasd,视口也有反应
void EditorLayer::OnUpdate(Timestep ts) { HZ_PROFILE_FUNCTION(); // 当焦点聚焦,才能wasd if (m_ViewportFocused) { m_CameraController.OnUpdate(ts); }
-
在ImGuiLayer中
写是否堵塞鼠标滚动布尔值
void BlockEvents(bool block) { m_BlockEvents = block; }
由这个布尔值来决定窗口是否阻塞滚动事件,即viewport能不能接受事件
void ImGuiLayer::OnEvent(Event& e) { /* m_BlockEvents:false-> settings视口不阻塞事件,viewport面板能接收滚轮事件 m_BlockEvents:true-> 视口阻塞事件,viewport视口不能接收滚轮事件 */ if (m_BlockEvents) { /* imgui窗口会阻塞鼠标滚轮事件,即ImGuiLayer窗口处理了鼠标滚轮事件,不会传入给下一级的OnEvent。 因为Application的onevent处理了窗口滚动,就会跳出 for (auto it = m_LayerStack.end(); it != m_LayerStack.begin();) { if (e.Handled) break; (*--it)->OnEvent(e); } */ ImGuiIO& io = ImGui::GetIO(); e.Handled |= e.IsInCategory(EventCategoryMouse) & io.WantCaptureMouse; // e.Handled = e.handled | true & true; 结果为true,所以上述的application 的 event会跳出 e.Handled |= e.IsInCategory(EventCategoryKeyboard) & io.WantCaptureKeyboard; } }
-
-
解决wasd bug思路
void EditorLayer::OnUpdate(Timestep ts) { HZ_PROFILE_FUNCTION(); // 当焦点聚焦在viewport视口时,摄像机才能OnUpdate if (m_ViewportFocused) { m_CameraController.OnUpdate(ts); }
