1. 处理单个步骤的事件,可以单独执行某一个步骤。
2. 点击播放按钮,按顺序执行全部步骤。

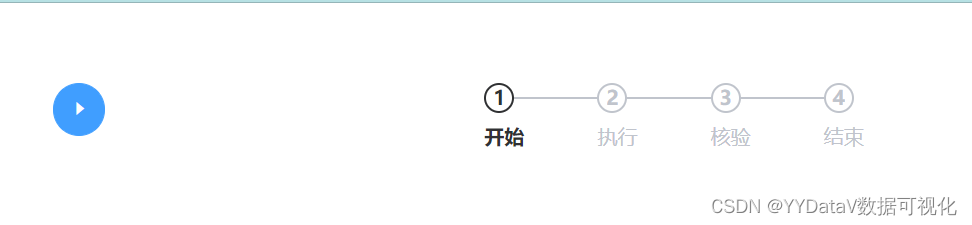

效果
引导用户按照流程完成任务的分步导航条,可根据实际应用场景设定步骤,步骤不得少于 2 步。
每一步骤显示出该步骤的状态。
扫描二维码关注公众号,回复:
14508320 查看本文章
HTML 代码
<p>element-ui 步骤条演示</p>
<div id='theSteps' class="row">
<div class="col-2">
<el-button @click='handleClick' type="primary" icon="el-icon-caret-right" circle></el-button>
</div>
<!-- https://element.eleme.cn/#/zh-CN/component/steps -->
<div class="col-4">
<el-steps id='steps' class="col-4" :active='active' space='20%'>
<el-step id='step1' title="开始" @click.native="handle1('030')"></el-step>
<el-step id='step2' title="执行" @click.native="handle2('060')"></el-step>
<el-step id='step3' title="核验" @click.native="handle3('090')"></el-step>
<el-step id='step4' title="结束" @click.native="handle4('120')"></el-step>
</el-steps>
</div>
</div>
JS 代码
<script>
new Vue({
el: '#app',
data() {
return {
active: 0
}
},
methods: {
handle1(flag) {
console.log(flag)
this.active = 1
},
handle2(flag) {
console.log(flag)
this.active = 2
},
handle3(flag) {
console.log(flag)
this.active = 3
},
handle4(flag) {
console.log(flag)
this.active = 4
},
handleClick() {
// 手动播放
if (this.active++ > 3) this.active = 0;
if (this.active == 1) {
document.getElementById("step1").click();
}
if (this.active == 2) {
document.getElementById("step2").click();
}
if (this.active == 3) {
document.getElementById("step3").click();
}
if (this.active == 4) {
document.getElementById("step4").click();
}
}
}
})
</script>
官方链接参考
https://element.eleme.cn/#/zh-CN/component/steps
