build_ann_mnist_1_hidden_layer 构建1隐层人工神经网络

直观描述

神经网络

人工神经网络

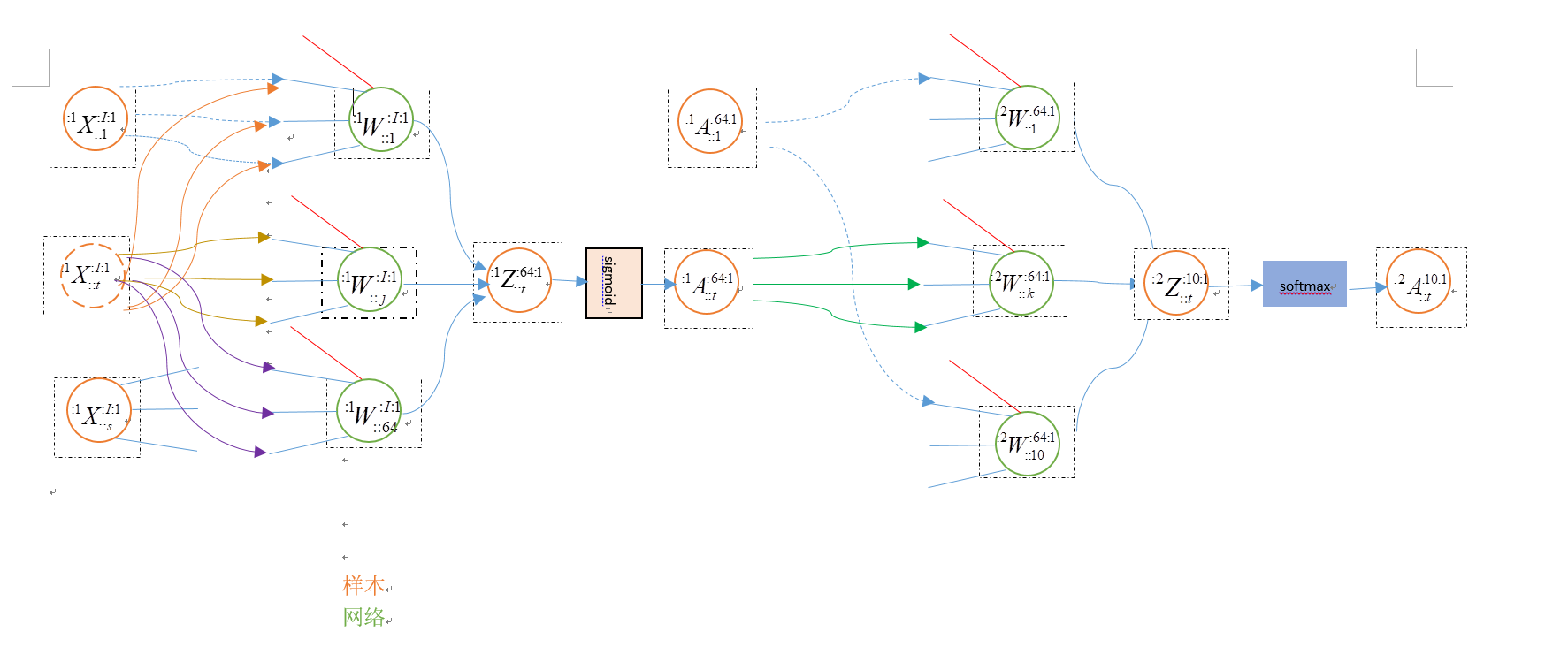

人工神经网络 矩阵形式

公式描述

损失微分推导

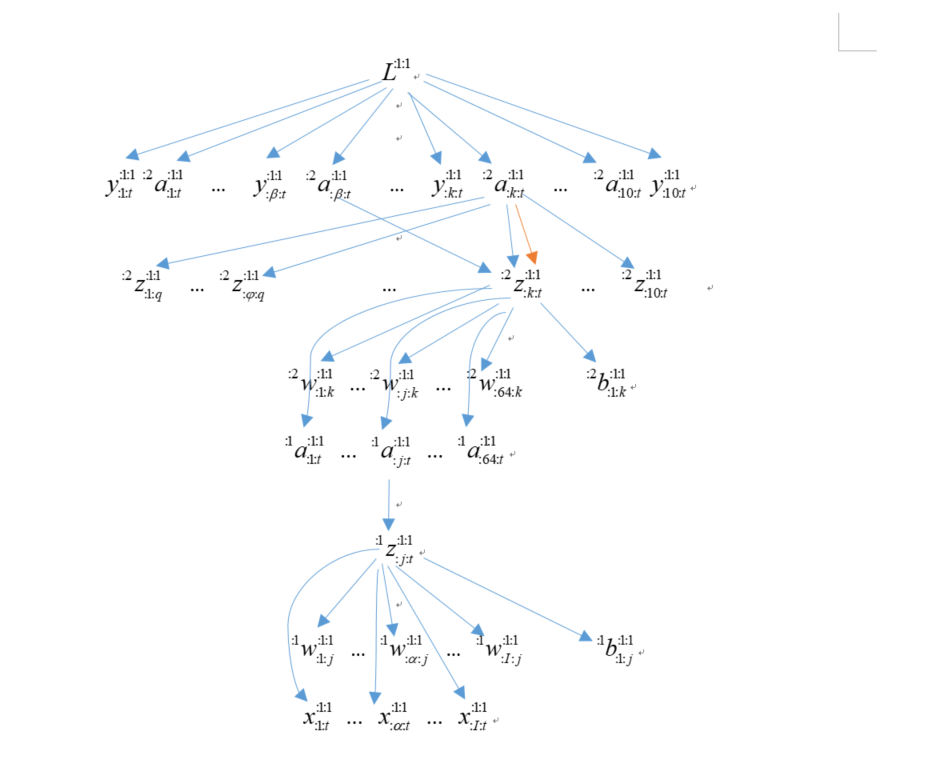

损失依赖图

[外链图片转存失败(img-pLfoCupO-1565850993249)(http://chuantu.xyz/t6/702/1565850931x1709417261.jpg)]

dLdivDz2

dLdivDw2

损失微分推导 mathmetica固定维度 symbol

1隐层人工神经网络 代码实现

%load_ext ipython_autoimport

from sklearn.datasets import fetch_openml
mnist = fetch_openml('mnist_784')

#make fetch_openml load from local file:
# cp -rv ./openml ~/scikit_learn_data/mldata/

import numpy as np

X, y = mnist["data"], mnist["target"].astype(np.float32)

X = X / 255

digits = 10
examples = y.shape[0]

y = y.reshape(1, examples)

Y_new = np.eye(digits)[y.astype('int32')]
Y_new = Y_new.T.reshape(digits, examples)

m = 60000
m_test = X.shape[0] - m

X_train, X_test = X[:m].T, X[m:].T
Y_train, Y_test = Y_new[:,:m], Y_new[:,m:]

np.random.seed(138)

shuffle_index = np.random.permutation(m)
X_train, Y_train = X_train[:, shuffle_index], Y_train[:, shuffle_index]

# shuffle_index = np.random.permutation(m)
# X_train, y_train = X_train[:,shuffle_index], y_train[:,shuffle_index]

def sigmoid(z):
    s = 1 / (1 + np.exp(-z))
    return s

def compute_multiclass_loss(Y, Y_hat):

    L_sum = np.sum(np.multiply(Y, np.log(Y_hat)))
    m = Y.shape[1]
    L = -(1/m) * L_sum

    return L

n_x = X_train.shape[0]
n_h = 64
learning_rate = 1

W1 = np.random.randn(n_h, n_x)
b1 = np.zeros((n_h, 1))
W2 = np.random.randn(digits, n_h)
b2 = np.zeros((digits, 1))

X = X_train
Y = Y_train

for i in range(4000):

    Z1 = np.matmul(W1,X) + b1
    A1 = sigmoid(Z1)
    Z2 = np.matmul(W2,A1) + b2
    A2 = np.exp(Z2) / np.sum(np.exp(Z2), axis=0)

    cost = compute_multiclass_loss(Y, A2)

    dZ2 = A2-Y
    dW2 = (1./m) * np.matmul(dZ2, A1.T)
    db2 = (1./m) * np.sum(dZ2, axis=1, keepdims=True)

    dA1 = np.matmul(W2.T, dZ2)
    dZ1 = dA1 * sigmoid(Z1) * (1 - sigmoid(Z1))
    dW1 = (1./m) * np.matmul(dZ1, X.T)
    db1 = (1./m) * np.sum(dZ1, axis=1, keepdims=True)

    W2 = W2 - learning_rate * dW2
    b2 = b2 - learning_rate * db2
    W1 = W1 - learning_rate * dW1
    b1 = b1 - learning_rate * db1

    if (i % 100 == 0):
        print("Epoch", i, "cost: ", cost)

print("Final cost:", cost)

Epoch 0 cost:  449165.0122274696
Epoch 100 cost:  45986.79247327906



---------------------------------------------------------------------------

KeyboardInterrupt                         Traceback (most recent call last)

<ipython-input-12-8fe04cbfa5b8> in <module>
     13 for i in range(4000):
     14
---> 15     Z1 = np.matmul(W1,X) + b1
     16     A1 = sigmoid(Z1)
     17     Z2 = np.matmul(W2,A1) + b2


KeyboardInterrupt:

from sklearn.metrics import classification_report, confusion_matrix
Z1 = np.matmul(W1, X_test) + b1
A1 = sigmoid(Z1)
Z2 = np.matmul(W2, A1) + b2
A2 = np.exp(Z2) / np.sum(np.exp(Z2), axis=0)

predictions = np.argmax(A2, axis=0)
labels = np.argmax(Y_test, axis=0)

print(confusion_matrix(predictions, labels))
print(classification_report(predictions, labels))

参考资料

1. Using deep learning to investigate the neuroimaging correlates of psychiatric and neurological disorders: Methods and applications
2. https://jonathanweisberg.org/post/A Neural Network from Scratch - Part 1/
