SpringCloud Config应用


本文通过搭建一个eureka注册中心，config配置中心，以及两个configclient客户端来演示springlcoud config的基本使用以及通过spring cloud config bus来实现配置项的动态刷新。

1.项目搭建

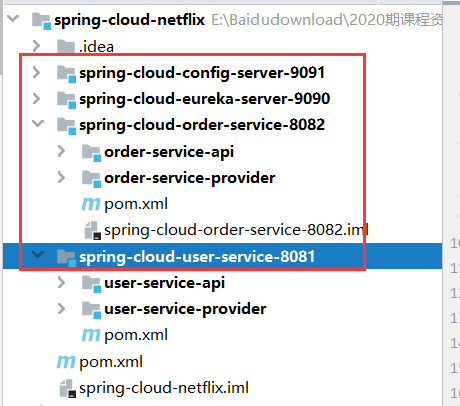

在这里插入图片描述

1.1父项目

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.gupaoedu.springcloud</groupId>
    <artifactId>spring-cloud-netflix</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>


    <properties>
        <java.version>1.8</java.version>
        <spring-cloud.version>Hoxton.SR4</spring-cloud.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.3.0.RELEASE</spring-boot.version>
    </properties>

    <modules>
        <module>spring-cloud-eureka-server-9090</module>
        <module>spring-cloud-config-server-9091</module>
        <module>spring-cloud-user-service-8081</module>
        <module>spring-cloud-order-service-8082</module>
    </modules>

    <dependencyManagement>
        <dependencies>
            <!-- import 导入springboot springcloud的依赖包 -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

1.2 注册中心搭建

spring-cloud-eureka-server-9090 ，引入eureka 依赖：spring-cloud-starter-netflix-eureka-server

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.gupaoedu.springcloud</groupId>
        <artifactId>spring-cloud-netflix</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <groupId>com.gupaoedu.example</groupId>
    <artifactId>spring-cloud-eureka-server-9090</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-cloud-eureka-server-9090</name>
    <description>Demo project for Spring Boot</description>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>
  • 注册中心application.properties 配置
spring.application.name=spring-cloud-eureka-server-9090
server.port=9090
eureka.client.fetch-registry=false
eureka.client.service-url.defaultZone=http://localhost:9090/eureka
  • @EnableEurekaServer开启注册中心
package com.gupaoedu.example.springcloudeurekaserver9090;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;
@EnableEurekaServer
@SpringBootApplication
public class SpringCloudEurekaServer9090Application {


    public static void main(String[] args) {


        SpringApplication.run(SpringCloudEurekaServer9090Application.class, args);
    }
}

1.3 配置中心搭建

搭建配置中心，需要引入如下依赖：

  • spring-cloud-config-server 配置中心服务端
  • spring-cloud-starter-netflix-eureka-client 配置中心需要作为eureka客户端注册到注册中心
  • spring-boot-starter-actuator 手动刷新配置项
  • spring-cloud-config-monitor 自动刷新配置项
  • spring-cloud-starter-bus-kafka 使用kafka作为springcloud config bus消息总线
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.gupaoedu.springcloud</groupId>
        <artifactId>spring-cloud-netflix</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <groupId>com.gupaoedu.example</groupId>
    <artifactId>spring-cloud-config-server-9091</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-cloud-config-server-9091</name>
    <description>Demo project for Spring Boot</description>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-server</artifactId>
        </dependency>

<!-- 注册到注册中心，需要添加依赖 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <!-- 测试kafka作为分布式配置中心的消息总线，configserver以及configclient都需要添加cloud-bus以及actuator依赖 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-kafka</artifactId>
        </dependency>
<!--        <dependency>-->
        <!--            <groupId>org.springframework.boot</groupId>-->
        <!--            <artifactId>spring-boot-starter-actuator</artifactId>-->
        <!--        </dependency>-->

        <!-- 需要把spring-boot-starter-actuator依赖去掉，否则configclient无法连接到配置中心 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-monitor</artifactId>
        </dependency>
    </dependencies>
</project>

spring:
  application:
    name: spring-cloud-config-server-9091
  cloud:
    config:
      server:
        git:
          uri: https://gitee.com/liuch890228/spring-cloud-config-server.git
          search-paths: spring-cloud-config-server
    bus:
      enabled: true # 开启bus
      trace:
        enabled: true
      refresh:
        enabled: true
  kafka:
    bootstrap-servers: localhost:9092 #kafka地址
    consumer:
      group-id: config-server # 分组，不同的组可以收到相同的消息
server:
  port: 9091
eureka:
  client:
    service-url:
      defaultZone: http://localhost:9090/eureka
  #kafka
  # 通过bus刷新外部配置
  # 通过调用/actuator/refresh接口刷新配置
management:
  endpoints:
    web:
      exposure:
        include: bus-refresh

  • kafka安装与启动
    见windows安装kafka

  • 开启配置中心configserver和eurekaclient

package com.gupaoedu.example.springcloudconfigserver9091;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.config.server.EnableConfigServer;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@EnableConfigServer
@EnableEurekaClient
@SpringBootApplication
public class SpringCloudConfigServer9091Application {



    public static void main(String[] args) {


        SpringApplication.run(SpringCloudConfigServer9091Application.class, args);
    }
}

1.4 order-service搭建

1.4.1 ordre-service 父项目

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <!-- 添加父pom依赖,这样user-service-provider项目能够直接依赖到spring-cloud-netflix根项目依赖的jar包 -->
  <parent>
    <groupId>com.gupaoedu.springcloud</groupId>
    <artifactId>spring-cloud-netflix</artifactId>
    <version>1.0-SNAPSHOT</version>
  </parent>
  <groupId>com.gupaoedu.springcloud</groupId>
  <artifactId>spring-cloud-order-service-8082</artifactId>
  <packaging>pom</packaging>
  <version>1.0-SNAPSHOT</version>
  <modules>
    <module>order-service-api</module>
    <module>order-service-provider</module>
  </modules>
  <name>spring-cloud-order-service-8082</name>
  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
  </properties>
</project>

1.4.2 order-service-api 子项目

  • 加入spring-cloud-starter-openfeign 依赖，对外提供Feign接口定义
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-cloud-order-service-8082</artifactId>
        <groupId>com.gupaoedu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>order-service-api</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
    </dependencies>
</project>
  • API接口定义
package com.gupaoedu.springcloud;
import com.gupaoedu.springcloud.dto.OrderDto;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
public interface OrderService {


    @GetMapping("/orders")
    String orders();
    @PostMapping("/order")
    int insert(OrderDto dto);  // OrderDto 一个属性  String orderId
}

openFeign接口定义

package com.gupaoedu.springcloud.clients;
import com.gupaoedu.springcloud.OrderService;
import org.springframework.cloud.openfeign.FeignClient;
@FeignClient("order-service")
public interface OrderServiceFeignClient extends OrderService{


}

1.4.3 order-service-provider 子项目

  • 提供openfeign接口的实现需要添加下面的依赖

spring-cloud-starter-config
spring-cloud-starter-netflix-eureka-client 注册到注册中心
spring-cloud-config-client 从configserver读取配置信息
pring-boot-starter-actuator 提供刷新配置的监控功能
spring-cloud-starter-bus-kafka 使用kafka作为springcloud config 分布式配置中心的消息总线

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.gupaoedu.springcloud</groupId>
        <artifactId>spring-cloud-order-service-8082</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <groupId>com.gupaoedu.example</groupId>
    <artifactId>order-service-provider</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>order-service-provider</name>
    <description>Demo project for Spring Boot</description>
    <dependencies>
        <dependency>
            <groupId>com.gupaoedu.springcloud</groupId>
            <artifactId>order-service-api</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!-- 测试kafka作为分布式配置中心的消息总线-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-kafka</artifactId>
        </dependency>
        <dependency>
            <groupId>com.gupaoedu.springcloud</groupId>
            <artifactId>order-service-api</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>
</project>
  • bootstrap.yml启动配置
# 外部化配置，放到bootstrap.yml中优先加载！！！
spring:
  cloud:
    config:
      discovery:
        enabled: true
        service-id: spring-cloud-config-server-9091
eureka:
  client:
    service-url:
      defaultZone: http://localhost:9090/eureka
  • 常规配置
spring:
  application:
    name: order-service
  cloud:
    bus:
      enabled: true
      trace:
        enabled: true
        refresh:
          enabled: true
      kafka:
        bootstrap-servers: localhost:9092 #kafka地址
        consumer:
          group-id: order-service # 分组，不同的组可以收到相同的消息
server:
  port: 8082
  # 1.添加springboot-starter-actuator依赖;  # 2.开放自动刷新端点,同时还需要在刷新配置的地方加上@Refresh注解
  # 3.通过调用/actuator/refresh接口刷新配置
management:
  endpoints:
    web:
      exposure:
        include: refresh
  • 启动类
package com.gupaoedu.example.orderserviceprovider;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.context.annotation.ComponentScan;
// controller包不是OrderServiceProviderApplication所在的子包，需要指定包扫描路径。
@ComponentScan(basePackages="com.gupaoedu.example.controller")
@EnableEurekaClient
@SpringBootApplication
public class OrderServiceProviderApplication {


    public static void main(String[] args) {


        SpringApplication.run(OrderServiceProviderApplication.class, args);
    }
}
  • order-service openfeign接口实现
package com.gupaoedu.example.orderserviceprovider;

import com.gupaoedu.springcloud.OrderService;
import com.gupaoedu.springcloud.dto.OrderDto;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class OrderServiceImpl implements OrderService {


    @Override
    public String orders() {


        return "Return All Orders";
    }
    @Override
    public int insert(OrderDto dto) {


        return 0;
    }
}
  • 配置项测试类
package com.gupaoedu.example.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
@RefreshScope  // 配置项有更新后，重新读取新的配置项
@RestController
public class ConfigController {


    @Value("${hello}")
    private String txt;
    @GetMapping("/config")
    public String config(){


        return txt;
    }
}

1.5 user-service搭建

1.5.1 user-service 父项目

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <!-- 添加父pom依赖,这样user-service-provider项目能够直接依赖到spring-cloud-netflix根项目依赖的jar包 -->
    <parent>
        <groupId>com.gupaoedu.springcloud</groupId>
        <artifactId>spring-cloud-netflix</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <groupId>com.gupaoedu.springcloud</groupId>
    <artifactId>spring-cloud-user-service-8081</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>user-service-api</module>
        <module>user-service-provider</module>
    </modules>
</project>

1.5.2 user-service API接口

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-cloud-user-service-8081</artifactId>
        <groupId>com.gupaoedu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>user-service-api</artifactId>
</project>

1.5.3 user-service 服务实现

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <artifactId>spring-cloud-user-service-8081</artifactId>
        <groupId>com.gupaoedu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <groupId>com.gupaoedu.example</groupId>
    <artifactId>user-service-provider</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>user-service-provider</name>
    <description>Demo project for Spring Boot</description>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-kafka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>
  • user-service 项目配置
    (1) 启动配置bootstrap.yml
    user-service 作为configserver的客户端，在启动时需要从配置中心获取外部配置，这个步骤需要在启动时完成，因此，注册中心eureka和配置中心configserver的相关配置要放到bootstrap.yml中去，否则项目启动会报错
spring:
  cloud:
    config:
      discovery:
        enabled: true # 不写默认是false,从8088端口查询外部配置项
        service-id: spring-cloud-config-server-9091
eureka:
  client:
    service-url:
      defaultZone: http://localhost:9090/eureka

（2）application.yml

spring:
  application:
    name: user-service
  cloud:
    bus:
      enabled: true
      trace:
        enabled: true
        refresh:
          enabled: true
      kafka:
        bootstrap-servers: localhost:9092 #kafka地址
        consumer:
          group-id: user-service # 分组，不同的组可以收到相同的消息
server:
  port: 8081
  # 刷新外部配置
  # 1.添加springboot-starter-actuator依赖;  # 2.开放自动刷新端点,同时还需要在刷新配置的地方加上@Refresh注解
  # 3.通过调用/actuator/refresh接口刷新配置
management:
  endpoints:
    web:
      exposure:
        include: refresh
  • 配置项读取测试代码
package com.gupaoedu.example.userserviceprovider;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.context.annotation.ComponentScan;

@ComponentScan(basePackages ="com.gupaoedu.example" )
@EnableEurekaClient
@SpringBootApplication
public class UserServiceProviderApplication {


    public static void main(String[] args) {


        SpringApplication.run(UserServiceProviderApplication.class, args);
    }
}

package com.gupaoedu.example.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RefreshScope   // 动态刷新配置
@RequestMapping("/user")
public class ConfigController {


    @Value("${env}")
    private String text;
    @GetMapping("/config")
    public String getText(){


        return text;
    }
}

2 SpringCloud config配置应用

2.1 springcloud配置文件后缀组合方式

  • /{application}/{profile}/{label}
  • /{application}-profile
  • /{label} / {application} -{profile}
    application: 应用名称
    profile: 不同的配置分组
    在gitee上添加如下几个配置文件：
    order-service.yml
env:
  test
hello:
  mike666

user-service.properties

spring.application.name=user-service
server.port=8081
env=user-test12345

user-service-prd.properties

env=prd
timer.switch=off

user-service-dev.properties

env=dev

依次启动zookeeper ，kafka eureka-server ,config-server ，order-service ,user-service, 演示 /{application}-profile 这种后缀组合的效果：
先访问http://localhost:9091/user-service.properties，结果如下
在这里插入图片描述
访问 http://localhost:9091/user-service-prd.properties ，springcloud会自动合并user-service.properties 和user-service-prd.properties中的配置：
在这里插入图片描述
除此之外，它还可以支持以json , yml 格式读取配置：
在这里插入图片描述

2.2 spring-boot-starter-actuator 手动刷新配置

将configserver项目pom.xml文件中的spring-cloud-config-monitor和 spring-cloud-starter-bus-kafka的依赖注释掉，只用spring-boot-starter-actuator 来刷新配置项

        <dependency>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

这时如果git上的配置项有更新，configclient端要想更新配置项，必须要手动发送一个post请求给对应的项目的/actuator/refresh接口，才能读取到最新的配置。这种方式有个缺点，就是如果有几十个微服务，每个微服务都需要单独去调用/actuator/refresh接口更新配置才行。

2.3 springcloud config bus + webhook自动刷新配置

通过消息总线实现配置自动刷新，它的原理是当configserver上的配置有了更新，它会发送一个广播消息到消息队列中（kafka rabbitmq等），所有的configclient 会去订阅这些消息然后更新自己本地缓存的配置项，从而实现配置项的刷新。
如果引入spring-cloud-starter-bus-kafka 依赖，并启动kafka，此时又会出现一个问题：
修改了配置项之后用postman刷新总线消息：POST http://localhost:9091/actuator/bus-refresh， 虽然实现了对各个configclient 的配置项进行批量刷新，不需要对每个微服务项目单独调用actuator接口去点对点的同步配置项， 但是它仍然是手动的。有没有办法实现配置项变化自动去刷新呢？ git的webhook功能就具备这个功能。通过webhook自动刷新配置，需要一个内网穿透工具，因为git无法直接访问到本地的localhost 地址，需要借助内网穿透工具webhook来让git 能够访问到localhost ,它的实现是 ，一旦webhook检测到配置更新的pull、request事件，就会去调用webhook中配置的地址去更新配置项：
首先启动ngrok
在这里插入图片描述
然后配置webhook
在这里插入图片描述
configserver引入spring-cloud-starter-bus-kafka 的依赖 ，然后启动erureka configserver , 以及configclient，这时修改gitee上的配置项，会看到项目中报错了：
在这里插入图片描述

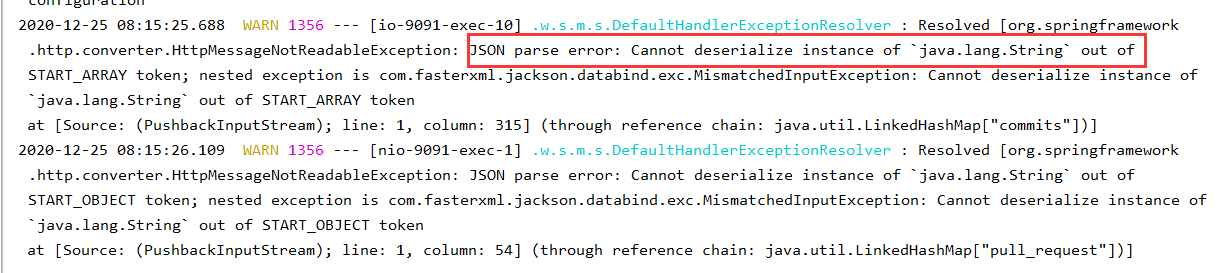

2020-12-25 08:15:25.688  WARN 1356 --- [io-9091-exec-10] .w.s.m.s.DefaultHandlerExceptionResolver : Resolved [org.springframework.http.converter.HttpMessageNotReadableException: JSON parse error: Cannot deserialize instance of `java.lang.String` out of START_ARRAY token; nested exception is com.fasterxml.jackson.databind.exc.MismatchedInputException: Cannot deserialize instance of `java.lang.String` out of START_ARRAY token
 at [Source: (PushbackInputStream); line: 1, column: 315] (through reference chain: java.util.LinkedHashMap["commits"])]
2020-12-25 08:15:26.109  WARN 1356 --- [nio-9091-exec-1] .w.s.m.s.DefaultHandlerExceptionResolver : Resolved [org.springframework.http.converter.HttpMessageNotReadableException: JSON parse error: Cannot deserialize instance of `java.lang.String` out of START_OBJECT token; nested exception is com.fasterxml.jackson.databind.exc.MismatchedInputException: Cannot deserialize instance of `java.lang.String` out of START_OBJECT token
 at [Source: (PushbackInputStream); line: 1, column: 54] (through reference chain: java.util.LinkedHashMap["pull_request"])]

无法解析json, 这是因为git发送的报文 无法被正确解析，webhook上面要改用monitor接口！需要在configserver中加入spring-cloud-config-monitor的依赖（configclient pom不用修改）

  <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-server</artifactId>
        </dependency>

<!-- 注册到注册中心，需要添加依赖 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <!-- 测试kafka作为分布式配置中心的消息总线，configserver以及configclient都需要添加cloud-bus以及actuator依赖 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-kafka</artifactId>
        </dependency>
<!--        <dependency>-->
<!--                    <groupId>org.springframework.boot</groupId>-->
<!--                    <artifactId>spring-boot-starter-actuator</artifactId>-->
<!--        </dependency>-->
        <!-- http://04b6c5e91673.ngrok.io/monitor   通过ngrok映射到本地9091 configserver调用/monitor接口，
        不会出现/actuator/bus-refresh接口推送配置项变更时json请求无法被config client解析的情况 -->
        <!-- 需要把spring-boot-starter-actuator依赖去掉，否则configclient无法连接到配置中心 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-monitor</artifactId>
        </dependency>
    </dependencies>

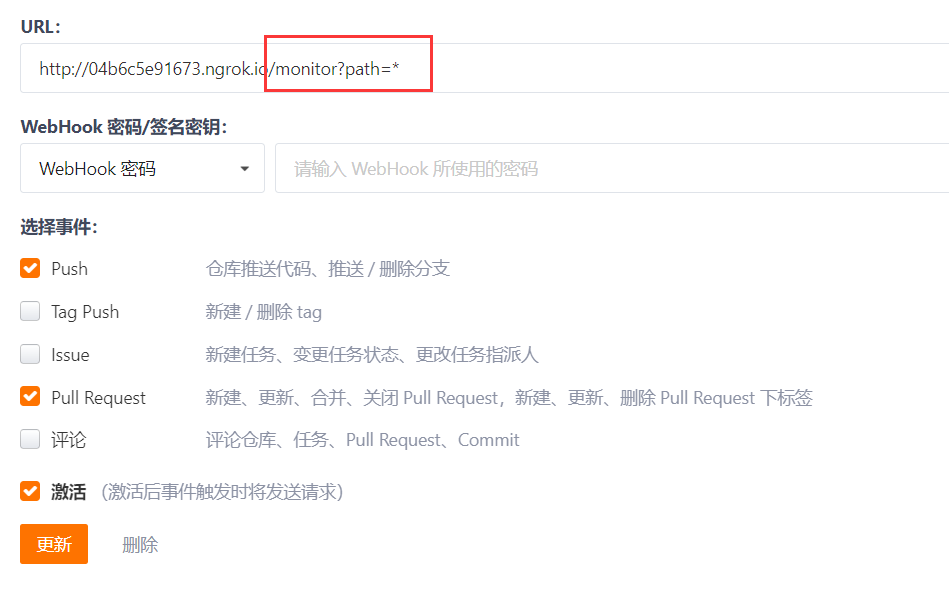

然后修改webhook 刷新配置url 的接口为monitor接口：
在这里插入图片描述

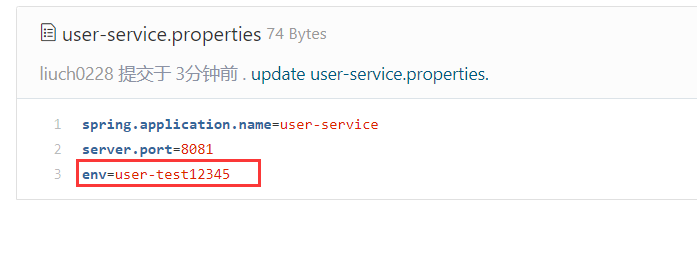

重启configserver，修改git上的 order-service.yml以及 user-service.properties 中的配置项：
在这里插入图片描述
请求http://localhost:8081/user/config ，可以看到配置项自己刷新了
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
这样就通过springcloudbus 消息总线实现了所有configclient上的配置的动态刷新！
代码地址

猜你喜欢

转载自blog.csdn.net/weixin_41300437/article/details/111802786
今日推荐
面壁智能发布 Eurux-8x22B 开源大模型 —— 堪称「理科状元」
开源日报 | 谷歌扶持鸿蒙上位；开源Rabbit R1；Docker加持的安卓手机；微软的焦虑和野心；海尔电器把开放平台关了
中国码农的“35岁魔咒”
蘭雅 CorelDRAW 插件 2024.5.1 国际劳动节版，免费下载
Arc Browser for Windows 1.0 正式 GA
90后程序员开发视频搬运软件、不到一年获利超 700 万，结局很刑！
周排行
【转】spring中对控制反转和依赖注入的理解
tms webcore 安装和使用
java程序员进阶相关书籍
SpringMVC接受请求参数、
如何保存训练好的机器学习模型
MyEclipse、Eclipse设置项目JDK的三个地方
商超行业微信小程序开发定制一般多少钱 （行业技术人员解读）
Markdown编辑器语言——30分钟入门到到精通
Linux系统下MongoDB的简单安装与基本操作
Power Strings
每日归档
更多
2024-05-07(14)
2024-05-06(40)
2024-05-05(0)
2024-05-04(7)
2024-05-03(19)
2024-05-02(0)
2024-05-01(4)
2024-04-30(1)
2024-04-29(40)
2024-04-28(0)

代码天地 © 2018 codetd.com

境外服务器   最新电视剧2022
