无人驾驶8： 粒子滤波定位(优达学城项目)

优达学城无人车定位的项目实现：

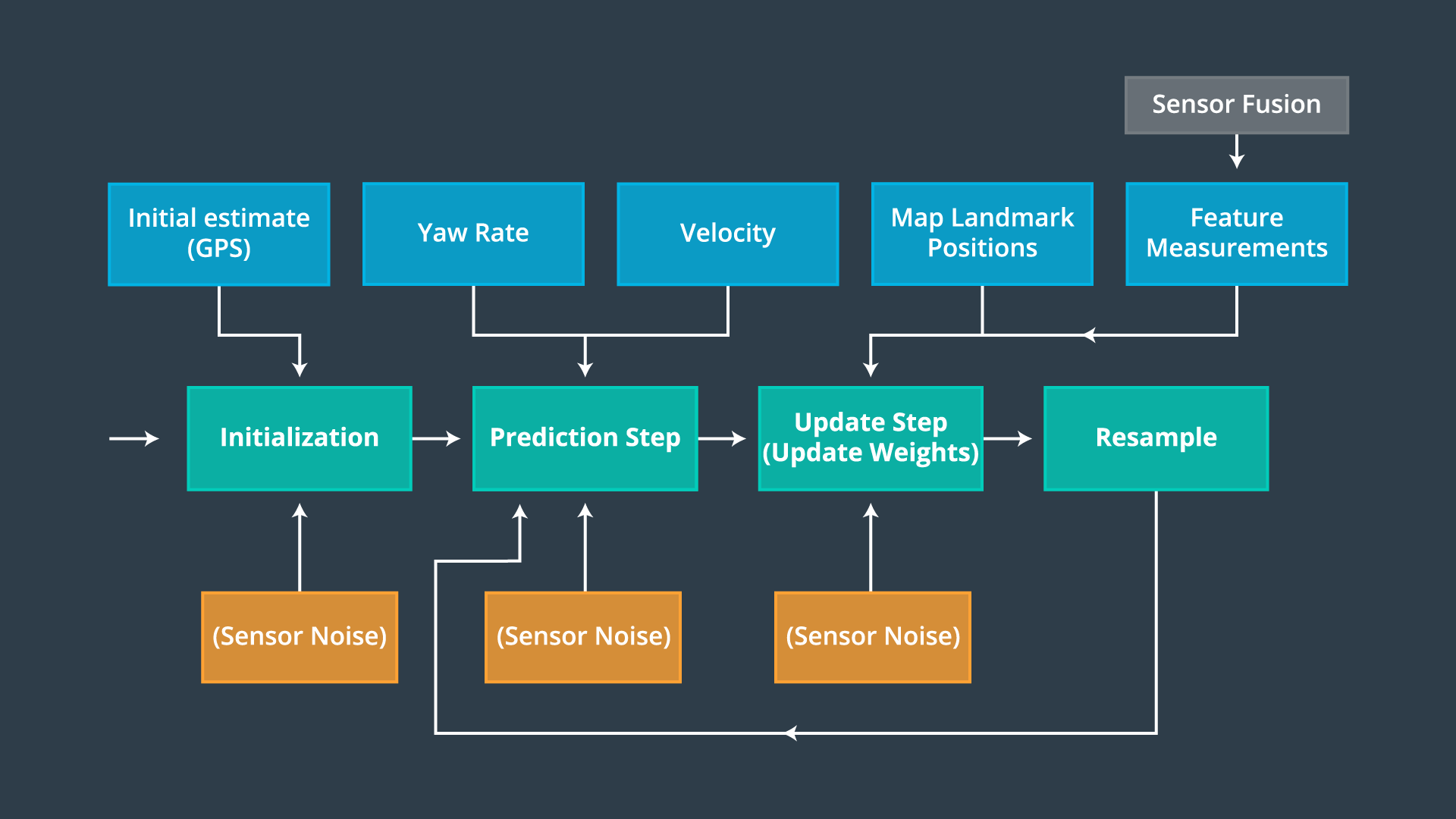

粒子滤波算法流程图

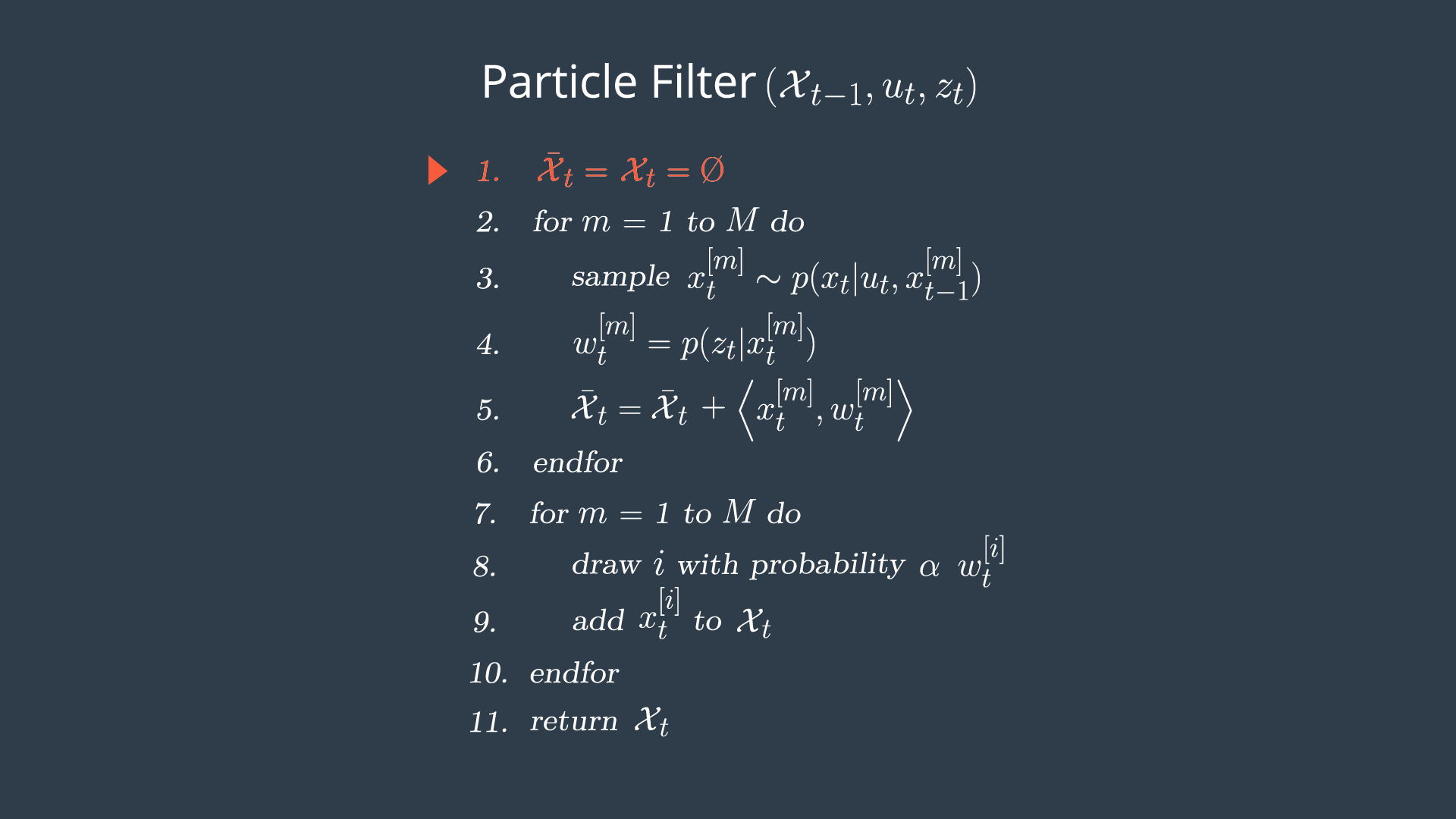

粒子滤波的伪代码：

step1:初始化

理论上说，当粒子数量足够多时，能准确地呈现贝叶斯后验分布，如果粒子太少，可能漏掉准确位置，粒子数量太多，会拖慢滤波器，无法实时定位无人车位置。

粒子初始化有两个方法;

1.在状态空间均匀取样；空间太大时(比如全球)，不易实现；

2.在某个初始估算值周围取样；对于无人车，可以用GPS获取估算位置；

这里采用GPS得到一个粗略初始坐标，然后用高斯分布取样，初始化粒子；

代码实现：

void printSamples(double gps_x, double gps_y, double theta) {
  std::default_random_engine gen;
  double std_x, std_y, std_theta;  // Standard deviations for x, y, and theta

  // TODO: Set standard deviations for x, y, and theta
    std_x = 2;
    std_y = 2;
    std_theta = 0.5;

  // This line creates a normal (Gaussian) distribution for x
  normal_distribution<double> dist_x(gps_x, std_x);

  // TODO: Create normal distributions for y and theta
    normal_distribution<double> dist_y(gps_y, std_y);
    normal_distribution<double> dist_theta(theta, std_theta);

  for (int i = 0; i < 3; ++i) {
    double sample_x, sample_y, sample_theta;

    // TODO: Sample from these normal distributions like this:
    //   sample_x = dist_x(gen);
    //   where "gen" is the random engine initialized earlier.
    sample_x = dist_x(gen);
    sample_y = dist_y(gen);
    sample_theta = dist_theta(gen);

    // Print your samples to the terminal.
    std::cout << "Sample " << i + 1 << " " << sample_x << " " << sample_y << " "
              << sample_theta << std::endl;
  }

  return;
}

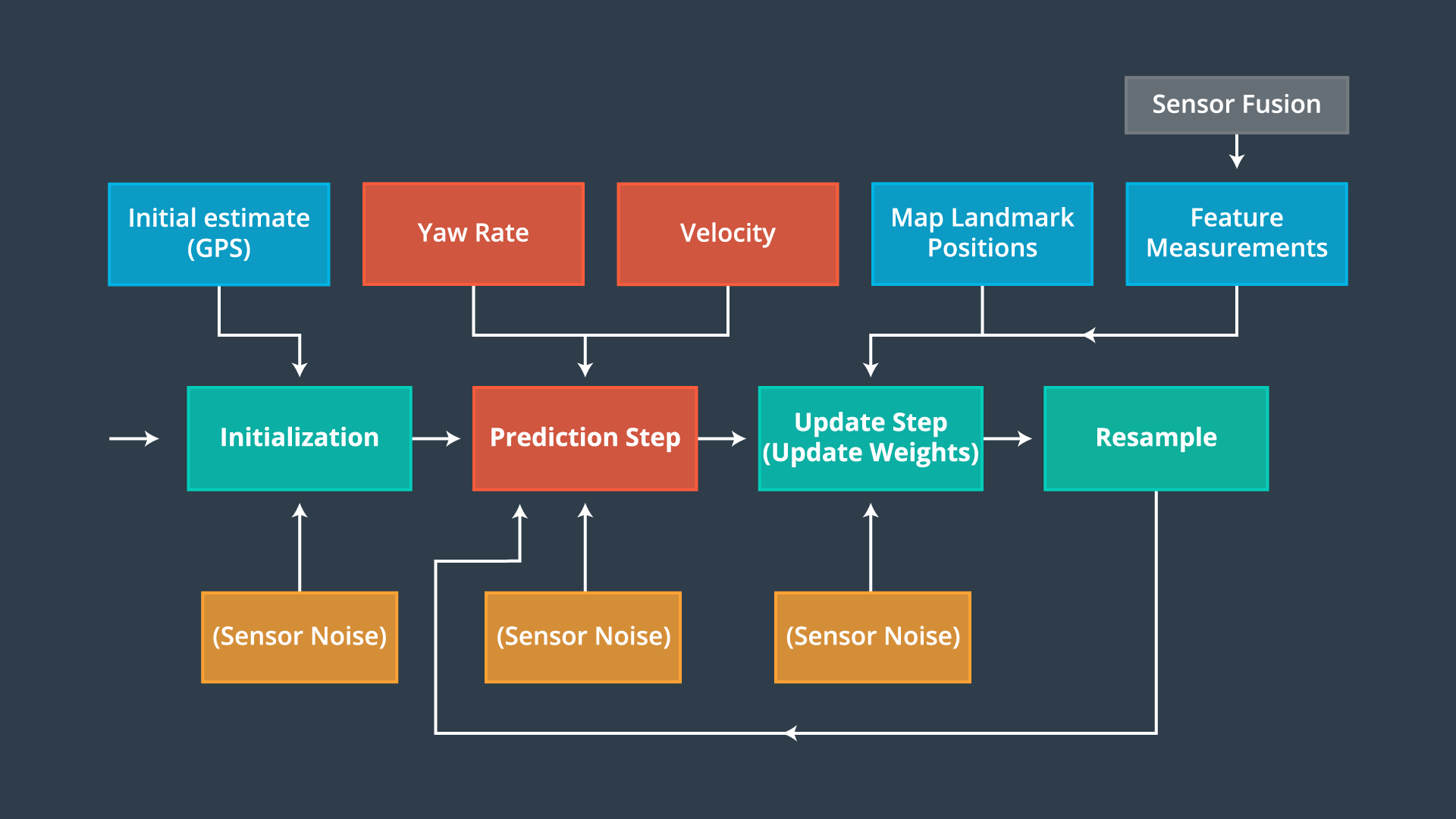

step2: prediction

运用自行车模型，预测车辆在下一个时间步所处的位置；

对于每个粒子，根据其速度和位置值更新粒子位置，需要考虑控制输入中的不确定性，向速度和角速度添加高斯噪声；

自行车模型计算公式：
$x_f = x_0 + \dfrac{v}{ \dot{\theta}}[sin(\theta_0 + \dot(\theta)(dt)) - sin(\theta_0)]$

$y_f = y_0 + \dfrac{v}{ \dot{\theta}}[cos(\theta_0) - cos(\theta_0 + \dot{\theta}(dt))]$

$\theta_f = \theta_0 + \dot{\theta}(dt)$

step3: 测量更新

数据关联

使用周围物体的地标测量值，更新位置信仰之前，必须解决数据关联问题，即测量方法。

数据关联，就是将地标测量值和真实世界的对象相匹配；

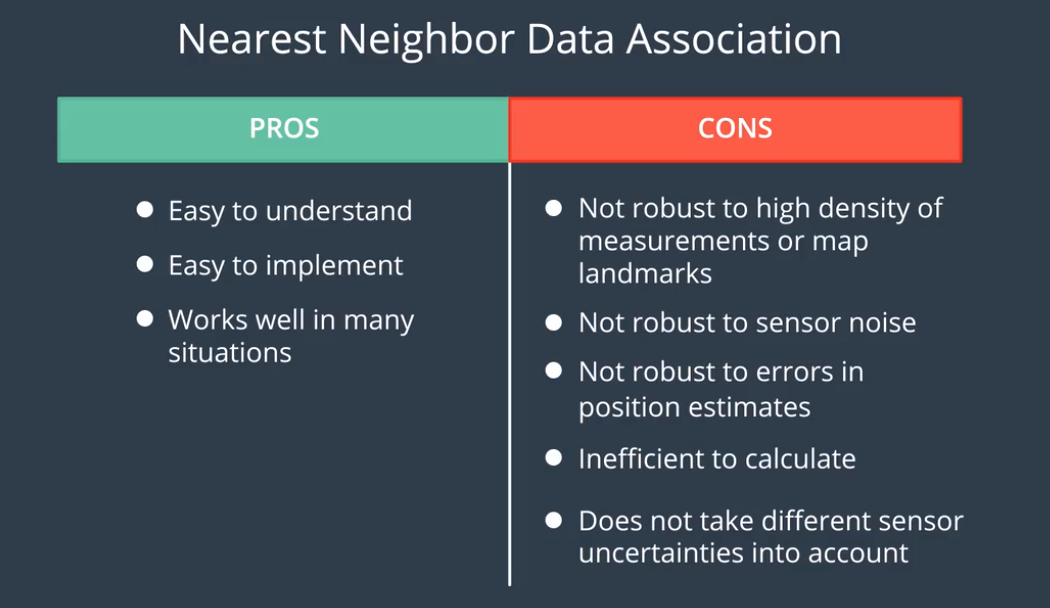

最紧邻法:把最近的测量值，作为正确的对应值，优缺点对比

step4 准确性评估

两种方法：

方法一：取所有粒子的加权平均误差；

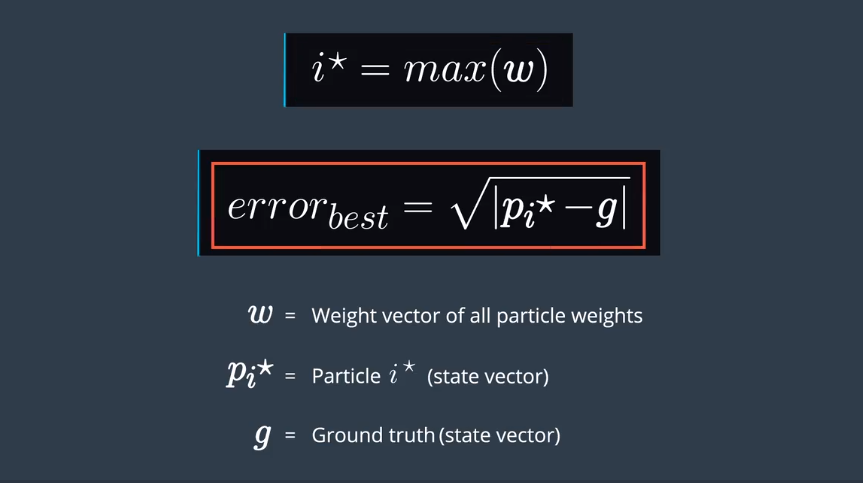

方法二：取权重最高的粒子；求其方差平方根即可

计算公式：
where:
$Position\_RMSE = \sqrt{(x_p - x_g)^2 + (y_p - y_g)^2}$

$Theta\_RMSE = \sqrt{(\theta_p - \theta_g)^2}$

Transformations and Associatio

传感器测量，是以无人车为原点坐标，在车辆坐标系统的值，要做数据管理，必须转化为地图坐标系通。

如图，点OBS1(2,2),OBS2(3,-2),OBS3(0,-4)是无人车传感器测量到的三个地标，而蓝色点P(4,5)是无人车在地图上的坐标。

Homogenous Transformation

$\left[ \begin{array}{c} \text{x}_m \\ \text{y}_m \\ 1 \end{array} \right] = \begin{bmatrix} \cos\theta & -\sin\theta & \text{x}_p \\ \sin\theta & \cos\theta & \text{y}_p \\ 0 & 0 & 1 \end{bmatrix} \times \left[ \begin{array}{c} \text{x}_c \\ \text{y}_c \\ 1 \end{array} \right]$

Matrix multiplication results in:

$\text{x}_m= \text{x}_p + (\cos\theta \times \text{x}_c) - (\sin\theta \times \text{y}_c)$

$\text{y}_m= \text{y}_p + (\sin\theta \times \text{x}_c) + (\cos\theta \times \text{y}_c)$

根据公式，计算三个点对应的地图坐标：

OBS1(2,2): (6,3)

OBS2(3,-2):(2,2)

OBS3(0,-4) (0,5)

代码实现：

#include <cmath>
#include <iostream>

int main() {
  // define coordinates and theta
  double x_part, y_part, x_obs, y_obs, theta;
  x_part = 4;
  y_part = 5;
  x_obs = 2;
  y_obs = 2;
  theta = -M_PI/2; // -90 degrees

  // transform to map x coordinate
  double x_map;
  x_map = x_part + (cos(theta) * x_obs) - (sin(theta) * y_obs);

  // transform to map y coordinate
  double y_map;
  y_map = y_part + (sin(theta) * x_obs) + (cos(theta) * y_obs);

  // (6,3)
  std::cout << int(round(x_map)) << ", " << int(round((y_map)) << std::endl;

  return 0;
}

Associatio

根据三个观测点的地图坐标OBS1(6,3)，OBS2(2,2)，OBS3：(0,5)，关联最近的地标分别为L1,L2，L2

Calculating the Particle’s Final Weight

对每个粒子，遍历计算每个匹配的地标点，
$P(x,y)= \frac{1}{2\pi \sigma_x\sigma_y}e^{-(\frac{(x-\mu_x)^2}{2\sigma_x^2} + \frac{(y-\mu_y)^2}{2\sigma_y^2})}$

得到每个粒子的存在概率，概率值越大，权重越大。

代码实现：

#include <iostream>
#include "multiv_gauss.h"

int main() {
  // define inputs
  double sig_x, sig_y, x_obs, y_obs, mu_x, mu_y;
  // define outputs for observations
  double weight1, weight2, weight3;
  // final weight
  double final_weight;

  // OBS1 values
  sig_x = 0.3;
  sig_y = 0.3;
  x_obs = 6;
  y_obs = 3;
  mu_x = 5;
  mu_y = 3;
  // Calculate OBS1 weight
  weight1 = multiv_prob(sig_x, sig_y, x_obs, y_obs, mu_x, mu_y);
  // should be around 0.00683644777551 rounding to 6.84E-3
  std::cout << "Weight1: " << weight1 << std::endl;

  // OBS2 values
  sig_x = 0.3;
  sig_y = 0.3;
  x_obs = 2;
  y_obs = 2;
  mu_x = 2;
  mu_y = 1;
  // Calculate OBS2 weight
  weight2 = multiv_prob(sig_x, sig_y, x_obs, y_obs, mu_x, mu_y);
  // should be around 0.00683644777551 rounding to 6.84E-3
  std::cout << "Weight2: " << weight2 << std::endl;

  // OBS3 values
  sig_x = 0.3;
  sig_y = 0.3;
  x_obs = 0;
  y_obs = 5;
  mu_x = 2;
  mu_y = 1;
  // Calculate OBS3 weight
  weight3 = multiv_prob(sig_x, sig_y, x_obs, y_obs, mu_x, mu_y);
  // should be around 9.83184874151e-49 rounding to 9.83E-49
  std::cout << "Weight3: " << weight3 << std::endl;

  // Output final weight
  final_weight = weight1 * weight2 * weight3;
  // 4.60E-53
  std::cout << "Final weight: " << final_weight << std::endl;

  return 0;
}

Kidnapped-Vehicle project

优达学城的无人驾驶第六个项目，粒子滤波器定位，实现代码：

https://github.com/luteresa/P6-Kidnapped-Vehicle.git

运行结果：
