UVM Testbench Top
testbench顶层文件包含 test、interface实例、run_test()方法、虚接口的设置配置数据库（virtual interface set config_db）、时钟和复位的产生逻辑、波形dump逻辑.
module tbench_top;
//clock and reset signal declaration
bit clk;
bit reset;
//clock generation
always #5 clk = ~clk;
//reset Generation
initial begin
reset = 1;
#5 reset =0;
end
//creatinng instance of interface, inorder to connect DUT and testcase
mem_if intf(clk,reset);//接口实例
//DUT instance, interface signals are connected to the DUT ports
memory DUT (
.clk(intf.clk),
.reset(intf.reset),
.addr(intf.addr),
.wr_en(intf.wr_en),
.rd_en(intf.rd_en),
.wdata(intf.wdata),
.rdata(intf.rdata)
);
//enabling the wave dump
initial begin
uvm_config_db#(virtual mem_if)::set(uvm_root::get(),"*","mem_intf",intf);//虚接口配置逻辑
$dumpfile("dump.vcd"); $dumpvars;//波形dump
end
initial begin
run_test();//主方法，开始执行
end
endmodule
来看下面一个testbench顶层文件的例子：
module tb_top;
import uvm_pkg::*;
import test_pkg::*;//导入包
// Complex testbenches will have multiple clocks and hence multiple clock
// generator modules that will be instantiated elsewhere
// For simple designs, it can be put into testbench top 复杂的设计会存在多个时钟
bit clk;
always #10 clk <= ~clk;
// 实例化接口并把它传送给DUT
dut_if dut_if1 (clk);
dut_wrapper dut_wr0 (._if (dut_if1));
// At start of simulation, set the interface handle as a config object in UVM
// database. This IF handle can be retrieved in the test using the get() method
// run_test () accepts the test name as argument. In this case, base_test will
// be run for simulation
initial begin
uvm_config_db #(virtual dut_if)::set (null, "uvm_test_top", "dut_if", dut_if1);
run_test ("base_test");
end
endmodule上面的例子中：
因为用到了UVM的组件，所以要导入包uvm_pkg；
因为将base_test作为run_test的参数进行传递，而base_test在包test_pkg中，所以也要导入；
定义的时钟要传递给接口dut_if1；
接口通过uvm_config_db::set ()设置为UVM数据库表中的对象，它将会在test中用uvm_config_db::get ()回收；
在testbench层次机构中使用config database（配置数据库）将configuration object（配置对象）传递给选中的component（组件）是很方便的；

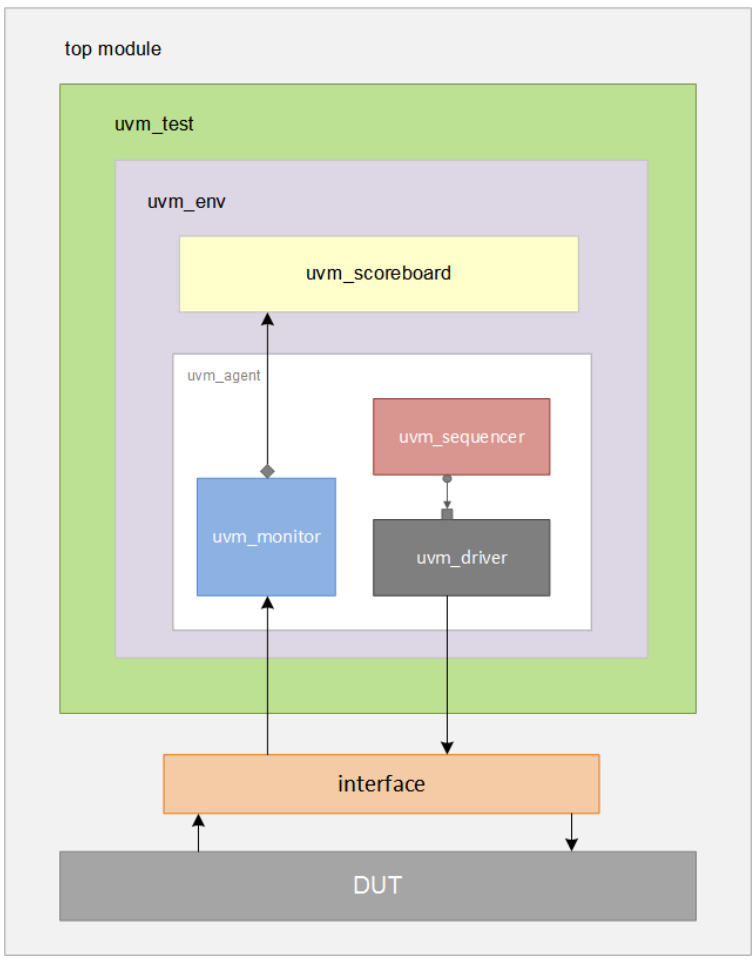

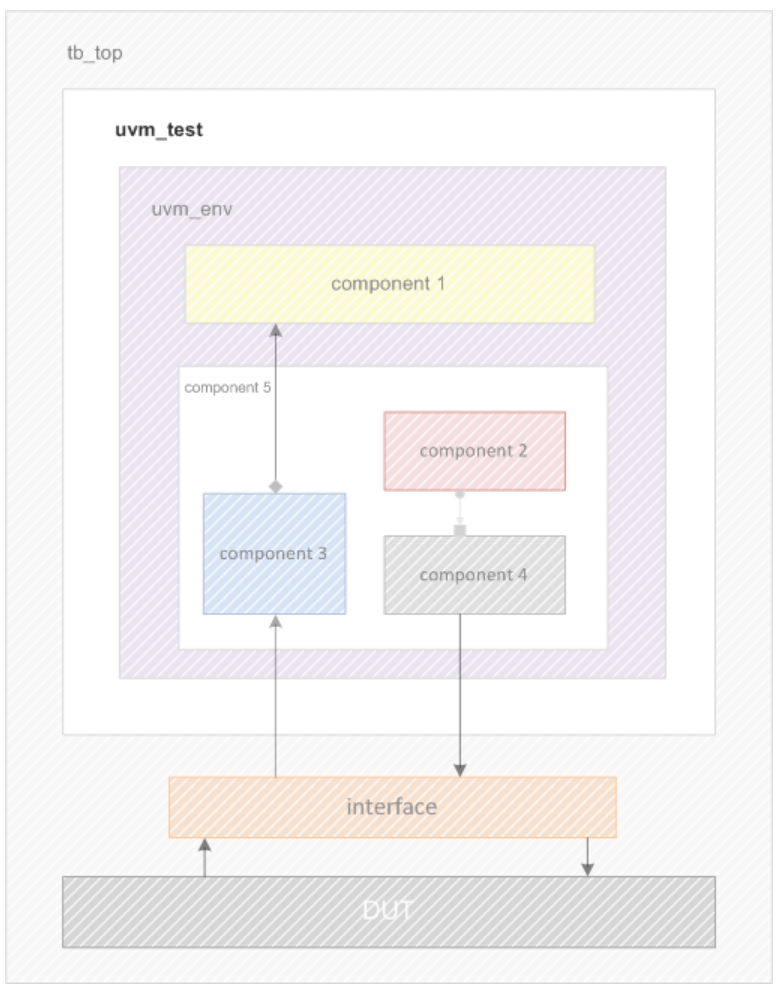

通过调用run_test开始进入test仿真，它可以说是UVM调用各个组件的入口.其执行的过程如下图所示：
UVM Test [uvm_test]
test的作用是检查验证计划书中所列举的DUT的特点和功能，对于一个复杂的设计，通常需要很多歌test来进行验证.为了避免在多个test中编写相同的代码，我们将testbench组件全部包含进了environment，因此可以使用相同的environment和不同的配置（configuration）来编写不同的test. test中包含environment、配置属性（config property）以及覆盖类（class override）等.其次sequence的创建和启动也在test中.
编写test的步骤：
（1）继承uvm_test，在factory（工厂）中注册
// Step 1: Declare a new class that derives from "uvm_test"
// my_test is user-given name for this class that has been derived from "uvm_test"
class my_test extends uvm_test;
// [Recommended] Makes this driver more re-usable
`uvm_component_utils (my_test)
// This is standard code for all components
function new (string name = "my_test", uvm_component parent = null);
super.new (name, parent);
endfunction
// Code for rest of the steps come here
endclass（2）声明environment和其他组件并用phase建立它们
// Step 2: Declare other testbench components - my_env and my_cfg are assumed to be defined
my_env m_top_env; // Testbench environment that contains other agents, register models, etc
my_cfg m_cfg0; // Configuration object to tweak the environment for this test
// Instantiate and build components declared above
virtual function void build_phase (uvm_phase phase);
super.build_phase (phase);
// [Recommended] Instantiate components using "type_id::create()" method instead of new()
m_top_env = my_env::type_id::create ("m_top_env", this);
m_cfg0 = my_cfg::type_id::create ("m_cfg0", this);
// [Optional] Configure testbench components if required, get virtual interface handles, etc
set_cfg_params ();
// [Optional] Make the cfg object available to all components in environment/agent/etc
uvm_config_db #(my_cfg) :: set (this, "m_top_env.my_agent", "m_cfg0", m_cfg0);
endfunction（3）如果有要求的话打印UVM topology（UVM 拓扑)
// [Recommended] By this phase, the environment is all set up so its good to just print the topology for debug
virtual function void end_of_elaboration_phase (uvm_phase phase);
uvm_top.print_topology ();
endfunction（4）建立一个virtual sequence （虚序列）或者普通sequence，并启动
// Start a virtual sequence or a normal sequence for this particular test
virtual task run_phase (uvm_phase phase);
// Create and instantiate the sequence
my_seq m_seq = my_seq::type_id::create ("m_seq");
// Raise objection - else this test will not consume simulation time*
phase.raise_objection (this);
// Start the sequence on a given sequencer
m_seq.start (m_env.seqr);
// Drop objection - else this test will not finish
phase.drop_objection (this);
endtask建立test完成后就可以启动uvm_test，这通过在全局任务run_test()中来完成.例子如下：
// 将test名作为字符串参数传递给run_test
initial begin
run_test ("base_test");
end如果run_test()的参数为空，则需要通过command-line option（命令行选项）进行描述，具体看下面.
如何运行不同的test？这就需要在仿真器中添加命令行参数，此时需要用到关键字+UVM_TESTNAME，例子如下：
// 如果命令行没有提供参数，则运行默认的test
initial begin
run_test ("base_test");
// Or you can leave the argument as blank
// run_test ();
end
// 在EDA simulator输入下面的命令运行test
$> [simulator] -f list +UVM_TESTNAME=base_test一个完整的test如下：
// Step 1: Declare a new class that derives from "uvm_test"
class base_test extends uvm_test;
// Step 2: Register this class with UVM Factory
`uvm_component_utils (base_test)
// Step 3: Define the "new" function
function new (string name, uvm_component parent = null);
super.new (name, parent);
endfunction
// Step 4: Declare other testbench components
my_env m_top_env; // Testbench environment
my_cfg m_cfg0; // Configuration object
// Step 5: Instantiate and build components declared above
virtual function void build_phase (uvm_phase phase);
super.build_phase (phase);
// [Recommended] Instantiate components using "type_id::create()" method instead of new()
m_top_env = my_env::type_id::create ("m_top_env", this);
m_cfg0 = my_cfg::type_id::create ("m_cfg0", this);
// [Optional] Configure testbench components if required
set_cfg_params ();
// [Optional] Make the cfg object available to all components in environment/agent/etc
uvm_config_db #(my_cfg) :: set (this, "m_top_env.my_agent", "m_cfg0", m_cfg0);
endfunction
// [Optional] 设置testbench配置参数，这里设置了两个参数
virtual function void set_cfg_params ();
// Get DUT interface from top module into the cfg object
if (! uvm_config_db #(virtual dut_if) :: get (this, "", "dut_if", m_cfg0.vif)) begin
`uvm_error (get_type_name (), "DUT Interface not found !")
end
// Assign other parameters to the configuration object that has to be used in testbench
m_cfg0.m_verbosity = UVM_HIGH;
m_cfg0.active = UVM_ACTIVE;
endfunction
// [Recommended] By this phase, the environment is all set up so its good to just print the topology for debug
virtual function void end_of_elaboration_phase (uvm_phase phase);
uvm_top.print_topology ();
endfunction
function void start_of_simulation_phase (uvm_phase phase);
super.start_of_simulation_phase (phase);
// [Optional] Assign a default sequence to be executed by the sequencer or look at the run_phase ...
uvm_config_db#(uvm_object_wrapper)::set(this,"m_top_env.my_agent.m_seqr0.main_phase",
"default_sequence", base_sequence::type_id::get());
endfunction
// or.. start a sequence for this particular test
virtual task run_phase (uvm_phase phase);
my_seq m_seq = my_seq::type_id::create ("m_seq");
phase.raise_objection (this);
m_seq.start (m_env.seqr);
phase.drop_objection (this);
endtask
endclass关于上面的例子：
base_test继承了uvm_test，并且在工厂中注册；
在test中声明了environment m_top_env 和一个配置对象 m_cfg0 ，该配置对象包含两个配置参数；
在build_phase() 中建立了m_top_env和m_cfg0对象，m_cfg0进行了初始化，并将该对象通过uvm_config_db::set 设置为UVM数据库表的一个变量；
只有顶层模块m_top_env中的agent对象 my_agent 才可以引用配置对象 m_cfg0；
UVM Environment [uvm_env]
一个environment（环境）包括多个可重用的验证组件，比如可以包含多个带有不同接口的agent、一个公共的scoreboard、一个功能覆盖收集器（functional coverage collector）等.
为什么不将这些组件直接放在test中？主要有以下几点原因：
（1）test的编写需要了解如何配置environment；
（2）改变testbench的拓扑结构（topology）将会使的test需要改很多的地方；
（3）直接将组件放在test中，会导致test无法重用，因为这样就依赖于特定的环境结构；
一个环境允许多次在test中实例化，这样就可以通过改变环境的拓扑结构来创建不同的test，从而构建testbench.
uvm_env是环境的基类，由它可以构成一个完整的环境.创建UVM环境的步骤如下：
（1）继承uvm_env并在工厂中注册
// my_env is user-given name for this class that has been derived from "uvm_env"
class my_env extends uvm_env;
// [Recommended] Makes this driver more re-usable
`uvm_component_utils (my_env)
// This is standard code for all components
function new (string name = "my_env", uvm_component parent = null);
super.new (name, parent);
endfunction
// Code for rest of the steps come here
endclass（2）声明并创建验证组件
// apb_agnt and other components are assumed to be user-defined classes that already exist in TB
apb_agnt m_apb_agnt;//agent
func_cov m_func_cov;//功能覆盖组件
scbd m_scbd;//scoreboard
env_cfg m_env_cfg;//环境配置组件
// Build components within the "build_phase"
virtual function void build_phase (uvm_phase phase);//在build_phase中创建对象
super.build_phase (phase);
m_apb_agnt = apb_agnt::type_id::create ("m_apb_agnt", this);
m_func_cov = func_cov::type_id::create ("m_func_cov", this);
m_scbd = scbd::type_id::create ("m_scbd", this);
// [Optional] Collect configuration objects from the test class if applicable
//从test中获得配置对象
if (uvm_config_db #(env_cfg)::get(this, "", "env_cfg", m_env_cfg))
`uvm_fatal ("build_phase", "Did not get a configuration object for env")
// [Optional] Pass other configuration objects to sub-components via uvm_config_db
endfunction（3）连接验证组件
virtual function void connect_phase (uvm_phase phase);
// A few examples:
// Connect analysis ports from agent to the scoreboard
// Connect functional coverage component analysis ports
// ...

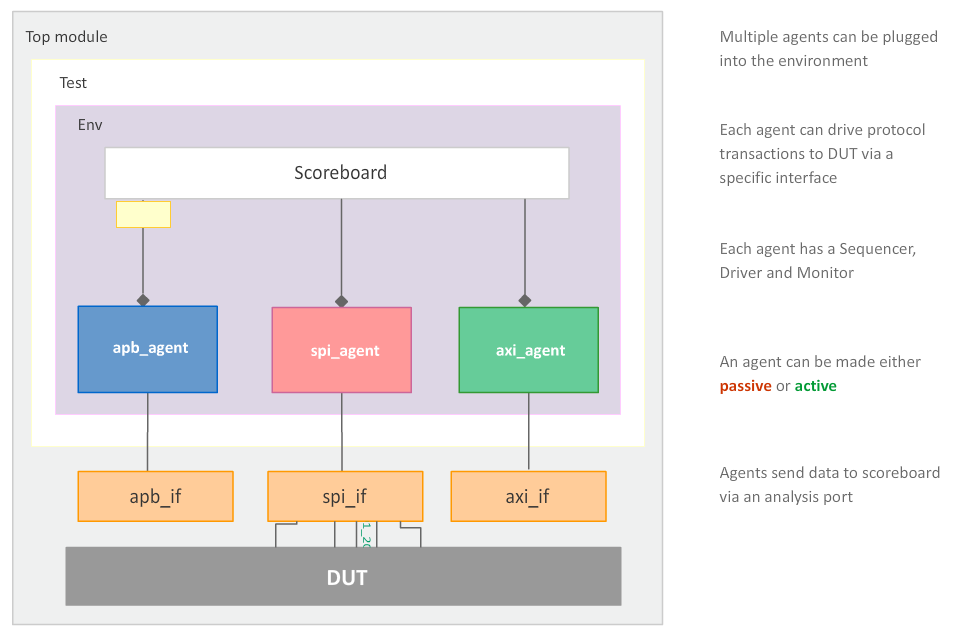

endfunction下面来看一个完整环境的例子，包括两个agent和3个子环境 ：
class my_top_env extends uvm_env;
`uvm_component_utils (my_env)
agent_apb m_apb_agt;
agent_wishbone m_wb_agt;
env_register m_reg_env;
env_analog m_analog_env [2];
scoreboard m_scbd;
function new (string name = "my_env", uvm_component parent);
super.new (name, parent);
endfunction
virtual function void build_phase (uvm_phase phase);//创建agent和子环境的对象
super.build_phase (phase);
// Instantiate different agents and environments here
m_apb_agt = agent_apb::type_id::create ("m_apb_agt", this);
m_wb_agt = agent_wishbone::type_id::create ("m_wb_agt", this);
m_reg_env = env_register::type_id::create ("m_reg_env", this);
foreach (m_analog_env[i])
m_analog_env[i] = env_analog::type_id::create ($sformatf("m_analog_env%0d",m_analog_env[i]), this);
m_scbd = scoreboard::type_id::create ("m_scbd", this);
endfunction
virtual function void connect_phase (uvm_phase phase);
// Connect between different environments, agents, analysis ports, and scoreboard here
endfunction
endclass子环境中可以包含其他agent和自己的子环境.再来看下面一个简单的例子：
class my_env extends uvm_env ;
`uvm_component_utils (my_env)
my_agent m_agnt0;
my_scoreboard m_scbd0;
function new (string name, uvm_component parent);
super.new (name, parent);
endfunction : new
virtual function void build_phase (uvm_phase phase);
super.build_phase (phase);
m_agnt0 = my_agent::type_id::create ("my_agent", this);
m_scbd0 = my_scoreboard::type_id::create ("my_scoreboard", this);
endfunction : build_phase
virtual function void connect_phase (uvm_phase phase);
// 连接scoreboard和agent，注意是在connect_phase函数中进行连接
m_agnt0.m_mon0.item_collected_port.connect (m_scbd0.data_export);
endfunction

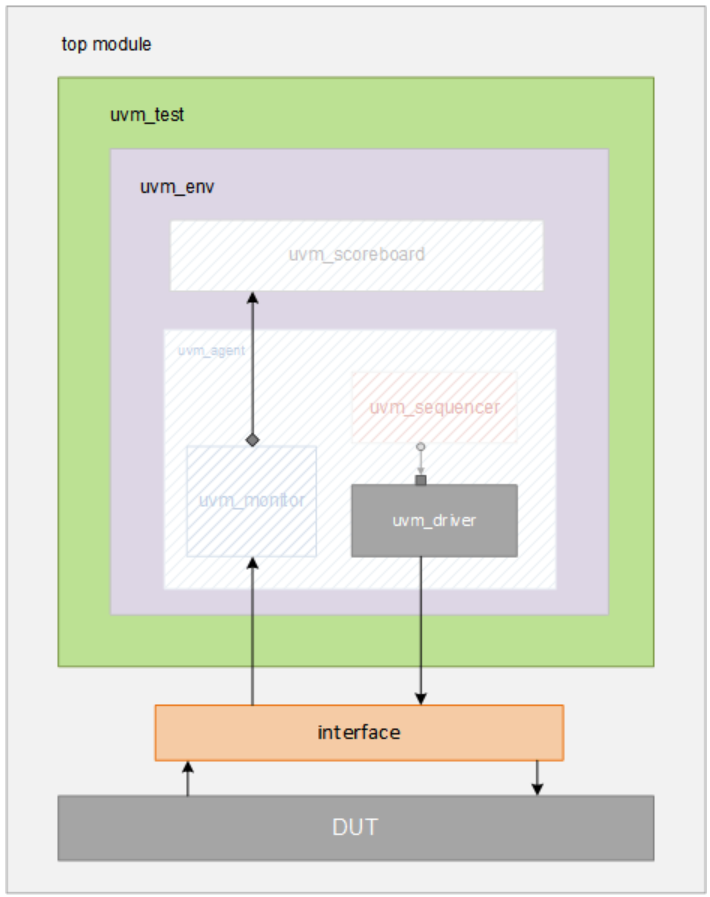

endclassUVM Driver [uvm_driver]
driver的作用主要是驱动信号到对应的接口.例如，为了驱动APB总线，driver需要知道信号何时被采样.所有的drver都继承与uvm_driver.从sequencer获得传输级对象（transaction level object） ，然后通过driver驱动它们通过接口进入到DUT中.
创建driver的步骤：
（1）继承uvm_driver并在工厂中注册
// my_driver is user-given name for this class that has been derived from "uvm_driver"
class my_driver extends uvm_driver;
// [Recommended] Makes this driver more re-usable
`uvm_component_utils (my_driver)
// This is standard code for all components
function new (string name = "my_driver", uvm_component parent = null);
super.new (name, parent);
endfunction
// Code for rest of the steps come here
endclass（2）声明接口句柄，并在build_phase中实例化
// Actual interface object is later obtained by doing a get() call on uvm_config_db
virtual if_name vif;
virtual function void build_phase (uvm_phase phase);
super.build_phase (phase);
if (! uvm_config_db #(virtual if_name) :: get (this, "", "vif", vif)) begin
`uvm_fatal (get_type_name (), "Didn't get handle to virtual interface if_name")
end
endfunction（3）编辑run_phase
// This is the main piece of driver code which decides how it has to translate
// transaction level objects into pin wiggles at the DUT interface
virtual task run_phase (uvm_phase phase);//驱动任务
// Loop the following steps
// 1. Get next item from the sequencer
// 2. Assign data from the received item into DUT interface
// 3. Finish driving transaction
endtask
driver与sequencer之间的握手（handshake）
driver是参数化（parameterized）的类，可以驱动不同类型的传输对象（transaction object）.driver有一个uvm_seq_item_pull_port类型的TLM端口，它可以接收来自uvm_sequencer的参数化对象，同时给uvm_sequencer提供一个反馈对象（response object）.通常没有明确定义的话，接收对象和反馈对象时同一种类型的.

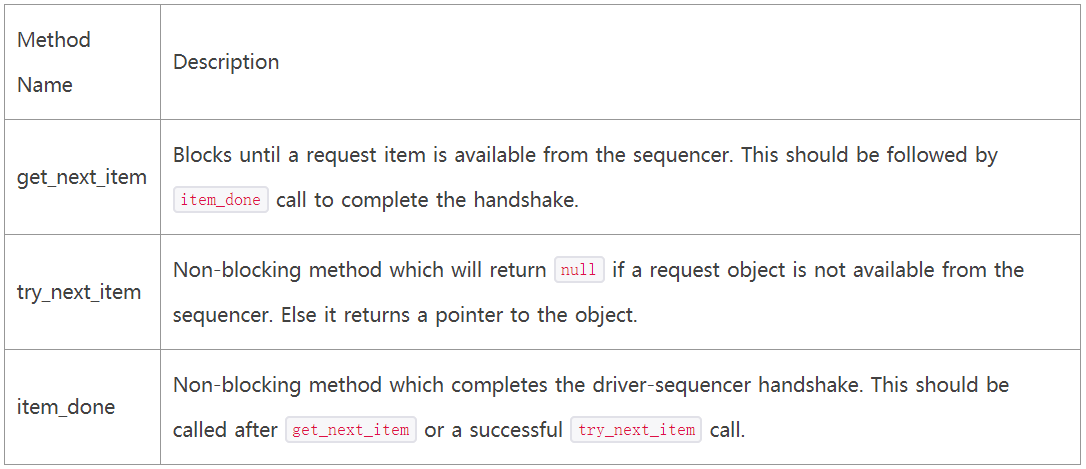

driver利用下面的方法与sequencer进行交互：
driver与sequencer之间的握手机制是为了将sequencer中的传输对象发送到driver，同时反馈一个对象回sequencer；接着driver再接收下一个传输对象.具体工作模式有两种方式：
（1）get_next_item followed by item_done
virtual task run_phase (uvm_phase phase);
my_data req_item;
forever begin
// 1.接收下一个传输对象
seq_item_port.get_next_item (req_item);
// 2. 驱动对象到接口
@(posedge vif.clk);
vif.en <= 1;
// Drive remaining signals, put write data/get read data
// 3. 告诉sequencer，driver已完成当前对象的接收和发送
seq_item_port.item_done();
end（2）get followed by put
virtual task run_phase (uvm_phase phase);
my_data req_item;
forever begin
// 1. finish_item in sequence is unblocked 获得传输对象的过程是非阻塞的，这是与上面方法的不同
seq_item_port.get (req_item);
// 2. Drive signals to the interface
@(posedge vif.clk);
vif.en = 1;
// Drive remaining signals
// 3. Finish item
seq_item_port.put (rsp_item);
end
endtask下面来看一个完整的driver例子：
class my_driver extends uvm_driver #(my_data);
`uvm_component_utils (my_driver)
virtual dut_if vif;
function new (string name, uvm_component parent);
super.new (name, parent);
endfunction
virtual function void build_phase (uvm_phase phase);
super.build_phase (phase);
if (! uvm_config_db #(virtual dut_if) :: get (this, "", "vif", vif)) begin
`uvm_fatal (get_type_name (), "Didn't get handle to virtual interface dut_if")
end
endfunction
task run_phase (uvm_phase phase);
super.run_phase (phase);
forever begin
`uvm_info (get_type_name (), $sformatf ("Waiting for data from sequencer"), UVM_MEDIUM)
seq_item_port.get_next_item (data_obj);
drive_item (data_obj);//驱动传输对象
seq_item_port.item_done ();
end
endtask
virtual task drive_item (my_data data_obj);
// Drive based on bus protocol
endtask
endclass再来一个例子：
class mem_driver extends uvm_driver #(mem_seq_item);
// Virtual Interface
virtual mem_if vif;
`uvm_component_utils(mem_driver)
//uvm_analysis_port #(mem_seq_item) Drvr2Sb_port;
// Constructor
function new (string name, uvm_component parent);
super.new(name, parent);
endfunction : new
function void build_phase(uvm_phase phase);
super.build_phase(phase);
if(!uvm_config_db#(virtual mem_if)::get(this, "", "vif", vif))
`uvm_fatal("NO_VIF",{"virtual interface must be set for: ",get_full_name(),".vif"});
endfunction: build_phase
// run phase
virtual task run_phase(uvm_phase phase);
forever begin
seq_item_port.get_next_item(req);
//respond_to_transfer(req);
drive();
seq_item_port.item_done();
end
endtask : run_phase
// drive
virtual task drive();
req.print();
`DRIV_IF.wr_en <= 0;
`DRIV_IF.rd_en <= 0;
@(posedge vif.DRIVER.clk);
`DRIV_IF.addr <= req.addr;
if(req.wr_en) begin
`DRIV_IF.wr_en <= req.wr_en;
`DRIV_IF.wdata <= req.wdata;
//$display("\tADDR = %0h \tWDATA = %0h",req.addr,trans.wdata);
@(posedge vif.DRIVER.clk);
end
if(req.rd_en) begin
`DRIV_IF.rd_en <= req.rd_en;
@(posedge vif.DRIVER.clk);
`DRIV_IF.rd_en <= 0;
@(posedge vif.DRIVER.clk);
req.rdata = `DRIV_IF.rdata;
// $display("\tADDR = %0h \tRDATA = %0h",trans.addr,`DRIV_IF.rdata);
end
$display("-----------------------------------------");
endtask : drive
endclass : mem_driver注意事项：
（1）上面提到所driver是参数化的，所谓的参数化指的是driver的run_phase()中接收的传输对象类型（request）和响应类型（response）可以是在类名后定义的.如下例：
class uvm_driver #(type REQ = uvm_sequence_item, type RSP = REQ) extends uvm_component;
//REQ表示required对象，RSP表示response对象
（2） driver有一个seq_item_port类型的TLM port，而sequencer中有一个seq_item_export类型的TLM port，两者通过这两个TLM port在environment或agent的connnect_phase( )中连接.如下例：
virtual function void connect_phase ();
m_drv0.seq_item_port.connect (m_seqr0.seq_item_export);
//driver名.seq_item_port.connect(sequencer名.seq_item_export);
endfunction
Sequencer [uvm_sequencer]
sequencer控制着sequence和driver之间的response sequence item（RSP响应事务）和request sequence item（REQ请求事务）的流动。sequencer由继承uvm_sequencer而来，sequencer处理的请求事务和响应事务类型决定了uvm_sequencer是参数化的 .
默认情况下，REQ类型与RSP类型是相同的，如果要求两者不同，可以在第二个参数指定；除非有其他的特殊端口需要声明，否则应该在继承的开头声明两种对象的类型。如下所示：
// class uvm_sequencer #(type REQ = uvm_sequence_item, RSP = REQ) extends uvm_sequencer_param_base #(REQ, RSP);
#后的括号里面的内容表示REQ和RSP的类型，也就是sequence item的类型
uvm_sequencer #(my_data, data_rsp) seqr0; // with RSP
uvm_sequencer #(my_data) seqr0; // without RSP在sequencer中实例化对象会使得灵活性和可重用性受到限制，这个问题可以通过sequence来解决.
sequencer和driver分别定义有seq_item_export and seq_item_port类型的TLM端口，两者之间通过这两个端口连接，如下所示：
driver.seq_item_port.connect(sequencer.seq_item_export);
一个完整的sequencer例子如下：
class mem_sequencer extends uvm_sequencer#(mem_seq_item);//只有一个参数，表示REQ和RSP的类型都是 mem_seq_item
`uvm_sequencer_utils(mem_sequencer)
function new (string name, uvm_component parent);
super.new(name, parent);
endfunction : new
endclass : mem_sequencersequencer分为m_sequencer 和 p_sequencer，来看两者的不同：
（1）m_sequencer
所有的sequence都要在sequencer中启动：如tr_seq.start(env.vsqr)。当sequence启动的时候，m_sequencer 句柄就指向了env.vsqr. m_sequencer 就是这样一个指向执行当前sequence的sequencer句柄；
（2）p_sequencer
所有的sequence 都有一个m_sequencer 句柄，但是m_squencer变量是个内部实现变量，而且由于参数类型的原型，通过这一句柄通常不能直接调用sequencer里的变量，任何以m_开的变量和方法也都是如此 ；
这时候为了方便，就使用了p_seuencer。但是任意sequence 并不会自动凭空就有p_sequencer。P_seuencer没有被自动声明，但是可以使用`uvm_declare_p_sequencer宏声明。当调用这一宏时，在virtual sequence 开启时，P_sequencer就会被自动声明、赋值，并正确的指向正在执行这一virtual sequence的virtual sequencer..格式如下：
`uvm_declare_p_sequencer(sequencer_name);`uvm_declare_p_sequencer宏实际上完成了这两步：
- 声明了一个sequencer类型的句柄p_sequencer
- 这个宏将m_sequencer句柄转化为p_sequencer 类型的句柄
UVM Sequence [uvm_sequence]

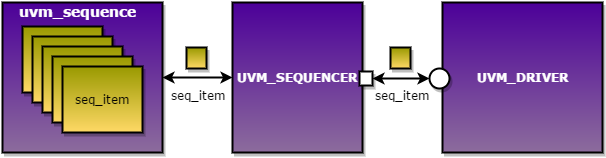

sequence产生一系列的sequence item，并通过sequencer发送到driver.sequence由继承uvm_sequence而来
sequence是参数化的，参数是sequence item的类型，参数类型也分为REQ和RSQ，uvm_sequence的定义如下所示：
virtual class uvm_sequence #( type REQ = uvm_sequence_item,
type RSP = REQ ) extends uvm_sequence_base
class write_sequence extends uvm_sequence #(mem_seq_item);
....//REQ和RSP的类型都是 mem_seq_item
....
endclassREQ是driver所需要的事务对象，它是由sequence产生的；而RSP是driver反馈给sequence的事务对象，它是由DUT产生的，表示接收事务对象完成；
sequence中主要包括两个重要的成员：
（1）body method：主体方法，主要表示sequence的运行；
（2）m_sequencer handle：指向sequencer的句柄，sequence在sequencer上执行
在test中调用start()方法，sequence就会开始执行，格式如下：

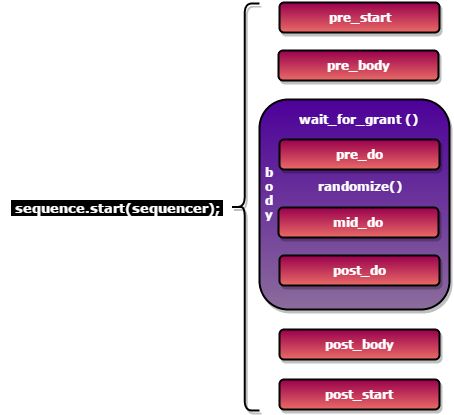

sequence_name.start(sequencer_name);//注意第二个是sequencer名下图显示了在开始执行sequence后，sequence中各方法的执行顺序：
在uvm_sequence中存在许多方法、宏和预定义的回调方法，用户可以在sequence中自定义这些回调方法；注意，这些回调方法不能直接被调用，它们只会在执行sequence时自动调用；

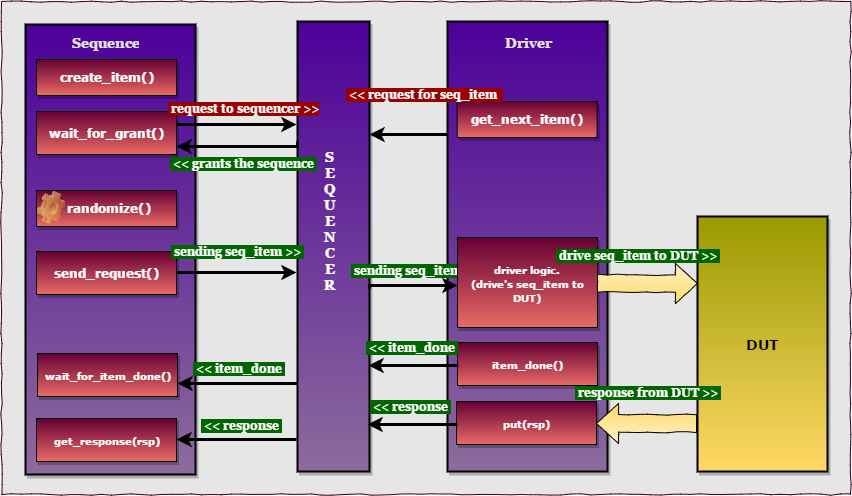

下面的图表示了sequence、sequencer和driver、DUT之间的交互：
产生和发送sequence item的过程写在sequence的主题方法body()中，各个组件之间的交互步骤如下：
（1）产生REQ对象；
（2）wait_for_grant();
（3）随机化REQ；
（4）发送REQ；
（5）wait_for item_done；
（6）sequence得到RSP；
其中步骤5和6是可选的；
步骤中涉及的方法如下表所示：
完整的sequence如下：
class mem_sequence extends uvm_sequence#(mem_seq_item);
`uvm_object_utils(mem_sequence)
//Constructor
function new(string name = "mem_sequence");
super.new(name);
endfunction
virtual task body();
req = mem_seq_item::type_id::create("req"); //创建mem_seq_item类型对象req
wait_for_grant(); //wait for grant
assert(req.randomize()); //randomize the req
send_request(req); //发送REQ
wait_for_item_done(); //wait for item done from driver
get_response(rsp); //接收来自DUT的RSP
endtask

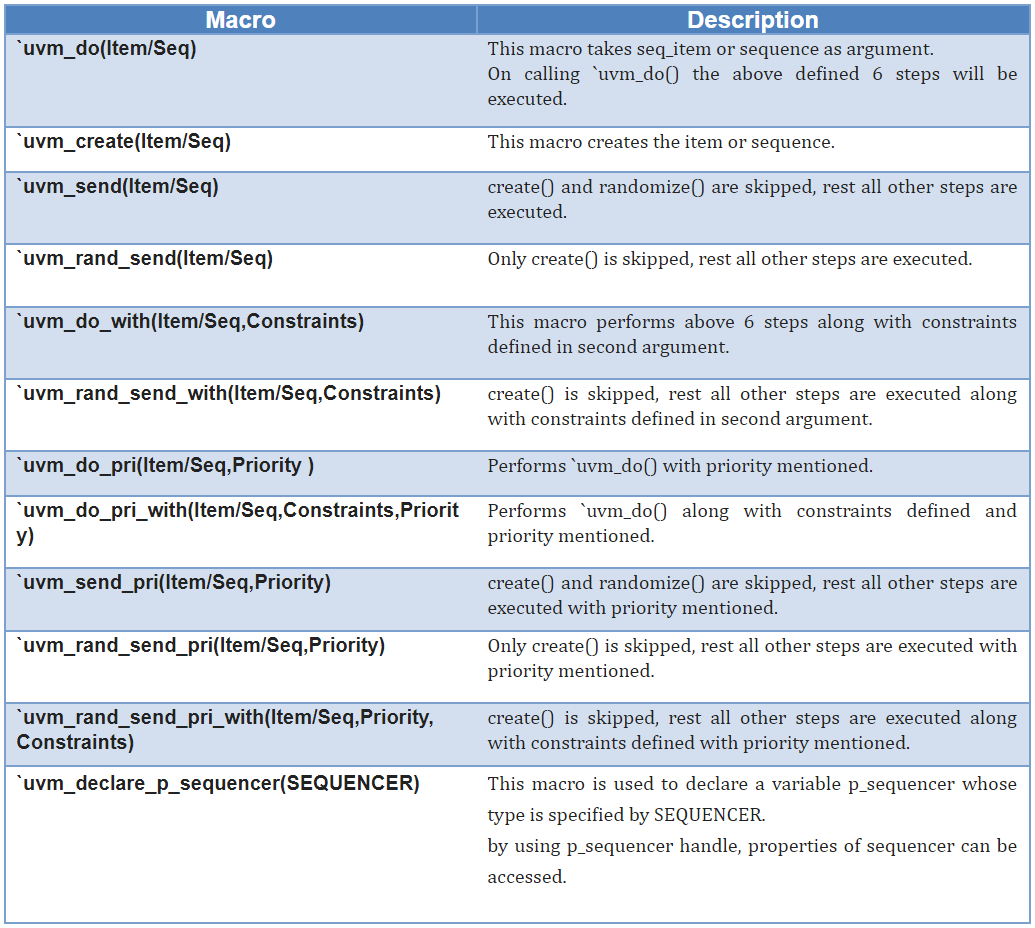

endclassuvm_sequence的宏（宏既可以用来执行sequence item也可以执行sequence）如下表所示：
下面是几个使用宏来代替上面6个步骤的例子：
`uvm_do() 执行上面的6个步骤
class mem_sequence extends uvm_sequence#(mem_seq_item);
`uvm_object_utils(mem_sequence)
//Constructor
function new(string name = "mem_sequence");
super.new(name);
endfunction
virtual task body();
`uvm_do(req)
endtask
endclass
`uvm_create() and `uvm_send()
class mem_sequence extends uvm_sequence#(mem_seq_item);
`uvm_object_utils(mem_sequence)
//Constructor
function new(string name = "mem_sequence");
super.new(name);
endfunction
virtual task body();
`uvm_create(req)
assert(req.randomize());
`uvm_send(req);
endtask
endclass`uvm_rand_send()
class mem_sequence extends uvm_sequence#(mem_seq_item);
`uvm_object_utils(mem_sequence)
//Constructor
function new(string name = "mem_sequence");
super.new(name);
endfunction
virtual task body();
`uvm_create(req)
`uvm_rand_send(req)
endtask
endclass`uvm_do_with() 带约束
class write_sequence extends uvm_sequence#(mem_seq_item);
`uvm_object_utils(write_sequence)
//Constructor
function new(string name = "write_sequence");
super.new(name);
endfunction
virtual task body();
`uvm_do_with(req,{req.wr_en == 1;})
endtask
endclass`uvm_rand_send_with()
class read_sequence extends uvm_sequence#(mem_seq_item);
`uvm_object_utils(read_sequence)
//Constructor
function new(string name = "read_sequence");
super.new(name);
endfunction
virtual task body();
`uvm_create(req)
`uvm_rand_send_with(req,{req.rd_en == 1;})
endtask
endclass也可以在sequence的内部调用其他的sequence，如下：
class wr_rd_seq extends uvm_sequence#(mem_seq_item);
write_sequence wr_seq;
read_sequence rd_seq;
`uvm_object_utils(wr_rd_seq)
//Constructor
function new(string name = "wr_rd_seq");
super.new(name);
endfunction
virtual task body();
`uvm_do(wr_seq)
`uvm_do(rd_seq)
endtask
endclassUVM Monitor [uvm_monitor]

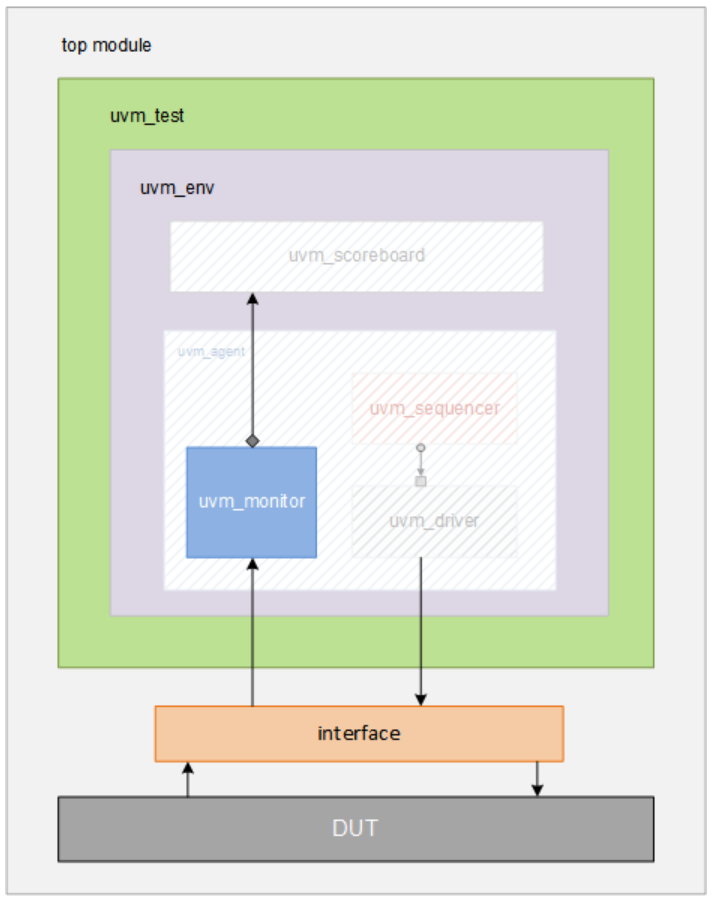

monitor的作用是捕获DUT的接口数据，并将这些数据转换为发送级数据对象（transaction level data object），以便能发送到testbench的其他组件.也就是说monitor只负责数据的采样而不用驱动!
因此，monitor中包括一个TLM分析端口（TLM analysis port）用于将捕获的数据传送出去；以及一个指向DUT的虚接口句柄.
创建monitor的步骤如下：
（1）继承uvm_monitor，并在工厂中注册
// my_monitor is user-given name for this class that has been derived from "uvm_monitor"
class my_monitor extends uvm_monitor;
// [Recommended] Makes this monitor more re-usable
`uvm_component_utils (my_monitor)
// This is standard code for all components
function new (string name = "my_monitor", uvm_component parent = null);
super.new (name, parent);
endfunction
// Rest of the steps come here
endclass（2）声明虚接口和TLM分析端口
// Actual interface object is later obtained by doing a get() call on uvm_config_db
virtual if_name vif;
// my_data is a custom class object used to encapsulate signal information
// and can be sent to other components
uvm_analysis_port #(my_data) mon_analysis_port;（3）在build_phase()中连接虚接口和实例化TLM分析端口
virtual function void build_phase (uvm_phase phase);
super.build_phase (phase);
// Create an instance of the declared analysis port
mon_analysis_port = new ("mon_analysis_port", this);
// Get virtual interface handle from the configuration DB
if (! uvm_config_db #(virtual if_name) :: get (this, "", "vif", vif)) begin
`uvm_error (get_type_name (), "DUT interface not found")
end
endfunction （4）编辑run_phase()
run_phase()是monitor的主体方法.
// This is the main piece of monitor code which decides how it has to decode
// signal information. For example, AXI monitors need to follow AXI protocol
virtual task run_phase (uvm_phase phase);
// Fork off multiple threads "if" required to monitor the interface, for example:
fork
// Thread 1: Monitor address channel
// Thread 2: Monitor data channel, populate "obj" data object
// Thread 3: Monitor control channel, decide if transaction is over
// Thread 4: When data transfer is complete, send captured information
// through the declared analysis port
mon_analysis_port.write(obj);
join_none
endtask一个完整的monitor如下所示：
class my_monitor extends uvm_monitor;
`uvm_component_utils (my_monitor)
virtual dut_if vif;
bit enable_check = 1;
uvm_analysis_port #(my_data) mon_analysis_port;
function new (string name, uvm_component parent= null);
super.new (name, parent);
endfunction
virtual function void build_phase (uvm_phase phase);
super.build_phase (phase);
// Create an instance of the analysis port
mon_analysis_port = new ("mon_analysis_port", this);
// Get virtual interface handle from the configuration DB
if (! uvm_config_db #(virtual dut_if) :: get (this, "", "vif", vif)) begin
`uvm_error (get_type_name (), "DUT interface not found")
end
endfunction
virtual task run_phase (uvm_phase phase);
my_data data_obj = my_data::type_id::create ("data_obj", this);
forever begin
@ ([Some event when data at DUT port is valid]);
data_obj.data = vif.data;//获取总线上的数据到本地类中
data_obj.addr = vif.addr;
// monitor的run_phase()中可以带协议检查模块，如果使能
if (enable_check)
check_protocol ();
// Sample functional coverage if required. Data packet class is assumed
// to have functional covergroups and bins
//也可以带采样覆盖率的检查
data_obj.cg_trans.sample();
// Send data object through the analysis port 发送数据对象到其他组件
mon_analysis_port.write (data_obj);
end
endtask
virtual function void check_protocol ();
// Function to check basic protocol specs
endfunction
endclass对于上面的例子：
虚接口的句柄被定义为vif，通过uvm_config_db::get()分配到uvm的数据库；
在run_phase()中添加了用于协议检查和覆盖率检查的模块，这可以通过使能信号enable_check和enable_coverage来实现；
数据对象通过TLM分析端口传送到其他的组件；
UVM Agent [uvm_agent]

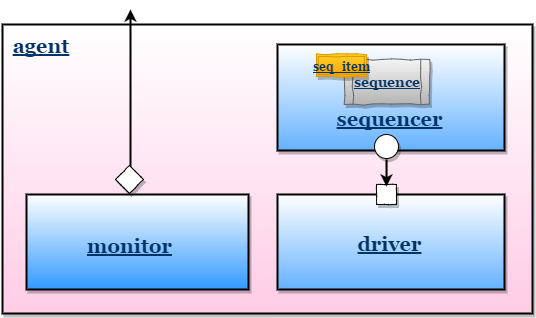

用户定义的agent继承于uvm_agent，而uvm_agent继承于uvm_component.一般来说，一个激活（active）的agent包括：monitor、sequencer、driver三部分，各个组件之间通过TLM接口进行连接.agent可以配置成active和passive。
uvm_agent内部有内建的is_active，所以用户自定义agent在继承uvm_agent后只需要直接调用即可.uvm_agent的内部定义如下：
virtual class uvm_agent extends uvm_component;
uvm_active_passive_enum is_active = UVM_ACTIVE;
...
function void build_phase (uvm_phase phase);
int active;
super.build_phase (phase);
if (get_config_int ("is_active", active)) is_active = uvm_active_passive_enum'(active);
endfunction
...

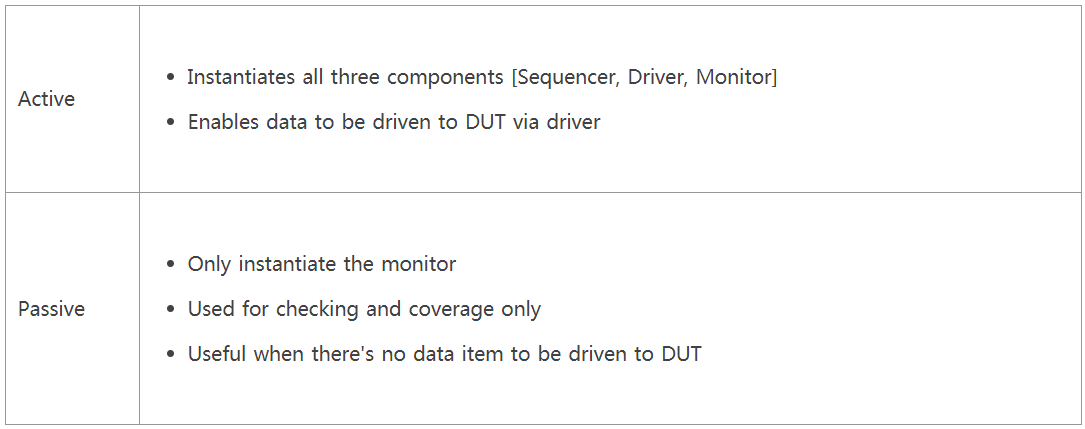

endclass（1）Active agent
agent产生激励，并将激励驱动给DUT.所以active agent包括上面的三个组件.
（2）Passive agent
agent仅从DUT采样而不驱动采样数据，所以passive agent只包括monitor.
默认的agent都是active的，agent可以通过设置配置方法（set config method）来配置成active/passive。设置配置方法可以在environment或test中，格式如下：
set_config_int("path_to_agent 路径", "is_active", UVM_ACTIVE);
set_config_int("path_to_agent 路径", "is_active", UVM_PASSIVE);
或者
// Set the configuration called "is_active" to the agent's path to mark the given agent as passive
uvm_config_db #(int) :: set (this, "path_to_agent", "is_active", UVM_PASSIVE);
// Set the configuration called "is_active" to the agent's path to mark the given agent as active
uvm_config_db #(int) :: set (this, "path_to_agent", "is_active", UVM_ACTIVE);
在agent定义中可以通过get_is_active() 方法来获取配置的情况，以便agent决定是实例化1个组件还是3个组件.如果配置为active，则方法返回UVM_ACTIVE，否则返回UVM_PASSIVE.
创建agent的步骤：
（1）继承uvm_agent并在工厂中注册
class mem_agent extends uvm_agent;
// UVM automation macros for general components
`uvm_component_utils(mem_agent)
// constructor
function new (string name, uvm_component parent);
super.new(name, parent);
endfunction : new
endclass : mem_agent（2）声明monitor、driver和sequencer的句柄
//declaring agent components
mem_driver driver;
mem_sequencer sequencer;
mem_monitor monitor;（3）在build_phase()中根据agent的类型创建3个组件的对象
// build_phase
function void build_phase(uvm_phase phase);
super.build_phase(phase);
if(get_is_active() == UVM_ACTIVE) begin//如果为active，则需要创建sequencer和driver
driver = mem_driver::type_id::create("driver", this);
sequencer = mem_sequencer::type_id::create("sequencer", this);
end
monitor = mem_monitor::type_id::create("monitor", this);
endfunction : build_phase
（4）在connect_phase()中连接sequencer和driver
// connect_phase
function void connect_phase(uvm_phase phase);
if(get_is_active() == UVM_ACTIVE) begin
driver.seq_item_port.connect(sequencer.seq_item_export);
end
endfunction : connect_phase一个完整的agent例子：
class mem_agent extends uvm_agent;
//declaring agent components
mem_driver driver;
mem_sequencer sequencer;
mem_monitor monitor;
// UVM automation macros for general components
`uvm_component_utils(mem_agent)
// constructor
function new (string name, uvm_component parent);
super.new(name, parent);
endfunction : new
// build_phase
function void build_phase(uvm_phase phase);
super.build_phase(phase);
if(get_is_active() == UVM_ACTIVE) begin
driver = mem_driver::type_id::create("driver", this);
sequencer = mem_sequencer::type_id::create("sequencer", this);
end
monitor = mem_monitor::type_id::create("monitor", this);
endfunction : build_phase
// connect_phase
function void connect_phase(uvm_phase phase);
if(get_is_active() == UVM_ACTIVE) begin
driver.seq_item_port.connect(sequencer.seq_item_export);
end
endfunction : connect_phase
endclass : mem_agent每一个agent都可以包含一个配置对象（config object），该对象中包含一个dirver和monitor可使用的虚接口句柄，也可以包含影响agent中的组件配置和行为的成员.一般来说，这些行为包括：
（1）收集协议信息（protocol information）的功能覆盖monitor；
（2）检查协议数据（protocol data）的scoreboard；
（3）API sequence
来看下面一个例子：
class my_agent extends uvm_agent;
`uvm_component_utils (my_agent)
my_driver m_drv0;
my_monitor m_mon0;
uvm_sequencer #(my_data) m_seqr0;
agent_cfg m_agt_cfg;//配置对象句柄
function new (string name = "my_agent", uvm_component parent=null);
super.new (name, parent);
endfunction
// If Agent is Active, create Driver and Sequencer, else skip
// Always create Monitor regardless of Agent's nature
virtual function void build_phase (uvm_phase phase);
super.build_phase (phase);
uvm_config_db #(agent_cfg) :: get (this, "*", "agt_cfg", m_agt_cfg);//从配置数据库中获取配置对象
if (get_is_active()) begin
m_seqr0 = uvm_sequencer#(my_data)::type_id::create ("m_seqr0", this);
m_drv0 = my_driver::type_id::create ("m_drv0", this);
m_drv0.vif = m_agt_cfg.vif;//获取配置对象中的接口
end
m_mon0 = my_monitor::type_id::create ("m_mon0", this);
m_mon0.vif = m_agt_cfg.vif;//获取配置对象中的接口
endfunction
// Connect Sequencer to Driver, if the agent is active
virtual function void connect_phase (uvm_phase phase);
if (get_is_active())
m_drv0.seq_item_port.connect (m_seqr0.seq_item_export);
endfunction
endclass一个environment可以包括多个agent，每个agent与DUT之间的接口可以不同
UVM Scoreboard

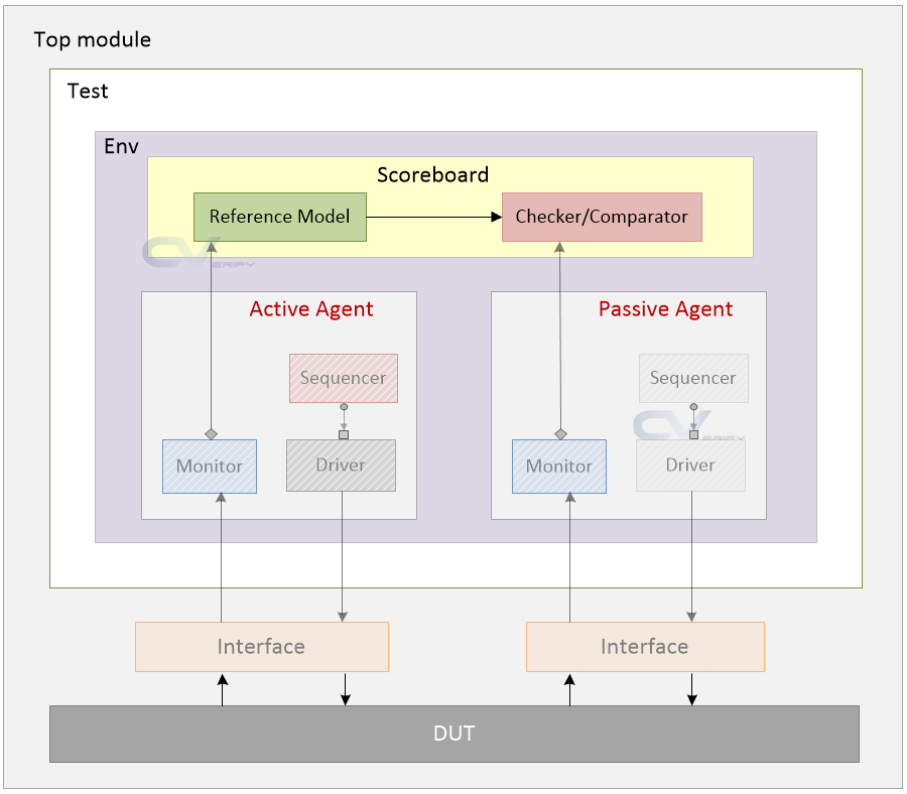

scoreboard中包含检查器（checker）和参考模型（reference model）,它通过TLM analysis端口与monitor通信，接收来自DUT的输出，将输出与参考模型中的期望值（expected value）比较，看两者是否匹配.
创建scoreboard的步骤：
（1）继承uvm_scoreboard，并在工厂中注册
// my_scoreboard is user-given name for this class that has been derived from "uvm_scoreboard"
class my_scoreboard extends uvm_scoreboard;
// [Recommended] Makes this scoreboard more re-usable
`uvm_component_utils (my_scoreboard)
// This is standard code for all components
function new (string name = "my_scoreboard", uvm_component parent = null);
super.new (name, parent);
endfunction
// Code for rest of the steps come here
endclass（2）声明TLM analysis端口，并在build_phase()中创建
// Step2: Declare and create a TLM Analysis Port to receive data objects from other TB components
uvm_analysis_imp #(apb_pkt, my_scoreboard) apb_export;
// Instantiate the analysis port, because afterall, its a class object
function void build_phase (uvm_phase phase);
apb_export = new ("apb_export", this);
endfunction（3）从monitor接收到数据后，定义数据执行的操作
// Step3: Define action to be taken when a packet is received via the declared analysis port
virtual function void write (apb_pkt data);//apb_pkt为接收的数据类，data为对象
// What should be done with the data packet received comes here - let's display it
`uvm_info ("write", $sformatf("Data received = 0x%0h", data), UVM_MEDIUM)
endfunction （4）执行检查（check）
检查不一定要在check_phase()中进行，也可以在run_phase()中
// Step4: [Optional] Perform any remaining comparisons or checks before end of simulation
virtual function void check_phase (uvm_phase phase);
...
endfunction 注意，要在environement的connect_phase()中连接agent中的monitor和scoreboard，例子如下：
class my_env extends uvm_env;
...
// Step5: Connect the analysis port of the scoreboard with the monitor so that
// the scoreboard gets data whenever monitor broadcasts the data.
virtual function void connect_phase (uvm_phase phase);
super.connect_phase (phase);
m_apb_agent.m_apb_mon.analysis_port.connect (m_scbd.apb_export);
endfunction
endclass 下面来看一个完整例子：
// Step1 : Create a new class that extends from uvm_scoreboard
class my_scoreboard extends uvm_scoreboard;
`uvm_component_utils (my_scoreboard)
function new (string name = "my_scoreboard", uvm_component parent);
super.new (name, parent);
endfunction
// Step2a: Declare and create a TLM Analysis Port to receive data objects from other TB components
uvm_analysis_imp #(apb_pkt, my_scoreboard) apb_export;//注意到接收数据的TLM端口都为export类型，而发送数据的都为port类型
//这里表示从my_scoreboard 接收一个类名为apb_pkt的对象
// Step2b: Instantiate the analysis port, because afterall, its a class object
function void build_phase (uvm_phase phase);
apb_export = new ("apb_export", this);
endfunction
// Step3: Define action to be taken when a packet is received via the declared analysis port
virtual function void write (apb_pkt data);
// What should be done with the data packet received comes here - let's display it
`uvm_info ("write", $sformatf("Data received = 0x%0h", data), UVM_MEDIUM)
endfunction
// Step3: Define other functions and tasks that operate on the data and call them
// Remember, this is the main task that consumes simulation time in UVM
virtual task run_phase (uvm_phase phase);
...
endtask
// Step4: [Optional] Perform any remaining comparisons or checks before end of simulation
virtual function void check_phase (uvm_phase phase);
...
endfunction
endclassSubscriber [uvm_subscriber]
subscriber是TLM分析接口的接收者（listener），其通常与一个TLM analysis port相连，该port任何时候广播（broadcast）数据都会被subscriber接收.一个uvm_component类并不存在内建的分析端口（analysis port），但是uvm_subscriber却存在一个名为anylysis_export的分析端口.
subscriber的创建如下：
virtual class uvm_subscriber #(type T=int) extends uvm_component;
typedef uvm_subscriber #(T) this_type;
uvm_analysis_imp #(T, this_type) analysis_export;
function new (string name, uvm_component parent);
super.new (name, parent);
analysis_export = new ("analysis_imp", this);
endfunction
pure virtual function void write (T, t);
endclassagent中的monitor有一个向外部组件发送数据的TLM analysis port，所以用户可以自定义一个继承subscriber的类，使用内建的analysis_export端口来连接到monitor的TLM analysis port。在这个继承的类中，可以包含覆盖组和覆盖点，并且可以获取来自monitor的数据.看下面的例子：
class my_coverage extends uvm_subscriber #(bus_pkt);
covergroup cg_bus;//覆盖组
...
endgroup
virtual function void write (bus_pkt pkt);
cg_bus.sample ();
endfunction
endclass
class my_env extends uvm_env;
...
virtual function void connect_phase (uvm_phase phase);
super.connect_phase (phase);
my_agent.custom_ap.connect (my_cov.analysis_export);
endfunction
endclass没有要求说这个包含覆盖组的类一定要继承uvm_subscriber，但是这样继承提供了一种获取agent数据的方式.
