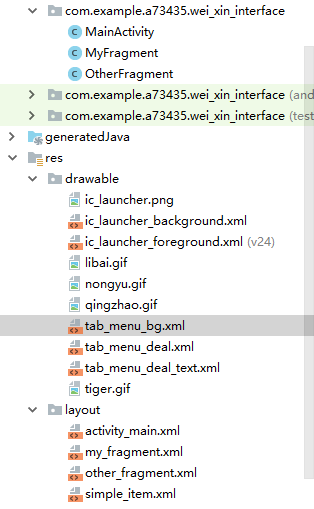

文件分支结构:

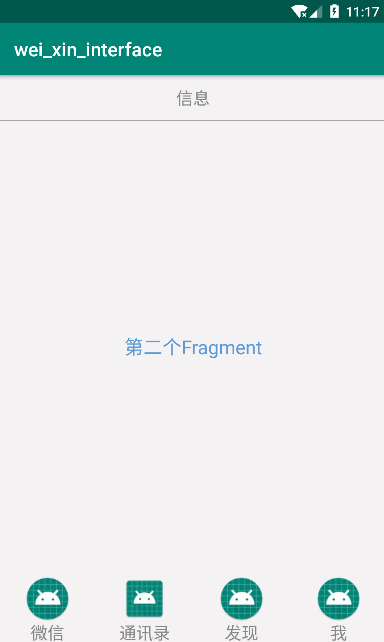

最终效果:
1.资源文件:
tab_menu_bg.xml
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:state_selected="true">
<shape>
<solid android:color="#dfdcdc"/>
</shape>
</item>
<item>
<shape>
<solid android:color="@color/transparent" />
</shape>
</item>
</selector>
tab_menu_deal.xml
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:drawable="@mipmap/ic_menu_deal_on" android:state_checked="true"/>
<item android:drawable="@mipmap/ic_menu_deal_off"/>
</selector>
tab_menu_deal_text.xml
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:color="@color/text_blue" android:state_selected="true"/>
<item android:color="@color/text_gray" />
</selector>
colors.xml
<?xml version="1.0" encoding="utf-8"?>
<resources>
<color name="colorPrimary">#008577</color>
<color name="colorPrimaryDark">#00574B</color>
<color name="colorAccent">#D81B60</color>
<color name="transparent">#f5f2f4</color>
<color name="text_gray">#898888</color>
<color name="text_blue">#5c9ad7</color>
</resources>
布局文件:
activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent">
<RelativeLayout
android:id="@+id/ly_top_bar"
android:layout_width="match_parent"
android:layout_height="48dp"
android:background="@color/transparent">
<TextView
android:id="@+id/txt_topbar"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_centerInParent="true"
android:gravity="center"
android:text="信息"
android:textColor="@color/text_gray"
android:textSize="18sp" />
<View
android:layout_width="match_parent"
android:layout_height="2px"
android:layout_alignParentBottom="true"
android:background="@color/text_gray" />
</RelativeLayout>
<RadioGroup
android:id="@+id/rd_group"
android:layout_width="match_parent"
android:layout_height="75dp"
android:layout_alignParentBottom="true"
android:background="@color/transparent"
android:orientation="horizontal">
<RadioButton
android:id="@+id/rd_menu_deal"
style="@style/tab_menu_item"
android:drawableTop="@drawable/tab_menu_deal"
android:text="微信"/>
<RadioButton
android:id="@+id/rd_menu_poi"
style="@style/tab_menu_item"
android:drawableTop="@drawable/tab_menu_deal"
android:text="通讯录"/>
<RadioButton
android:id="@+id/rd_menu_more"
style="@style/tab_menu_item"
android:drawableTop="@drawable/tab_menu_deal"
android:text="发现"/>
<RadioButton
android:id="@+id/rd_menu_user"
style="@style/tab_menu_item"
android:drawableTop="@drawable/tab_menu_deal"
android:text="我"/>
</RadioGroup>
<FrameLayout
android:id="@+id/fragment_container"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_above="@id/rd_group"
android:layout_below="@id/ly_top_bar"
android:background="@color/transparent">
</FrameLayout>
</RelativeLayout>
MainActivity.java
package com.example.a73435.wei_xin_interface;
import android.app.FragmentTransaction;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.RadioButton;
import android.widget.RadioGroup;
public class MainActivity extends AppCompatActivity implements RadioGroup.OnCheckedChangeListener{
private RadioGroup rpTab;
private RadioButton rbDeal,rbPoi,rbMore,rbUser;
private MyFragment fg1;
private OtherFragment fg2,fg3,fg4;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
bindView();
}
private void bindView() {
rpTab = (RadioGroup)findViewById(R.id.rd_group);
rpTab.setOnCheckedChangeListener(this);
rbDeal = (RadioButton)findViewById(R.id.rd_menu_deal);
rbPoi = (RadioButton)findViewById(R.id.rd_menu_poi);
rbMore = (RadioButton)findViewById(R.id.rd_menu_more);
rbUser = (RadioButton)findViewById(R.id.rd_menu_user);
rbDeal.setChecked(true);
}
public void hideAllFragment(FragmentTransaction transaction){
if(fg1!=null){
transaction.hide(fg1);
}
if(fg2!=null){
transaction.hide(fg2);
}
if(fg3!=null){
transaction.hide(fg3);
}
if(fg4!=null){
transaction.hide(fg4);
}
}
@Override
public void onCheckedChanged(RadioGroup group, int checkedId) {
//FragmentManager要管理fragment(添加,替换以及其他的执行动作)
//的一系列的事务变化,需要通过fragmentTransaction来操作执行
FragmentTransaction transaction = getFragmentManager().beginTransaction();
hideAllFragment(transaction);
switch (checkedId){
case R.id.rd_menu_deal:
if(fg1==null){
fg1 = new MyFragment();
transaction.add(R.id.fragment_container,fg1);
}else{
transaction.show(fg1);
}
break;
case R.id.rd_menu_poi:
if(fg2==null){
fg2 = new OtherFragment("第二个Fragment");
transaction.add(R.id.fragment_container,fg2);
}else{
transaction.show(fg2);
}
break;
case R.id.rd_menu_more:
if(fg3==null){
fg3 = new OtherFragment("第三个Fragment");
transaction.add(R.id.fragment_container,fg3);
}else{
transaction.show(fg3);
}
break;
case R.id.rd_menu_user:
if(fg4==null){
fg4 = new OtherFragment("第四个Fragment");
transaction.add(R.id.fragment_container,fg4);
}else{
transaction.show(fg4);
}
break;
}
transaction.commit();
}
}
现在创建第一个fragment,使用simpleAdapter创建一个好友列表:
界面布局文件:
my_fragment.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="horizontal"
android:layout_width="match_parent"
android:layout_height="wrap_content">
<!-- 定义一个ListView -->
<ListView android:id="@+id/mylist"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
</LinearLayout>
simple_item.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="horizontal"
android:layout_width="match_parent"
android:layout_height="wrap_content">
<!-- 定义一个ImageView,用于作为列表项的一部分。 -->
<ImageView android:id="@+id/header"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:paddingLeft="10dp"/>
<LinearLayout
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="wrap_content">
<!-- 定义一个TextView,用于作为列表项的一部分。 -->
<TextView android:id="@+id/name"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="20dp"
android:textColor="#f0f"
android:paddingLeft="10dp"/>
<!-- 定义一个TextView,用于作为列表项的一部分。 -->
<TextView android:id="@+id/desc"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="14dp"
android:paddingLeft="10dp"/>
</LinearLayout>
</LinearLayout>
MyFragment.java
package com.example.a73435.wei_xin_interface;
import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ListView;
import android.widget.SimpleAdapter;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
public class MyFragment extends Fragment {
private String[] names = new String[]
{ "虎头", "弄玉", "李清照", "李白"};
private String[] descs = new String[]
{ "可爱的小孩", "一个擅长音乐的女孩"
, "一个擅长文学的女性", "浪漫主义诗人"};
private int[] imageIds = new int[]
{ R.drawable.tiger , R.drawable.nongyu
, R.drawable.qingzhao , R.drawable.libai};
private View view;
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,Bundle savedInstanceState)
{
view=inflater.inflate(R.layout.my_fragment,container,false);
// 创建一个List集合,List集合的元素是Map
List<Map<String, Object>> listItems =
new ArrayList<Map<String, Object>>();
for (int i = 0; i < names.length; i++)
{
Map<String, Object> listItem = new HashMap<String, Object>();
listItem.put("header", imageIds[i]);
listItem.put("personName", names[i]);
listItem.put("desc", descs[i]);
listItems.add(listItem);
}
// 创建一个SimpleAdapter
SimpleAdapter simpleAdapter = new SimpleAdapter(getActivity(), listItems,
R.layout.simple_item,
new String[] { "personName", "header" , "desc"},
new int[] { R.id.name, R.id.header , R.id.desc });
ListView list = (ListView)view.findViewById(R.id.mylist);
// 为ListView设置Adapter
list.setAdapter(simpleAdapter);
return view;
}
}
other_fragment.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical" android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView
android:id="@+id/textView"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:textSize="20sp"
android:textColor="@color/text_blue"
android:gravity="center"
android:text="呵呵"/>
</LinearLayout>
OtherFragment.java
package com.example.a73435.wei_xin_interface;
import android.app.Fragment;
import android.os.Bundle;
import android.support.annotation.Nullable;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;
public class OtherFragment extends Fragment {
private String context;
private TextView mTextView;
public OtherFragment(String context) {
this.context = context;
}
@Nullable
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
View view = inflater.inflate(R.layout.other_fragment, container, false);
mTextView = (TextView) view.findViewById(R.id.textView);
mTextView.setText(context);
return view;
}
}
