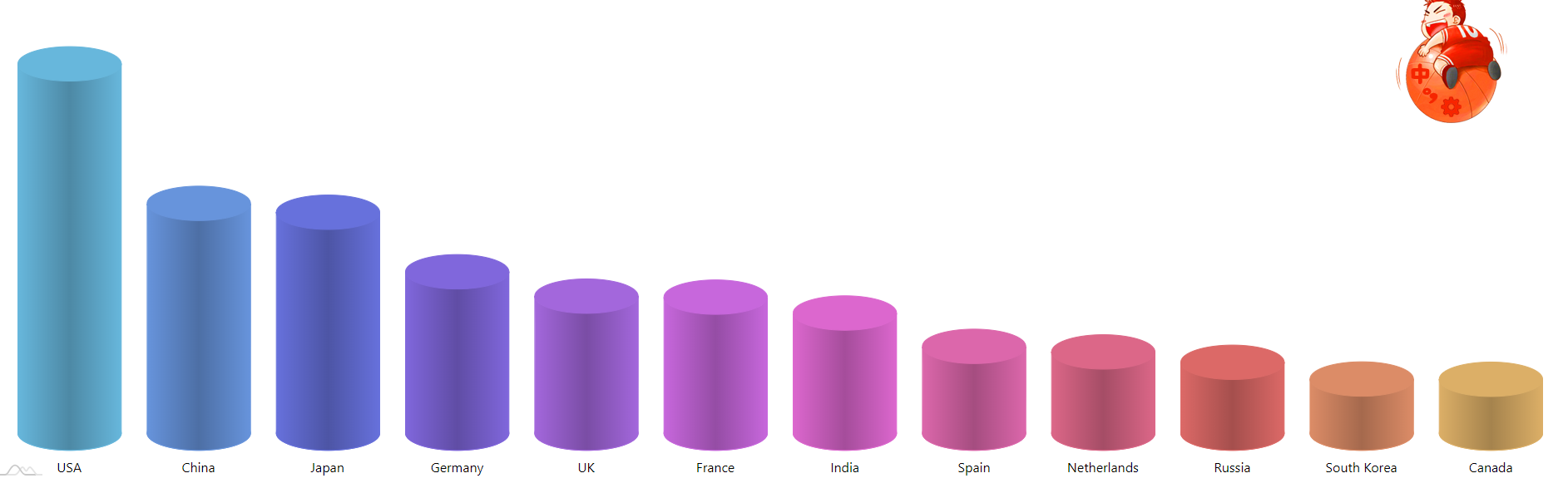

Amchart（十）3D圆柱图

<!DOCTYPE html>
<html>
  <head>
    	<meta charset="UTF-8" />
    	<title>3D圆柱图</title>
    	<link rel="stylesheet" href="index.css" />
  </head>
  	<body>
    		<div id="chartdiv"></div>
				<script src="https://www.amcharts.com/lib/4/core.js"></script>
				<script src="https://www.amcharts.com/lib/4/charts.js"></script>
				<script src="https://www.amcharts.com/lib/4/themes/animated.js"></script>
    		<script>
    				am4core.useTheme(am4themes_animated);

						var chart = am4core.create("chartdiv", am4charts.XYChart3D);

						chart.data = [{
						    "country": "USA",
						    "visits": 3025
						}, {
						    "country": "China",
						    "visits": 1882
						}, {
						    "country": "Japan",
						    "visits": 1809
						}, {
						    "country": "Germany",
						    "visits": 1322
						}, {
						    "country": "UK",
						    "visits": 1122
						}, {
						    "country": "France",
						    "visits": 1114
						}, {
						    "country": "India",
						    "visits": 984
						}, {
						    "country": "Spain",
						    "visits": 711
						}, {
						    "country": "Netherlands",
						    "visits": 665
						}, {
						    "country": "Russia",
						    "visits": 580
						}, {
						    "country": "South Korea",
						    "visits": 443
						}, {
						    "country": "Canada",
						    "visits": 441
						}];

						var categoryAxis = chart.xAxes.push(new am4charts.CategoryAxis());
						categoryAxis.renderer.grid.template.location = 0;
						categoryAxis.dataFields.category = "country";
						categoryAxis.renderer.minGridDistance = 60;
						categoryAxis.renderer.grid.template.disabled = true;
						categoryAxis.renderer.baseGrid.disabled = true;
						categoryAxis.renderer.axisFills.template.disabled = true;
						categoryAxis.renderer.labels.template.dy = 20;

						var valueAxis = chart.yAxes.push(new am4charts.ValueAxis());
						valueAxis.renderer.grid.template.disabled = true;
						valueAxis.renderer.baseGrid.disabled = true;
						valueAxis.renderer.labels.template.disabled = true;
						valueAxis.renderer.axisFills.template.disabled = true;
						valueAxis.renderer.minWidth = 0;

						var series = chart.series.push(new am4charts.ConeSeries());
						series.dataFields.categoryX = "country";
						series.dataFields.valueY = "visits";
						series.columns.template.tooltipText = "{valueY.value}";
						series.columns.template.tooltipY = 0;
						series.columns.template.strokeOpacity = 1;

						// as by default columns of the same series are of the same color, we add adapter which takes colors from chart.colors color set
						series.columns.template.adapter.add("fill", function (fill, target) {
						    return chart.colors.getIndex(target.dataItem.index);
						});

						series.columns.template.adapter.add("stroke", function (stroke, target) {
						    return chart.colors.getIndex(target.dataItem.index);
						});
				</script>
  	</body>
</html>
Amchart全部示例 github地址别忘了点个小星星
