SpringCloud之服务追踪Sleuth

Spring Cloud Sleuth 主要功能就是在分布式系统中提供追踪解决方案，并且兼容支持了 zipkin，你只需要在pom文件中引入相应的依赖即可。本篇我们采用mq异步通信的方式，将zipkin数据持久化存储在elasticsearch中。

在前几篇的基础上，新建ZipkinServer项目

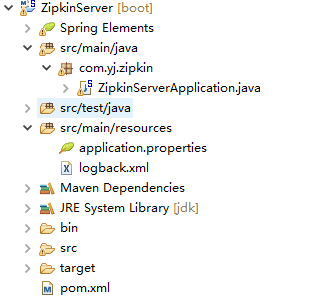

ZipkinServer项目

pom.xml

<?xml version="1.0"?>
<project
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"
	xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
	<modelVersion>4.0.0</modelVersion>

	<parent>
		<groupId>com.yj</groupId>
		<artifactId>SpringCloud</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>

	<artifactId>ZipkinServer</artifactId>
	<name>ZipkinServer</name>
	<url>http://maven.apache.org</url>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-sleuth-zipkin-stream</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-stream-rabbit</artifactId>
		</dependency>
		<dependency>
			<groupId>io.zipkin.java</groupId>
			<artifactId>zipkin-autoconfigure-ui</artifactId>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>io.zipkin.java</groupId>
			<artifactId>zipkin</artifactId>
			<version>1.24.0</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-sleuth</artifactId>
		</dependency>
		<dependency>
			<groupId>io.zipkin.java</groupId>
			<artifactId>zipkin-autoconfigure-storage-elasticsearch-http</artifactId>
			<version>1.24.0</version>
			<optional>true</optional>
		</dependency>
                <!--
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency> -->
	</dependencies>

	<build>
		<finalName>${artifactId}</finalName>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
				<configuration>
					<skip>true</skip>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-jar-plugin</artifactId>
				<configuration>

					<archive>
						<manifest>
							<mainClass>com.yj.zipkin.ZipkinServerApplication</mainClass>
							<addClasspath>true</addClasspath>
							<classpathPrefix>lib</classpathPrefix>
						</manifest>
						<manifestEntries>
							<Class-Path>./</Class-Path>
						</manifestEntries>
					</archive>
					<excludes>
						<exclude>config/**</exclude>
						<exclude>**.xml</exclude>
						<exclude>**.properties</exclude>
					</excludes>
				</configuration>
			</plugin>
			<plugin>
				<artifactId>maven-assembly-plugin</artifactId>
				<configuration>
					<appendAssemblyId>false</appendAssemblyId>
					<descriptors>
						<descriptor>src/main/build/package.xml</descriptor>
					</descriptors>
				</configuration>
				<executions>
					<execution>
						<id>make-assembly</id>
						<phase>package</phase>
						<goals>
							<goal>single</goal>
						</goals>
					</execution>
				</executions>
			</plugin>
		</plugins>
		<testResources>
			<testResource>
				<directory>src/main/resources</directory>
			</testResource>
		</testResources>
	</build>
</project>

ZipkinServerApplication

package com.yj.zipkin;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.sleuth.zipkin.stream.EnableZipkinStreamServer;

@SpringBootApplication
@EnableZipkinStreamServer
public class ZipkinServerApplication {
	public static void main(String[] args) {
		SpringApplication.run(ZipkinServerApplication.class, args);
	}
}

application.properties

server.port=8014

spring.application.name=zipkin

#表示当前程序不使用sleuth
spring.sleuth.enabled=false
#表示zipkin数据存储方式
zipkin.storage.StorageComponent=elasticsearch
zipkin.storage.type=elasticsearch

zipkin.storage.elasticsearch.cluster=elasticsearch
zipkin.storage.elasticsearch.hosts=localhost:9300
zipkin.storage.elasticsearch.max-requests=64
zipkin.storage.elasticsearch.index=zipkin
zipkin.storage.elasticsearch.index-shards=5
zipkin.storage.elasticsearch.index-replicas=1

#spring boot数据源配置
#spring.datasource.url=jdbc:mysql://localhost:3306/zipkin?autoReconnect=true&useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&useSSL=false
#spring.datasource.username=root
#spring.datasource.password=123456
#spring.datasource.driver-class-name=com.mysql.jdbc.Driver
#spring.datasource.continue-on-error=true

spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest

zipkin.sql（mysql存储时需要此ddl）

CREATE TABLE IF NOT EXISTS zipkin_spans (
  `trace_id_high` BIGINT NOT NULL DEFAULT 0 COMMENT 'If non zero, this means the trace uses 128 bit traceIds instead of 64 bit',
  `trace_id` BIGINT NOT NULL,
  `id` BIGINT NOT NULL,
  `name` VARCHAR(255) NOT NULL,
  `parent_id` BIGINT,
  `debug` BIT(1),
  `start_ts` BIGINT COMMENT 'Span.timestamp(): epoch micros used for endTs query and to implement TTL',
  `duration` BIGINT COMMENT 'Span.duration(): micros used for minDuration and maxDuration query'
) ENGINE=InnoDB ROW_FORMAT=COMPRESSED CHARACTER SET=utf8 COLLATE utf8_general_ci;

ALTER TABLE zipkin_spans ADD UNIQUE KEY(`trace_id_high`, `trace_id`, `id`) COMMENT 'ignore insert on duplicate';
ALTER TABLE zipkin_spans ADD INDEX(`trace_id_high`, `trace_id`, `id`) COMMENT 'for joining with zipkin_annotations';
ALTER TABLE zipkin_spans ADD INDEX(`trace_id_high`, `trace_id`) COMMENT 'for getTracesByIds';
ALTER TABLE zipkin_spans ADD INDEX(`name`) COMMENT 'for getTraces and getSpanNames';
ALTER TABLE zipkin_spans ADD INDEX(`start_ts`) COMMENT 'for getTraces ordering and range';

CREATE TABLE IF NOT EXISTS zipkin_annotations (
  `trace_id_high` BIGINT NOT NULL DEFAULT 0 COMMENT 'If non zero, this means the trace uses 128 bit traceIds instead of 64 bit',
  `trace_id` BIGINT NOT NULL COMMENT 'coincides with zipkin_spans.trace_id',
  `span_id` BIGINT NOT NULL COMMENT 'coincides with zipkin_spans.id',
  `a_key` VARCHAR(255) NOT NULL COMMENT 'BinaryAnnotation.key or Annotation.value if type == -1',
  `a_value` BLOB COMMENT 'BinaryAnnotation.value(), which must be smaller than 64KB',
  `a_type` INT NOT NULL COMMENT 'BinaryAnnotation.type() or -1 if Annotation',
  `a_timestamp` BIGINT COMMENT 'Used to implement TTL; Annotation.timestamp or zipkin_spans.timestamp',
  `endpoint_ipv4` INT COMMENT 'Null when Binary/Annotation.endpoint is null',
  `endpoint_ipv6` BINARY(16) COMMENT 'Null when Binary/Annotation.endpoint is null, or no IPv6 address',
  `endpoint_port` SMALLINT COMMENT 'Null when Binary/Annotation.endpoint is null',
  `endpoint_service_name` VARCHAR(255) COMMENT 'Null when Binary/Annotation.endpoint is null'
) ENGINE=InnoDB ROW_FORMAT=COMPRESSED CHARACTER SET=utf8 COLLATE utf8_general_ci;

ALTER TABLE zipkin_annotations ADD UNIQUE KEY(`trace_id_high`, `trace_id`, `span_id`, `a_key`, `a_timestamp`) COMMENT 'Ignore insert on duplicate';
ALTER TABLE zipkin_annotations ADD INDEX(`trace_id_high`, `trace_id`, `span_id`) COMMENT 'for joining with zipkin_spans';
ALTER TABLE zipkin_annotations ADD INDEX(`trace_id_high`, `trace_id`) COMMENT 'for getTraces/ByIds';
ALTER TABLE zipkin_annotations ADD INDEX(`endpoint_service_name`) COMMENT 'for getTraces and getServiceNames';
ALTER TABLE zipkin_annotations ADD INDEX(`a_type`) COMMENT 'for getTraces';
ALTER TABLE zipkin_annotations ADD INDEX(`a_key`) COMMENT 'for getTraces';
ALTER TABLE zipkin_annotations ADD INDEX(`trace_id`, `span_id`, `a_key`) COMMENT 'for dependencies job';

CREATE TABLE IF NOT EXISTS zipkin_dependencies (
  `day` DATE NOT NULL,
  `parent` VARCHAR(255) NOT NULL,
  `child` VARCHAR(255) NOT NULL,
  `call_count` BIGINT
) ENGINE=InnoDB ROW_FORMAT=COMPRESSED CHARACTER SET=utf8 COLLATE utf8_general_ci;

ALTER TABLE zipkin_dependencies ADD UNIQUE KEY(`day`, `parent`, `child`);

我们改造前几篇的EurekaClient，Feign，Zuul项目的pom文件和application.properties文件

pom文件新增依赖

<dependency>
	<groupId>org.springframework.cloud</groupId>
	<artifactId>spring-cloud-sleuth-zipkin-stream</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.cloud</groupId>
	<artifactId>spring-cloud-starter-stream-rabbit</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.cloud</groupId>
	<artifactId>spring-cloud-starter-sleuth</artifactId>
</dependency>

application.properties文件新增rabbitMq配置

扫描二维码关注公众号，回复： 4257083 查看本文章

spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest

docker启动rabbitmq，es，mysql镜像，然后执行sql，部署启动ZipkinServer，EurekaClient，Feign，Zuul项目，成功后我们随便访问几个路由地址：

比如zuul项目的http://192.168.37.147:8008/api-feign/hiFeign?name=yj&token=123

Feign项目的http://192.168.37.147:8006/hiFeign?name=yj

EurekaClient项目的http://192.168.37.147:8003/hiEureka，生成一些链路追踪数据

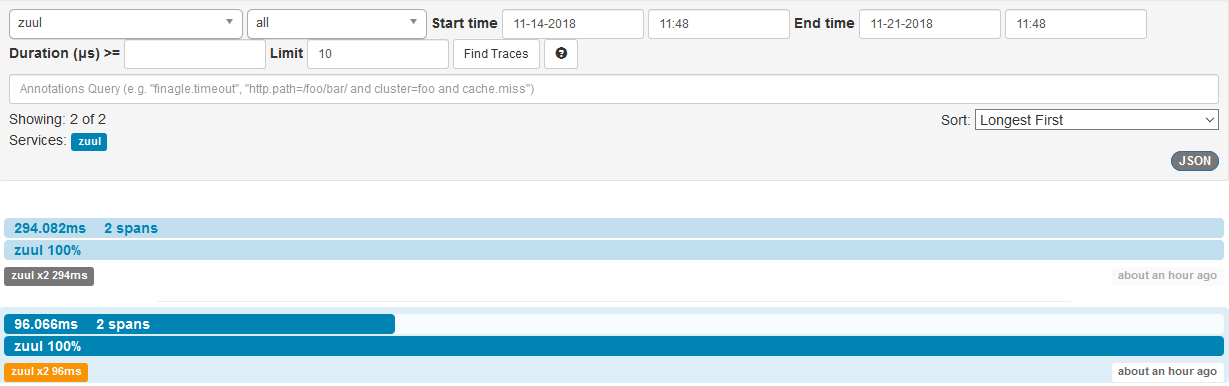

然后访问ZipkinServer项目http://192.168.37.147:8014/，可以看到链路追踪数据了

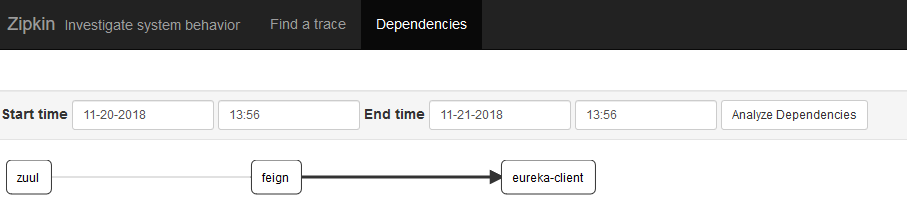

mysql存储时dependencies显示正常，采用es存储时dependencies不能正常显示，需另外启动一个官方依赖包，这里我用的是zipkin-dependencies-2.0.3.jar版本，启动脚本

#! /bin/bash

moduleName="zipkin-dependencies-2.0.3"

STORAGE_TYPE=elasticsearch ES_HOSTS=127.0.0.1:9200 java -jar -Dspark.testing.memory=1073741824  ./$moduleName.jar  &

我们先启动此依赖包，然后再启动ZipkinServer，Zuul，EurekaClient，Feign等项目，dependencies也能正常显示了
