《一》相关说明
本部分将基于博士的沙漏所介绍的平滑轨迹方法,其中博主已经实现了Matlab版本和Python版本。在本文章中将利用C#语言在Unity3D中实现所介绍的平滑轨迹方法。
《二》线性插值
相关理论介绍见博士的沙漏
下面是实现的代码和效果:
- 线性插值类:LinearInterpolation.cs
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
namespace DTUAV.Algorithm.Interpolation
{
public struct MotionInfo
{
public float X;
public float Vec;
public float Acc;
}
public class LinearInterpolation
{
private List<float> _time;
private List<float> _value;
public MotionInfo GetPosition(float time)
{
MotionInfo ret = new MotionInfo();
if (time < _time[0] || time > _time[_time.Count - 1])
{
Debug.LogError("The specific time error, time ranges error!!!!");
ret.X = float.NaN;
ret.Vec = float.NaN;
ret.Acc = float.NaN;
}
else
{
int j = _time.FindIndex(_time => _time >= time);
// Debug.Log("j= " + j);
int i = 0;
if(j==0)
{
i = 0;
j = 1;
}
else
{
i = j - 1;
}
ret = Linear(_value[i], _value[j], _time[i], _time[j]);
ret.X = _value[i] + ret.Vec * (time - _time[i]);
}
return ret;
}
private MotionInfo Linear(float value_0, float value_1, float time_0,float time_1)
{
MotionInfo ret = new MotionInfo();
if(Mathf.Abs(time_0-time_1)<10e-6)
{
Debug.LogError("The time_0 and time_1 must be different!!!!");
ret.X = -1;
ret.Vec = -1;
ret.Acc = -1;
}
else
{
ret.X = value_0;
ret.Vec = (value_1 - value_0) / (time_1 - time_0);
ret.Acc = 0;
}
return ret;
}
public LinearInterpolation() { }
public LinearInterpolation(List<float> time,List<float> value)
{
_time = time;
_value = value;
}
}
}
- 类的实例化使用:LinearInterpolationNode.cs
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using DTUAV.Plot.Line;
namespace DTUAV.Algorithm.Interpolation
{
public class LinearInterpolationNode : MonoBehaviour
{
[Header("LinearInterpolation")]
public List<float> Time;
public List<float> Value;
public float testTime;
public Material PositionLineMat;//The Material of Draw Line for position.
public Color PositionLineColor;//The Color of Draw Line for position.
public Material VelocityLineMat;//The Material of Draw Line for velocity.
public Color VelocityLineColor;//The Color of Draw Line for velocity.
public Material AccLineMat;//The Material of Draw Line for acceleration.
public Color AccLineColor;//The Color of Draw Line for acceleration.
public float LineWidthX = 0.06f;//The Width X of Draw Line.
public float LinewidthY = 0.06f;//The Width Y of Draw Line.
public Vector3 LastPosition;//The Start Position of Draw Line.
public Vector3 CurrentPosition;//The End Position of Draw Line.
public bool IsPlot;//The Flag to Draw Line.
private PlotLine _plotPositionLine;
private PlotLine _plotVelocityLine;
private PlotLine _plotAccLine;
private LinearInterpolation _linear;
[System.Obsolete]
void Start()
{
_linear = new LinearInterpolation(Time, Value);
LastPosition = new Vector3(Time[0], Value[0], 0);
_plotPositionLine = new PlotLine(PositionLineMat, PositionLineColor, LineWidthX, LinewidthY, LastPosition,IsPlot);
LastPosition.y = (Value[1] - Value[0]) / (Time[1] - Time[0]);
_plotVelocityLine = new PlotLine(VelocityLineMat, VelocityLineColor, LineWidthX, LinewidthY, LastPosition, IsPlot);
LastPosition.y = 0;
_plotAccLine = new PlotLine(AccLineMat, AccLineColor, LineWidthX, LinewidthY, LastPosition, IsPlot);
for (int i=0;i<10;i++)
{
LastPosition.x = i;
LastPosition.z = 0;
LastPosition.y = _linear.GetPosition(i).X;
_plotPositionLine.SetCurrentPosition(LastPosition);
_plotPositionLine.DrawLine();
LastPosition.y = _linear.GetPosition(i).Vec;
_plotVelocityLine.SetCurrentPosition(LastPosition);
_plotVelocityLine.DrawLine();
LastPosition.y = _linear.GetPosition(i).Acc;
_plotAccLine.SetCurrentPosition(LastPosition);
_plotAccLine.DrawLine();
}
Debug.Log("value: " + _linear.GetPosition(testTime).X);
}
}
}

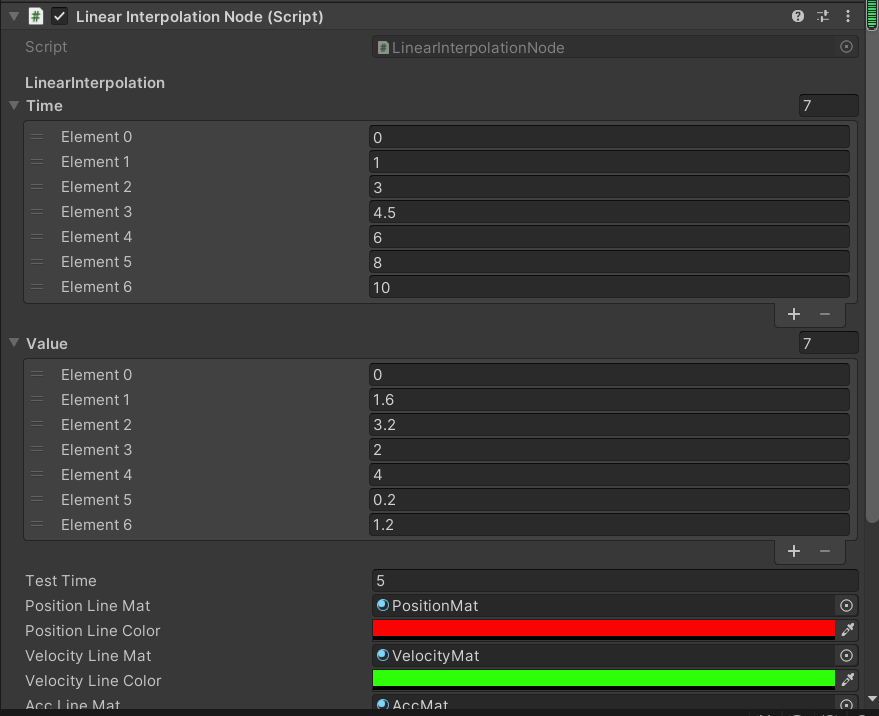

- Unity软件Demo配置
- 实现效果:红色为位置,绿色是速度,蓝色是加速度。
