最新hadoop集群搭建(2020)

hadoop集群搭建

• 一、机器准备
• 二、安装JDK
• 三、配置ssh免密码登录
• 四、建立主机名和ip的映射
• 五、 安装配置hadoop
• • 1. 将hadoop安装包解压到/opt/module下并配置环境变量
  • 2. 配置/opt/module/hadoop-2.7.2/etc/hadoop下的core-site.xml
  • 3. 配置/opt/module/hadoop-2.7.2/etc/hadoop下的hdfs-site.xml
  • 4. 配置/opt/module/hadoop-2.7.2/etc/hadoop下的yarn-site.xml
  • 5. 配置/opt/module/hadoop-2.7.2/etc/hadoop下的mapreduce-site.xml
  • 6.格式化Namenode
  • 测试集群
  • 群起集群
  • 历史日志查看

一、机器准备

   这里我们准备采用的集群模式如下：

		DN:datanode
		NN:namenode
		NM:nodemanager
		RM:resourcemanager
		2NN:secondarynamenode

		hadoop1  hadoop2  hadoop3
		DN       DN       DN
		NM       NM       NM
		NN       RM       2NN

 准备三台机器(您可以安装一台机器后克隆出其他两台机器，修改ip，主机名),，这里我用virtualBox搭建了三台虚拟机，
 每台虚拟机分配了4G内存，50G的硬盘空  间，这里我分配的空间大一点主要是为了后面计算时有充足的空间，不然还
 得增加硬盘及内存。 所以你得机器内存至少16G以上。

 注意：每台机器防火墙要关闭；三台机器可以互相访问；

二、安装JDK

下载安装java1.8：

         tar -zxvf  jdk1.8.0_161.tar.gz(使用自己的压缩文件名）

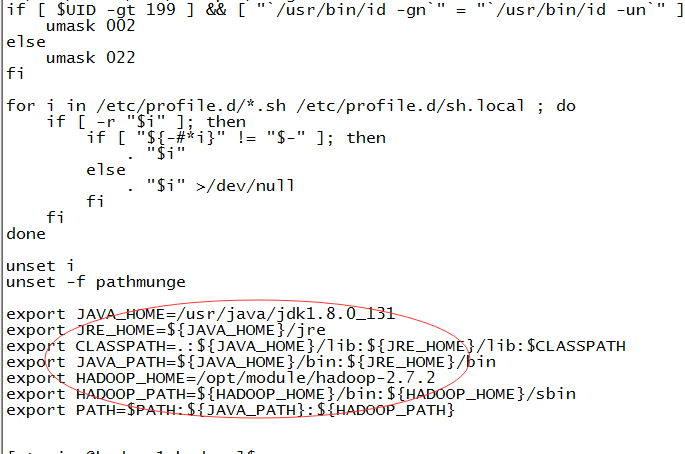

         配置环境jdk环境：/etc/profile

 编辑完成后：source /etc/profile

三、配置ssh免密码登录

在hadoop1机器root用户下输入ssh-keygen -t rsa 一路回车（如果用的是其他用户组，需要在该用户组下操作）


秘钥生成后在~/.ssh/目录下，有两个文件id_rsa(私钥)和id_rsa.pub（公钥），将公钥复制到authorized_keys

同理在hadoop2和hadoop3节点上进行相同的操作，然后将公钥复制到master节点上的authoized_keys

再将hadoop1节点上的authoized_keys远程传输到hadoop2和hadoop3的~/.ssh/目录下

      scp   ~/.ssh/authorized_keys   root@hadoop2: ~/.ssh/

四、建立主机名和ip的映射

五、 安装配置hadoop

1. 将hadoop安装包解压到/opt/module下并配置环境变量

在etc/profile增加hadoop路径：

2. 配置/opt/module/hadoop-2.7.2/etc/hadoop下的core-site.xml

hadoop1:

		[atguigu@hadoop1 hadoop]$ cat core-site.xml
		<?xml version="1.0" encoding="UTF-8"?>
		<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
		<!--
		  Licensed under the Apache License, Version 2.0 (the "License");
		  you may not use this file except in compliance with the License.
		  You may obtain a copy of the License at

		    http://www.apache.org/licenses/LICENSE-2.0

		  Unless required by applicable law or agreed to in writing, software
		  distributed under the License is distributed on an "AS IS" BASIS,
		  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
		  See the License for the specific language governing permissions and
		  limitations under the License. See accompanying LICENSE file.
		-->

		<!-- Put site-specific property overrides in this file. -->

		<configuration>
		  <property>
		    <name>fs.defaultFS</name>
		    <value>hdfs://hadoop1:9000</value>
		  </property>
		 <property>
		    <name>hadoop.tmp.dir</name>
		    <value>/opt/module/hadoop-2.7.2/data/tmp</value>
		 </property>
		</configuration>

hadoop2:

		[atguigu@hadoop2 hadoop]$ cat core-site.xml
		<?xml version="1.0" encoding="UTF-8"?>
		<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
		<!--
		  Licensed under the Apache License, Version 2.0 (the "License");
		  you may not use this file except in compliance with the License.
		  You may obtain a copy of the License at

		    http://www.apache.org/licenses/LICENSE-2.0

		  Unless required by applicable law or agreed to in writing, software
		  distributed under the License is distributed on an "AS IS" BASIS,
		  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
		  See the License for the specific language governing permissions and
		  limitations under the License. See accompanying LICENSE file.
		-->

		<!-- Put site-specific property overrides in this file. -->

		<configuration>
		     <property>
		    <name>fs.defaultFS</name>
		    <value>hdfs://hadoop1:9000</value>
		  </property>
		 <property>
		    <name>hadoop.tmp.dir</name>
		    <value>/opt/module/hadoop-2.7.2/data/tmp</value>
		 </property>
		</configuration>

hadoop3:

	 [atguigu@hadoop3 hadoop]$ cat core-site.xml
	<?xml version="1.0" encoding="UTF-8"?>
	<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
	<!--
	  Licensed under the Apache License, Version 2.0 (the "License");
	  you may not use this file except in compliance with the License.
	  You may obtain a copy of the License at

	    http://www.apache.org/licenses/LICENSE-2.0

	  Unless required by applicable law or agreed to in writing, software
	  distributed under the License is distributed on an "AS IS" BASIS,
	  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
	  See the License for the specific language governing permissions and
	  limitations under the License. See accompanying LICENSE file.
	-->

	<!-- Put site-specific property overrides in this file. -->

	<configuration>
	  <property>
	    <name>fs.defaultFS</name>
	    <value>hdfs://hadoop1:9000</value>
	  </property>
	 <property>
	    <name>hadoop.tmp.dir</name>
	    <value>/opt/module/hadoop-2.7.2/data/tmp</value>
	 </property>
	</configuration>

3. 配置/opt/module/hadoop-2.7.2/etc/hadoop下的hdfs-site.xml

hadoop1：

		[atguigu@hadoop1 hadoop]$ cat hdfs-site.xml
		<?xml version="1.0" encoding="UTF-8"?>
		<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
		<!--
		  Licensed under the Apache License, Version 2.0 (the "License");
		  you may not use this file except in compliance with the License.
		  You may obtain a copy of the License at

		    http://www.apache.org/licenses/LICENSE-2.0

		  Unless required by applicable law or agreed to in writing, software
		  distributed under the License is distributed on an "AS IS" BASIS,
		  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
		  See the License for the specific language governing permissions and
		  limitations under the License. See accompanying LICENSE file.
		-->

		<!-- Put site-specific property overrides in this file. -->

		<configuration>
		   <property>
		    <name>dfs.namenode.secondary.http-address</name>
		    <value>hadoop3:50090</value>
		  </property>
		</configuration>

hadoop2:

		  [atguigu@hadoop2 hadoop]$ cat hdfs-site.xml
		<?xml version="1.0" encoding="UTF-8"?>
		<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
		<!--
		  Licensed under the Apache License, Version 2.0 (the "License");
		  you may not use this file except in compliance with the License.
		  You may obtain a copy of the License at

		    http://www.apache.org/licenses/LICENSE-2.0

		  Unless required by applicable law or agreed to in writing, software
		  distributed under the License is distributed on an "AS IS" BASIS,
		  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
		  See the License for the specific language governing permissions and
		  limitations under the License. See accompanying LICENSE file.
		-->

		<!-- Put site-specific property overrides in this file. -->

		<configuration>
		   <property>
		    <name>dfs.namenode.secondary.http-address</name>
		    <value>hadoop3:50090</value>
		  </property>
		</configuration>

hadoop3:

    [atguigu@hadoop3 hadoop]$ cat hdfs-site.xml
	<?xml version="1.0" encoding="UTF-8"?>
	<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
	<!--
	  Licensed under the Apache License, Version 2.0 (the "License");
	  you may not use this file except in compliance with the License.
	  You may obtain a copy of the License at

	    http://www.apache.org/licenses/LICENSE-2.0

	  Unless required by applicable law or agreed to in writing, software
	  distributed under the License is distributed on an "AS IS" BASIS,
	  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
	  See the License for the specific language governing permissions and
	  limitations under the License. See accompanying LICENSE file.
	-->

	<!-- Put site-specific property overrides in this file. -->

	<configuration>
	   <property>
	    <name>dfs.namenode.secondary.http-address</name>
	    <value>hadoop3:50090</value>
	  </property>
	</configuration>

4. 配置/opt/module/hadoop-2.7.2/etc/hadoop下的yarn-site.xml

hadoop1:

		[atguigu@hadoop1 hadoop]$ cat yarn-site.xml
		<?xml version="1.0"?>
		<!--
		  Licensed under the Apache License, Version 2.0 (the "License");
		  you may not use this file except in compliance with the License.
		  You may obtain a copy of the License at

		    http://www.apache.org/licenses/LICENSE-2.0

		  Unless required by applicable law or agreed to in writing, software
		  distributed under the License is distributed on an "AS IS" BASIS,
		  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
		  See the License for the specific language governing permissions and
		  limitations under the License. See accompanying LICENSE file.
		-->
		<configuration>

		 <!-- Site specific YARN configuration properties -->
		 <property>
		    <name>yarn.resourcemanager.hostname</name>
		    <value>hadoop2</value>
		 </property>
		 <!-- reducer获取数据的方式 -->
		  <property>
		     <name>yarn.nodemanager.aux-services</name>
		     <value>mapreduce_shuffle</value>
		  </property>
		</configuration>

hadoop2:

		[atguigu@hadoop2 hadoop]$ cat yarn-site.xml
		<?xml version="1.0"?>
		<!--
		  Licensed under the Apache License, Version 2.0 (the "License");
		  you may not use this file except in compliance with the License.
		  You may obtain a copy of the License at

		    http://www.apache.org/licenses/LICENSE-2.0

		  Unless required by applicable law or agreed to in writing, software
		  distributed under the License is distributed on an "AS IS" BASIS,
		  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
		  See the License for the specific language governing permissions and
		  limitations under the License. See accompanying LICENSE file.
		-->
		<configuration>
		     <!-- Site specific YARN configuration properties -->
		 <property>
		    <name>yarn.resourcemanager.hostname</name>
		    <value>hadoop2</value>
		 </property>
		 <!-- reducer获取数据的方式 -->
		  <property>
		     <name>yarn.nodemanager.aux-services</name>
		     <value>mapreduce_shuffle</value>
		  </property>
		</configuration>

hadoop3:

	    [atguigu@hadoop3 hadoop]$ cat yarn-site.xml
	<?xml version="1.0"?>
	<!--
	  Licensed under the Apache License, Version 2.0 (the "License");
	  you may not use this file except in compliance with the License.
	  You may obtain a copy of the License at

	    http://www.apache.org/licenses/LICENSE-2.0

	  Unless required by applicable law or agreed to in writing, software
	  distributed under the License is distributed on an "AS IS" BASIS,
	  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
	  See the License for the specific language governing permissions and
	  limitations under the License. See accompanying LICENSE file.
	-->
	<configuration>

	 <!-- Site specific YARN configuration properties -->
	 <property>
	    <name>yarn.resourcemanager.hostname</name>
	    <value>hadoop2</value>
	 </property>
	 <!-- reducer获取数据的方式 -->
	  <property>
	     <name>yarn.nodemanager.aux-services</name>
	     <value>mapreduce_shuffle</value>
	  </property>
	</configuration>

5. 配置/opt/module/hadoop-2.7.2/etc/hadoop下的mapreduce-site.xml

hadoop1hadoop2hadoop3相同:

		[atguigu@hadoop1 hadoop]$ cat yarn-site.xml
	<?xml version="1.0"?>
	<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
	<!--
	  Licensed under the Apache License, Version 2.0 (the "License");
	  you may not use this file except in compliance with the License.
	  You may obtain a copy of the License at

	    http://www.apache.org/licenses/LICENSE-2.0

	  Unless required by applicable law or agreed to in writing, software
	  distributed under the License is distributed on an "AS IS" BASIS,
	  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
	  See the License for the specific language governing permissions and
	  limitations under the License. See accompanying LICENSE file.
	-->

	<!-- Put site-specific property overrides in this file. -->

	<configuration>
	   <property>
	    <name>mapreduce.framework.name</name>
	    <value>yarn</value>
	  </property>
	</configuration>

6.格式化Namenode

因为这里我们是配置的hadoop1为namenode，因此只需格式化hadoop1:

hadoop namenode -format

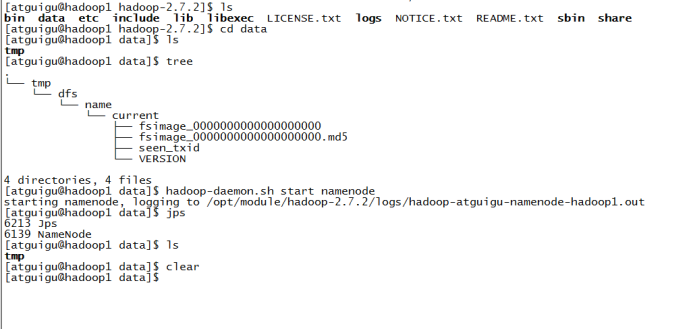

启动hadoop1上的namenode:

 hadoop-daemon.sh start namenode

启动hadoop1hadoop2hadoop3的datanode:

 hadoop-daemon.sh start datanode

启动hadoop3上的secondarynamenode

hadoop-daemon.sh start secondarynamenode

查看启动的进程：

通过50070端口访问地址：

启动hadoop2上的resourcemanager:

yarn-daemon.sh start resourcemanager

查看所有进程是否已启：

测试集群

   hadoop fs -mkdir /wpinput
  查看文件夹是否生成到hdfs下：

上传文件到wpinput下：

     hadoop fs -put test2  /wpinput3

利用/opt/module/hadoop-2.7.2/share/hadoop/mapreduce下的hadoop-mapreduce-examples-2.7.2.jar 来统计wpinput2下所有文件的单词数：

 hadoop jar hadoop-mapreduce-examples-2.7.2.jar wordcount  /wpinput2/   /wpoutput3

执行成功会在wpoutput3生成执行成功后的文件信息：

群起集群

 上面我们是一台台机器上分别启动namenode、datanone、resourcemanager、nodemanager、secondarynamenone进程，
这里介绍群起命令：
首先修改/opt/module/hadoop-2.7.2/etc/hadoop下的salves文件，如下图写入三台机器的主机名，每个主机名占一行，主机名后不能有空格，且不能有空行：

编辑完成后保存,下面演示群起命令：

  stop-yarn.sh  停止机器中所有yarn进程：

 stop-dfs.sh  停止机器中所有dfs进程：

start-all.sh 群起所有进程：

stop-all.sh 群停所有进程：

这里注意一下：start-all.sh命令其实是分布调用了start-dfs.sh和start-yarn.sh
start-dfs.sh可以在任意一台机器中执行，
start-yarn.sh必须在RM所在机器使用，在其他机器不会启动RM进程
所以最好都在RM所在机器执行群起群停命令！

历史日志查看

为了查看程序的历史运行情况，需要配置一下历史服务器。具体配置步骤如下：

1. 配置mapred-site.xml

   	        <property>
   			<name>mapreduce.jobhistory.address</name>
   			<value>hadoop1:10020</value>
   			</property>
   			<property>
   			    <name>mapreduce.jobhistory.webapp.address</name>
   			    <value>hadoop1:19888</value>
   			</property>
   			<!--第三方框架使用yarn计算的日志聚集功能 -->
   			<property>
   			        <name>yarn.log.server.url</name>
   			        <value>http://hadoop1:19888/jobhistory/logs</value>
   			</property>


2. 启动历史服务器
   [atguigu@hadoop1 hadoop-2.7.2]$ sbin/mr-jobhistory-daemon.sh start historyserver

3. 查看历史服务器是否启动
   [atguigu@hadoop1 hadoop-2.7.2]$ jps

4. 查看JobHistory
   http://hadoop1:19888/jobhistory

配置日志的聚集：

日志聚集概念：应用运行完成以后，将程序运行日志信息上传到HDFS系统上。
日志聚集功能好处：可以方便的查看到程序运行详情，方便开发调试。
注意：开启日志聚集功能，需要重新启动NodeManager 、ResourceManager和HistoryManager。
开启日志聚集功能具体步骤如下：

1.配置yarn-site.xml

	[atguigu@hadoop1 hadoop]$ vi yarn-site.xml
	在该文件里面增加如下配置。
	<!-- 日志聚集功能使能 -->
	<property>
	<name>yarn.log-aggregation-enable</name>
	<value>true</value>
	</property>

	<!-- 日志保留时间设置7天 -->
	<property>
	<name>yarn.log-aggregation.retain-seconds</name>
	<value>604800</value>
	</property>

2.关闭NodeManager 、ResourceManager和HistoryManager
[atguigu@hadoop1 hadoop-2.7.2]$ sbin/yarn-daemon.sh stop resourcemanager
[atguigu@hadoop1 hadoop-2.7.2]$ sbin/yarn-daemon.sh stop nodemanager
[atguigu@hadoop1 hadoop-2.7.2]$ sbin/mr-jobhistory-daemon.sh stop historyserver
3.启动NodeManager 、ResourceManager和HistoryManager
[atguigu@hadoop1 hadoop-2.7.2]$ sbin/yarn-daemon.sh start resourcemanager
[atguigu@hadoop1 hadoop-2.7.2]$ sbin/yarn-daemon.sh start nodemanager
[atguigu@hadoop1 hadoop-2.7.2]$ sbin/mr-jobhistory-daemon.sh start historyserver
4.删除HDFS上已经存在的输出文件
[atguigu@hadoop1 hadoop-2.7.2]$ bin/hdfs dfs -rm -R /user/atguigu/output
5.执行WordCount程序
[atguigu@hadoop1 hadoop-2.7.2]$ hadoop jar
share/hadoop/mapreduce/hadoop-mapreduce-examples-2.7.2.jar wordcount /user/atguigu/input /user/atguigu/output
6.查看日志，如图2-37，2-38，2-39所示
http://hadoop1:19888/jobhistory
