参考:
- 文档地址:
https://minitorch.github.io/module1.html - github地址:
https://github.com/minitorch/Module-1 - 参考答案地址:
https://github.com/Cornell-Tech-ML/minitorch-1-MCLYang - classroom地址(记录给自己用的):
https://github.com/shaiic/minitorch-module-1-CastleDream - 领导答案地址:
https://github.com/shaiic/minitorch-module-1-ddebby
这部分的目标:
只使用标量构建minitorch的第一个版本,关键就是自动求导。
标量的自动求导
1. 基本功能完成
1.0 前置步骤
第一步:
将module0中实现的内容转移到module1中(注意,测试不一定能检测出所有问题,很可能会在这章有些问题,结果是module0造成的。)
# 这两个是替换
minitorch/operators.py
minitorch/module.py
# 下面三个是新增
tests/test_module.py
tests/test_operators.py
project/run_manual.py
第二步:
安装必要的包,切换到repo里面,即minitorch-module-1-CastleDream
目录中。
python -m pip install -r requirements.txt
python -m pip install -r requirements.extra.txt
python -m pip install -Ue .
# 这步会把当前的minitorch-moduleX重新安装成一个新的包(基于本地的repo文件,所以repo文件不能随便换位置或者删除)
conda install llvmlite
Task 1.1 Numerical Derivatives
完成任务1,数值求导(需要有基本的高等数学求导基础)
- 求导法则,参考:维基百科 Differentiation rules
- 导数,参考:Derivatives
PS:如果有数据公式无法正确显示,直接找个支持markdown语法的编辑器,放到公式编辑格式里,就可以看到了,如下:
f i ′ ( x 0 , … , x n − 1 ) f'_i(x_0, \ldots, x_{n-1}) fi′(x0,…,xn−1)
完成之后,可以pytest -m task1_1
只测试这一模块的内容。
@pytest.mark.task1_1
def test_central_diff():
d = central_difference(operators.id, 5, arg=0)
assert_close(d, 1.0)
d = central_difference(operators.add, 5, 10, arg=0)
assert_close(d, 1.0)
d = central_difference(operators.mul, 5, 10, arg=0)
assert_close(d, 10.0)
d = central_difference(operators.mul, 5, 10, arg=1)
assert_close(d, 5.0)
d = central_difference(operators.exp, 2, arg=0)
assert_close(d, operators.exp(2.0))
验证成功,显示如上图
Task 1.2 Scalars
这部分就是实现梯度传播前的基础,主要是标量的计算和前向传播。
- 要实现这部分,需要对
minitorch.Scalar
这个类很熟悉,可以先去看一下Tracking Variables这个追踪变量的引导手册,可能会刷新你对Python numerical overrides的认知 - 实现重载的数学函数需要
minitorch.Scalar
类,每种方法都需要将内部Python操作符连接到正确的minitorch.Function.forward()
调用。
注意,是先完成这部分代码的填空:
class Mul(ScalarFunction):
"Multiplication function"
@staticmethod
def forward(ctx, a, b):
# TODO: Implement for Task 1.2.
raise NotImplementedError('Need to implement for Task 1.2')
@staticmethod
def backward(ctx, d_output):
# TODO: Implement for Task 1.4.
raise NotImplementedError('Need to implement for Task 1.4')
然后再去补充这部分代码:
def __lt__(self, b):
# TODO: Implement for Task 1.2.
raise NotImplementedError('Need to implement for Task 1.2')
基类ScalarFunction
是这样:
class ScalarFunction(FunctionBase):
"""
处理和生成标量Variables的数学函数的包装器
是一个从来不会被实例化的静态类,使用这个类把 `forward` 和`backward` 代码组合到一起
"""
@staticmethod
def forward(ctx, *inputs):
r"""
前向调用,主要就是计算math:`f(x_0 \ldots x_{n-1})`.
Args:
ctx (:class:`Context`):
一个存储反向调用过程中可能用到的所有信息的容器对象
*inputs (list of floats): n-float values :math:`x_0 \ldots x_{n-1}`.
Should return float the computation of the function :math:`f`.
"""
pass # pragma: no cover
@staticmethod
def backward(ctx, d_out):
r"""
反向调用, 计算math:`f'_{x_i}(x_0 \ldots x_{n-1}) \times d_{out}`.
Args:
ctx (Context): A container object holding any information saved during in the corresponding `forward` call.
d_out (float): :math:`d_out` term in the chain rule.
Should return the computation of the derivative function
:math:`f'_{x_i}` for each input :math:`x_i` times `d_out`.
"""
pass # pragma: no cover
# Checks.
variable = Scalar
data_type = float
@staticmethod
def data(a):
return a
简单来说,
- 正向是计算 f ( x 0 … x n − 1 ) f(x_0 \ldots x_{n-1}) f(x0…xn−1),返回计算结果(一般是一个浮点数)
- 反向是计算 f x i ′ ( x 0 … x n − 1 ) × d o u t f'_{x_i}(x_0 \ldots x_{n-1}) \times d_{out} fxi′(x0…xn−1)×dout,返回每个参数的导数(用到几个参数,返回对应于参数个数个导数)
填完之后,测试pytest -m task1_2
Task 1.3 Chain Rule
- 这个任务比较困难,请确保你了解链式规则( chain rule)、变量(Variables)和 函数(Functions)。
- 请先仔细阅读自动微分的先导手册Autodifferentiation ,同时读一些其他
ScalarFunctions
的代码 - 对于含有任意个参数的函数,基于
FunctionBase
这个类实现chain_rule
函数。这个函数应该具有以下功能:- 可以通过传递一个 c o n t e x t context context(上下文变量)和 d o u t d_{out} dout来收集局部梯度,进而达到反向处理函数的目的
- 它需要将梯度和对应的变量正确配对,并返回。也是在这个函数中,过滤掉传给前向的常数,但是不需要导数。

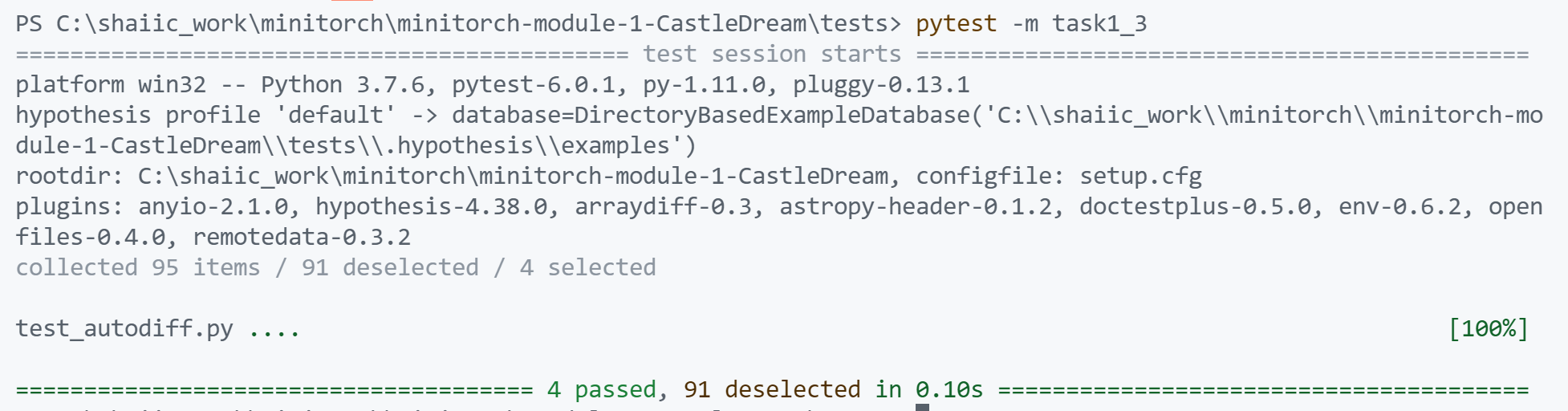

代码完成后,测试使用pytest -m task1_3
Task 1.4 Backpropagation
完成这部分任务之前先看反向传播引导文档
pytest -m task1_4
Task 1.5 Training
2. 检查并上传
# 检查全部
black .
# 也可以只检查特定的几个文件
black minitorch/ tests/ project/
flake8
# 也可以只检查特定的几个文件
flake8 minitorch/ tests/ project/
