下面是 CRC校验 通用代码。实际应用可以根据CRC类型裁剪代码,减少代码量。计算方式CRC 缺点计算量大,浪费CPU资源,查表方式可以减少计算量(查表方式源码链接)。
#include <stdio.h>
#include <string.h>
/**Private typedef*************************************************************/
/* USER CODE BEGIN PT */
typedef enum
{
CRC4_ITU = 0,
CRC5_EPC,
CRC5_ITU,
CRC5_USB,
CRC6_ITU,
CRC7_MMC,
CRC8,
CRC8_ITU,
CRC8_ROHC,
CRC8_MAXIM,
CRC16_IBM,
CRC16_MAXIM,
CRC16_USB,
CRC16_MODBUS,
CRC16_CCITT,
CRC16_CCITT_FALSE,
CRC16_X25,
CRC16_XMODEM,
CRC16_DNP,
CRC32,
CRC32_MPEG2,
CRC_NUM
}CrcTypeE;
typedef enum
{
E_FALSE = 0, //假(错误)
E_TRUE = !E_FALSE //真(正确)
}BoolTypeE;
typedef struct
{
char *Name;
unsigned char Width; //宽度,即CRC比特数。
unsigned int Poly; //生成多项式的简写,以16进制表示。例如:CRC-32即是0x04C11DB7,忽略了最高位的"1",即完整的生成项是0x104C11DB7。
unsigned int CrcInit; //初始值,这是算法开始时寄存器(crc)的初始化预置值,十六进制表示。
unsigned int XorOut; //计算结果与此参数异或后得到最终的CRC值。
BoolTypeE RefIn; //待测数据的每个字节是否按位反转,E_TRUE或E_FALSE。
BoolTypeE RefOut; //在计算后之后,异或输出之前,整个数据是否按位反转,E_TRUE或E_FALSE。
}CrcInfoTypeS;
/* USER CODE END PT */
/**Private variables***********************************************************/
/* USER CODE BEGIN PV */
const static CrcInfoTypeS s_crcInfoTab[CRC_NUM] =
{
//CRC算法名称 宽度 多项式 初始值 结果异或值 输入反转 输出反转
{"CRC4_ITU", 4, 0x03, 0x00, 0x00, E_TRUE, E_TRUE},
{"CRC5_EPC", 5, 0x09, 0x09, 0x00, E_FALSE, E_FALSE},
{"CRC5_ITU", 5, 0x15, 0x00, 0x00, E_TRUE, E_TRUE},
{"CRC5_USB", 5, 0x05, 0x1F, 0x1F, E_TRUE, E_TRUE},
{"CRC6_ITU", 6, 0x03, 0x00, 0x00, E_TRUE, E_TRUE},
{"CRC7_MMC", 7, 0x09, 0x00, 0x00, E_FALSE, E_FALSE},
{"CRC8", 8, 0x07, 0x00, 0x00, E_FALSE, E_FALSE},
{"CRC8_ITU", 8, 0x07, 0x00, 0x55, E_FALSE, E_FALSE},
{"CRC8_ROHC", 8, 0x07, 0xFF, 0x00, E_TRUE, E_TRUE},
{"CRC8_MAXIM", 8, 0x31, 0x00, 0x00, E_TRUE, E_TRUE},
{"CRC16_IBM", 16, 0x8005, 0x0000, 0x0000, E_TRUE, E_TRUE},
{"CRC16_MAXIM", 16, 0x8005, 0x0000, 0xFFFF, E_TRUE, E_TRUE},
{"CRC16_USB", 16, 0x8005, 0xFFFF, 0xFFFF, E_TRUE, E_TRUE},
{"CRC16_MODBUS", 16, 0x8005, 0xFFFF, 0x0000, E_TRUE, E_TRUE},
{"CRC16_CCITT", 16, 0x1021, 0x0000, 0x0000, E_TRUE, E_TRUE},
{"CRC16_CCITT_FALSE", 16, 0x1021, 0xFFFF, 0x0000, E_FALSE, E_FALSE},
{"CRC16_X25", 16, 0x1021, 0xFFFF, 0xFFFF, E_TRUE, E_TRUE},
{"CRC16_XMODEM", 16, 0x1021, 0x0000, 0x0000, E_FALSE, E_FALSE},
{"CRC16_DNP", 16, 0x3D65, 0x0000, 0xFFFF, E_TRUE, E_TRUE},
{"CRC32", 32, 0x04C11DB7, 0xFFFFFFFF, 0xFFFFFFFF, E_TRUE, E_TRUE},
{"CRC32_MPEG2", 32, 0x04C11DB7, 0xFFFFFFFF, 0x00000000, E_FALSE, E_FALSE}
};
/* USER CODE END PV */
/**
*******************************************************************************
* @brief 位反转 函数
* @param [in] inVal - 反转前数据
* @param [in] bits - 反转位数
* @return 反转后数据
* @note 就是将高位与低位数据顺序反过来。
*******************************************************************************
*/
unsigned int BitsReverse(unsigned int inVal, unsigned char bits)
{
unsigned int outVal = 0;
unsigned char i;
for(i=0; i<bits; i++)
{
if(inVal & (1 << i)) outVal |= 1 << (bits - 1 - i);
}
return outVal;
}
/**
*******************************************************************************
* @brief 获取 CRC(循环冗余校验) 函数
* @param [in] type - CRC 类型
* @param [in] *buf - 数据块指针
* @param [in] bufLen - 数据长度
* @return 校验码
* @note
*******************************************************************************
*/
unsigned int GetCRC(unsigned char type, unsigned char *buf, unsigned int bufLen)
{
unsigned char width = s_crcInfoTab[type].Width; //宽度,即CRC比特数。
unsigned int poly = s_crcInfoTab[type].Poly; //生成多项式的简写,以16进制表示。例如:CRC-32即是0x04C11DB7,忽略了最高位的"1",即完整的生成项是0x104C11DB7。
unsigned int crc = s_crcInfoTab[type].CrcInit; //初始值,这是算法开始时寄存器(crc)的初始化预置值,十六进制表示。
unsigned int xorout = s_crcInfoTab[type].XorOut; //计算结果与此参数异或后得到最终的CRC值。
unsigned char refin = s_crcInfoTab[type].RefIn; //待测数据的每个字节是否按位反转,E_TRUE或E_FALSE。
unsigned char refout = s_crcInfoTab[type].RefOut; //在计算后之后,异或输出之前,整个数据是否按位反转,E_TRUE或E_FALSE。
unsigned char n;
unsigned int bits;
unsigned int data;
unsigned char i;
n = (width<8) ? 0 : (width-8);
crc = (width<8) ? (crc<<(8-width)) : crc; //CRC校验宽度小于8位,CRC初值移到高位计算
bits = (width<8) ? 0x80 : (1 << (width-1));
poly = (width<8) ? (poly<<(8-width)) : poly; //CRC校验宽度小于8位,CRC多项式移到高位计算
while(bufLen--)
{
data = *(buf++);
if(refin == E_TRUE) data = BitsReverse(data, 8); //数据输入是否反转
crc ^= (data << n);
for(i=0; i<8; i++)
{
if(crc & bits)
{
crc = (crc << 1) ^ poly;
}
else
{
crc = crc << 1;
}
}
}
crc = (width<8) ? (crc>>(8-width)) : crc; //CRC校验宽度小于8位,CRC值计算完成后移到原位
if(refout == E_TRUE) crc = BitsReverse(crc, width); //CRC输出是否反转
crc ^= xorout; //CRC结果异或
return (crc & ((2<<(width-1)) - 1)); //获取有效位(也就是宽度位)
}
/**
*******************************************************************************
* @brief 主函数
* @param [in] None
* @return None
* @note 验证校验函数
*******************************************************************************
*/
void main()
{
char *str = "Hello World!";
unsigned int i;
for(i=0; i<CRC_NUM; i++)
{
printf("%s (\"%s\") = 0x%0X\n", s_crcInfoTab[i].Name, str, GetCRC(i, (unsigned char*)str, strlen(str)));
}
while(1);
}

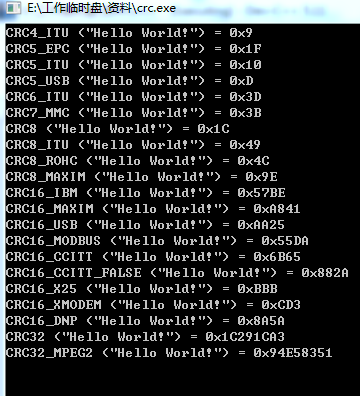

运行结果:
