LSTM(Long Short Term Memory networks)
特殊的RNN的一种
因为RNN能吸收前一个神经元的大部分信息,而对于远一点的神经元的信息却利用的少。这就导致了预测的不准确,比如语言文字的预测,‘我生活在中国,喜欢去旅游,而且我喜欢说。。。 ’,如果要预测喜欢说的下一个词语,那么‘中国’这个词就很重要,但这个词离预测的太远了,导致传递信息的误差大。这个问题称为 长期依赖问题。LSTM主要的特点是它可以将先前的网络信息传递至当前神经元,能够很好地解决这个问题。
这是LSTM的结构图,相比RNN是
第一步:
这里把前一个的隐藏层 h t − 1 h_{t-1} ht−1和输入值 x t x_t xt, 加上bias,再通过sigmoid函数得到 f t f_t ft。公式是
f t = σ ( W f ⋅ [ h t − 1 , x t ] + b f ) f_t = \sigma(W_f ·[h_{t-1}, x_t] + b_f ) ft=σ(Wf⋅[ht−1,xt]+bf)
这一层的参数 W f , b f W_f,b_f Wf,bf 全部用f做下标 ,以免跟其他层混淆.
第二步:
这一层将会第一层相似,得到相似的 i t i_t it,两个公式是
i t = σ ( W i ⋅ [ h t − 1 , x t ] + b i ) i_t = \sigma(W_i ·[h_{t-1}, x_t] + b_i) it=σ(Wi⋅[ht−1,xt]+bi)
这里的参数 W i , b i W_i, b_i Wi,bi将会用 i 做下标
C t ^ = t a n h ( W C ⋅ [ h t − 1 , x t ] + b C ) \hat{C_t} = tanh(W_C·[h_{t-1}, x_t] + b_C) Ct^=tanh(WC⋅[ht−1,xt]+bC)
这里的参数 W C , b C W_C,b_C WC,bC将会用 C做下标

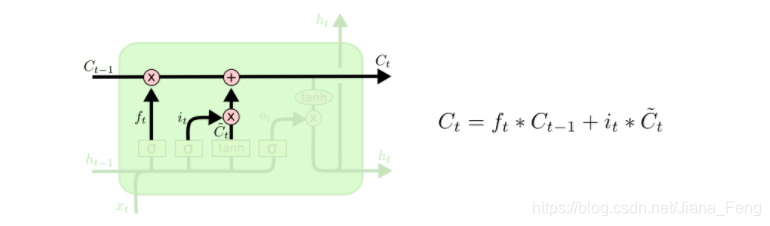

第三步:
这里是把第一步, 第二步的结果和上一层的cell 做 相乘和相加 的处理。
C t = f t ∗ C t − 1 + i t ∗ C t ^ C_t = f_t * C_{t-1} + i_t * \hat{C_t} Ct=ft∗Ct−1+it∗Ct^
这里就可以更新 C t − 1 C_{t-1} Ct−1, 得到 C t C_t Ct, 用于下一层的的计算。
第四步就会更新 h t − 1 h_{t-1} ht−1, 得到 h t h_{t} ht, 用于下一层的计算。

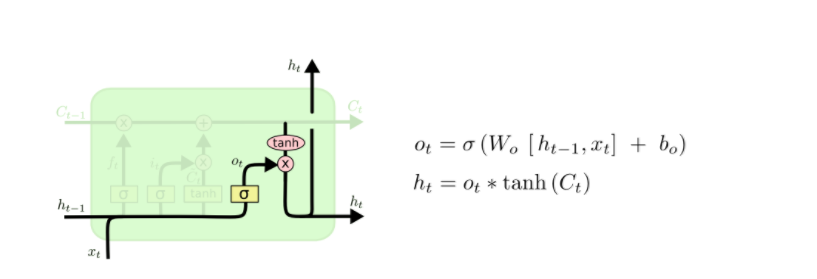

第四步:
这一步将会计算,
o t = σ ( W o ⋅ [ h t − 1 , x t ] + b o ) o_t = \sigma(W_o·[h_{t-1}, x_t] + b_o) ot=σ(Wo⋅[ht−1,xt]+bo)
这里的参数 W o , b o W_o,b_o Wo,bo用的是 0 做下标.
然后结合第三步的 C t C_t Ct计算
公式为
h t = o t ∗ t a n h ( C t ) h_t = o_t * tanh(C_t) ht=ot∗tanh(Ct)
终于到最后一步,可以更新 h t h_t ht.
实战python code
我们将会使用numpy来实现LSTM的结构,包括feedward和backward来更新权值。
现在我们上面的所有公式整合在一起,方便设置相应的参数
要知道我们最后的目的是更新 C t , h t C_t, h_t Ct,ht,所以其他的参数计算也是为了这个目的。
f t = σ ( W f ⋅ [ h t − 1 , x t ] + b f ) f_t = \sigma(W_f ·[h_{t-1}, x_t] + b_f ) ft=σ(Wf⋅[ht−1,xt]+bf)
i t = σ ( W i ⋅ [ h t − 1 , x t ] + b i ) i_t = \sigma(W_i ·[h_{t-1}, x_t] + b_i) it=σ(Wi⋅[ht−1,xt]+bi)
C t ^ = t a n h ( W C ⋅ [ h t − 1 , x t ] + b C ) \hat{C_t} = tanh(W_C·[h_{t-1}, x_t] + b_C) Ct^=tanh(WC⋅[ht−1,xt]+bC)
C t = f t ∗ C t − 1 + i t ∗ C t ^ C_t = f_t * C_{t-1} + i_t * \hat{C_t} Ct=ft∗Ct−1+it∗Ct^
o t = σ ( W o ⋅ [ h t − 1 , x t ] + b o ) o_t = \sigma(W_o·[h_{t-1}, x_t] + b_o) ot=σ(Wo⋅[ht−1,xt]+bo)
h t = o t ∗ t a n h ( C t ) h_t = o_t * tanh(C_t) ht=ot∗tanh(Ct)
课程实战-Python-简单手写LSTM结构
首先先定义LSTM结构出现的两个激活函数 --sigmoid+tanh
def sigmoid(x):
out = 1/(1+tf.exp(-x))
return out
def tanh(x):
out = (tf.exp(x)-tf.exp(-x))/(tf.exp(x)+tf.exp(-x))
return out
然后,根据LSTM结定义
def LSTM_step(cell_inputs, cell_states, kernel, recurrent_kernel, bias):
"""
Run one time step of the cell. That is, given the current inputs(x) and the cell states(C_{t-1}) from the last time step,
calculate the current state(h_t) and cell output(C_t).
Hint: In LSTM there exist both matrix multiplication and element-wise multiplication. Try not to mix them.
-开始我混淆了 matrix multiplication和element-wise 全程只用了matrix multiplication,导致输出的C_t是一个scale,但其实理应是(1,16)
:param cell_inputs: The input at the current time step. The last dimension of it should be 1.
:param cell_states: The state value of the cell from the last time step, containing previous hidden state h_{t-1} and cell state C_{t-1}.
:param kernel: The kernel matrix for the multiplication with cell_inputs
:param recurrent_kernel: The kernel matrix for the multiplication with hidden state h_tml
:param bias: Common bias value
:return: current hidden state, and a list of hidden state and cell state
"""
h_tml = cell_states[0] #previosu hidden gate h_{t-1}
c_tml = cell_states[1] #previous cell gate C_{t-1}
#这里是公式
#$f_t =(W_f ·[h_{t-1}, x_t] + b_f )$
#$i_t =(W_i ·[h_{t-1}, x_t] + b_i)$
#$\hat{C_t} =(W_C·[h_{t-1}, x_t] + b_C)$
#$o_t =(W_o·[h_{t-1}, x_t] + b_o)$
#这四个公式的结合 称为z
z = tf.matmul(cell_inputs, kernel)
z += tf.matmul(h_tml,recurrent_kernel)
z += bias
#把z分开为四分,通过激活函数分别称为ft,it,hat_ct,ot
z0, z1, z2, z3 = tf.split(z,4,axis=1)
ft = sigmoid(z0) #在我们的数据里,ft shape为(1,64)
it = sigmoid(z1) #shape 为 (1,64)
hat_ct = tanh(z2) #同理shape
ot = sigmoid(z3) #同理shape
#update计算 cell gate - ct
ct = ft * c_tml + it * hat_ct #这里计算的ct是用点乘 shape为是1,64
#update计算 hidden gate - ht
ht =tanh(ct) * ot #这里计算的ht是点乘,element wise ht shape为 也是1,64
return ht, [ht,ct]
最后随机定义数据来check LSTM step
import numpy as np
cell_inputs = np.ones((1,1))
cell_states = [0.2*np.ones((1,64)), np.zeros((1,64))]
kernel = 0.1*np.ones((1,256))
recurrent_kernel = 0.1*np.ones((64,256))
bias = np.zeros(256)
h , [h,c] = LSTM_step(cell_inputs, cell_states, kernel, recurrent_kernel, bias)
print('Simple verification:')
print('Is h correct?', np.isclose(h.numpy()[0][0],0.48484358))
print('Is c correct?', np.isclose(c.numpy()[0][0],0.70387213))
Simple verification:
Is h correct? True
Is c correct? True
