退火算法在寻路,非凸函数优化当中是很简单实用的技术
$ 根据热力学的原理,在温度为T时,出现能量差为dE的降温的概率为P(dE),表示为:$
$ P(dE) = exp( dE/(k*T) ) $
$ 其中k是一个常数,exp表示自然指数,且dE<0(温度总是降低的)。这条公式指明了 $
#!/usr/bin/env python
# -*- encoding: utf-8 -*-
'''
@File : 退火算法.py
@Time : 2020/09/01 10:16:14
@Author : manmanzhang
@Version : 1.0
@Contact : [email protected]
@Desc : None
'''
# here put the import lib
import numpy as np
import matplotlib.pyplot as plt
# ### $ 根据热力学的原理,在温度为T时,出现能量差为dE的降温的概率为P(dE),表示为:$
# # $ P(dE) = exp( dE/(k*T) ) $
# ### $ 其中k是一个常数,exp表示自然指数,且dE<0(温度总是降低的)。这条公式指明了 $
# # 单变量退火
def PDE(DE, t, k=1):
return np.exp((DE) / (k * t))
def DE_function(new, old):
return new - old
def jump(DE, T, k=1):
return PDE(DE, T, k) > np.random.rand() and 0 or 1
def simulate_anneal(func,
parameter={
"T": 1,
"T_min": 0,
"r": 0.0001,
"expr": 0,
"jump_max": np.inf
}):
path, funcpath = [], []
T = parameter["T"] # 系统温度,初时应在高温
T_min = parameter["T_min"] # 最小温度值
r = parameter["r"] # 降温速率
counter = 0
expr = parameter["expr"] # 假设初解
jump_max = parameter["jump_max"] # 最大冷却值
jump_counter = 0
while T > T_min:
counter += 1
new_expr = func.__next__() # 新解
funcpath.append(new_expr)
DE = new_expr - expr
if DE <= 0:
expr = new_expr
jump_counter = 0
elif DE > 0:
expr = expr
if jump(DE, T):
T *= r
jump_counter += 1
if jump_counter > jump_max:
print("最大回炉冷却次数:", jump_counter)
return expr, path, funcpath
path.append(expr)

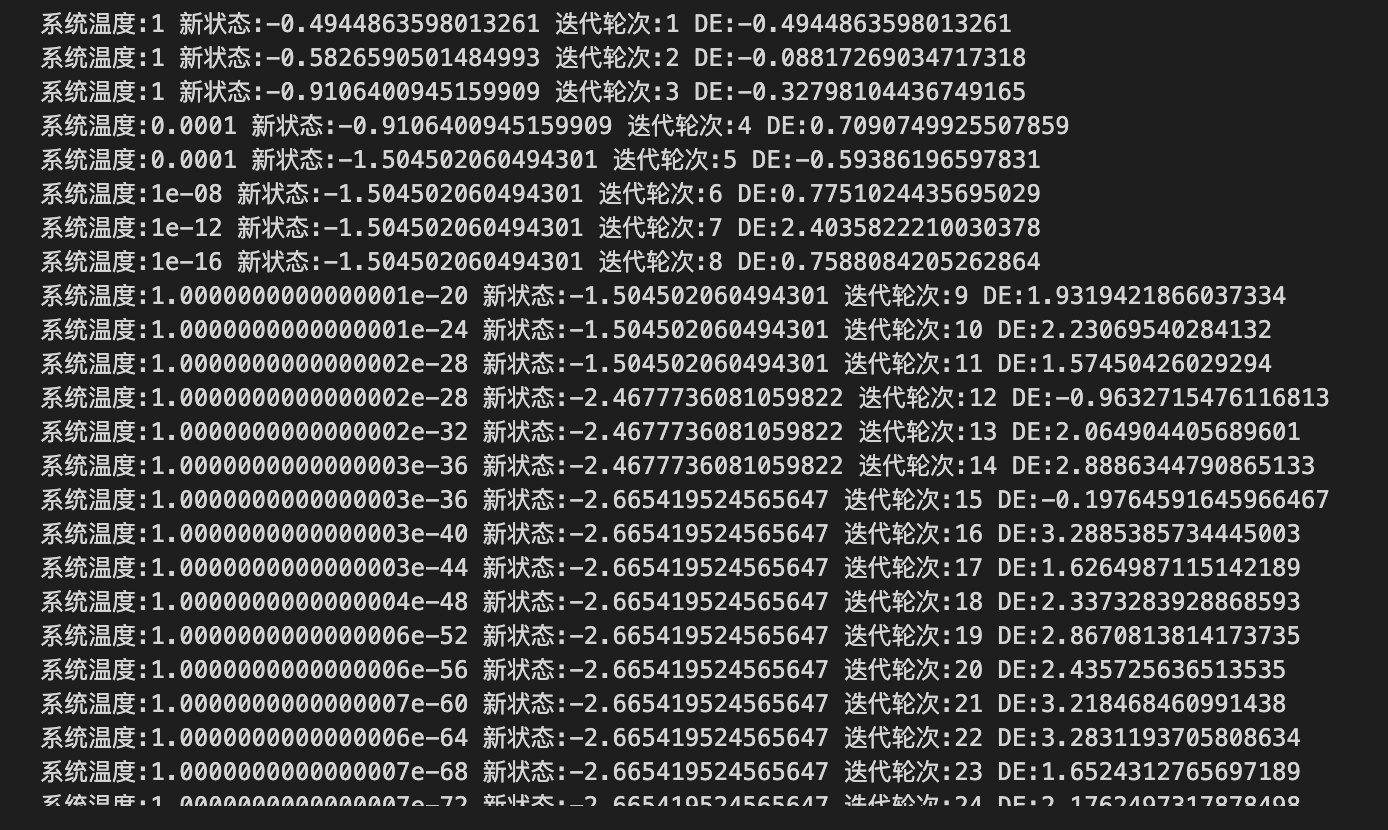

print("{}{}{}{}{}{}{}{}".format('系统温度:', T, ' 新状态:', expr, ' 迭代轮次:',
counter, ' DE:', DE))
return expr, path, funcpath
if __name__ == "__main__":
def f(): # 待优化最小函数
for x in np.random.randn(1000):
yield x
expr, path, funcpath = simulate_anneal(f(),
parameter={
"T": 1,
"T_min": 0,
"r": 0.11,
"expr": 0,
"jump_max": 1000
})
print(expr) # %%
plt.plot(path, c='g')
plt.plot(funcpath, c='r')
