二叉树的前序中序后续遍历

二叉树的遍历

遍历：按照某一种次序依次访问各个结点，每个结点恰好访问一次。

二叉树前序遍历

1.递归实现前序遍历

<pre>
public static void main(String[] args) {
	//设置结点之间的关系
	BinNode root = new BinNode(0);
	BinNode node1 = new BinNode(1);
	BinNode node2 = new BinNode(2);
	root.left = node1; root.right = node2;
	node1.parent = root; node2.parent = root;

	BinNode node3 = new BinNode(3);
	BinNode node4 = new BinNode(4);
	node1.left = node3; node1.right = node4;
	node3.parent = node1; node4.parent = node1;

	BinNode node5 = new BinNode(5);
	BinNode node6 = new BinNode(6);
	node2.left = node5; node2.right = node6;
	node5.parent = node2; node6.parent = node2;

	BinNode node7 = new BinNode(7);
	BinNode node8 = new BinNode(8);
	node3.left = node7; node3.right = node8;
	node7.parent = node3; node8.parent = node3;

	preorder(new BinTree(root));
}
</pre>

<pre>
public static void preorder(BinTree tree) {
	BinNode x = tree.root;
	if (x == null) {
		return;
	}
	System.out.println(x);
	preorder(new BinTree(x.left));
	preorder(new BinTree(x.right));
}
</pre>

2.迭代1实现前序遍历:主要通过栈来实现

<pre>
public static void preorder(BinNode root) {
	BinNodeStackArray s = new BinNodeStackArray(100);
	if(root != null) {
		s.push(root);
	}
	while(!s.isEmpty()) {
		BinNode x = s.pop();
		System.out.println(x);
		if (x.right != null) {
			s.push(x.right);
		}
		if (x.left != null) {
			s.push(x.left);
		}
	}
}
</pre>

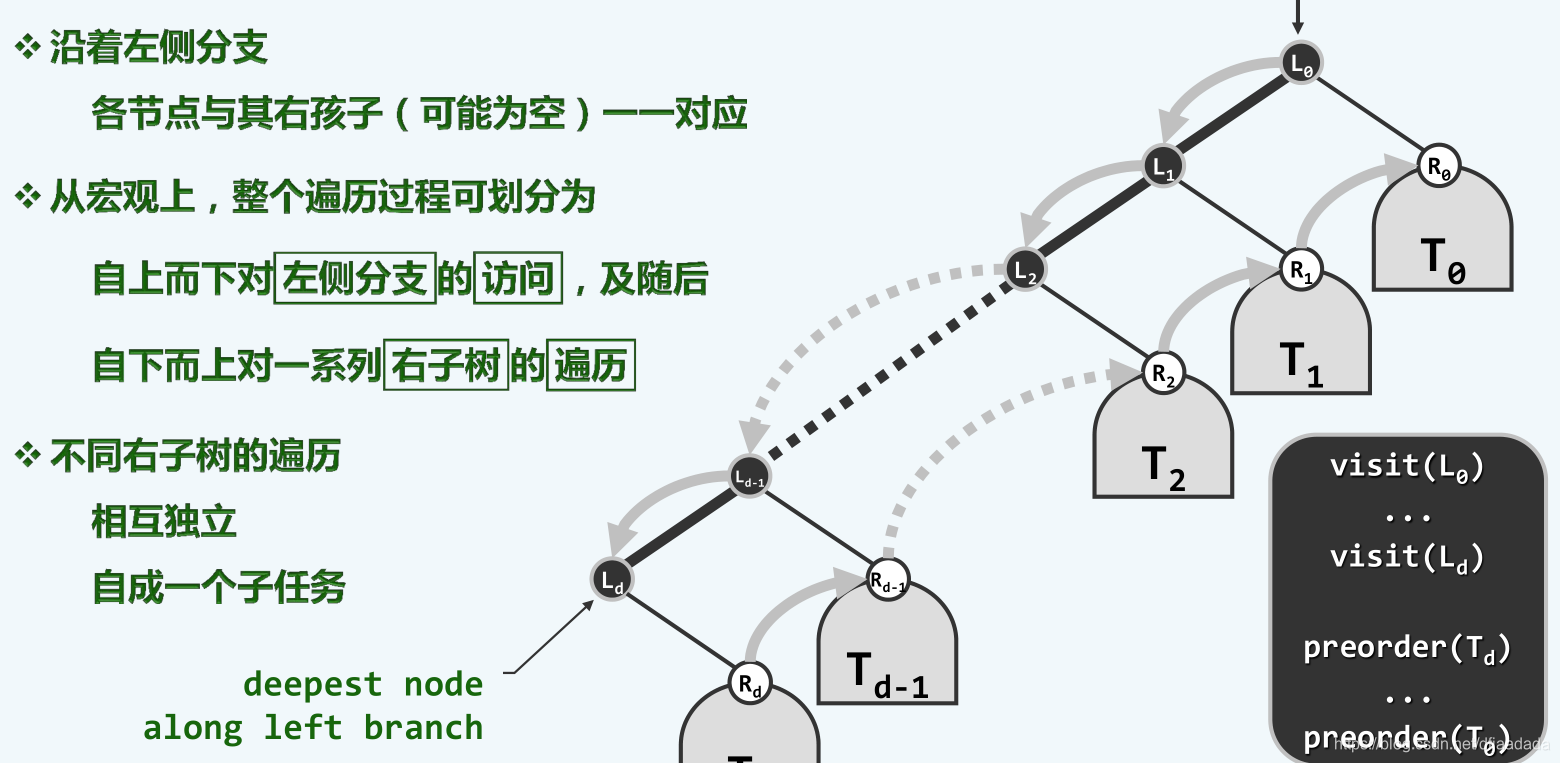

3.迭代2实现前序遍历：以上消除尾递归的方法不易推广，因此另寻它法。主要思路如下图所示：

<pre>
public static void preorder(BinNode root) {
	BinNodeStackArray s = new BinNodeStackArray(100);
	BinNode x = root;
	while(true) {
		vistAlongLeftTree(x, s);
		if (s.isEmpty()) {
			break;
		}
		x = s.pop();
	}
}
</pre>

<pre>
public static void vistAlongLeftTree(BinNode root, BinNodeStackArray s) {
	BinNode x = root;
	while(x != null) {
		System.out.println(x);
		if (root.right != null) {
			s.push(x.right);
		}
		x = x.left;
	}
}
</pre>

二叉树中序遍历

1.递归实现

<pre>
public static void infixorder(BinNode root) {
	if (root == null) {
		return;
	}
	infixorder(root.left);
	System.out.println(root);
	infixorder(root.right);
}
</pre>

2.迭代实现:主要思路如下。

<pre>
public static void deepstAlongLeftTree(BinNode root, BinNodeStackArray s) {
	BinNode x = root;
	while(x != null) {
		s.push(x);
		x = x.left;
	}
}
</pre>

<pre>
public static void infixorder(BinNode root) {
	BinNode x = root;
	BinNodeStackArray s = new BinNodeStackArray(100);
	while(true) {
		deepstAlongLeftTree(x,s);
		if (s.isEmpty()) {
			break;
		}
		x = s.pop();
		System.out.println(x);
		x = x.right;
	}
}
</pre>

二叉树后序遍历

1.递归实现:

<pre>
public static void postorder(BinNode root) {
	if (root == null) {
		return;
	}
	postorder(root.left);
	postorder(root.right);
	System.out.println(root);
}
</pre>

2.迭代实现:主要思路如下图：

<pre>
public static void highestLeafVisibleFromTheLeft(BinNode root, BinNodeStackArray s) {
	BinNode x = root;
	while(x != null) {
		if (x.hasLeftChild()) {
			if (x.hasRightChild()) {
				s.push(x.right);
				s.push(x.left);
				x = x.left;
			}
		}
		else if (x.hasRightChild()) {
			s.push(x.right);
			x = x.right;
		}else {
			break;
		}
	}
}
</pre>

<pre>
public static void highestLeafVisibleFromTheLeft(BinNode root, BinNodeStackArray s) {
	BinNode x = root;
	while(x != null) {
		if (x.hasLeftChild()) {
			if (x.hasRightChild()) {
				s.push(x.right);
				s.push(x.left);
				x = x.left;
			}
		}
		else if (x.hasRightChild()) {
			s.push(x.right);
			x = x.right;
		}else {
			break;
		}
	}
}
</pre>
