一、网络模型创建步骤
1.1 模型训练步骤
- 数据
- 模型
- 损失函数
- 优化器
- 迭代训练

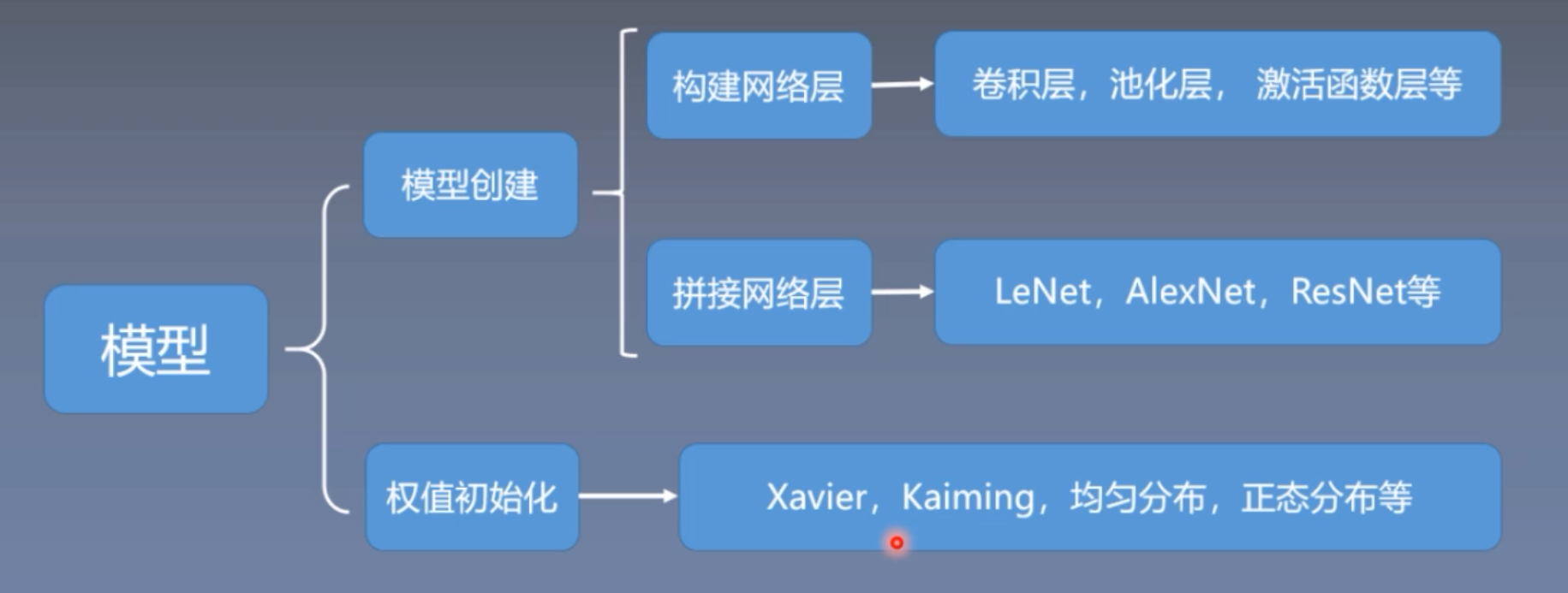

1.2 模型创建步骤

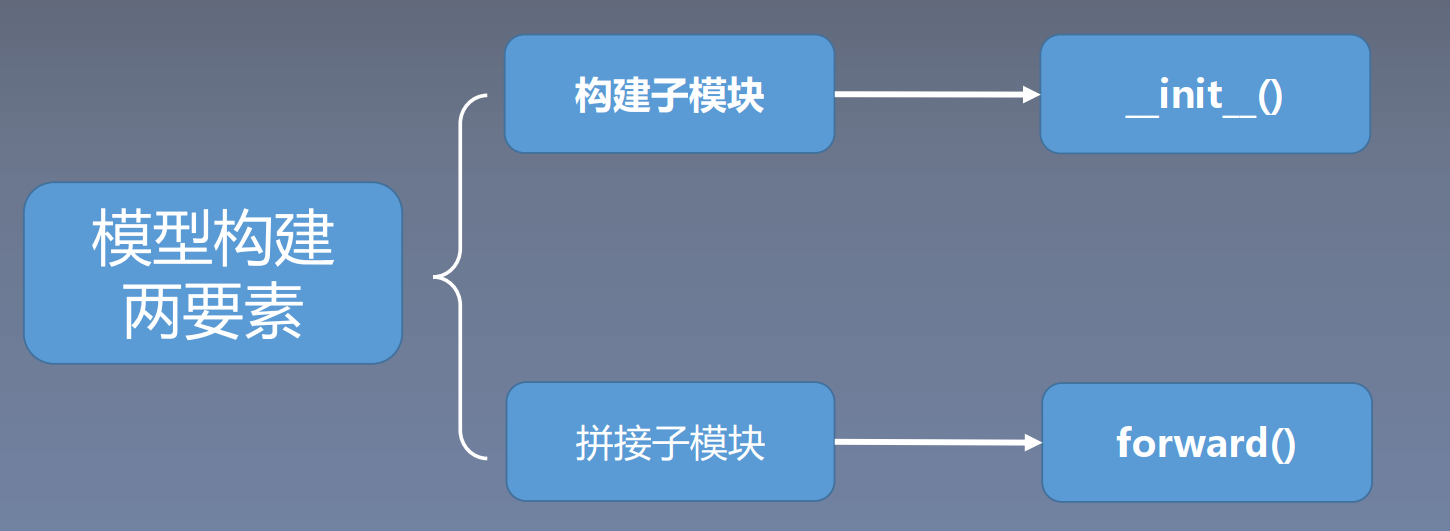

1.3 模型构建两要素:
1.4 模型创建示例——LeNet

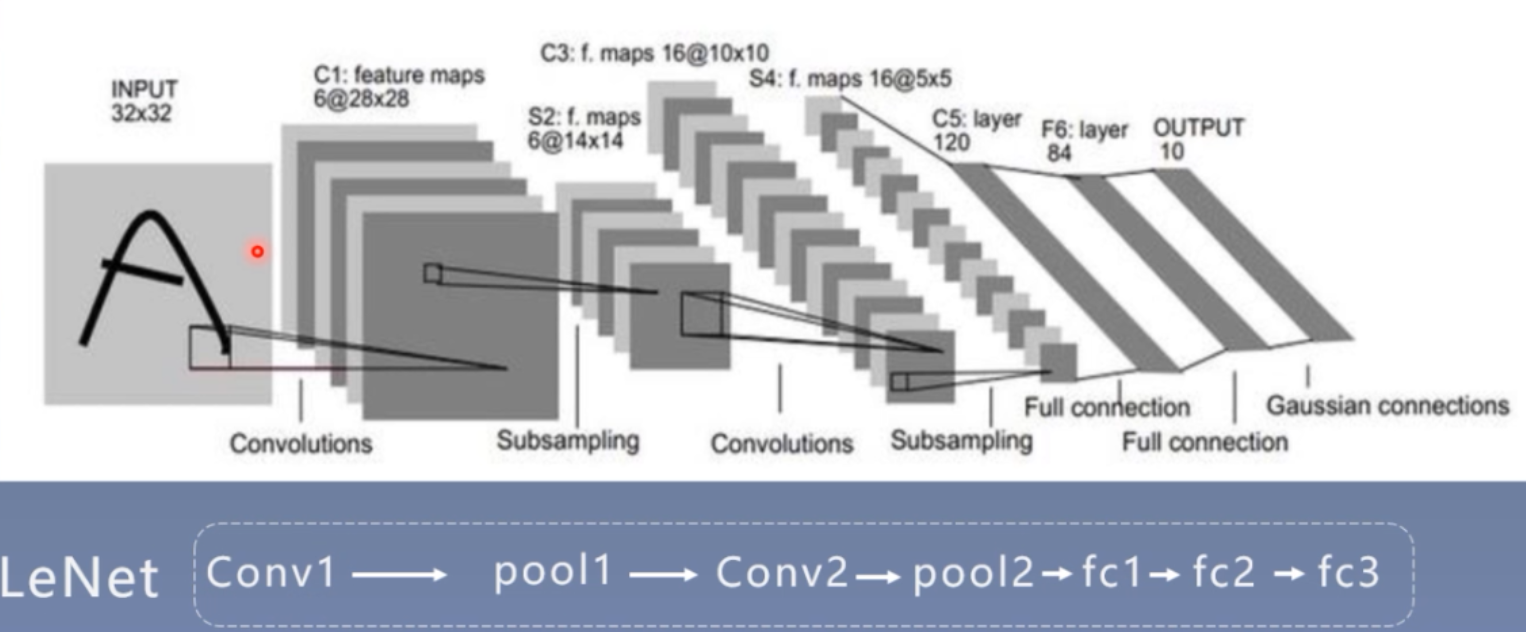

LeNet模型结构图:
LeNet计算图:
LeNet模型部分代码:
class LeNet(nn.Module):
def __init__(self, classes):
super(LeNet, self).__init__()
self.conv1 = nn.Conv2d(3, 6, 5)
self.conv2 = nn.Conv2d(6, 16, 5)
self.fc1 = nn.Linear(16*5*5, 120)
self.fc2 = nn.Linear(120, 84)
self.fc3 = nn.Linear(84, classes)
def forward(self, x):
out = F.relu(self.conv1(x))
out = F.max_pool2d(out, 2)
out = F.relu(self.conv2(out))
out = F.max_pool2d(out, 2)
out = out.view(out.size(0), -1)
out = F.relu(self.fc1(out))
out = F.relu(self.fc2(out))
out = self.fc3(out)
return out
说明:在__init__()中实现子模块的构建,在forward中实现子模块的拼接,所以在pytorch中,前向传播过程就是子模块的拼接过程
二、nn.Module
2.1 torch.nn

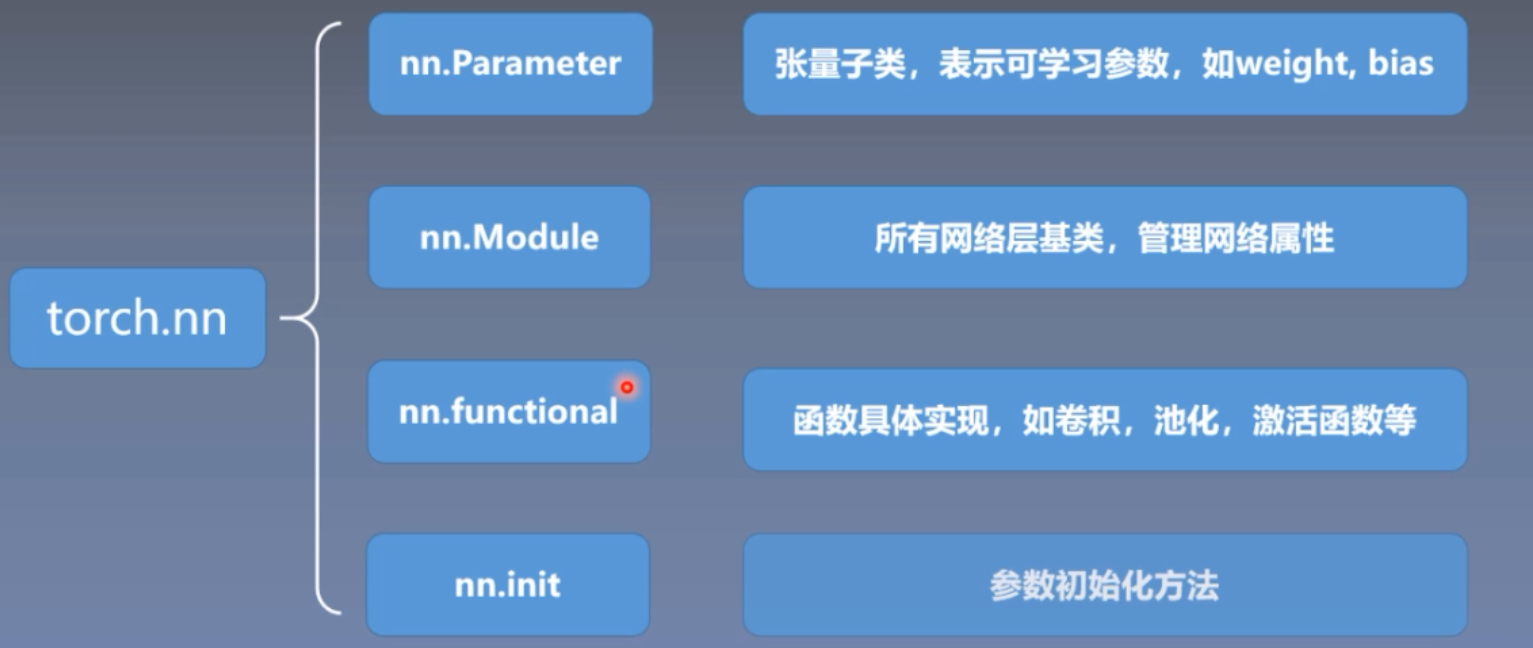

torch.nn:Pytroch中的神经网络模块,主要包括以下四个子模块
2.2 nn.Module
- parameters: 存储管理nn.Parameter类
- modules : 存储管理nn.Module类
- buffers: 存储管理缓冲属性, 如BN层中的running_mean
- ***_hooks: 存储管理钩子函数
8个有序字典:
说明: 自定义模型时,init()方法会继承父类nn.Module的__init__()函数
class LeNet(nn.Module):
def __init__(self, classes):
super(LeNet, self).__init__()
self.conv1 = nn.Conv2d(3, 6, 5)
self.conv2 = nn.Conv2d(6, 16, 5)
self.fc1 = nn.Linear(16*5*5, 120)
self.fc2 = nn.Linear(120, 84)
self.fc3 = nn.Linear(84, classes)
在nn.module的__init__()方法中,主要是_construct()
def __init__(self):
self._construct()
# initialize self.training separately from the rest of the internal
# state, as it is managed differently by nn.Module and ScriptModule
self.training = True
_construct()创建了8个有序字典
def _construct(self):
"""
Initializes internal Module state, shared by both nn.Module and ScriptModule.
"""
torch._C._log_api_usage_once("python.nn_module")
self._backend = thnn_backend
self._parameters = OrderedDict()
self._buffers = OrderedDict()
self._backward_hooks = OrderedDict()
self._forward_hooks = OrderedDict()
self._forward_pre_hooks = OrderedDict()
self._state_dict_hooks = OrderedDict()
self._load_state_dict_pre_hooks = OrderedDict()
self._modules = OrderedDict()
说明: 自定义模型和其他网络层模块都直接或间接的继承nn.Module,所以都会有这8个有序字典,而其子模块,参数或者其他属性会存储在相应的有序字典中
2.3 nn.Module总结
- 一个module可以包含多个子module
- 一个module相当于一个运算,必须实现forward()函数
- 每个module都有8个字典管理它的属性
