SpringBoot 集成 Swagger 2教程

首先你需要有个 SpringBoot 项目

pom 文件


    <properties>
        <java.version>1.8</java.version>
        <swagger2.version>2.9.2</swagger2.version>
        <swagger-ui.version>2.9.2</swagger-ui.version>
        <!--由于 swagger 版本冲突 guava 更新至20.0-->
        <guava.version>20.0</guava.version>
    </properties>



       <!-- swagger -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>${swagger2.version}</version>
        </dependency>
        <!-- swagger-ui -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>${swagger-ui.version}</version>
        </dependency>

Java配置文件

package com.zjrc.healthlife.config;

import io.swagger.annotations.ApiOperation;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 * Description: swagger 配置
 * User: zhouzhou
 * Date: 2019-03-28
 * Time: 8:43 AM
 */
@Configuration
@EnableSwagger2
public class SwaggerConfig {
    @Bean
    public Docket swaggerSpringMvcPlugin() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors
                        .withMethodAnnotation(ApiOperation.class)).build();
    }


    private ApiInfo apiInfo(){
        return new ApiInfoBuilder()
                .title("Health-File")
                .description("健康导航 api")
                .termsOfServiceUrl("浙江融创")
                .version("1.0.0")
                .build();
    }

}

测试专用 Controller

package com.zjrc.healthlife.controller;

import com.zjrc.healthlife.common.vo.Response;
import com.zjrc.healthlife.dao.entity.Patient;
import com.zjrc.healthlife.dao.mapper.PatientMapper;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

/**
 * Description: 测试用
 * User: zhouzhou
 * Date: 2019-03-27
 * Time: 9:00 PM
 */
@Api(description = "测试用")
@RestController
public class TestController {
    @Autowired
    private PatientMapper patientMapper;

    @ApiOperation(value = "查询用户用 id" ,  notes="测试查询")
    @GetMapping("/patient/{id}")
    public Response<Patient> getPatientById(@PathVariable Long id){
        Response<Patient> response = new Response<>();
        Patient patient = patientMapper.selectByPrimaryKey(id);
        if (patient == null){
            response.setCode(Response.HttpResponseStatus.ERR);
            response.setMsg("查无此人");
        }else {
            response.setCode(Response.HttpResponseStatus.OK);
            response.setData(patient);
        }
        return response;
    }

    @ApiOperation(value = "测试全局异常" ,  notes="测试异常")
    @GetMapping("/getError")
    public Response<String> getError(){
        Response<String> response = new Response<>();
        throw new RuntimeException("我是一个测试异常");

    }
}

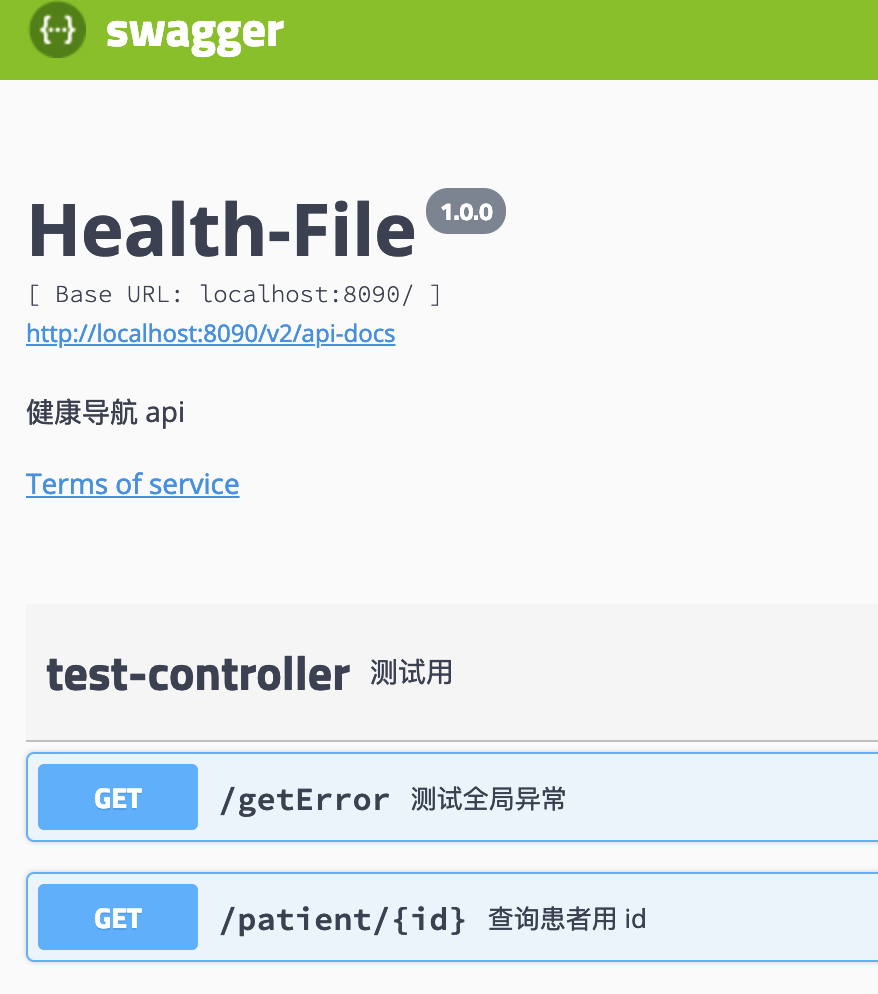

启动后，访问{ip}/swagger-ui.html
