代码
import tensorflow as tf
import numpy as np
import matplotlib.pyplot as plt
data_size = 500
x_data = np.random.rand(data_size, 2)
noise = np.random.rand(data_size)
noise = (noise - np.mean(noise)) * 0.5
y_data = ((1 - x_data[:, 1]) > x_data[:, 0]).astype(np.float32)
boundary = int(0.7 * data_size)
x_train = x_data[:boundary]
y_train = y_data[:boundary]
x_test = x_data[boundary:]
y_test = y_data[boundary:]
x_true = x_data[np.where(y_data)]
x_false = x_data[np.where(y_data == 0)]
def sigmoid(x):
return 1.0 / (1 + tf.exp(-x))
def accuracy(threshold = 0.5):
return tf.reduce_mean(tf.cast(tf.equal(tf.cast(y > threshold, tf.float32), y_[:, None]), tf.float32))
my_w = 0
my_b = 0
learning_rate = 1.0
nb_epoch = 100
with tf.Graph().as_default():
x = tf.placeholder(dtype = tf.float32, shape = [None, 2])
w = tf.Variable(tf.random_uniform([2, 1]), dtype = tf.float32)
b = tf.Variable(tf.random_uniform([]), dtype = tf.float32)
y = sigmoid(tf.matmul(x, w) + b)
y_ = tf.placeholder(dtype = tf.float32, shape = [None])
cost = -tf.reduce_mean(y_[:, None] * tf.log(y) + (1 - y_[:, None]) * tf.log(1 - y))
train = tf.train.GradientDescentOptimizer(learning_rate).minimize(cost)
train_cost_history = []
train_acc_history = []
test_cost_history = []
test_acc_history = []
accs = []
with tf.Session() as sess:
sess.run(tf.global_variables_initializer())
for i in range(nb_epoch):
_, c, acc = sess.run([train, cost, accuracy()], feed_dict={x:x_train, y_:y_train})
train_cost_history.append(c)
train_acc_history.append(acc)
c, acc = sess.run([cost, accuracy()], feed_dict={x:x_test, y_:y_test})
test_cost_history.append(c)
test_acc_history.append(acc)
my_w = w.eval()
my_b = b.eval()
plt.figure(figsize=(10, 4))
plt.subplot(1, 2, 1)
plt.title('Data')
plt.scatter(x_true[:, 0], x_true[:, 1], 15.0, 'b', marker = 'x')
plt.scatter(x_false[:, 0], x_false[:, 1], 15.0, 'g', marker = 'o')
k = -my_w[0, 0] / my_w[1, 0]
b = -my_b / my_w[1, 0]
plt.plot(np.linspace(0, 1, 20), np.linspace(0, 1, 20) * k + b, 'r--')
plt.subplot(1, 2, 2)
plt.title('Loss')
plt.plot(train_cost_history, '--')
plt.plot(train_acc_history, '-')
plt.plot(test_cost_history, '--')
plt.plot(test_acc_history, '-')
plt.legend(['train cost', 'train acc', 'test cost', 'test acc'])
plt.show()

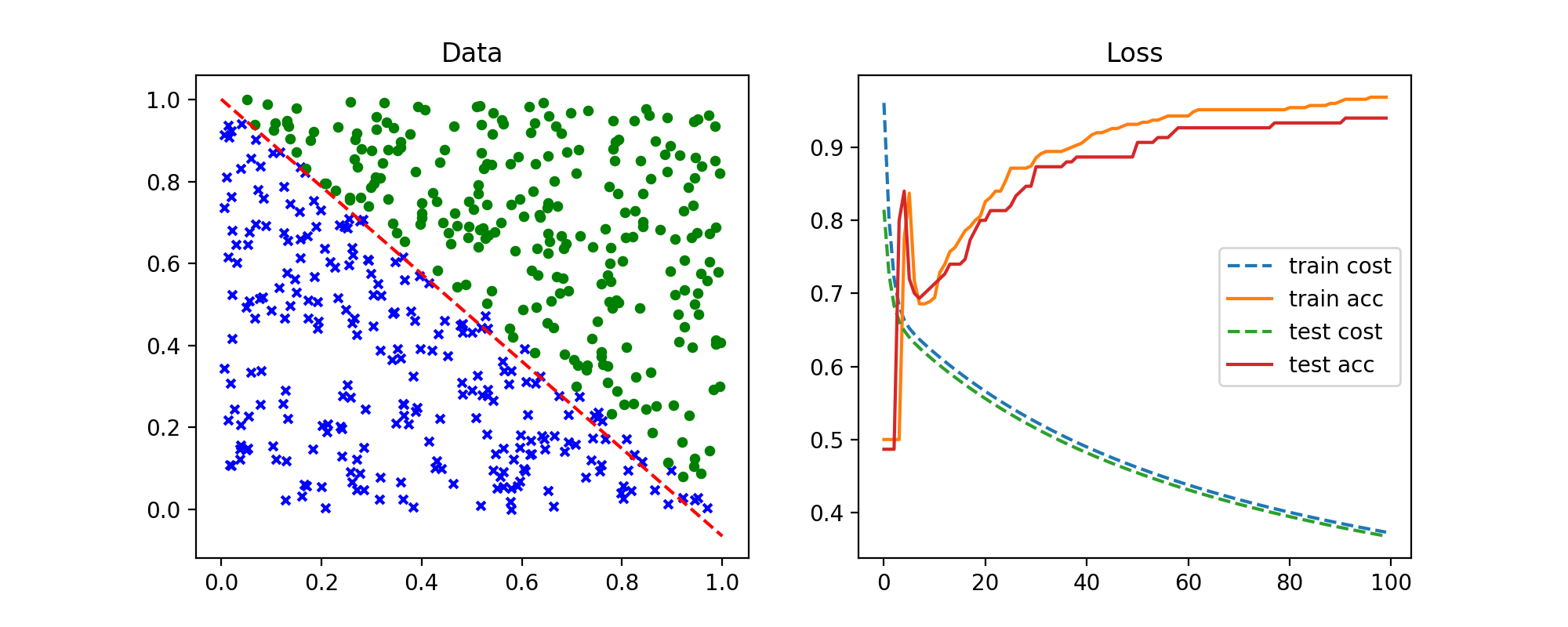

结果
