Linux SPI 驱动框架分为两部分：
- SPI总线控制器驱动：SOC的 SPI 控制器外设驱动
- SPI设备驱动：基于SPI总线控制器驱动编写，针对具体的SPI从机设备
一、SPI总线控制器驱动
基于platform平台驱动框架，Linux内核将SOC的SPI外设主机功能抽象为 spi_master 结构体。
spi_master 结构体定义在include/linux/spi/spi.h文件中，如下：
/**
* struct spi_master - interface to SPI master controller
* @dev: device interface to this driver
* @list: link with the global spi_master list
* @bus_num: board-specific (and often SOC-specific) identifier for a
* given SPI controller.
* @num_chipselect: chipselects are used to distinguish individual
* SPI slaves, and are numbered from zero to num_chipselects.
* each slave has a chipselect signal, but it's common that not
* every chipselect is connected to a slave.
* @dma_alignment: SPI controller constraint on DMA buffers alignment.
* @mode_bits: flags understood by this controller driver
* @bits_per_word_mask: A mask indicating which values of bits_per_word are
* supported by the driver. Bit n indicates that a bits_per_word n+1 is
* supported. If set, the SPI core will reject any transfer with an
* unsupported bits_per_word. If not set, this value is simply ignored,
* and it's up to the individual driver to perform any validation.
* @min_speed_hz: Lowest supported transfer speed
* @max_speed_hz: Highest supported transfer speed
* @flags: other constraints relevant to this driver
* @bus_lock_spinlock: spinlock for SPI bus locking
* @bus_lock_mutex: mutex for SPI bus locking
* @bus_lock_flag: indicates that the SPI bus is locked for exclusive use
* @setup: updates the device mode and clocking records used by a
* device's SPI controller; protocol code may call this. This
* must fail if an unrecognized or unsupported mode is requested.
* It's always safe to call this unless transfers are pending on
* the device whose settings are being modified.
* @transfer: adds a message to the controller's transfer queue.
* @cleanup: frees controller-specific state
* @can_dma: determine whether this master supports DMA
* @queued: whether this master is providing an internal message queue
* @kworker: thread struct for message pump
* @kworker_task: pointer to task for message pump kworker thread
* @pump_messages: work struct for scheduling work to the message pump
* @queue_lock: spinlock to syncronise access to message queue
* @queue: message queue
* @idling: the device is entering idle state
* @cur_msg: the currently in-flight message
* @cur_msg_prepared: spi_prepare_message was called for the currently
* in-flight message
* @cur_msg_mapped: message has been mapped for DMA
* @xfer_completion: used by core transfer_one_message()
* @busy: message pump is busy
* @running: message pump is running
* @rt: whether this queue is set to run as a realtime task
* @auto_runtime_pm: the core should ensure a runtime PM reference is held
* while the hardware is prepared, using the parent
* device for the spidev
* @max_dma_len: Maximum length of a DMA transfer for the device.
* @prepare_transfer_hardware: a message will soon arrive from the queue
* so the subsystem requests the driver to prepare the transfer hardware
* by issuing this call
* @transfer_one_message: the subsystem calls the driver to transfer a single
* message while queuing transfers that arrive in the meantime. When the
* driver is finished with this message, it must call
* spi_finalize_current_message() so the subsystem can issue the next
* message
* @unprepare_transfer_hardware: there are currently no more messages on the
* queue so the subsystem notifies the driver that it may relax the
* hardware by issuing this call
* @set_cs: set the logic level of the chip select line. May be called
* from interrupt context.
* @prepare_message: set up the controller to transfer a single message,
* for example doing DMA mapping. Called from threaded
* context.
* @transfer_one: transfer a single spi_transfer.
* - return 0 if the transfer is finished,
* - return 1 if the transfer is still in progress. When
* the driver is finished with this transfer it must
* call spi_finalize_current_transfer() so the subsystem
* can issue the next transfer. Note: transfer_one and
* transfer_one_message are mutually exclusive; when both
* are set, the generic subsystem does not call your
* transfer_one callback.
* @handle_err: the subsystem calls the driver to handle an error that occurs
* in the generic implementation of transfer_one_message().
* @unprepare_message: undo any work done by prepare_message().
* @cs_gpios: Array of GPIOs to use as chip select lines; one per CS
* number. Any individual value may be -ENOENT for CS lines that
* are not GPIOs (driven by the SPI controller itself).
* @dma_tx: DMA transmit channel
* @dma_rx: DMA receive channel
* @dummy_rx: dummy receive buffer for full-duplex devices
* @dummy_tx: dummy transmit buffer for full-duplex devices
*
* Each SPI master controller can communicate with one or more @spi_device
* children. These make a small bus, sharing MOSI, MISO and SCK signals
* but not chip select signals. Each device may be configured to use a
* different clock rate, since those shared signals are ignored unless
* the chip is selected.
*
* The driver for an SPI controller manages access to those devices through
* a queue of spi_message transactions, copying data between CPU memory and
* an SPI slave device. For each such message it queues, it calls the
* message's completion function when the transaction completes.
*/
struct spi_master {
struct device dev;
struct list_head list;
/* other than negative (== assign one dynamically), bus_num is fully
* board-specific. usually that simplifies to being SOC-specific.
* example: one SOC has three SPI controllers, numbered 0..2,
* and one board's schematics might show it using SPI-2. software
* would normally use bus_num=2 for that controller.
*/
s16 bus_num;
/* chipselects will be integral to many controllers; some others
* might use board-specific GPIOs.
*/
u16 num_chipselect;
/* some SPI controllers pose alignment requirements on DMAable
* buffers; let protocol drivers know about these requirements.
*/
u16 dma_alignment;
/* spi_device.mode flags understood by this controller driver */
u16 mode_bits;
/* bitmask of supported bits_per_word for transfers */
u32 bits_per_word_mask;
#define SPI_BPW_MASK(bits) BIT((bits) - 1)
#define SPI_BIT_MASK(bits) (((bits) == 32) ? ~0U : (BIT(bits) - 1))
#define SPI_BPW_RANGE_MASK(min, max) (SPI_BIT_MASK(max) - SPI_BIT_MASK(min - 1))
/* limits on transfer speed */
u32 min_speed_hz;
u32 max_speed_hz;
/* other constraints relevant to this driver */
u16 flags;
#define SPI_MASTER_HALF_DUPLEX BIT(0) /* can't do full duplex */
#define SPI_MASTER_NO_RX BIT(1) /* can't do buffer read */
#define SPI_MASTER_NO_TX BIT(2) /* can't do buffer write */
#define SPI_MASTER_MUST_RX BIT(3) /* requires rx */
#define SPI_MASTER_MUST_TX BIT(4) /* requires tx */
/* lock and mutex for SPI bus locking */
spinlock_t bus_lock_spinlock;
struct mutex bus_lock_mutex;
/* flag indicating that the SPI bus is locked for exclusive use */
bool bus_lock_flag;
/* Setup mode and clock, etc (spi driver may call many times).
*
* IMPORTANT: this may be called when transfers to another
* device are active. DO NOT UPDATE SHARED REGISTERS in ways
* which could break those transfers.
*/
int (*setup)(struct spi_device *spi);
/* bidirectional bulk transfers
*
* + The transfer() method may not sleep; its main role is
* just to add the message to the queue.
* + For now there's no remove-from-queue operation, or
* any other request management
* + To a given spi_device, message queueing is pure fifo
*
* + The master's main job is to process its message queue,
* selecting a chip then transferring data
* + If there are multiple spi_device children, the i/o queue
* arbitration algorithm is unspecified (round robin, fifo,
* priority, reservations, preemption, etc)
*
* + Chipselect stays active during the entire message
* (unless modified by spi_transfer.cs_change != 0).
* + The message transfers use clock and SPI mode parameters
* previously established by setup() for this device
*/
int (*transfer)(struct spi_device *spi,
struct spi_message *mesg);
/* called on release() to free memory provided by spi_master */
void (*cleanup)(struct spi_device *spi);
/*
* Used to enable core support for DMA handling, if can_dma()
* exists and returns true then the transfer will be mapped
* prior to transfer_one() being called. The driver should
* not modify or store xfer and dma_tx and dma_rx must be set
* while the device is prepared.
*/
bool (*can_dma)(struct spi_master *master,
struct spi_device *spi,
struct spi_transfer *xfer);
/*
* These hooks are for drivers that want to use the generic
* master transfer queueing mechanism. If these are used, the
* transfer() function above must NOT be specified by the driver.
* Over time we expect SPI drivers to be phased over to this API.
*/
bool queued;
struct kthread_worker kworker;
struct task_struct *kworker_task;
struct kthread_work pump_messages;
spinlock_t queue_lock;
struct list_head queue;
struct spi_message *cur_msg;
bool idling;
bool busy;
bool running;
bool rt;
bool auto_runtime_pm;
bool cur_msg_prepared;
bool cur_msg_mapped;
struct completion xfer_completion;
size_t max_dma_len;
int (*prepare_transfer_hardware)(struct spi_master *master);
int (*transfer_one_message)(struct spi_master *master,
struct spi_message *mesg);
int (*unprepare_transfer_hardware)(struct spi_master *master);
int (*prepare_message)(struct spi_master *master,
struct spi_message *message);
int (*unprepare_message)(struct spi_master *master,
struct spi_message *message);
/*
* These hooks are for drivers that use a generic implementation
* of transfer_one_message() provied by the core.
*/
void (*set_cs)(struct spi_device *spi, bool enable);
int (*transfer_one)(struct spi_master *master, struct spi_device *spi,
struct spi_transfer *transfer);
void (*handle_err)(struct spi_master *master,
struct spi_message *message);
/* gpio chip select */
int *cs_gpios;
/* DMA channels for use with core dmaengine helpers */
struct dma_chan *dma_tx;
struct dma_chan *dma_rx;
/* dummy data for full duplex devices */
void *dummy_rx;
void *dummy_tx;
};
其中比较重要的成员有：
- transer函数指针：和i2c_algorithm中的master_xfer函数一样，控制器数据传输函数，需要适配到具体SOC操作函数；
- transfer_one_message函数指针：用于SPI发送一个spi_message
一般来说，SOC的SPI总线驱动都是由半导体厂商编写的，对于不同的SPI外设，通过Linux内核抽象出的 spi_master 即可屏蔽差异，我们只需要基于 spi_master 编写具体的 SPI 设备驱动即可。
二、SPI设备驱动（重点）
1. spi_driver结构体
Linux内核使用spi_driver结构体来表示 spi 设备驱动，在编写某个SPI设备驱动的时候，需要实现spi_driver。
SPI设备驱动首先要初始化spi_driver并注册到内核，当设备和驱动匹配以后，spi_driver中的probe函数会执行，probe函数中需要完成对SPI设备的初始化。
spi_driver结构体也定义在include/linux/spi/spi.h文件中，如下：
/**
* struct spi_driver - Host side "protocol" driver
* @id_table: List of SPI devices supported by this driver
* @probe: Binds this driver to the spi device. Drivers can verify
* that the device is actually present, and may need to configure
* characteristics (such as bits_per_word) which weren't needed for
* the initial configuration done during system setup.
* @remove: Unbinds this driver from the spi device
* @shutdown: Standard shutdown callback used during system state
* transitions such as powerdown/halt and kexec
* @driver: SPI device drivers should initialize the name and owner
* field of this structure.
*
* This represents the kind of device driver that uses SPI messages to
* interact with the hardware at the other end of a SPI link. It's called
* a "protocol" driver because it works through messages rather than talking
* directly to SPI hardware (which is what the underlying SPI controller
* driver does to pass those messages). These protocols are defined in the
* specification for the device(s) supported by the driver.
*
* As a rule, those device protocols represent the lowest level interface
* supported by a driver, and it will support upper level interfaces too.
* Examples of such upper levels include frameworks like MTD, networking,
* MMC, RTC, filesystem character device nodes, and hardware monitoring.
*/
struct spi_driver {
const struct spi_device_id *id_table;
int (*probe)(struct spi_device *spi);
int (*remove)(struct spi_device *spi);
void (*shutdown)(struct spi_device *spi);
struct device_driver driver;
};
2. 注册/注销API
（1）spi_driver初始化完成后，需要注册到内核，注册API如下：
extern int spi_register_driver(struct spi_driver *sdrv);
返回0表示注册成功，负值表示注册失败。
（2）注销SPI设备时，需要从内核注销已经注册的spi_driver，注销API如下：
/**
* spi_unregister_driver - reverse effect of spi_register_driver
* @sdrv: the driver to unregister
* Context: can sleep
*/
static inline void spi_unregister_driver(struct spi_driver *sdrv);
三、设备树如何描述SPI设备
1. SOC的spi外设
这部分描述是芯片原厂写的，在arch/arm/boot/dts/imx6ull.dtsi文件中：
可以看到，对于 spi4 这个外设，原厂的设备树中描述了如下内容：
- 兼容性：“fsl,imx6ul-ecspi” 或 “fsl,imx51-ecspi”
- 寄存器：0x02014000地址开始，长度为0x4000
- 中断
- 时钟
- 时钟名称
- DMA
- DMA名称
- 状态
2. SPI设备描述
这部分描述在开发板描述文件中，用来描述spi总线上外接了哪些设备，在arch/arm/boot/dts/imx6ull-atk-emmc.dts文件中：

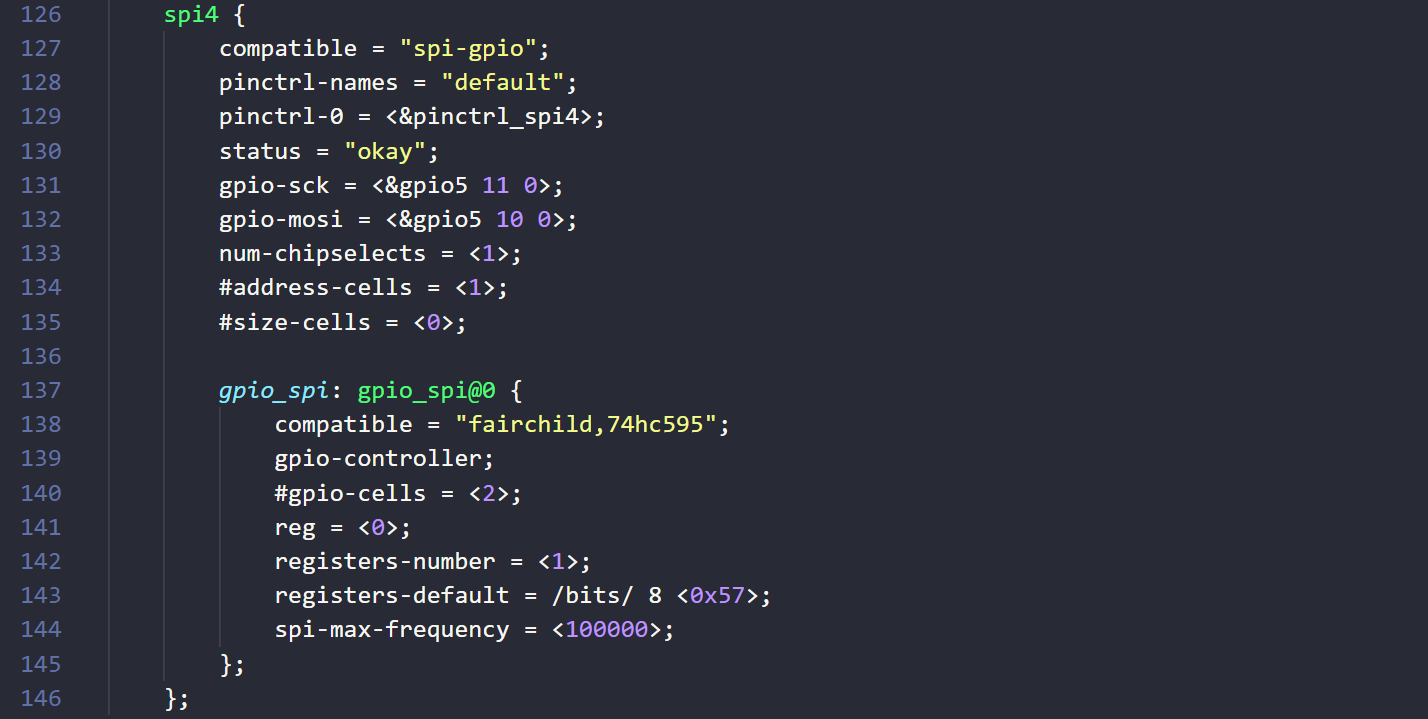

可以看到spi4总线上接了一块74HC595芯片，用来扩展gpio，描述内容如下：
四、SPI设备数据收发
1. SPI数据传输消息spi_message
spi_transfer结构体，定义在 include/linux/spi/spi.h 文件中，如下：
/**
* struct spi_transfer - a read/write buffer pair
* @tx_buf: data to be written (dma-safe memory), or NULL
* @rx_buf: data to be read (dma-safe memory), or NULL
* @tx_dma: DMA address of tx_buf, if @spi_message.is_dma_mapped
* @rx_dma: DMA address of rx_buf, if @spi_message.is_dma_mapped
* @tx_nbits: number of bits used for writing. If 0 the default
* (SPI_NBITS_SINGLE) is used.
* @rx_nbits: number of bits used for reading. If 0 the default
* (SPI_NBITS_SINGLE) is used.
* @len: size of rx and tx buffers (in bytes)
* @speed_hz: Select a speed other than the device default for this
* transfer. If 0 the default (from @spi_device) is used.
* @bits_per_word: select a bits_per_word other than the device default
* for this transfer. If 0 the default (from @spi_device) is used.
* @cs_change: affects chipselect after this transfer completes
* @delay_usecs: microseconds to delay after this transfer before
* (optionally) changing the chipselect status, then starting
* the next transfer or completing this @spi_message.
* @transfer_list: transfers are sequenced through @spi_message.transfers
* @tx_sg: Scatterlist for transmit, currently not for client use
* @rx_sg: Scatterlist for receive, currently not for client use
*
* SPI transfers always write the same number of bytes as they read.
* Protocol drivers should always provide @rx_buf and/or @tx_buf.
* In some cases, they may also want to provide DMA addresses for
* the data being transferred; that may reduce overhead, when the
* underlying driver uses dma.
*
* If the transmit buffer is null, zeroes will be shifted out
* while filling @rx_buf. If the receive buffer is null, the data
* shifted in will be discarded. Only "len" bytes shift out (or in).
* It's an error to try to shift out a partial word. (For example, by
* shifting out three bytes with word size of sixteen or twenty bits;
* the former uses two bytes per word, the latter uses four bytes.)
*
* In-memory data values are always in native CPU byte order, translated
* from the wire byte order (big-endian except with SPI_LSB_FIRST). So
* for example when bits_per_word is sixteen, buffers are 2N bytes long
* (@len = 2N) and hold N sixteen bit words in CPU byte order.
*
* When the word size of the SPI transfer is not a power-of-two multiple
* of eight bits, those in-memory words include extra bits. In-memory
* words are always seen by protocol drivers as right-justified, so the
* undefined (rx) or unused (tx) bits are always the most significant bits.
*
* All SPI transfers start with the relevant chipselect active. Normally
* it stays selected until after the last transfer in a message. Drivers
* can affect the chipselect signal using cs_change.
*
* (i) If the transfer isn't the last one in the message, this flag is
* used to make the chipselect briefly go inactive in the middle of the
* message. Toggling chipselect in this way may be needed to terminate
* a chip command, letting a single spi_message perform all of group of
* chip transactions together.
*
* (ii) When the transfer is the last one in the message, the chip may
* stay selected until the next transfer. On multi-device SPI busses
* with nothing blocking messages going to other devices, this is just
* a performance hint; starting a message to another device deselects
* this one. But in other cases, this can be used to ensure correctness.
* Some devices need protocol transactions to be built from a series of
* spi_message submissions, where the content of one message is determined
* by the results of previous messages and where the whole transaction
* ends when the chipselect goes intactive.
*
* When SPI can transfer in 1x,2x or 4x. It can get this transfer information
* from device through @tx_nbits and @rx_nbits. In Bi-direction, these
* two should both be set. User can set transfer mode with SPI_NBITS_SINGLE(1x)
* SPI_NBITS_DUAL(2x) and SPI_NBITS_QUAD(4x) to support these three transfer.
*
* The code that submits an spi_message (and its spi_transfers)
* to the lower layers is responsible for managing its memory.
* Zero-initialize every field you don't set up explicitly, to
* insulate against future API updates. After you submit a message
* and its transfers, ignore them until its completion callback.
*/
struct spi_transfer {
/* it's ok if tx_buf == rx_buf (right?)
* for MicroWire, one buffer must be null
* buffers must work with dma_*map_single() calls, unless
* spi_message.is_dma_mapped reports a pre-existing mapping
*/
const void *tx_buf;
void *rx_buf;
unsigned len;
dma_addr_t tx_dma;
dma_addr_t rx_dma;
struct sg_table tx_sg;
struct sg_table rx_sg;
unsigned cs_change:1;
unsigned tx_nbits:3;
unsigned rx_nbits:3;
#define SPI_NBITS_SINGLE 0x01 /* 1bit transfer */
#define SPI_NBITS_DUAL 0x02 /* 2bits transfer */
#define SPI_NBITS_QUAD 0x04 /* 4bits transfer */
u8 bits_per_word;
u16 delay_usecs;
u32 speed_hz;
struct list_head transfer_list;
};
- tx_buf：用于保存要发送的数据
- rx_buf：用于保存接收到的数据
- len：要传输的数据长度
spi_transfer结构体要组装为 spi_message 结构体，如下：
/**
* struct spi_message - one multi-segment SPI transaction
* @transfers: list of transfer segments in this transaction
* @spi: SPI device to which the transaction is queued
* @is_dma_mapped: if true, the caller provided both dma and cpu virtual
* addresses for each transfer buffer
* @complete: called to report transaction completions
* @context: the argument to complete() when it's called
* @frame_length: the total number of bytes in the message
* @actual_length: the total number of bytes that were transferred in all
* successful segments
* @status: zero for success, else negative errno
* @queue: for use by whichever driver currently owns the message
* @state: for use by whichever driver currently owns the message
*
* A @spi_message is used to execute an atomic sequence of data transfers,
* each represented by a struct spi_transfer. The sequence is "atomic"
* in the sense that no other spi_message may use that SPI bus until that
* sequence completes. On some systems, many such sequences can execute as
* as single programmed DMA transfer. On all systems, these messages are
* queued, and might complete after transactions to other devices. Messages
* sent to a given spi_device are always executed in FIFO order.
*
* The code that submits an spi_message (and its spi_transfers)
* to the lower layers is responsible for managing its memory.
* Zero-initialize every field you don't set up explicitly, to
* insulate against future API updates. After you submit a message
* and its transfers, ignore them until its completion callback.
*/
struct spi_message {
struct list_head transfers;
struct spi_device *spi;
unsigned is_dma_mapped:1;
/* REVISIT: we might want a flag affecting the behavior of the
* last transfer ... allowing things like "read 16 bit length L"
* immediately followed by "read L bytes". Basically imposing
* a specific message scheduling algorithm.
*
* Some controller drivers (message-at-a-time queue processing)
* could provide that as their default scheduling algorithm. But
* others (with multi-message pipelines) could need a flag to
* tell them about such special cases.
*/
/* completion is reported through a callback */
void (*complete)(void *context);
void *context;
unsigned frame_length;
unsigned actual_length;
int status;
/* for optional use by whatever driver currently owns the
* spi_message ... between calls to spi_async and then later
* complete(), that's the spi_master controller driver.
*/
struct list_head queue;
void *state;
};
2. SPI数据组装
spi_message初始化函数如下：
static inline void spi_message_init(struct spi_message *m)
{
memset(m, 0, sizeof *m);
INIT_LIST_HEAD(&m->transfers);
}
spi_message初始化完成后，需要将spi_transfer添加到spi_message的队列中，API如下：
static inline void spi_message_add_tail(struct spi_transfer *t, struct spi_message *m)
{
list_add_tail(&t->transfer_list, &m->transfers);
}
要从spi_message的队列中删除某个spi_transfer，API如下：
static inline void spi_transfer_del(struct spi_transfer *t)
{
list_del(&t->transfer_list);
}
3. SPI数据传输
SPI数据传输分为同步传输和异步传输。
（1）同步传输会阻塞等待SPI数据传输完成，API如下：
extern int spi_sync(struct spi_device *spi, struct spi_message *message);
函数参数意义如下：
- spi：要进行数据传输的spi_device
- message：要传输的spi_message
（2）异步传输方式不会阻塞等待SPI数据是否传输完成，需要设置spi_message中的complete回调函数，当传输完成后会调用此函数，API如下：
extern int spi_async(struct spi_device *spi, struct spi_message *message);
