ijkplayer视频解码播放架构分析

ijkplayer是一款跨平台播放器，支持Android与iOS播放，视频渲染使用OpenGL ES。Android端视频解码可以用mediacodec，而iOS端视频解码用VideoToolbox。而软解部分使用FFmpeg的avcodec。
一、iOS视频解码播放
采用pipeline形式创建视频解码器，整体流水线如下：

1、创建IjkMediaPlayer

首先调用ijkplayer_ios.m的ijkplayer_ios_create()方法，内部创建IjkMediaPlayer、vout(gles)、pipeline。代码如下：

IjkMediaPlayer *ijkmp_ios_create(int (*msg_loop)(void*))
{
    IjkMediaPlayer *mp = ijkmp_create(msg_loop);
    mp->ffplayer->vout = SDL_VoutIos_CreateForGLES2();
    mp->ffplayer->pipeline = ffpipeline_create_from_ios(mp->ffplayer);
    return mp;
}

其中调用ijk_vout_ios_gles2.m的SDL_VoutIos_CreateForGLES2()方法创建作为vout：

SDL_Vout *SDL_VoutIos_CreateForGLES2()
{
    SDL_Vout *vout = SDL_Vout_CreateInternal(sizeof(SDL_Vout_Opaque));
    SDL_Vout_Opaque *opaque = vout->opaque;
    opaque->gl_view = nil;
    vout->create_overlay = vout_create_overlay;
    vout->free_l = vout_free_l;
    vout->display_overlay = vout_display_overlay;
    return vout;
}

而pipeline是调用ffpipeline_ios.c的ffpipeline_create_from_ios()方法进行创建，并对函数指针进行赋值：

IJKFF_Pipeline *ffpipeline_create_from_ios(FFPlayer *ffp)
{
    IJKFF_Pipeline *pipeline = ffpipeline_alloc(&g_pipeline_class, sizeof(IJKFF_Pipeline_Opaque));
    IJKFF_Pipeline_Opaque *opaque     = pipeline->opaque;
    opaque->ffp                       = ffp;
    pipeline->func_destroy            = func_destroy;
    pipeline->func_open_video_decoder = func_open_video_decoder;
    pipeline->func_open_audio_output  = func_open_audio_output;
    return pipeline;
}

2、设置glview

调用ijkplayer_ios.m的ijkmp_ios_set_glview()方法来设置glview：

void ijkmp_ios_set_glview_l(IjkMediaPlayer *mp, IJKSDLGLView *glView)
{
    SDL_VoutIos_SetGLView(mp->ffplayer->vout, glView);
}

void ijkmp_ios_set_glview(IjkMediaPlayer *mp, IJKSDLGLView *glView)
{
    pthread_mutex_lock(&mp->mutex);
    ijkmp_ios_set_glview_l(mp, glView);
    pthread_mutex_unlock(&mp->mutex);
}

然后调用ijksdl_vout_ios_gles2.m的SDL_VoutIos_SetGLView()方法，把glview赋值给vout->opaque：

static void SDL_VoutIos_SetGLView_l(SDL_Vout *vout, IJKSDLGLView *view)
{
    SDL_Vout_Opaque *opaque = vout->opaque;
    if (opaque->gl_view == view)
        return;
    if (opaque->gl_view) {
        [opaque->gl_view release];
        opaque->gl_view = nil;
    }
    if (view)
        opaque->gl_view = [view retain];
}

void SDL_VoutIos_SetGLView(SDL_Vout *vout, IJKSDLGLView *view)
{
    SDL_LockMutex(vout->mutex);
    SDL_VoutIos_SetGLView_l(vout, view);
    SDL_UnlockMutex(vout->mutex);
}

3、创建解码器

创建视频解码器的入口ff_ffplay.c的ffp_prepare_async_l->stream_open->read_thread，在read_thread内部调用stream_component_open()方法进行创建与打开：

static int stream_component_open(FFPlayer *ffp, int stream_index)
{
    // find decoder
    codec = avcodec_find_decoder(avctx->codec_id);
    ......
    switch (avctx->codec_type) {
    case AVMEDIA_TYPE_VIDEO:
        // init and open decoder
        if (ffp->async_init_decoder) {
            if (ret || !ffp->node_vdec) {
                decoder_init(&is->viddec, avctx, &is->videoq, is->continue_read_thread);
                ffp->node_vdec = ffpipeline_open_video_decoder(ffp->pipeline, ffp);
            }
        } else {
            decoder_init(&is->viddec, avctx, &is->videoq, is->continue_read_thread);
            ffp->node_vdec = ffpipeline_open_video_decoder(ffp->pipeline, ffp);
        }
        ret = decoder_start(&is->viddec, video_thread, ffp, "ff_video_dec");
        break;
    }
    return ret;
}

创建pipeline是调用ff_ffpipeline.c->ffpipeline_ios.c的func_open_video_decoder()方法：

static IJKFF_Pipenode *func_open_video_decoder(IJKFF_Pipeline *pipeline, FFPlayer *ffp)
{
    IJKFF_Pipenode* node = NULL;
    IJKFF_Pipeline_Opaque *opaque = pipeline->opaque;
    // open open decoder from videotoolbox if have been setting true
    if (ffp->videotoolbox) {
        node = ffpipenode_create_video_decoder_from_ios_videotoolbox(ffp);
    }
    // then open decoder from ffplay
    if (node == NULL) {
        node = ffpipenode_create_video_decoder_from_ffplay(ffp);
        ffp->stat.vdec_type = FFP_PROPV_DECODER_AVCODEC;
        opaque->is_videotoolbox_open = false;
    } else {
        ffp->stat.vdec_type = FFP_PROPV_DECODER_VIDEOTOOLBOX;
        opaque->is_videotoolbox_open = true;
    }
    return node;
}

创建videotoolbox有同步和异步两种方式，如果没有设置，默认使用同步方式。需要注意的是，硬解只支持h264和hevc两种解码器：

IJKFF_Pipenode *ffpipenode_create_video_decoder_from_ios_videotoolbox(FFPlayer *ffp)
{
    IJKFF_Pipenode *node = ffpipenode_alloc(sizeof(IJKFF_Pipenode_Opaque));
    node->func_destroy  = func_destroy;
    node->func_run_sync = func_run_sync;
    opaque->ffp         = ffp;
    opaque->decoder     = &is->viddec;
    switch (opaque->avctx->codec_id) {
    case AV_CODEC_ID_H264:
    case AV_CODEC_ID_HEVC:
        if (ffp->vtb_async)
            opaque->context = Ijk_VideoToolbox_Async_Create(ffp, opaque->avctx);
        else
            opaque->context = Ijk_VideoToolbox_Sync_Create(ffp, opaque->avctx);
        break;
    default:
        ALOGI("Videotoolbox-pipeline:open_video_decoder: not H264 or H265\n");
        goto fail;
    }
    return node;
fail:
    ffpipenode_free_p(&node);
    return NULL;
}

接下来看看同步方式创建videotoolbox硬解码器：

Ijk_VideoToolBox_Opaque* videotoolbox_sync_create(FFPlayer* ffp, AVCodecContext* avctx)
{
    // check format
    ret = vtbformat_init(&context_vtb->fmt_desc, context_vtb->codecpar);
    if (ret)
        goto fail;
    vtbformat_destroy(&context_vtb->fmt_desc);
    // create videotoolbox session
    context_vtb->vt_session = vtbsession_create(context_vtb);
    return context_vtb;
fail:
    videotoolbox_sync_free(context_vtb);
    return NULL;
}

vtbformat_init()方法主要对width、height、profile、level、extradata进行检查：

static int vtbformat_init(VTBFormatDesc *fmt_desc, AVCodecParameters *codecpar)
{
    // check width and height
    if (width < 0 || height < 0) {
        goto fail;
    }
    if (extrasize < 7 || extradata == NULL) {
        ALOGI("%s - avcC or hvcC atom data too small or missing", __FUNCTION__);
        goto fail;
    }
    // check profile and level
    if (extradata[0] == 1) {
        if (level == 0 && sps_level > 0)
            level = sps_level;
        if (profile == 0 && sps_profile > 0)
            profile = sps_profile;
        if (profile == FF_PROFILE_H264_MAIN && level == 32 && fmt_desc->max_ref_frames > 4) {
            goto fail;
        }
    } else {
        if ((extradata[0] == 0 && extradata[1] == 0 && extradata[2] == 0 && extradata[3] == 1) ||
            (extradata[0] == 0 && extradata[1] == 0 && extradata[2] == 1)) {
            // check avcC
            if (!validate_avcC_spc(extradata, extrasize, &fmt_desc->max_ref_frames, &sps_level, &sps_profile)) {
                av_free(extradata);
                goto fail;
            }
        }
    }
    return 0;
fail:
    vtbformat_destroy(fmt_desc);
    return -1;
}

4、视频解码

视频解码分为软解和硬解两部分讨论。在stream_component_open时已经创建video_thread视频解码线程：

static int video_thread(void *arg)
{
    FFPlayer *ffp = (FFPlayer *)arg;
    int       ret = 0;
    if (ffp->node_vdec)
        // run video decode pipeline
        ret = ffpipenode_run_sync(ffp->node_vdec);
    }
    return ret;
}

4.1 videotoolbox硬解

硬解调用ffpipenode_ios_videotoolbox_vdec.m执行func_run_sync()方法：

static int func_run_sync(IJKFF_Pipenode *node)
{
    IJKFF_Pipenode_Opaque *opaque = node->opaque;
    int ret = videotoolbox_video_thread(opaque);
    if (opaque->context) {
        opaque->context->free(opaque->context->opaque);
        free(opaque->context);
        opaque->context = NULL;
    }
    return ret;
}

videotoolbox_video_thread()方法主要是for循环调用videotoolbox进行解码：

int videotoolbox_video_thread(void *arg)
{
    for (;;) {
        @autoreleasepool {
            ret = opaque->context->decode_frame(opaque->context->opaque);
        }
        if (ret < 0)
            goto the_end;
    }
the_end:
    return 0;
}

以同步方式为例，调用IJKVideoToolBoxSync.m进行硬解：

int videotoolbox_sync_decode_frame(Ijk_VideoToolBox_Opaque* context)
{
    ......
    do {
        // using videotoolbox to decode
        ret = decode_video(context, d->avctx, &d->pkt_temp, &got_frame);
    } while (!got_frame && !d->finished);
    return got_frame;
}

如果视频分辨率发生变化，自动切换到ffmpeg的avcodec进行解码：

static int decode_video(Ijk_VideoToolBox_Opaque* context, AVCodecContext *avctx, AVPacket *avpkt)
{
    // switch to ffmpeg avcodec when resolution changed
    if (context->ffp->vtb_handle_resolution_change &&
        context->codecpar->codec_id == AV_CODEC_ID_H264) {
        size_data = av_packet_get_side_data(avpkt, AV_PKT_DATA_NEW_EXTRADATA, &size_data_size);
        // minimum avcC(sps,pps) = 7
        if (size_data && size_data_size > 7) {
            ret = avcodec_open2(new_avctx, avctx->codec, &codec_opts);
            ret = avcodec_decode_video2(new_avctx, frame, &got_picture, avpkt);
            av_frame_unref(frame);
            avcodec_free_context(&new_avctx);
        }
    }
    // using videotoolbox to decode internal
    return decode_video_internal(context, avctx, avpkt, got_picture_ptr);
}

最后来到videotoolbox硬解，揭开videotoolbox解码的神秘面纱：

static int decode_video_internal(Ijk_VideoToolBox_Opaque* context, AVCodecContext *avctx, const AVPacket *avpkt)
{
    if (context->refresh_request) {
        context->vt_session = vtbsession_create(context);
    }
    ......
    // finally, decode video frame by videotoolbox
    status = VTDecompressionSessionDecodeFrame(context->vt_session, sample_buff, decoder_flags, (void*)sample_info, 0);
    return 0;
}

4.2 ffmpeg软解

软解是调用ffpipenode_ffplay_vdec.c的func_run_sync()方法：

static int func_run_sync(IJKFF_Pipenode *node)
{
    IJKFF_Pipenode_Opaque *opaque = node->opaque;

    return ffp_video_thread(opaque->ffp);
}

也就是调回ff_ffplay.c的ffp_video_thread()方法，而ffp_video_thread()只是对ffplay_video_thread()进行封装，我们主要看看ffplay_video_thread方法的代码：

static int ffplay_video_thread(void *arg)
{
    ......
    for (;;) {
        // decode video frame by avcodec
        ret = get_video_frame(ffp, frame);
        if (ret < 0)
            goto the_end;
    }
the_end:
    av_frame_free(&frame);
    return 0;
}

接着是get_video_frame()方法，解码并处理丢帧细节：

static int get_video_frame(FFPlayer *ffp, AVFrame *frame)
{
    VideoState *is = ffp->is;
    int got_picture;
    if ((got_picture = decoder_decode_frame(ffp, &is->viddec, frame, NULL)) < 0)
        return -1;
    ......
    return got_picture;
}

最后是decoder_decode_frame()实现真正软解码：

static int decoder_decode_frame(FFPlayer *ffp, Decoder *d, AVFrame *frame, AVSubtitle *sub) {
    int ret = AVERROR(EAGAIN);
    for (;;) {
        // receive frame
        if (d->queue->serial == d->pkt_serial) {
            do {
                if (d->queue->abort_request)
                    return -1;
                switch (d->avctx->codec_type) {
                    case AVMEDIA_TYPE_VIDEO:
                        ret = avcodec_receive_frame(d->avctx, frame);
                        if (ret >= 0) {
                            ffp->stat.vdps = SDL_SpeedSamplerAdd(&ffp->vdps_sampler, FFP_SHOW_VDPS_AVCODEC, "vdps[avcodec]");
                            if (ffp->decoder_reorder_pts == -1) {
                                frame->pts = frame->best_effort_timestamp;
                            } else if (!ffp->decoder_reorder_pts) {
                                frame->pts = frame->pkt_dts;
                            }
                        }
                        break;
                    case AVMEDIA_TYPE_AUDIO:
                        ret = avcodec_receive_frame(d->avctx, frame);

                        break;
                    default:
                        break;
                }
            } while (ret != AVERROR(EAGAIN));
        }

        if (pkt.data == flush_pkt.data) {
            d->next_pts = d->start_pts;
        } else {
            if (d->avctx->codec_type == AVMEDIA_TYPE_SUBTITLE) {
                // subtitle decode directly
                ret = avcodec_decode_subtitle2(d->avctx, sub, &got_frame, &pkt);
            } else {
                // send packet
                if (avcodec_send_packet(d->avctx, &pkt) == AVERROR(EAGAIN)) {
                    av_packet_move_ref(&d->pkt, &pkt);
                }
            }
            av_packet_unref(&pkt);
        }
    }
}

5、视频渲染

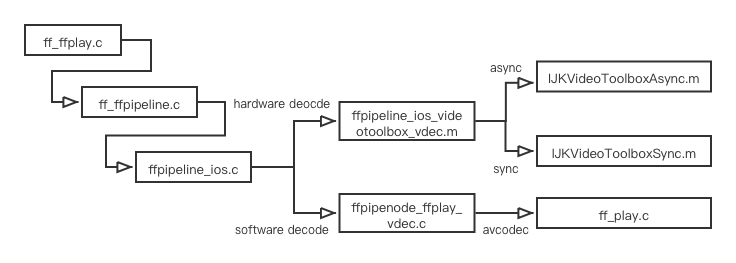

先看看渲染过程的调用链：

在ff_ffplay.c的stream_open时已经创建video_refresh_thread视频渲染线程，主要是循环取视频帧进行渲染，其中刷新率为REFRESH_RATE=0.01：

static int video_refresh_thread(void *arg)
{
    FFPlayer *ffp = arg;
    VideoState *is = ffp->is;
    double remaining_time = 0.0;
    while (!is->abort_request) {
        if (remaining_time > 0.0)
            av_usleep((int)(int64_t)(remaining_time * 1000000.0));
        remaining_time = REFRESH_RATE;
        if (is->show_mode != SHOW_MODE_NONE && (!is->paused || is->force_refresh))
            video_refresh(ffp, &remaining_time);
    }

    return 0;
}

然后看video_refresh()方法，主要计算取一帧图像出来，调用video_display2()方法进行渲染：

static void video_refresh(FFPlayer *opaque, double *remaining_time)
{
    if (is->video_st) {
retry:
        if (frame_queue_nb_remaining(&is->pictq) == 0) {
            // nothing to do, no picture to display in the queue
        } else {
            /* compute nominal last_duration */
            last_duration = vp_duration(is, lastvp, vp);
            delay = compute_target_delay(ffp, last_duration, is);
            ......
            frame_queue_next(&is->pictq);
        }
display:
        /* display picture */
        if (!ffp->display_disable && is->force_refresh
            && is->show_mode == SHOW_MODE_VIDEO && is->pictq.rindex_shown)
            video_display2(ffp);
    }
    is->force_refresh = 0;
}

其实video_display2()方法是对video_image_display2()方法的封装，主要看下内部方法：

static void video_image_display2(FFPlayer *ffp)
{
    vp = frame_queue_peek_last(&is->pictq);
    if (vp->bmp) {
        if (is->subtitle_st) {
            if (frame_queue_nb_remaining(&is->subpq) > 0) {
                sp = frame_queue_peek(&is->subpq);
            }
        }
        // display video bitmap
        SDL_VoutDisplayYUVOverlay(ffp->vout, vp->bmp);
        // notify render first video frame
        if (!ffp->first_video_frame_rendered) {
            ffp->first_video_frame_rendered = 1;
            ffp_notify_msg1(ffp, FFP_MSG_VIDEO_RENDERING_START);
        }
    }
}

接着是调用ijksdl_vout.c的SDL_VoutDisplayYUVOverlay()方法，内部ijksdl_vout_ios_gles2.m的vout_display_overlay()方法，这个方法先加锁再调用内部的vout_display_overlay_l()方法：

static int vout_display_overlay_l(SDL_Vout *vout, SDL_VoutOverlay *overlay)
{
    SDL_Vout_Opaque *opaque = vout->opaque;
    IJKSDLGLView *gl_view = opaque->gl_view;

    if (gl_view.isThirdGLView) {
        IJKOverlay ijk_overlay;
        ijk_overlay.w = overlay->w;
        ijk_overlay.h = overlay->h;
        ijk_overlay.format = overlay->format;
        ijk_overlay.planes = overlay->planes;
        ijk_overlay.pitches = overlay->pitches;
        ijk_overlay.pixels = overlay->pixels;
        ijk_overlay.sar_num = overlay->sar_num;
        ijk_overlay.sar_den = overlay->sar_den;
#ifdef __APPLE__
        if (ijk_overlay.format == SDL_FCC__VTB) {
            ijk_overlay.pixel_buffer = SDL_VoutOverlayVideoToolBox_GetCVPixelBufferRef(overlay);
        }
#endif
        if ([gl_view respondsToSelector:@selector(display_pixels:)]) {
             [gl_view display_pixels:&ijk_overlay];
        }
    } else {
        [gl_view display:overlay];
    }
    return 0;
}

最后是激动人心的时刻，调用IJKSDLGLView.m的display()方法进行渲染：

- (void)display: (SDL_VoutOverlay *) overlay
{
    // lock GL
    if (![self tryLockGLActive]) {
        return;
    }
    if (_context && !_didStopGL) {
        EAGLContext *prevContext = [EAGLContext currentContext];
        [EAGLContext setCurrentContext:_context];
        // call internal display
        [self displayInternal:overlay];
        [EAGLContext setCurrentContext:prevContext];
    }
    // unlock GL
    [self unlockGLActive];
}

- (void)displayInternal: (SDL_VoutOverlay *) overlay
{
    glBindFramebuffer(GL_FRAMEBUFFER, _framebuffer);
    glViewport(0, 0, _backingWidth, _backingHeight);
    // really render overlay
    if (!IJK_GLES2_Renderer_renderOverlay(_renderer, overlay))
        ALOGE("[EGL] IJK_GLES2_render failed\n");
    glBindRenderbuffer(GL_RENDERBUFFER, _renderbuffer);
    [_context presentRenderbuffer:GL_RENDERBUFFER];

    // caculate render framerate
    int64_t current = (int64_t)SDL_GetTickHR();
    int64_t delta   = (current > _lastFrameTime) ? current - _lastFrameTime : 0;
    if (delta <= 0) {
        _lastFrameTime = current;
    } else if (delta >= 1000) {
        _fps = ((CGFloat)_frameCount) * 1000 / delta;
        _frameCount = 0;
        _lastFrameTime = current;
    } else {
        _frameCount++;
    }
}

还是开心的太早，要沉得住气、延迟满足感、看得更远一点，内部调用renderer.c的IJK_GLES2_Renderer_renderoverlay()方法才执行真正渲染：

GLboolean IJK_GLES2_Renderer_renderOverlay(IJK_GLES2_Renderer *renderer, SDL_VoutOverlay *overlay)
{
    glClear(GL_COLOR_BUFFER_BIT);
    ......
    if (renderer->vertices_changed ||
        (buffer_width > 0 &&
         buffer_width > visible_width &&
         buffer_width != renderer->buffer_width &&
         visible_width != renderer->visible_width)) {

        renderer->vertices_changed = 0;
        IJK_GLES2_Renderer_Vertices_apply(renderer);
        IJK_GLES2_Renderer_Vertices_reloadVertex(renderer);

        renderer->buffer_width  = buffer_width;
        renderer->visible_width = visible_width;
        GLsizei padding_pixels     = buffer_width - visible_width;
        GLfloat padding_normalized = ((GLfloat)padding_pixels) / buffer_width;

        IJK_GLES2_Renderer_TexCoords_reset(renderer);
        IJK_GLES2_Renderer_TexCoords_cropRight(renderer, padding_normalized);
        IJK_GLES2_Renderer_TexCoords_reloadVertex(renderer);
    }

    glDrawArrays(GL_TRIANGLE_STRIP, 0, 4);
    return GL_TRUE;
}
