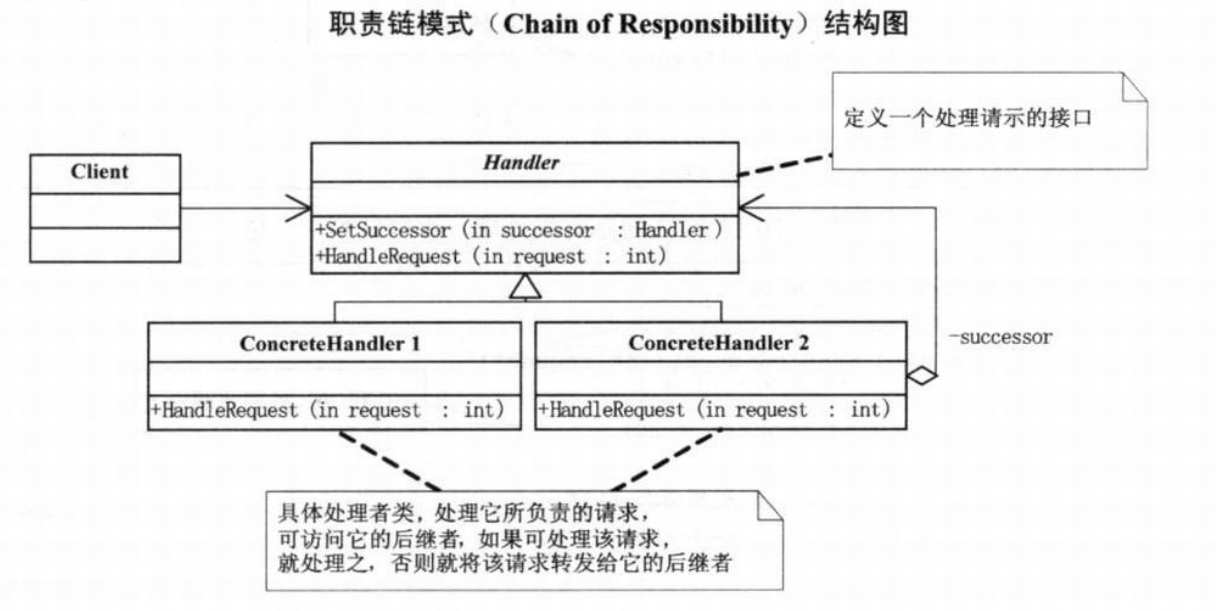

1、什么是职责链模式
在职责链模式中，多个处理器依次处理同一个请求。一个请求先经过A处理器处理，然后再把请求传递给B处理器，B处理器处理完后再传递给C处理器，以此类推，形成一个链条。链条上的每个处理器各自承担各自的处理职责，所以叫作职责链模式
在GoF给出的定义中，如果处理器链上的某个处理器能够处理这个请求，那就不会继续往下传递请求。实际上，职责链模式还有一种变体，那就是请求会被所有的处理器都处理一遍，不存在中途终止的情况
2、代码实现
1）、使用链表来存储处理器
public abstract class Handler {
protected Handler nextHandler = null;
public void setNextHandler(Handler nextHandler) {
this.nextHandler = nextHandler;
}
public final void handle() {
boolean handled = doHandle();
if (nextHandler != null && !handled) {
nextHandler.handle();
}
}
protected abstract boolean doHandle();
}
public class HandlerA extends Handler {
@Override
protected boolean doHandle() {
boolean handled = false;
System.out.println("HandlerA doHandle()");
return handled;
}
}
public class HandlerB extends Handler {
@Override
protected boolean doHandle() {
boolean handled = false;
System.out.println("HandlerB doHandle()");
return handled;
}
}
public class HandlerChain {
private Handler head = null;
private Handler tail = null;
public void addHandler(Handler handler) {
handler.setNextHandler(null);
if (head == null) {
head = handler;
tail = handler;
return;
}
tail.setNextHandler(handler);
tail = handler;
}
public void handle() {
if (head != null) {
head.handle();
}
}
}
public class Application {
public static void main(String[] args) {
HandlerChain chain = new HandlerChain();
chain.addHandler(new HandlerA());
chain.addHandler(new HandlerB());
chain.handle();
}
}
Handler是所有处理器类的抽象父类，doHandle()是抽象方法，handle()决定了每经过一个处理器，如果它能处理该请求，就不继续往下传递；如果不能处理，则交由后面的处理器来处理（也就是调用nextHandler.handle()）。HandlerChain是处理器链，从数据结构的角度来看，它就是一个记录了链头、链尾的链表。其中，记录链尾是为了方便添加处理器
2）、使用数组来存储处理器
public interface IHandler {
boolean handle();
}
public class HandlerA implements IHandler {
@Override
public boolean handle() {
boolean handled = false;
System.out.println("HandlerA handle()");
return handled;
}
}
public class HandlerB implements IHandler {
@Override
public boolean handle() {
boolean handled = false;
System.out.println("HandlerB handle()");
return handled;
}
}
public class HandlerChain {
private List<IHandler> handlers = new ArrayList<>();
public void addHandler(IHandler handler) {
this.handlers.add(handler);
}
public void handle() {
for (IHandler handler : handlers) {
boolean handled = handler.handle();
if (handled) {
break;
}
}
}
}
public class Application {
public static void main(String[] args) {
HandlerChain chain = new HandlerChain();
chain.addHandler(new HandlerA());
chain.addHandler(new HandlerB());
chain.handle();
}
}
3、Spring Interceptor源码剖析
自定义Interceptor一般会实现HandlerInterceptor接口中的方法：
public interface HandlerInterceptor {
default boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)
throws Exception {
return true;
}
default void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler,
@Nullable ModelAndView modelAndView) throws Exception {
}
default void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler,
@Nullable Exception ex) throws Exception {
}
}
preHandle()：在业务处理器处理请求之前被调用。预处理，可以进行编码、安全控制、权限校验等处理postHandle()：在业务处理器处理请求执行完成后，生成视图之前执行。后处理（调用了Service并返回ModelAndView，但未进行页面渲染），有机会修改ModelAndViewafterCompletion()：在DispatcherServlet完全处理完请求后被调用，可用于清理资源等。返回处理（已经渲染了页面）

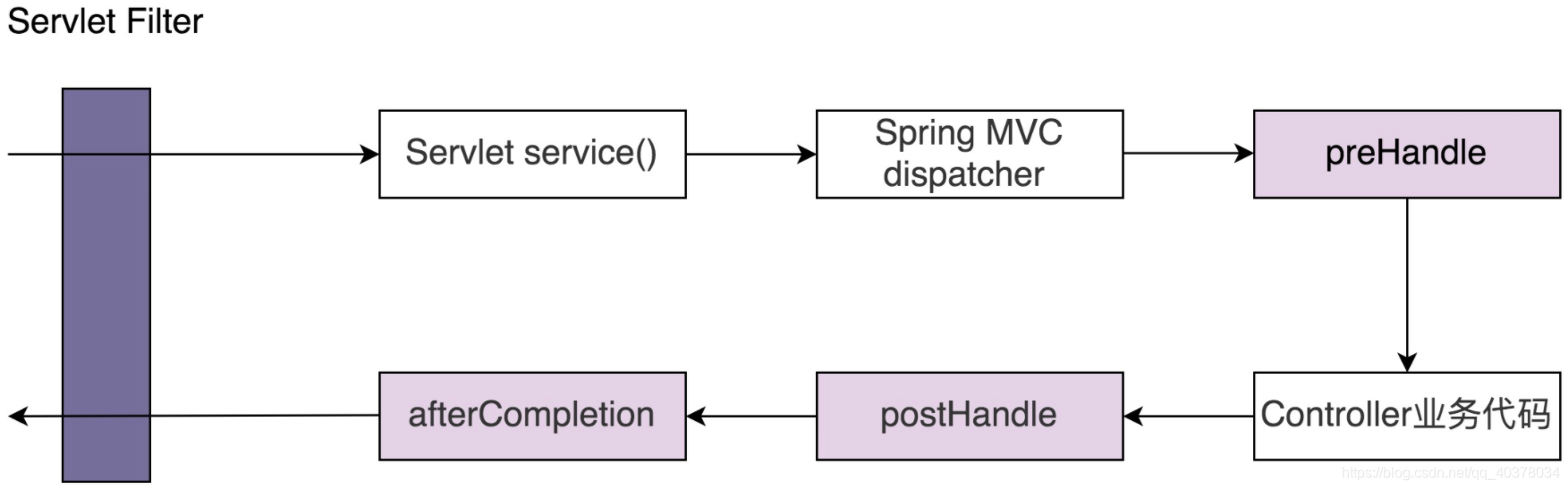

Spring Interceptor是基于职责链模式实现，一个请求的处理流程如上图所示，HandlerExecutionChain类是职责链模式中的处理器链，核心代码如下：
public class HandlerExecutionChain {
boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
HandlerInterceptor[] interceptors = getInterceptors();
if (!ObjectUtils.isEmpty(interceptors)) {
for (int i = 0; i < interceptors.length; i++) {
HandlerInterceptor interceptor = interceptors[i];
if (!interceptor.preHandle(request, response, this.handler)) {
triggerAfterCompletion(request, response, null);
return false;
}
this.interceptorIndex = i;
}
}
return true;
}
void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
throws Exception {
HandlerInterceptor[] interceptors = getInterceptors();
if (!ObjectUtils.isEmpty(interceptors)) {
for (int i = interceptors.length - 1; i >= 0; i--) {
HandlerInterceptor interceptor = interceptors[i];
interceptor.postHandle(request, response, this.handler, mv);
}
}
}
void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, @Nullable Exception ex)
throws Exception {
HandlerInterceptor[] interceptors = getInterceptors();
if (!ObjectUtils.isEmpty(interceptors)) {
for (int i = this.interceptorIndex; i >= 0; i--) {
HandlerInterceptor interceptor = interceptors[i];
try {
interceptor.afterCompletion(request, response, this.handler, ex);
}
catch (Throwable ex2) {
logger.error("HandlerInterceptor.afterCompletion threw exception", ex2);
}
}
}
}
}
