一、数据收集

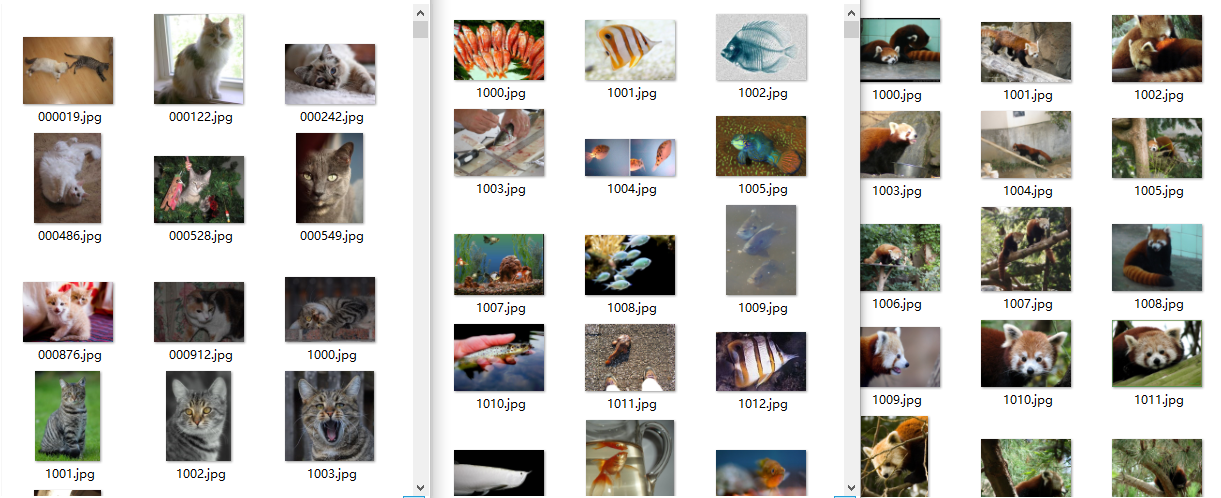

首先从ImageNet(编写程序下载)和百度(手动找了一些)搜索了一些图片,分三类鱼(700张左右)、浣熊(1100张左右)、猫(1000张左右,可能有几张老虎)。这个工作可能比较无聊,但是尝试并了解如何使用自己的数据训练,还是挺有意思的。
数据集下载地址:https://download.csdn.net/download/bashendixie5/13228786
二、 参考代码如下
前馈神经网络是一种最简单的神经网络,各神经元分层排列。每个神经元只与前一层的神经元相连。接收前一层的输出,并输出给下一层.各层间没有反馈。
数据集很,运行起来很快,我的i7cpu,1s / epoch
# 标准前馈神经网络,进行图像分类,效果不好
# set the matplotlib backend so figures can be saved in the background
import matplotlib
matplotlib.use("Agg")
# import the necessary packages
from sklearn.preprocessing import LabelBinarizer
from sklearn.model_selection import train_test_split
from sklearn.metrics import classification_report
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense
from tensorflow.keras.optimizers import SGD
from imutils import paths
import matplotlib.pyplot as plt
from tensorflow.keras.models import load_model
import numpy as np
import argparse
import random
import pickle
import cv2
import os
# 获取文件夹内所有文件
def getFileList(dir, Filelist, ext=None):
"""
获取文件夹及其子文件夹中文件列表
输入 dir:文件夹根目录
输入 ext: 扩展名
返回: 文件路径列表
"""
newDir = dir
if os.path.isfile(dir):
if ext is None:
Filelist.append(dir)
else:
if ext in dir[-3:]:
Filelist.append(dir)
elif os.path.isdir(dir):
for s in os.listdir(dir):
newDir = os.path.join(dir, s)
getFileList(newDir, Filelist, ext)
return Filelist
# 训练的方法
def train():
# initialize the data and labels
print("[INFO] loading images...")
data = []
labels = []
imagePaths = []
paths = 'D:/Project/DeepLearn/1dataset/custom/raccoon/'
# grab the image paths and randomly shuffle them
imagePaths = sorted(list(getFileList(paths, imagePaths)))
random.seed(42)
random.shuffle(imagePaths)
# 浣熊
for imagePath in imagePaths:
# load the image, resize the image to be 32x32 pixels (ignoring
# aspect ratio), flatten the image into 32x32x3=3072 pixel image
# into a list, and store the image in the data list
image = cv2.imread(imagePath)
image = cv2.resize(image, (32, 32)).flatten()
data.append(image)
# extract the class label from the image path and update the
# labels list
label = 'raccoon'#imagePath.split(os.path.sep)[-2]
labels.append(label)
imagePaths = []
paths = 'D:/Project/DeepLearn/1dataset/custom/fish/'
# grab the image paths and randomly shuffle them
imagePaths = sorted(list(getFileList(paths, imagePaths)))
random.seed(42)
random.shuffle(imagePaths)
# 鱼
for imagePath in imagePaths:
# load the image, resize the image to be 32x32 pixels (ignoring
# aspect ratio), flatten the image into 32x32x3=3072 pixel image
# into a list, and store the image in the data list
image = cv2.imread(imagePath)
image = cv2.resize(image, (32, 32)).flatten()
data.append(image)
# extract the class label from the image path and update the
# labels list
label = 'fish'#imagePath.split(os.path.sep)[-2]
labels.append(label)
imagePaths = []
paths = 'D:/Project/DeepLearn/1dataset/custom/cat/'
# grab the image paths and randomly shuffle them
imagePaths = sorted(list(getFileList(paths, imagePaths)))
random.seed(42)
random.shuffle(imagePaths)
# 猫
for imagePath in imagePaths:
# load the image, resize the image to be 32x32 pixels (ignoring
# aspect ratio), flatten the image into 32x32x3=3072 pixel image
# into a list, and store the image in the data list
image = cv2.imread(imagePath)
image = cv2.resize(image, (32, 32)).flatten()
data.append(image)
# extract the class label from the image path and update the
# labels list
label = 'cat'#imagePath.split(os.path.sep)[-2]
labels.append(label)
# scale the raw pixel intensities to the range [0, 1]
data = np.array(data, dtype="float") / 255.0
labels = np.array(labels)
# partition the data into training and testing splits using 75% of
# the data for training and the remaining 25% for testing
(trainX, testX, trainY, testY) = train_test_split(data, labels, test_size=0.25, random_state=42)
# convert the labels from integers to vectors (for 2-class, binary
# classification you should use Keras' to_categorical function
# instead as the scikit-learn's LabelBinarizer will not return a
# vector)
lb = LabelBinarizer()
trainY = lb.fit_transform(trainY)
testY = lb.transform(testY)
# define the 3072-1024-512-3 architecture using Keras
model = Sequential()
model.add(Dense(1024, input_shape=(3072,), activation="sigmoid"))
model.add(Dense(512, activation="sigmoid"))
model.add(Dense(len(lb.classes_), activation="softmax"))
# initialize our initial learning rate and # of epochs to train for
INIT_LR = 0.01
EPOCHS = 80
# compile the model using SGD as our optimizer and categorical
# cross-entropy loss (you'll want to use binary_crossentropy
# for 2-class classification)
print("[INFO] training network...")
opt = SGD(lr=INIT_LR)
model.compile(loss="categorical_crossentropy", optimizer=opt,metrics=["accuracy"])
# train the neural network
H = model.fit(x=trainX, y=trainY, validation_data=(testX, testY),epochs=EPOCHS, batch_size=32)
return model, lb, testX, testY, EPOCHS, H
# 评估的方法,绘制训练损失和准确性
def evaluate(model, testX, testY, EPOCHS, H):
# evaluate the network
print("[INFO] evaluating network...")
predictions = model.predict(x=testX, batch_size=32)
print(classification_report(testY.argmax(axis=1),
predictions.argmax(axis=1), target_names=lb.classes_))
# plot the training loss and accuracy

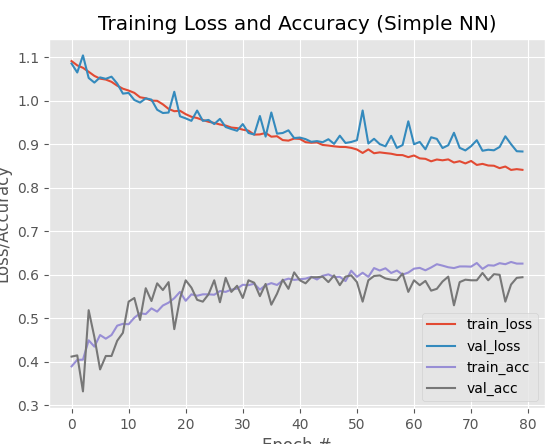

N = np.arange(0, EPOCHS)
plt.style.use("ggplot")
plt.figure()
plt.plot(N, H.history["loss"], label="train_loss")
plt.plot(N, H.history["val_loss"], label="val_loss")
plt.plot(N, H.history["accuracy"], label="train_acc")
plt.plot(N, H.history["val_accuracy"], label="val_acc")
plt.title("Training Loss and Accuracy (Simple NN)")
plt.xlabel("Epoch #")
plt.ylabel("Loss/Accuracy")
plt.legend()
plt.savefig('C:/Users/xiaomao/Desktop/simple_nn_plot.png')
# 保存模型
def savemodel(model, lb):
# save the model and label binarizer to disk
print("[INFO] serializing network and label binarizer...")
model.save('C:/Users/xiaomao/Desktop/simple_nn_lb.h5', save_format="h5")
f = open('C:/Users/xiaomao/Desktop/simple_nn_lb.pickle', "wb")
f.write(pickle.dumps(lb))
f.close()
# 测试模型
def testmodel():
# load the input image and resize it to the target spatial dimensions
image = cv2.imread('C:/Users/xiaomao/Desktop/0.jpg')
output = image.copy()
image = cv2.resize(image, (32, 32))
# scale the pixel values to [0, 1]
image = image.astype("float") / 255.0
# check to see if we should flatten the image and add a batch
# dimension
if 1 > 0:
image = image.flatten()
image = image.reshape((1, image.shape[0]))
# otherwise, we must be working with a CNN -- don't flatten the
# image, simply add the batch dimension
else:
image = image.reshape((1, image.shape[0], image.shape[1],image.shape[2]))
# load the model and label binarizer
print("[INFO] loading network and label binarizer...")
model = load_model('C:/Users/zyh/Desktop/simple_nn_lb.h5')
lb = pickle.loads(open('C:/Users/xiaomao/Desktop/simple_nn_lb.pickle', "rb").read())
# make a prediction on the image
preds = model.predict(image)
# find the class label index with the largest corresponding
# probability
i = preds.argmax(axis=1)[0]
label = lb.classes_[i]
#array([[5.4622066e-01, 4.5377851e-01, 7.7963534e-07]], dtype=float32)
# draw the class label + probability on the output image
text = "{}: {:.2f}%".format(label, preds[0][i] * 100)
cv2.putText(output, text, (10, 30), cv2.FONT_HERSHEY_SIMPLEX, 0.7,
(0, 0, 255), 2)
# show the output image
cv2.imshow("Image", output)
cv2.waitKey(0)
testmodel()
#model, lb, testX, testY, EPOCHS, H = train()
#evaluate(model, testX, testY, EPOCHS, H)
#savemodel(model, lb)

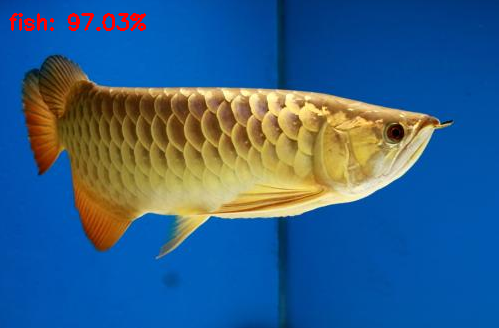

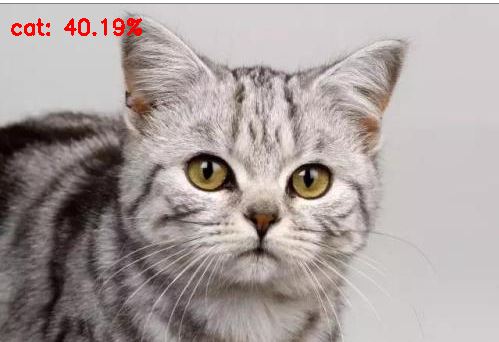

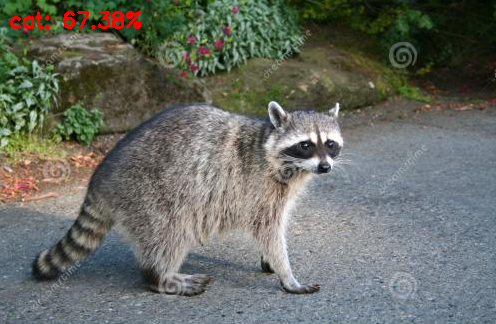

训练完成 ,用几张不在数据库内的图片进行测试,确实准确率很差,之后换其它类型的测试测试。
