前置准备：
1、修改主机名，永久生效（不同版本方式不同）
centos6修改hostname
[root@centos6 ~]$ hostname # 查看当前的hostnmae
node1
[root@centos6 ~]$ vim /etc/sysconfig/network # 编辑network文件修改hostname行（重启生效）
[root@centos6 ~]$ cat /etc/sysconfig/network # 检查修改
NETWORKING=yes
HOSTNAME=centos6-node1
[root@centos6 ~]$ hostname centos6-node1 # 设置当前的hostname(立即生效）
[root@centos6 ~]$ vim /etc/hosts # 编辑hosts文件，给127.0.0.1添加hostname
[root@centos6 ~]$ cat /etc/hosts # 检查
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 centos6-node1
centos7修改hostname
[root@centos7 ~]$ hostname # 查看
node1
[root@centos7 ~]$ hostnamectl set-hostname centos7-node1 # 使用这个命令会立即生效且重启也生效
[root@centos7 ~]$ hostname # 再次查看
centos7-node1
[root@centos7 ~]$ vim /etc/hosts # 编辑下hosts文件， 给127.0.0.1添加hostname
[root@centos7 ~]$ cat /etc/hosts # 检查
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 centos7-node1
2、配置映射
这里的映射就和Windows下的原理一样(C:\Windows\System32\drivers\etc\hosts)
[root@master ~]$ sudo vim /etc/hosts
在文件尾部追加以下内容：
192.168.0.104 master
192.168.0.102 slave1
192.168.0.106 slave2
3、关闭防火墙
# 查看防火墙状态：
service firewalld status
#关闭防火墙：
sudo systemctl stop firewalld
#关闭防火墙开机自启：
sudo systemctl disable firewalld.service
# 查看防火墙状态：
[root@master software]# service firewalld status
Redirecting to /bin/systemctl status firewalld.service
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; enabled; vendor preset: enabled)
Active: active (running) since 一 2020-07-13 17:34:12 CST; 11min ago
Docs: man:firewalld(1)
Main PID: 562 (firewalld)
CGroup: /system.slice/firewalld.service
└─562 /usr/bin/python2 -Es /usr/sbin/firewalld --nofork --nopid
7月 13 17:34:11 master systemd[1]: Starting firewalld - dynamic firewall daemon...
7月 13 17:34:12 master systemd[1]: Started firewalld - dynamic firewall daemon.
#关闭防火墙：
[root@master software]# systemctl stop firewalld
#关闭防火墙开机自启：
[root@master software]# systemctl disable firewalld.service
Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
# 查看防火墙状态：
[root@master software]# service firewalld status
Redirecting to /bin/systemctl status firewalld.service
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
Active: inactive (dead)
Docs: man:firewalld(1)
7月 13 17:34:11 master systemd[1]: Starting firewalld - dynamic firewall daemon...
7月 13 17:34:12 master systemd[1]: Started firewalld - dynamic firewall daemon.
7月 13 17:46:23 master systemd[1]: Stopping firewalld - dynamic firewall daemon...
7月 13 17:46:23 master systemd[1]: Stopped firewalld - dynamic firewall daemon.
4、配置SSH（自己免密登录自己和两台slave）
检查是否已经安装了ssh：
[root@master software]# rpm -qa | grep ssh
openssh-server-7.4p1-21.el7.x86_64
openssh-clients-7.4p1-21.el7.x86_64
libssh2-1.8.0-3.el7.x86_64
openssh-7.4p1-21.el7.x86_64
没有安装的话执行以下命令：
[root@master software]$ sudo yum -y install ssh
查看ssh服务状态：`
[root@master software]# service sshd status
Redirecting to /bin/systemctl status sshd.service
● sshd.service - OpenSSH server daemon
Loaded: loaded (/usr/lib/systemd/system/sshd.service; enabled; vendor preset: enabled)
Active: active (running) since 一 2020-07-13 17:34:14 CST; 18min ago
Docs: man:sshd(8)
man:sshd_config(5)
Main PID: 914 (sshd)
CGroup: /system.slice/sshd.service
└─914 /usr/sbin/sshd -D
7月 13 17:34:13 master systemd[1]: Starting OpenSSH server daemon...
7月 13 17:34:14 master sshd[914]: Server listening on 0.0.0.0 port 22.
7月 13 17:34:14 master sshd[914]: Server listening on :: port 22.
7月 13 17:34:14 master systemd[1]: Started OpenSSH server daemon.
7月 13 17:44:25 master sshd[1448]: Accepted password for root from 192.168.0.101 port 50808 ssh2
[root@master software]#
ssh-keygen是SSH服务下的一个生成、管理和转换认证密钥的命令工具。包括两种密钥类型DSA和RSA
通过公私钥的验证可以使服务器与服务器之间实现无密码通讯。
ssh-keygen常用参数
-t：指定生成密钥的类型，默认使用SSH2d的rsa
-f：指定生成密钥的文件名，默认id_rsa（私钥id_rsa，公钥id_rsa.pub）
-P：提供旧密码，空表示不需要密码（-P ‘’）
-N：提供新密码，空表示不需要密码(-N ‘’)
-b：指定密钥长度（bits），RSA最小要求768位，默认是2048位；DSA密钥必须是1024位（FIPS 1862标准规定）
-C：提供一个新注释
-R hostname：从known_hosta（第一次连接时就会在家目录.ssh目录下生产该密钥文件）文件中删除所有属于hostname的密钥
生成公钥和私钥：
[root@master software]# ssh-keygen
#三次回车
[root@master software]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:0kJRHiY4Et0j0iHX19P55Gf7OPxbOfUnFh/w3/ty5oY root@master
The key's randomart image is:
+---[RSA 2048]----+
| o+o=o.+. . . |
| oo* +=..o o . |
| o o.o. . = |
| . . = o|
| o S .=o|
| o +B|
| .o=O|
| .E.X|
| @*|
+----[SHA256]-----+
[root@master software]#
将公钥复制到需要免密登陆的主机上的authorized_keys上：
[root@master software]# scp /root/.ssh/id_rsa.pub slave1:/root/.ssh/authorized_keys
# 派发到slave1
[root@master software]# scp /root/.ssh/id_rsa.pub slave1:/root/.ssh/authorized_keys
The authenticity of host 'slave1 (192.168.0.102)' can't be established.
ECDSA key fingerprint is SHA256:GuWVSxRlZdj2Da8PAZg0AnYTN9TSPt8bv82ApaQjyfU.
ECDSA key fingerprint is MD5:db:26:91:1f:00:30:7c:cc:a6:10:05:de:46:21:58:0e.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'slave1,192.168.0.102' (ECDSA) to the list of known hosts.
root@slave1's password:
id_rsa.pub 100% 393 594.5KB/s 00:00
[2]+ 已停止 scp /root/.ssh/id_rsa.pub slave1:/root/.ssh/authorized_keys
[root@master software]#
# 派发到slave2
[root@master software]# scp /root/.ssh/id_rsa.pub slave2:/root/.ssh/authorized_keys
The authenticity of host 'slave2 (192.168.0.106)' can't be established.
ECDSA key fingerprint is SHA256:GuWVSxRlZdj2Da8PAZg0AnYTN9TSPt8bv82ApaQjyfU.
ECDSA key fingerprint is MD5:db:26:91:1f:00:30:7c:cc:a6:10:05:de:46:21:58:0e.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'slave2,192.168.0.106' (ECDSA) to the list of known hosts.
root@slave2's password:
id_rsa.pub 100% 393 462.5KB/s 00:00
[root@master software]# ssh slave2
Last login: Mon Jul 13 17:44:55 2020 from 192.168.0.101
[root@slave2 ~]# exit
登出
Connection to slave2 closed.
[root@master software]#
测试是否能免密登录：
[root@master software]# ssh slave1
Last login: Mon Jul 13 17:44:40 2020 from 192.168.0.101
[root@slave1 ~]# exit
登出
Connection to slave1 closed.
[root@master software]#
[root@master software]# ssh slave2
Last login: Mon Jul 13 17:44:40 2020 from 192.168.0.101
[root@slave1 ~]# exit
登出
Connection to slave1 closed.
[root@master software]#
5、配置时间服务器（master）
1. 检查ntp包是否安装
[root@master software]# rpm -qa | grep ntp
ntpdate-4.2.6p5-29.el7.centos.x86_64
ntp-4.2.6p5-29.el7.centos.x86_64
没有安装的话，执行以下命令进行安装：
[root@master software]# yum -y install ntp
2. 设置时间配置文件
[root@master software]# vim /etc/ntp.conf
#设置本地网络上的主机不受限制
#restrict 192.168.1.0 mask 255.255.255.0 nomodify notrap 为
restrict 192.168.239.0 mask 255.255.255.0 nomodify notrap
#在includefile上面添加默认的一个内部时钟数据，使用它为局域网用户提供服务
server 127.127.1.0
fudge 127.127.1.0 stratum 10
includefile /etc/ntp/crypto/pw
#设置为不采用公共的服务器
server 0.centos.pool.ntp.org iburst
server 1.centos.pool.ntp.org iburst
server 2.centos.pool.ntp.org iburst
server 3.centos.pool.ntp.org iburst
# Use public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
# server 0.centos.pool.ntp.org iburst
# server 1.centos.pool.ntp.org iburst
# server 2.centos.pool.ntp.org iburst
# server 3.centos.pool.ntp.org iburst
3. 设置BIOS与系统时间同步
[root@master software]# vim /etc/sysconfig/ntpd
#增加如下内容（让硬件时间与系统时间一起同步）
OPTIONS="-u ntp:ntp -p /var/run/ntpd.pid -g"
SYNC_HWCLOCK=yes
4. 启动ntp服务并测试
[root@master software]# systemctl start ntpd
[root@master software]# systemctl status ntpd
[root@master hadoop]# systemctl status ntpd
● ntpd.service - Network Time Service
Loaded: loaded (/usr/lib/systemd/system/ntpd.service; enabled; vendor preset: disabled)
Active: active (running) since 一 2020-07-13 21:11:24 CST; 24s ago
Process: 3982 ExecStart=/usr/sbin/ntpd -u ntp:ntp $OPTIONS (code=exited, status=0/SUCCESS)
Main PID: 3983 (ntpd)
CGroup: /system.slice/ntpd.service
└─3983 /usr/sbin/ntpd -u ntp:ntp -g
7月 13 21:11:24 master ntpd[3983]: Listen and drop on 1 v6wildcard :: UDP 123
7月 13 21:11:24 master ntpd[3983]: Listen normally on 2 lo 127.0.0.1 UDP 123
7月 13 21:11:24 master ntpd[3983]: Listen normally on 3 ens33 192.168.0.104 UDP 123
7月 13 21:11:24 master ntpd[3983]: Listen normally on 4 lo ::1 UDP 123
7月 13 21:11:24 master ntpd[3983]: Listen normally on 5 ens33 fe80::5206:bab2:53a:9a51 UDP 123
7月 13 21:11:24 master ntpd[3983]: Listening on routing socket on fd #22 for interface updates
7月 13 21:11:24 master ntpd[3983]: 0.0.0.0 c016 06 restart
7月 13 21:11:24 master ntpd[3983]: 0.0.0.0 c012 02 freq_set kernel 0.000 PPM
7月 13 21:11:24 master ntpd[3983]: 0.0.0.0 c011 01 freq_not_set
7月 13 21:11:25 master ntpd[3983]: 0.0.0.0 c514 04 freq_mode
[root@master hadoop]#
#设置ntp服务开机自启
[root@master Hadoop]# systemctl enable ntpd.service
#测试
[root@master hadoop]# ntpstat
synchronised to local net (127.127.1.0) at stratum 11
time correct to within 949 ms
polling server every 64 s
[root@master hadoop]#
5. 其它节点与时间服务器同步时间
先关闭非时间服务器节点的ntpd服务
[root@slave1 hadoop]# systemctl stop ntpd
1. 手动同步
[root@slave1 software]# ntpdate master
13 Jul 21:18:21 ntpdate[2201]: adjust time server 192.168.0.104 offset -0.008088 sec
[root@slave1 software]# date
2020年 07月 13日 星期一 21:18:52 CST
2. 定时同步
在其他机器配置10分钟与时间服务器同步一次
[root@slave1 software]# crontab -e
no crontab for root - using an empty one
crontab: installing new crontab
JDK安装
系统环境：centos 7
JDK 版本：jdk 1.8.0_191
（1）准备软件
JDK的安装包已经为大家准备好，在/root/software目录下。
（2）解压压缩包
tar -zxvf jdk-8u171-linux-x64.tar.gz
（3）在此处我们配置系统环境变量，使用命令：
vim /etc/profile
（4）在最后加入以下两行内容：
export JAVA_HOME=/root/software/jdk1.8.0_221 # 配置Java的安装目录
export PATH=$PATH:$JAVA_HOME/bin # 在原PATH的基础上加入JDK的bin目录
（5）让配置文件立即生效，使用如下命令：
source /etc/profile
（6）检测JDK是否安装成功，使用命令查看JDK版本：
java -version
[root@master software]# java -version
java version "1.8.0_171"
Java(TM) SE Runtime Environment (build 1.8.0_171-b11)
Java HotSpot(TM) 64-Bit Server VM (build 25.171-b11, mixed mode)
[root@master software]#
Hadoop安装
1. 解压hadoop2.7.7安装包
使用cd命令进入/root/software目录下，使用如下命令解压hadoop2.7.7安装包：
tar -zxvf hadoop-2.7.7.tar.gz
2. 配置Hadoop系统环境变量
(1) 首先打开/etc/profile文件（系统环境变量：对所有用户有效）：
vim /etc/profile
(2) 在文件底部添加如下内容：
# 配置Hadoop的安装目录
export HADOOP_HOME=/root/software/hadoop-2.7.7
# 在原PATH的基础上加入Hadoop的bin和sbin目录
export PATH=$PATH:$HADOOP_HOME/bin
export PATH=$PATH:$HADOOP_HOME/sbin
(3) 让配置文件立即生效，使用如下命令：
source /etc/profile
(4) 检测Hadoop环境变量是否设置成功，使用如下命令查看Hadoop版本：
hadoop version
[root@master software]# vi /etc/profile
[root@master software]# source /etc/profile
[root@master software]# hadoop version
Hadoop 2.7.7
Subversion Unknown -r c1aad84bd27cd79c3d1a7dd58202a8c3ee1ed3ac
Compiled by stevel on 2018-07-18T22:47Z
Compiled with protoc 2.5.0
From source with checksum 792e15d20b12c74bd6f19a1fb886490
This command was run using /root/software/hadoop-2.7.7/share/hadoop/common/hadoop-common-2.7.7.jar
[root@master software]#
3. 配置hdfs环境变量hadoop-env.sh
打开hadoop-env.sh文件：
[root@master software]# vi /root/software/hadoop-2.7.7/etc/hadoop/hadoop-env.sh
找到JAVA_HOME参数位置，修改为本机安装的JDK的实际位置。
[root@master software]# echo $JAVA_HOME
/root/software/jdk1.8.0_171
[root@master software]# vi /root/software/hadoop-2.7.7/etc/hadoop/hadoop-env.sh
3. 配置核心组件core-site.xml
使用如下命令打开“core-site.xml”文件：
vi /root/software/hadoop-2.7.7/etc/hadoop/core-site.xml
将下面的配置内容添加到 <configuration></configuration> 中间：
<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License. See accompanying LICENSE file.
-->
<!-- Put site-specific property overrides in this file. -->
<configuration>
<!-- HDFS集群中NameNode的URI（包括协议、主机名称、端口号），默认为 file:/// -->
<property>
<name>fs.defaultFS</name>
<!-- 用于指定NameNode的地址 -->
<value>hdfs://master:9000</value>
</property>
<!-- Hadoop运行时产生文件的临时存储目录(自己创建) -->
<property>
<name>hadoop.tmp.dir</name>
<value>/root/software/hadoop-2.7.7/temp</value>
</property>
</configuration>
4. 配置文件系统hdfs-site.xml
使用如下命令打开“hdfs-site.xml”文件：
vim /root/software/hadoop-2.7.7/etc/hadoop/hdfs-site.xml
具体配置：
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License. See accompanying LICENSE file.
-->
<!-- Put site-specific property overrides in this file. -->
<configuration>
<!-- NameNode在本地文件系统中持久存储命名空间和事务日志的路径(自己创建) -->
<property>
<name>dfs.namenode.name.dir</name>
<value>/root/software/hadoop-2.7.7/dfs/namenode_data</value>
</property>
<!-- DataNode在本地文件系统中存放块的路径 -->
<property>
<name>dfs.datanode.data.dir</name>
<value>/root/software/hadoop-2.7.7/dfs/datanode_data</value>
</property>
<!-- 数据块副本的数量，默认为3 -->
<property>
<name>dfs.replication</name>
<value>1</value>
</property>
</configuration>
5、配置环境变量yarn-env.sh
使用如下命令打开“yarn-env.sh”文件：
vi /root/software/hadoop-2.7.7/etc/hadoop/yarn-env.sh
找到JAVA_HOME参数位置，将前面的#去掉，将其值修改为本机安装的JDK的实际位置。
# some Java parameters
export JAVA_HOME=/root/software/jdk1.8.0_171
6、 配置计算框架mapred-site.xml
在$HADOOP_HOME/etc/hadoop/目录中默认没有该文件，需要先通过如下命令将文件复制并重命名为“mapred-site.xml”：
cp mapred-site.xml.template mapred-site.xml
接着，打开“mapred-site.xml”文件进行修改：
vi /root/software/hadoop-2.7.7/etc/hadoop/mapred-site.xml
具体配置：
<?xml version="1.0"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License. See accompanying LICENSE file.
-->
<!-- Put site-specific property overrides in this file. -->
<configuration>
<!-- 指定使用 YARN 运行 MapReduce 程序，默认为 local -->
<property>
<name>mapreduce.framework.name</name>
<value>yarn</value>
</property>
</configuration>
7、配置YARN系统yarn-site.xml
使用如下命令打开该配置文件：
vim /root/software/hadoop-2.7.7/etc/hadoop/yarn-site.xml
具体配置：
<?xml version="1.0"?>
<!--
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License. See accompanying LICENSE file.
-->
<configuration>
<!-- NodeManager上运行的附属服务，也可以理解为 reduce 获取数据的方式 -->
<property>
<name>yarn.nodemanager.aux-services</name>
<value>mapreduce_shuffle</value>
</property>
<!-- resource的地址 -->
<property>
<name>yarn.resourcemanager.hostname</name>
<value>master</value>
</property>
</configuration>
8. master文件
在当前配置文件目录内是不存在master文件的，我们使用vim写入内容到master内保存即可
[root@master hadoop]# vi maste
master
9. slaves文件
配置所有从属节点的主机名或 IP 地址，每行一个。所有从属节点上的 DataNode 服务和 NodeManager 服务都会被启动。
[root@master hadoop]# vi slaves
master
slave1
slave2
10、分发程序
将 Hadoop 安装包分发到其他两台服务器，分发后建议在这两台服务器上也配置一下 Hadoop 的环境变量。
# 将安装包分发到slave1
[root@master hadoop]# scp -r /root/software/hadoop-2.7.7 slave1:/root/software/
# 将安装包分发到slave2
[root@master hadoop]# scp -r /root/software/hadoop-2.7.7 slave2:/root/software/
将 jdk 安装包分发到其他两台服务器，分发后建议在这两台服务器上也配置一下 jdk 的环境变量。
# 将安装包分发到slave1
[root@master hadoop]# scp -r /root/software/jdk1.8.0_171 slave1:/root/software/
# 将安装包分发到slave2
[root@master hadoop]# scp -r /root/software/jdk1.8.0_171 slave2:/root/software/
环境变量：
export JAVA_HOME=/root/software/jdk1.8.0_171 # 配置Java的安装目录
export PATH=$PATH:$JAVA_HOME/bin # 在原PATH的基础上加入JDK的bin目录
# 配置Hadoop的安装目录
export HADOOP_HOME=/root/software/hadoop-2.7.7
# 在原PATH的基础上加入Hadoop的bin和sbin目录
export PATH=$PATH:$HADOOP_HOME/bin
export PATH=$PATH:$HADOOP_HOME/sbin
11、DHFS文件系统初始化
[root@master software]# hdfs namenode -format
成功标志：
namenode_data has been successfully formatted.
20/07/13 19:25:46 INFO namenode.NNStorageRetentionManager: Going to retain 1 images with txid >= 0
20/07/13 19:25:46 INFO common.Storage: Storage directory /root/software/hadoop-2.7.7/dfs/namenode_data has been successfully formatted.
20/07/13 19:25:46 INFO namenode.FSImageFormatProtobuf: Saving image file /root/software/hadoop-2.7.7/dfs/namenode_data/current/fsimage.ckpt_0000000000000000000 using no compression
20/07/13 19:25:46 INFO namenode.FSImageFormatProtobuf: Image file /root/software/hadoop-2.7.7/dfs/namenode_data/current/fsimage.ckpt_0000000000000000000 of size 321 bytes saved in 0 seconds.
20/07/13 19:25:46 INFO namenode.NNStorageRetentionManager: Going to retain 1 images with txid >= 0
20/07/13 19:25:46 INFO util.ExitUtil: Exiting with status 0
20/07/13 19:25:46 INFO namenode.NameNode: SHUTDOWN_MSG:
/************************************************************
SHUTDOWN_MSG: Shutting down NameNode at master/192.168.0.104
************************************************************/
12、启动集群：
# 启动dfs服务
[xiaokang@hadoop01 ~]$ start-dfs.sh
# 启动yarn服务
[xiaokang@hadoop01 ~]$ start-yarn.sh
# 启动任务历史服务器
[xiaokang@hadoop01 ~]$ mr-jobhistory-daemon.sh start historyserver
Master：
DFS：
[root@master .ssh]# start-dfs.sh
Starting namenodes on [master]
master: starting namenode, logging to /root/software/hadoop-2.7.7/logs/hadoop-root-namenode-master.out
slave2: starting datanode, logging to /root/software/hadoop-2.7.7/logs/hadoop-root-datanode-slave2.out
master: starting datanode, logging to /root/software/hadoop-2.7.7/logs/hadoop-root-datanode-master.out
slave1: starting datanode, logging to /root/software/hadoop-2.7.7/logs/hadoop-root-datanode-slave1.out
Starting secondary namenodes [0.0.0.0]
0.0.0.0: starting secondarynamenode, logging to /root/software/hadoop-2.7.7/logs/hadoop-root-secondarynamenode-master.out
[root@master .ssh]# jps
3156 Jps
3047 SecondaryNameNode
2889 DataNode
2762 NameNode
[root@master .ssh]#
YARN：
[root@master .ssh]# start-yarn.sh
starting yarn daemons
starting resourcemanager, logging to /root/software/hadoop-2.7.7/logs/yarn-root-resourcemanager-master.out
slave2: starting nodemanager, logging to /root/software/hadoop-2.7.7/logs/yarn-root-nodemanager-slave2.out
slave1: starting nodemanager, logging to /root/software/hadoop-2.7.7/logs/yarn-root-nodemanager-slave1.out
master: starting nodemanager, logging to /root/software/hadoop-2.7.7/logs/yarn-root-nodemanager-master.out
[root@master .ssh]# jps
3203 ResourceManager
3047 SecondaryNameNode
3367 NodeManager
2889 DataNode
3545 Jps
2762 NameNode
[root@master .ssh]#
Slave1：
[root@slave1 software]# jps
2064 Jps
1864 DataNode
1964 NodeManager
[root@slave1 software]#
Slave2：
[root@slave2 software]# jps
2067 Jps
1869 DataNode
1967 NodeManager
[root@slave2 software]#
13、进入 Web-UI 界面进行查看
安装好hadoop，hadoop和yarn都正常启动，但是yarn的web界面（8088），hdfs的web界面（50070）都不能打开，防火墙是处于关闭状态。
解决方法：
执行命令：
netstat -nltp
没安装net-tools会报错
[root@master hadoop]# netstat -nltp
-bash: netstat: 未找到命令
再执行命令：
# yum -y install net-tools
[root@master hadoop]# yum -y install net-tools
已加载插件：fastestmirror
Loading mirror speeds from cached hostfile
* base: mirrors.aliyun.com
* extras: mirrors.163.com
* updates: mirrors.aliyun.com
正在解决依赖关系
--> 正在检查事务
---> 软件包 net-tools.x86_64.0.2.0-0.25.20131004git.el7 将被 安装
--> 解决依赖关系完成
依赖关系解决
===========================================================================================================
Package 架构 版本 源 大小
===========================================================================================================
正在安装:
net-tools x86_64 2.0-0.25.20131004git.el7 base 306 k
事务概要
===========================================================================================================
安装 1 软件包
总下载量：306 k
安装大小：917 k
Downloading packages:
net-tools-2.0-0.25.20131004git.el7.x86_64.rpm | 306 kB 00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
正在安装 : net-tools-2.0-0.25.20131004git.el7.x86_64 1/1
验证中 : net-tools-2.0-0.25.20131004git.el7.x86_64 1/1
已安装:
net-tools.x86_64 0:2.0-0.25.20131004git.el7
完毕！
再次执行：
netstat -nltp
查看端口状态：
[root@master hadoop]# netstat -nltp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 0.0.0.0:50020 0.0.0.0:* LISTEN 2889/java
tcp 0 0 192.168.0.104:9000 0.0.0.0:* LISTEN 2762/java
tcp 0 0 0.0.0.0:50090 0.0.0.0:* LISTEN 3047/java
tcp 0 0 127.0.0.1:42319 0.0.0.0:* LISTEN 2889/java
tcp 0 0 0.0.0.0:50070 0.0.0.0:* LISTEN 2762/java
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 914/sshd
tcp 0 0 127.0.0.1:25 0.0.0.0:* LISTEN 1164/master
tcp 0 0 0.0.0.0:50010 0.0.0.0:* LISTEN 2889/java
tcp 0 0 0.0.0.0:50075 0.0.0.0:* LISTEN 2889/java
tcp6 0 0 :::42140 :::* LISTEN 3367/java
tcp6 0 0 192.168.0.104:8030 :::* LISTEN 3203/java
tcp6 0 0 192.168.0.104:8031 :::* LISTEN 3203/java
tcp6 0 0 192.168.0.104:8032 :::* LISTEN 3203/java
tcp6 0 0 192.168.0.104:8033 :::* LISTEN 3203/java
tcp6 0 0 :::8040 :::* LISTEN 3367/java
tcp6 0 0 :::8042 :::* LISTEN 3367/java
tcp6 0 0 :::22 :::* LISTEN 914/sshd
tcp6 0 0 192.168.0.104:8088 :::* LISTEN 3203/java
tcp6 0 0 ::1:25 :::* LISTEN 1164/master
tcp6 0 0 :::13562 :::* LISTEN 3367/java
50070端口，没有程序使用，怀疑是程序没有正常运行。
查看 hdfs-site.xml 文件，空的，没有配置。
添加配置：
<!-- 在hdfs-site.xml增加以下配置 -->
<property>
<name>dfs.namenode.http-address</name>
<value>master:50070</value>
</property>

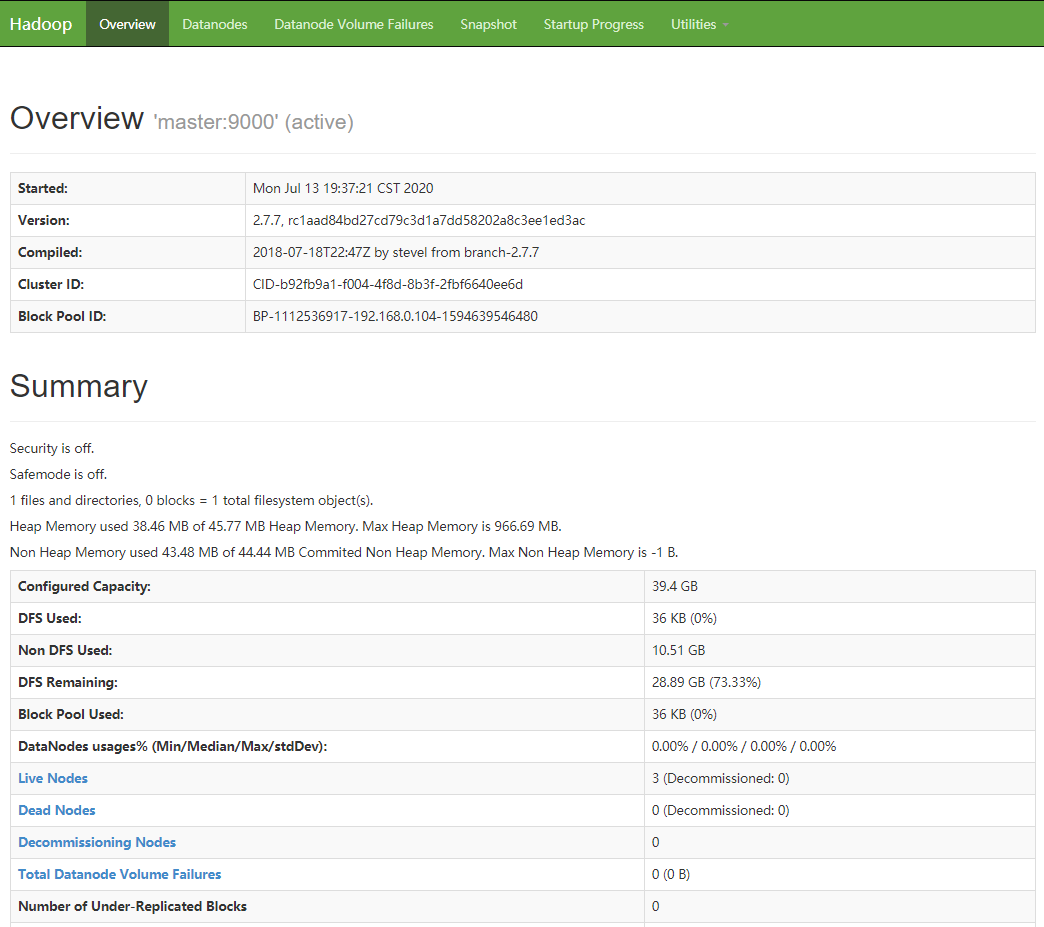

此时可以打开：
端口为 50070。可以看到此时有三个可用的 Datanode：
![[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-UXbmIqkx-1594643922889)(C:\Users\孔潇\Desktop\摘要.assets\image-20200713202438753.png)]](https://img-blog.csdnimg.cn/20200713204050754.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3FxXzQ0OTU3MTg2,size_16,color_FFFFFF,t_70)
