定义
桥接模式(Bridge),将抽象部分与它的实现部分分离,使它们都可以独立低变化。
再理解
我们可以把礼物从两个维度进行划分:给人的感觉、实物
给人的感觉就是抽象的,实物就是实现部分。
假如:
礼物给人的感觉有:温暖的礼物、冷漠的礼物、狂野的礼物。。。总过6种
礼物有:花、首饰两种。
正常理解,一个礼物,给人一种感觉,应该是要写在一个类的,所以:
按照正常来写,是:6*2=12个类
但是,桥接模式,把抽象和实现分开了。给人的感觉和礼物分开了,然后进行组合。就变成了 6+2=8个类了。
案例
假如,我是开礼品店的,我的礼品有花、首饰。我给礼品分的类有:给人感觉温暖的礼物、给人感觉冷漠的礼物。客户来购物时,按照这两个标准选礼物。

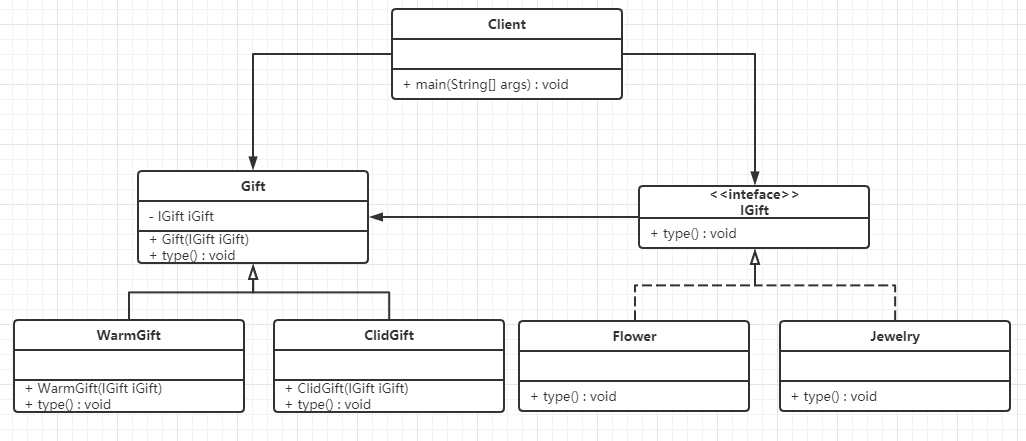

UML类图
代码
实现部分包括:IGift、Flower、Jewelry
IGift——礼物接口
package 桥接模式;
public interface IGift {
void type();
}
Flower——礼物实现类1
package 桥接模式;
public class Flower implements IGift {
@Override
public void type() {
System.out.println("花");
}
}
Jewelry——礼物实现类1
package 桥接模式;
public class Jewelry implements IGift {
@Override
public void type() {
System.out.println("首饰");
}
}
抽象部分包括:父类Gift、WarmGift、ColdGift
Gift——礼物抽象父类
package 桥接模式;
public abstract class Gift {
private IGift iGift;
public Gift(IGift iGift) {
super();
this.iGift = iGift;
}
public void type() {
iGift.type();
}
}
WarmGift——礼物给人感觉类1
package 桥接模式;
public class WarmGift extends Gift{
public WarmGift(IGift iGift) {
super(iGift);
}
@Override
public void type() {
super.type();
System.out.println("类型是温暖的");
}
}
ColdGift——礼物给人感觉类2
package 桥接模式;
public class ColdGift extends Gift{
public ColdGift(IGift iGift) {
super(iGift);
}
@Override
public void type() {
super.type();
System.out.println("类型是冰冷的");
}
}
Client——客户
package 桥接模式;
public class Client {
public static void main(String[] args) {
Gift gift= new WarmGift(new Flower());
gift.type();
System.out.println("-----");
Gift gift2= new WarmGift(new Jewelry());
gift2.type();
System.out.println("======");
Gift gift3= new ColdGift(new Flower());
gift3.type();
System.out.println("-----");
Gift gift4= new ColdGift(new Jewelry());
gift4.type();
}
}
运行结果
花
类型是温暖的
-----
首饰
类型是温暖的
======
花
类型是冰冷的
-----
首饰
类型是冰冷的
总结
- 实现了抽象和实现部分的分离,从而极大的提高了灵活性。
- 让抽象部分和实现部分分离,有助于系统分层设计,从而产生更好的结构化系统
- 对于系统的高层部分,只需要知道抽象部分和实现部分的接口就行了,其他部分由具体业务来完成
- 防止类爆炸
