UE4自定义GameDebugTool显示信息

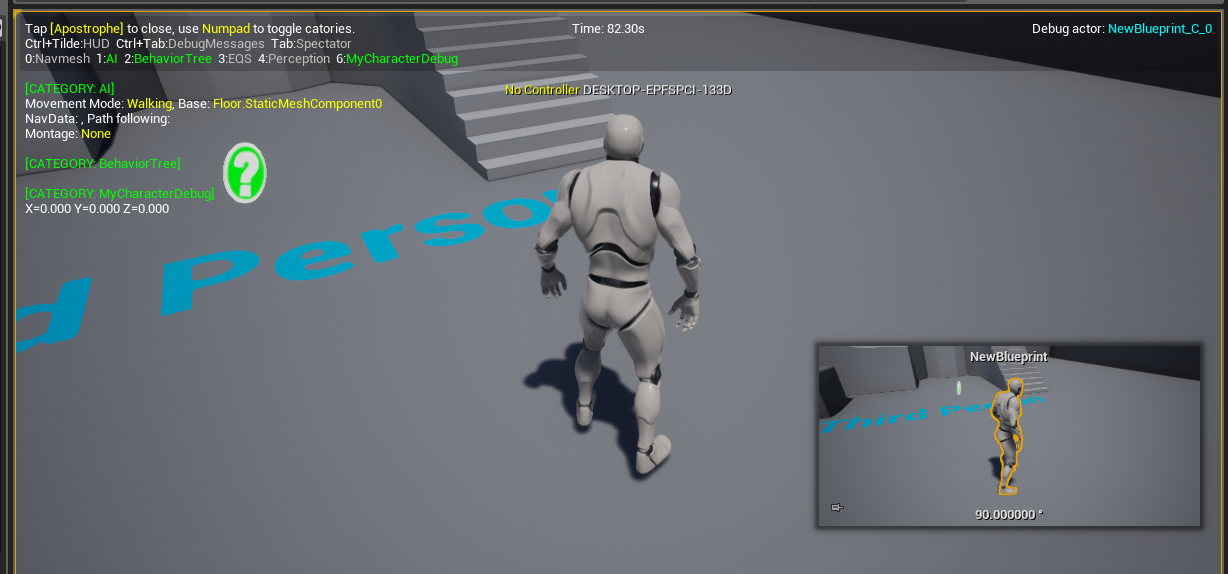

可以通过按下回车左面的 ’ 键来显示GameDebug 然后选中你要调试的actor 就能看到下面的界面

这里的6 MyCharacterDebug 是我自己自定义出来显示人物移动速度的调试信息 默认是没有的

下面说一下大概的步骤和实现方法

1.首先要自定义自己的FGameplayDebuggerCategory类 在里面实现数据的采集和绘制

2.在合适的位置 将Category类注册到IGameplayDebugger中

首先自定义Category类 这里由于代码中使用的是模板类，所有函数的定义不能和.h分离写在.cpp中 所以 以内联函数的方式写在了.inl文件中  具体代码中有注释

MyGameplayCategory.h


// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#pragma once
#include "GameplayDebuggerCategory.h"


template <typename T>
class TESTFORDEBUG_API FMyGameplayCategory : public FGameplayDebuggerCategory
{
public:
	FMyGameplayCategory();
	static void Register(const FName& Name, int HotKey);
	virtual void CollectData(APlayerController* OwnerPC, AActor* DebugActor) override;
	virtual void DrawData(APlayerController* OwnerPC, FGameplayDebuggerCanvasContext& CanvasContext)override;
	virtual void OnDataPackReplicated(int32 DataPackId)override;

protected:
	static TSharedRef<FGameplayDebuggerCategory> MakeInstance();
	//定义要显示的数据结构 必须定义Serialize函数
	struct FDebugData
	{
		FString Str;
		void Serialize(FArchive& archive);
	} DebugData;


};

template<typename T>
inline void FMyGameplayCategory<T>::FDebugData::Serialize(FArchive & archive)
{
	archive << Str;
}

#include "MyGameplayCategory.inl"   //使用内联文件

MyGameplayCategory.inl


#include "MyGameplayCategory.h"
#include "GameplayDebugger.h"

template<typename T>
inline FMyGameplayCategory<T>::FMyGameplayCategory()
{
	SetDataPackReplication(&DebugData);
}

template<typename T>
inline void FMyGameplayCategory<T>::Register(const FName& Name, int HotKey)
{
	const auto STATE_FLAGS = EGameplayDebuggerCategoryState::EnabledInGame;
	auto& debugger = IGameplayDebugger::Get();
	auto creationDelegate = IGameplayDebugger::FOnGetCategory::CreateStatic(&FMyGameplayCategory<T>::MakeInstance); //创建一个FOnGetCategory类型的delegate指针
	debugger.RegisterCategory(Name, creationDelegate, STATE_FLAGS, HotKey);
	debugger.NotifyCategoriesChanged();
}

template<typename T>
inline void FMyGameplayCategory<T>::CollectData(APlayerController * OwnerPC, AActor * DebugActor)
{
	DebugData.Str.Empty();
	if (!DebugActor)
		return;
	for (UActorComponent* Component : DebugActor->GetComponents())
	{
		T* ComponentT = Cast<T>(Component);
		if (ComponentT)
		{
			DebugData.Str = ComponentT->GetDebugStr();
		}
	}
}

template<typename T>
inline void FMyGameplayCategory<T>::DrawData(APlayerController * OwnerPC, FGameplayDebuggerCanvasContext & CanvasContext)
{
	CanvasContext.Print(DebugData.Str); //输出数据
}

template<typename T>
inline void FMyGameplayCategory<T>::OnDataPackReplicated(int32 DataPackId)
{
	MarkRenderStateDirty(); //表示数据同步完毕需要重新渲染
}

template<typename T>
inline TSharedRef<FGameplayDebuggerCategory> FMyGameplayCategory<T>::MakeInstance()
{
	return MakeShareable(new FMyGameplayCategory<T>()); //创建实例
}

然后是Category的注册调用 这里是写在了Character构造函数中 并且设置模板为MyCharacterMovementComponent

ATestForDebugCharacter::ATestForDebugCharacter(const FObjectInitializer& ObjectInitializer /* = FObjectInitializer::Get() */)
	:Super(ObjectInitializer.SetDefaultSubobjectClass<UMyCharacterMovementComponent>(ACharacter::CharacterMovementComponentName)) //使用我们自定义的CharacterMovement
{

	FMyGameplayCategory<UMyCharacterMovementComponent>::Register(FName(TEXT("MyCharacterDebug")), 6); //注册Debug Category
	// Set size for collision capsule
	GetCapsuleComponent()->InitCapsuleSize(42.f, 96.0f);

	// set our turn rates for input
	BaseTurnRate = 45.f;
	BaseLookUpRate = 45.f;

	// Don't rotate when the controller rotates. Let that just affect the camera.
	bUseControllerRotationPitch = false;
	bUseControllerRotationYaw = false;
	bUseControllerRotationRoll = false;

	// Configure character movement
	GetCharacterMovement()->bOrientRotationToMovement = true; // Character moves in the direction of input...
	GetCharacterMovement()->RotationRate = FRotator(0.0f, 540.0f, 0.0f); // ...at this rotation rate
	GetCharacterMovement()->JumpZVelocity = 600.f;
	GetCharacterMovement()->AirControl = 0.2f;

	// Create a camera boom (pulls in towards the player if there is a collision)
	CameraBoom = CreateDefaultSubobject<USpringArmComponent>(TEXT("CameraBoom"));
	CameraBoom->SetupAttachment(RootComponent);
	CameraBoom->TargetArmLength = 300.0f; // The camera follows at this distance behind the character
	CameraBoom->bUsePawnControlRotation = true; // Rotate the arm based on the controller

	// Create a follow camera
	FollowCamera = CreateDefaultSubobject<UCameraComponent>(TEXT("FollowCamera"));
	FollowCamera->SetupAttachment(CameraBoom, USpringArmComponent::SocketName); // Attach the camera to the end of the boom and let the boom adjust to match the controller orientation
	FollowCamera->bUsePawnControlRotation = false; // Camera does not rotate relative to arm

	// Note: The skeletal mesh and anim blueprint references on the Mesh component (inherited from Character)
	// are set in the derived blueprint asset named MyCharacter (to avoid direct content references in C++)
}

在自定义的Movement中 定义debug回调函数 输出当前角色的移动速度

FString UMyCharacterMovementComponent::GetDebugStr()
{
	return (Cast<ACharacter>(GetOwner()))->GetVelocity().ToString();
}

具体的代码可以看下载的工程
