Spark 练习之 Spark SQL 与数据源

练习内容：

使用Spark SQL加载JSON文件并展示数据
使用Spark SQL加载Hive表数据并展示
使用Spark SQL JDBC数据源连接到MySQL数据，加载并保存数据
使用Spark SQL加载并保存Avro数据

本文内容参考于： Spark SQL 官网和本人博客：Spark SQL 之数据源

读取 JSON 文件

person.json 文件内容

{"name":"Michael"}
{"name":"Andy", "age":30}
{"name":"Justin", "age":19}

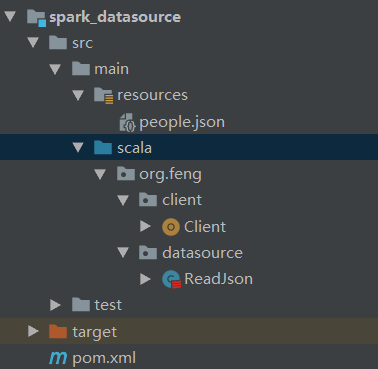

项目目录结构

在这里插入图片描述

pom依赖

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <spark.version>2.4.4</spark.version>
</properties>

<dependencies>
    <dependency>
        <groupId>org.apache.spark</groupId>
        <artifactId>spark-sql_2.11</artifactId>
        <version>${spark.version}</version>
    </dependency>
</dependencies>

ReadJson.scala 文件内容

package org.feng.datasource

import org.apache.spark.sql.{DataFrame, SparkSession}

/**
  * Created by Feng on 2020/2/10 15:30
  * CurrentProject's name is spark_demo
  */
class ReadJson(spark: SparkSession) {

  /**
    * 读取 json 文件
    * @param path json 文件的路径
    * @param tempView 临时视图的名字
    */
  def readJson(path:String, tempView:String)={
    val dataFrame = spark.read.json(path)

    dataFrame.createOrReplaceTempView(tempView)

    spark.sql("select * from " .concat(tempView)).show()
  }
}

Client.scala 文件内容

package org.feng.client

import org.apache.spark.sql.SparkSession
import org.feng.datasource.ReadJson

/**
  * Created by Feng on 2020/2/10 15:32
  * CurrentProject's name is spark_demo
  */
object Client extends App{

  val spark = SparkSession
    .builder()
    .appName("Client_".concat(System.currentTimeMillis().toString))
    .master("local")
    .getOrCreate()

  val jsonPath = "D:\\jee-2019-7-idea-maven-workspace\\spark_demo\\spark_datasource\\src\\main\\resources\\people.json"
  val readJson = new ReadJson(spark)
  readJson.readJson(jsonPath, "people")
}

运行结果

+----+-------+
| age|   name|
+----+-------+
|null|Michael|
|  30|   Andy|
|  19| Justin|
+----+-------+

读取 Hive 表内容

参考博客园：Spark 读取 hive表

import org.apache.spark.sql.hive.HiveContext
import org.apache.spark.{SparkConf, SparkContext}
object SparkHiveText {
  def main(args: Array[String]) {
    val conf =new SparkConf().setMaster("local").setAppName("SparkHiveText")
    val sc = new SparkContext(conf)
    val hc = new HiveContext(sc)
    hc.sql("select * from 表名").show()
    sc.stop()
  }
}

读、写 Mysql

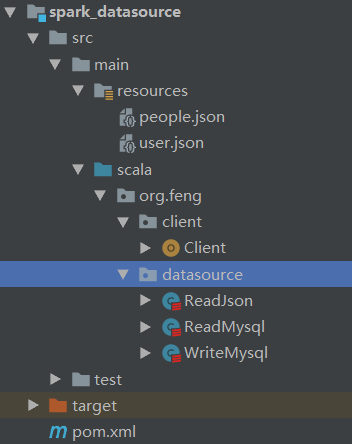

读 Mysql

在这里插入图片描述

ReadMysql.scala 文件内容

package org.feng.datasource

import java.util.Properties

import org.apache.spark.sql.SparkSession

/**
  * 读取 mysql 中的数据
  * Created by Feng on 2020/2/10 15:54
  * CurrentProject's name is spark_demo
  */
class ReadMysql(spark: SparkSession, database:String){

  val user = "root"
  val password = "root"
  val url = "jdbc:mysql://localhost:3306/"
    .concat(database)
    .concat("?serverTimezone=UTC")


  // 读取数据
  def readMysql(tableName:String): Unit ={
    // 加载驱动
    new com.mysql.cj.jdbc.Driver

    spark.read
      .jdbc(url, tableName, properties(user, password))
      .show(2)
  }

  def properties(user:String, password:String):Properties={
    val pro = new Properties()
    pro.put("user", user)
    pro.put("password", password)
    pro
  }
}

Client.scala 文件内容

package org.feng.client

import org.apache.spark.sql.SparkSession
import org.feng.datasource.{ReadJson, ReadMysql}

/**
  * Created by Feng on 2020/2/10 15:32
  * CurrentProject's name is spark_demo
  */
object Client extends App{

  val spark = SparkSession
    .builder()
    .appName("Client_".concat(System.currentTimeMillis().toString))
    .master("local")
    .getOrCreate()

  // 运行
  runReadMysql()


  // 读取 mysql
  def runReadMysql(): Unit ={
    // 指定数据库
    val readMysql = new ReadMysql(spark, "demo2019")
    // 指定表名
    readMysql.readMysql("user")
  }

  // 读取 json
  def runReadJson(): Unit ={
    val jsonPath = "D:\\jee-2019-7-idea-maven-workspace\\spark_demo\\spark_datasource\\src\\main\\resources\\people.json"
    val readJson = new ReadJson(spark)
    readJson.readJson(jsonPath, "people")
  }
}

运行结果

+---+------+--------+-------------+
| id|  name|password|  create_date|
+---+------+--------+-------------+
|  1|  feng|   12345|1575853408359|
|  2|liqian|  123456|1575853408359|
+---+------+--------+-------------+

写入 Mysql

读取一个 json 文件，转换为 DataFrame ，然后追加到 Mysql。

在这里插入图片描述

user.json 文件内容

{"id": 3, "name":"小冯", "password": "65535", "create_date":1575853408359}

WriteMysql.scala 文件内容

package org.feng.datasource

import java.util.Properties

import org.apache.spark.sql.{SaveMode, SparkSession}

/**
  * Created by Feng on 2020/2/10 16:06
  * CurrentProject's name is spark_demo
  */
class WriteMysql(spark:SparkSession, database:String) {
  val user = "root"
  val password = "root"
  val url = "jdbc:mysql://localhost:3306/"
    .concat(database)
    .concat("?serverTimezone=UTC")

  def writeMysql(tableName:String): Unit ={
    // 加载驱动
    new com.mysql.cj.jdbc.Driver

    val dataFrame = spark.read
      .json("D:\\jee-2019-7-idea-maven-workspace\\spark_demo\\spark_datasource\\src\\main\\resources\\user.json")

    // 写入数据：追加
    dataFrame.write.mode(SaveMode.Append)
      .jdbc(url, tableName, properties(user, password))
  }

  def properties(user:String, password:String):Properties={
    val pro = new Properties()
    pro.put("user", user)
    pro.put("password", password)
    pro
  }
}

Client.scala 文件内容

package org.feng.client

import org.apache.spark.sql.SparkSession
import org.feng.datasource.{ReadJson, ReadMysql, WriteMysql}

/**
  * Created by Feng on 2020/2/10 15:32
  * CurrentProject's name is spark_demo
  */
object Client extends App{

  val spark = SparkSession
    .builder()
    .appName("Client_".concat(System.currentTimeMillis().toString))
    .master("local")
    .getOrCreate()

  // runReadJson()

  runWriteMysql()
  runReadMysql()


  def runWriteMysql()={
    val writeMysql = new WriteMysql(spark, "demo2019")
    writeMysql.writeMysql("user")
  }

  def runReadMysql(): Unit ={
    val readMysql = new ReadMysql(spark, "demo2019")
    readMysql.readMysql("user")
  }

  def runReadJson(): Unit ={
    val jsonPath = "D:\\jee-2019-7-idea-maven-workspace\\spark_demo\\spark_datasource\\src\\main\\resources\\people.json"
    val readJson = new ReadJson(spark)
    readJson.readJson(jsonPath, "people")
  }
}

运行结果

插入数据后，读取内容！

+---+------+--------+-------------+
| id|  name|password|  create_date|
+---+------+--------+-------------+
|  1|  feng|   12345|1575853408359|
|  2|liqian|  123456|1575853408359|
|  3|  小冯|   65535|1575853408359|
+---+------+--------+-------------+

读、写 Avro 数据

参考官方文档

准备工作

我的 scala 版本是 2.11，spark 版本是 2.4.4。

在 windows 下准备一个 Spark ，解压，并在bin 目录下执行以下命令

spark-shell.cmd --packages org.apache.spark:spark-avro_2.11:2.4.4 ...

F:\big-data\spark\spark-2.4.4-bin-hadoop2.7\spark-2.4.4-bin-hadoop2.7\bin>spark-shell.cmd --packages org.apache.spark:spark-avro_2.11:2.4.4 ...
Ivy Default Cache set to: C:\Users\Feng\.ivy2\cache
The jars for the packages stored in: C:\Users\Feng\.ivy2\jars
:: loading settings :: url = jar:file:/F:/big-data/spark/spark-2.4.4-bin-hadoop2.7/spark-2.4.4-bin-hadoop2.7/jars/ivy-2.4.0.jar!/org/apache/ivy/core/settings/ivysettings.x
org.apache.spark#spark-avro_2.11 added as a dependency
:: resolving dependencies :: org.apache.spark#spark-submit-parent-c6db07dd-d02d-43b6-847e-202d438b495c;1.0
        confs: [default]
        found org.apache.spark#spark-avro_2.11;2.4.4 in central
        found org.spark-project.spark#unused;1.0.0 in central
downloading https://repo1.maven.org/maven2/org/apache/spark/spark-avro_2.11/2.4.4/spark-avro_2.11-2.4.4.jar ...
        [SUCCESSFUL ] org.apache.spark#spark-avro_2.11;2.4.4!spark-avro_2.11.jar (132934ms)
downloading https://repo1.maven.org/maven2/org/spark-project/spark/unused/1.0.0/unused-1.0.0.jar ...
        [SUCCESSFUL ] org.spark-project.spark#unused;1.0.0!unused.jar (1625ms)
:: resolution report :: resolve 375353ms :: artifacts dl 134568ms
        :: modules in use:
        org.apache.spark#spark-avro_2.11;2.4.4 from central in [default]
        org.spark-project.spark#unused;1.0.0 from central in [default]
        ---------------------------------------------------------------------
        |                  |            modules            ||   artifacts   |
        |       conf       | number| search|dwnlded|evicted|| number|dwnlded|
        ---------------------------------------------------------------------
        |      default     |   2   |   2   |   2   |   0   ||   2   |   2   |
        ---------------------------------------------------------------------

:: problems summary ::
:::: ERRORS
        unknown resolver null

        unknown resolver null

        unknown resolver null

        unknown resolver null


:: USE VERBOSE OR DEBUG MESSAGE LEVEL FOR MORE DETAILS
:: retrieving :: org.apache.spark#spark-submit-parent-c6db07dd-d02d-43b6-847e-202d438b495c
        confs: [default]
        2 artifacts copied, 0 already retrieved (185kB/18ms)
Using Spark's default log4j profile: org/apache/spark/log4j-defaults.properties
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
Spark context Web UI available at http://192.168.26.100:4040
Spark context available as 'sc' (master = local[*], app id = local-1581331065457).
Spark session available as 'spark'.
Welcome to
      ____              __
     / __/__  ___ _____/ /__
    _\ \/ _ \/ _ `/ __/  '_/
   /___/ .__/\_,_/_/ /_/\_\   version 2.4.4
      /_/

Using Scala version 2.11.12 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_91)
Type in expressions to have them evaluated.
Type :help for more information.

scala>

读取

其中，users.avro 文件是解压了 spark 后的 example 文件夹中的一个资源文件。

scala> spark.read.format("avro").load("D:\\jee-2019-7-idea-maven-workspace\\spark_demo\\spark_datasource\\src\\main\\resources\\users.avro").show()
+------+--------------+----------------+
|  name|favorite_color|favorite_numbers|
+------+--------------+----------------+
|Alyssa|          null|  [3, 9, 15, 20]|
|   Ben|           red|              []|
+------+--------------+----------------+

写入

读取 users.avro中的内容，并写入到 2020avro.avro 文件中。

scala> spark.read.format("avro").load("D:\\jee-2019-7-idea-maven-workspace\\spark_demo\\spark_datasource\\src\\main\\resources\\users.avro").
     | write.mode(SaveMode.Append).format("avro").save("D:\\2020avro.avro")

读取新的文件内容：

scala> spark.read.format("avro").load("D:\\2020avro.avro").show()
+------+--------------+----------------+
|  name|favorite_color|favorite_numbers|
+------+--------------+----------------+
|Alyssa|          null|  [3, 9, 15, 20]|
|   Ben|           red|              []|
+------+--------------+----------------+
