一、C语言子集的单词符号及内置码
单词符号 | 种别编号 | 助记符 | 内置码 |
---|---|---|---|
while | 1 | while | null |
if | 2 | if | null |
else | 3 | else | null |
switch | 4 | switch | null |
case | 5 | case | null |
标识符 | 6 | id | id的实际内容 |
常数 | 7 | num | nmu的实际内容 |
+ | 8 | + | null |
- | 9 | - | null |
* | 10 | * | null |
<= | 11 | <= | null |
< | 12 | < | null |
== | 13 | == | null |
= | 14 | = | null |
; | 15 | ; | null |
二、状态转换图

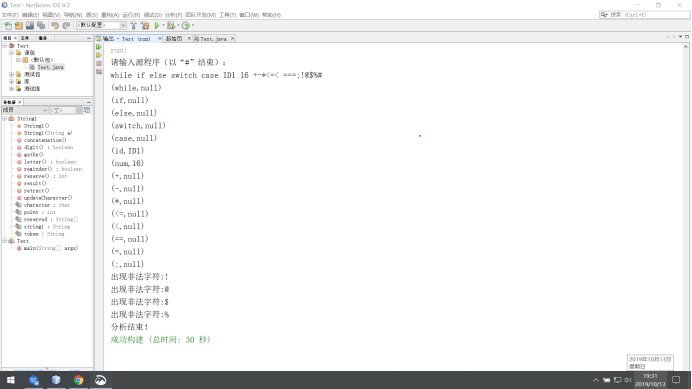

三、实验结果截图

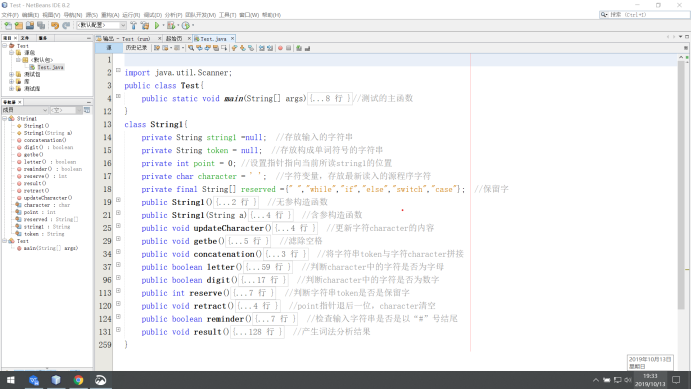

四、实验使用的类的方法、属性及其作用截图
五、实验代码
import java.util.Scanner;
public class Test{
public static void main(String[] args){
System.out.println("请输入源程序(以“#”结束):");
Scanner input = new Scanner(System.in);
input.useDelimiter("\n"); //将分隔符号修改为“\n”(回车)
String1 test = new String1(input.next());
test.result();
System.out.println("分析结束!");
}//测试的主函数
}
class String1{
private String string1 =null; //存放输入的字符串
private String token = null; //存放构成单词符号的字符串
private int point = 0; //设置指针指向当前所读string1的位置
private char character = ' '; //字符变量,存放最新读入的源程序字符
private final String[] reserved ={" ","while","if","else","switch","case"}; //保留字
public String1(){
} //无参构造函数
public String1(String a){
string1 = a;
point = -1; //方便之后对character的判断
} //含参构造函数
public void updateCharacter(){
point++;
character = string1.charAt(point);
} //更新字符character的内容
public void getbe(){
while(character == ' '){
updateCharacter();
}
} //滤除空格
public void concatenation(){
token = token + character;
} //将字符串token与字符character拼接
public boolean letter(){
switch(character){
case 'A':
case 'B':
case 'C':
case 'D':
case 'E':
case 'F':
case 'G':
case 'H':
case 'I':
case 'J':
case 'K':
case 'L':
case 'M':
case 'N':
case 'O':
case 'P':
case 'Q':
case 'R':
case 'S':
case 'T':
case 'U':
case 'V':
case 'W':
case 'X':
case 'Y':
case 'Z':
case 'a':
case 'b':
case 'c':
case 'd':
case 'e':
case 'f':
case 'g':
case 'h':
case 'i':
case 'j':
case 'k':
case 'l':
case 'm':
case 'n':
case 'o':
case 'p':
case 'q':
case 'r':
case 's':
case 't':
case 'u':
case 'v':
case 'w':
case 'x':
case 'y':
case 'z':
return true;
default:
return false;
}
} //判断character中的字符是否为字母
public boolean digit(){
switch(character){
case '0':
case '1':
case '2':
case '3':
case '4':
case '5':
case '6':
case '7':
case '8':
case '9':
return true;
default:
return false;
}
} //判断character中的字符是否为数字
public int reserve(){
for(int i = 1;i<reserved.length;i++){
if(token.equals(reserved[i]))
return i;
}
return 0;
} //判断字符串token是否是保留字
public void retract(){
point = point - 1;
character = ' ';
} //point指针退后一位,character清空
public boolean reminder(){
if(string1.charAt(string1.length()-1) != '#'){
System.out.println("请以“#”符号结尾!");
return true;
}
else return false;
} //检查输入字符串是否是以“#”号结尾
public void result(){
if(reminder()) return;
character = string1.charAt(0);
if(character == '#') //当只有一个#时
return;
do{
token = "";
updateCharacter(); //更新字符character
getbe(); //滤除空格
switch(character){
case 'A':
case 'B':
case 'C':
case 'D':
case 'E':
case 'F':
case 'G':
case 'H':
case 'I':
case 'J':
case 'K':
case 'L':
case 'M':
case 'N':
case 'O':
case 'P':
case 'Q':
case 'R':
case 'S':
case 'T':
case 'U':
case 'V':
case 'W':
case 'X':
case 'Y':
case 'Z':
case 'a':
case 'b':
case 'c':
case 'd':
case 'e':
case 'f':
case 'g':
case 'h':
case 'i':
case 'j':
case 'k':
case 'l':
case 'm':
case 'n':
case 'o':
case 'p':
case 'q':
case 'r':
case 's':
case 't':
case 'u':
case 'v':
case 'w':
case 'x':
case 'y':
case 'z': //以字母开头字符串
while(letter()||digit()){
concatenation();
updateCharacter();
}
retract();
if(reserve() == 0){
System.out.println( "(id,"+token+")");
}
else
System.out.println( "("+reserved[reserve()]+",null)");
break;
case '0':
case '1':
case '2':
case '3':
case '4':
case '5':
case '6':
case '7':
case '8':
case '9': //以数字开头
while(digit()){
concatenation();
updateCharacter();
}
retract();
System.out.println("(num,"+token+")");
break;
case '+':
System.out.println("(+,null)");
break;
case '-':
System.out.println("(-,null)");
break;
case '*':
System.out.println("(*,null)");
break;
case '<':
updateCharacter();
if(character == '=')
System.out.println("(<=,null)");
else{
retract();
System.out.println("(<,null)");
}
break;
case '=':
updateCharacter();
if(character == '=')
System.out.println("(==,null)");
else{
retract();
System.out.println("(=,null)");
}
break;
case ';':
System.out.println("(;,null)");
break;
case '#':
break;
default:
System.out.println("出现非法字符:"+character);
break;
}
}while(character!='#');
} //产生词法分析结果
}
