官方STM32F107_ETH_LwIP_V1.0.0开发包移植笔记

一、LwIP移植记录

lwip-1.4.1\src\core\ipv4\icmp.c

注释掉：#if CHECKSUM_GEN_ICMP

新增加：#ifdef CHECKSUM_BY_HARDWARE

代码如下：

//#if CHECKSUM_GEN_ICMP
//    /* adjust the checksum */
//    if (iecho->chksum >= PP_HTONS(0xffffU - (ICMP_ECHO << 8))) {
//      iecho->chksum += PP_HTONS(ICMP_ECHO << 8) + 1;
//    } else {
//      iecho->chksum += PP_HTONS(ICMP_ECHO << 8);
//    }
//#else /* CHECKSUM_GEN_ICMP */
//    iecho->chksum = 0;
//#endif /* CHECKSUM_GEN_ICMP */

		/* This part of code has been modified by ST's MCD Application Team */
		/* To use the Checksum Offload Engine for the putgoing ICMP packets,
			 the ICMP checksum field should be set to 0, this is required only for Tx ICMP*/
		#ifdef CHECKSUM_BY_HARDWARE
				iecho->chksum = 0;
		#else
			/* adjust the checksum */
				if (iecho->chksum >= htons(0xffff - (ICMP_ECHO << 8))) {
					iecho->chksum += htons(ICMP_ECHO << 8) + 1;
				} else {
					iecho->chksum += htons(ICMP_ECHO << 8);
				}
		#endif

lwip-1.4.1\src\netif\ethernetif.c

需要参考实际网络硬件进行改写

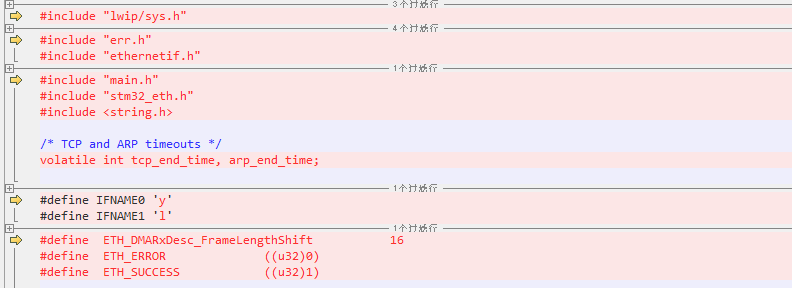

增加必要的宏文件：

填充 struct ethernetif 结构体

struct ethernetif
{
  struct eth_addr *ethaddr;
  /* Add whatever per-interface state that is needed here. */
  int unused;
};

ethernetif 是一个结构体，用来描述底层硬件设备，该结构体唯一不可或缺的是MAC地址，它是LWIP用于相应ARP查询的核心数据。其他如果没有特殊需要，可以不添加其他成员数据。

加入一些函数需要的参数定义

/* Forward declarations. */
err_t  ethernetif_input(struct netif *netif);

#define ETH_RXBUFNB        4
#define ETH_TXBUFNB        2

uint8_t MACaddr[6];

ETH_DMADESCTypeDef  DMARxDscrTab[ETH_RXBUFNB], DMATxDscrTab[ETH_TXBUFNB];/* Ethernet Rx & Tx DMA Descriptors */
uint8_t Rx_Buff[ETH_RXBUFNB][ETH_MAX_PACKET_SIZE], Tx_Buff[ETH_TXBUFNB][ETH_MAX_PACKET_SIZE];/* Ethernet buffers */

ETH_DMADESCTypeDef  *DMATxDesc = DMATxDscrTab;
extern ETH_DMADESCTypeDef  *DMATxDescToSet;
extern ETH_DMADESCTypeDef  *DMARxDescToGet;

typedef struct{
u32 length;
u32 buffer;
ETH_DMADESCTypeDef *descriptor;
}FrameTypeDef;

FrameTypeDef ETH_RxPkt_ChainMode(void);
u32 ETH_GetCurrentTxBuffer(void);
u32 ETH_TxPkt_ChainMode(u16 FrameLength);

/**
 * Setting the MAC address.
 * @param netif the already initialized lwip network interface structure for this ethernetif
 */
void Set_MAC_Address(uint8_t* macadd)
{
  MACaddr[0] = macadd[0];
  MACaddr[1] = macadd[1];
  MACaddr[2] = macadd[2];
  MACaddr[3] = macadd[3];
  MACaddr[4] = macadd[4];
  MACaddr[5] = macadd[5];

  ETH_MACAddressConfig(ETH_MAC_Address0, macadd);
}

设置MAC地址

static void
low_level_init(struct netif *netif)
{
  /* set MAC hardware address length */
  netif->hwaddr_len = ETHARP_HWADDR_LEN;

  /* set MAC hardware address */
  netif->hwaddr[0] =  MACaddr[0];
  netif->hwaddr[1] =  MACaddr[1];
  netif->hwaddr[2] =  MACaddr[2];
  netif->hwaddr[3] =  MACaddr[3];
  netif->hwaddr[4] =  MACaddr[4];
  netif->hwaddr[5] =  MACaddr[5];

  /* maximum transfer unit */
  netif->mtu = 1500;

  /* device capabilities */
  /* don't set NETIF_FLAG_ETHARP if this device is not an ethernet one */
  netif->flags = NETIF_FLAG_BROADCAST | NETIF_FLAG_ETHARP | NETIF_FLAG_LINK_UP;

  /* Initialize Tx Descriptors list: Chain Mode */
  ETH_DMATxDescChainInit(DMATxDscrTab, &Tx_Buff[0][0], ETH_TXBUFNB);
  /* Initialize Rx Descriptors list: Chain Mode  */
  ETH_DMARxDescChainInit(DMARxDscrTab, &Rx_Buff[0][0], ETH_RXBUFNB);

  /* Enable Ethernet Rx interrrupt */
  { int i;
    for(i=0; i<ETH_RXBUFNB; i++)
    {
      ETH_DMARxDescReceiveITConfig(&DMARxDscrTab[i], ENABLE);
    }
  }

#ifdef CHECKSUM_BY_HARDWARE
  /* Enable the checksum insertion for the Tx frames */
  { int i;
    for(i=0; i<ETH_TXBUFNB; i++)
    {
      ETH_DMATxDescChecksumInsertionConfig(&DMATxDscrTab[i], ETH_DMATxDesc_ChecksumTCPUDPICMPFull);
    }
  }
#endif

  /* Enable MAC and DMA transmission and reception */
  ETH_Start();

}

重写该函数：  static void low_level_init(struct netif *netif)

static err_t
low_level_output(struct netif *netif, struct pbuf *p)
{
  struct pbuf *q;
  int l = 0;
  u8 *buffer =  (u8 *)ETH_GetCurrentTxBuffer();

  for(q = p; q != NULL; q = q->next)
  {
    memcpy((u8_t*)&buffer[l], q->payload, q->len);
	l = l + q->len;
  }

  ETH_TxPkt_ChainMode(l);

  return ERR_OK;
}

static err_t  low_level_output(struct netif *netif, struct pbuf *p)

/**
 * Should allocate a pbuf and transfer the bytes of the incoming
 * packet from the interface into the pbuf.
 *
 * @param netif the lwip network interface structure for this ethernetif
 * @return a pbuf filled with the received packet (including MAC header)
 *         NULL on memory error
 */
static struct pbuf *
low_level_input(struct netif *netif)
{
  struct pbuf *p, *q;
  u16_t len;
  int l =0;
  FrameTypeDef frame;
  u8 *buffer;

  p = NULL;
  frame = ETH_RxPkt_ChainMode();
  /* Obtain the size of the packet and put it into the "len"
     variable. */
  len = frame.length;

  buffer = (u8 *)frame.buffer;

  /* We allocate a pbuf chain of pbufs from the pool. */
  p = pbuf_alloc(PBUF_RAW, len, PBUF_POOL);

  if (p != NULL)
  {
    for (q = p; q != NULL; q = q->next)
    {
	  memcpy((u8_t*)q->payload, (u8_t*)&buffer[l], q->len);
      l = l + q->len;
    }
  }


  /* Set Own bit of the Rx descriptor Status: gives the buffer back to ETHERNET DMA */
  frame.descriptor->Status = ETH_DMARxDesc_OWN;

  /* When Rx Buffer unavailable flag is set: clear it and resume reception */
  if ((ETH->DMASR & ETH_DMASR_RBUS) != (u32)RESET)
  {
    /* Clear RBUS ETHERNET DMA flag */
    ETH->DMASR = ETH_DMASR_RBUS;
    /* Resume DMA reception */
    ETH->DMARPDR = 0;
  }


  return p;
}

static struct  pbuf  *low_level_input(struct netif *netif)

/**
 * This function should be called when a packet is ready to be read
 * from the interface. It uses the function low_level_input() that
 * should handle the actual reception of bytes from the network
 * interface. Then the type of the received packet is determined and
 * the appropriate input function is called.
 *
 * @param netif the lwip network interface structure for this ethernetif
 */
err_t
ethernetif_input(struct netif *netif)
{
  err_t err;
  struct pbuf *p;

  /* move received packet into a new pbuf */
  p = low_level_input(netif);

  /* no packet could be read, silently ignore this */
  if (p == NULL) return ERR_MEM;

  err = netif->input(p, netif);
  if (err != ERR_OK)
  {
    LWIP_DEBUGF(NETIF_DEBUG, ("ethernetif_input: IP input error\n"));
    pbuf_free(p);
    p = NULL;
  }

  return err;
}

err_t  ethernetif_input(struct netif *netif)

/**
 * Should be called at the beginning of the program to set up the
 * network interface. It calls the function low_level_init() to do the
 * actual setup of the hardware.
 *
 * This function should be passed as a parameter to netif_add().
 *
 * @param netif the lwip network interface structure for this ethernetif
 * @return ERR_OK if the loopif is initialized
 *         ERR_MEM if private data couldn't be allocated
 *         any other err_t on error
 */
err_t
ethernetif_init(struct netif *netif)
{
  struct ethernetif *ethernetif;

  LWIP_ASSERT("netif != NULL", (netif != NULL));

  ethernetif = mem_malloc(sizeof(struct ethernetif));
  if (ethernetif == NULL)
  {
    LWIP_DEBUGF(NETIF_DEBUG, ("ethernetif_init: out of memory\n"));
    return ERR_MEM;
  }

#if LWIP_NETIF_HOSTNAME
  /* Initialize interface hostname */
  netif->hostname = "lwip";
#endif /* LWIP_NETIF_HOSTNAME */

  /*
   * Initialize the snmp variables and counters inside the struct netif.
   * The last argument should be replaced with your link speed, in units
   * of bits per second.
   */
  NETIF_INIT_SNMP(netif, snmp_ifType_ethernet_csmacd, 100000000);

  netif->state = ethernetif;
  netif->name[0] = IFNAME0;
  netif->name[1] = IFNAME1;
  /* We directly use etharp_output() here to save a function call.
   * You can instead declare your own function an call etharp_output()
   * from it if you have to do some checks before sending (e.g. if link
   * is available...) */
  netif->output = etharp_output;
  netif->linkoutput = low_level_output;

  ethernetif->ethaddr = (struct eth_addr *)&(netif->hwaddr[0]);

  /* initialize the hardware */
  low_level_init(netif);

  return ERR_OK;
}

err_t  ethernetif_init(struct netif *netif)

/*******************************************************************************
* Function Name  : ETH_RxPkt_ChainMode
* Description    : Receives a packet.
* Input          : None
* Output         : None
* Return         : frame: farme size and location
*******************************************************************************/
FrameTypeDef ETH_RxPkt_ChainMode(void)
{
  u32 framelength = 0;
  FrameTypeDef frame = {0,0};

  /* Check if the descriptor is owned by the ETHERNET DMA (when set) or CPU (when reset) */
  if((DMARxDescToGet->Status & ETH_DMARxDesc_OWN) != (u32)RESET)
  {
	frame.length = ETH_ERROR;

    if ((ETH->DMASR & ETH_DMASR_RBUS) != (u32)RESET)
    {
      /* Clear RBUS ETHERNET DMA flag */
      ETH->DMASR = ETH_DMASR_RBUS;
      /* Resume DMA reception */
      ETH->DMARPDR = 0;
    }

	/* Return error: OWN bit set */
    return frame;
  }

  if(((DMARxDescToGet->Status & ETH_DMARxDesc_ES) == (u32)RESET) &&
     ((DMARxDescToGet->Status & ETH_DMARxDesc_LS) != (u32)RESET) &&
     ((DMARxDescToGet->Status & ETH_DMARxDesc_FS) != (u32)RESET))
  {
    /* Get the Frame Length of the received packet: substruct 4 bytes of the CRC */
    framelength = ((DMARxDescToGet->Status & ETH_DMARxDesc_FL) >> ETH_DMARxDesc_FrameLengthShift) - 4;

	/* Get the addrees of the actual buffer */
	frame.buffer = DMARxDescToGet->Buffer1Addr;
  }
  else
  {
    /* Return ERROR */
    framelength = ETH_ERROR;
  }

  frame.length = framelength;


  frame.descriptor = DMARxDescToGet;

  /* Update the ETHERNET DMA global Rx descriptor with next Rx decriptor */
  /* Chained Mode */
  /* Selects the next DMA Rx descriptor list for next buffer to read */
  DMARxDescToGet = (ETH_DMADESCTypeDef*) (DMARxDescToGet->Buffer2NextDescAddr);

  /* Return Frame */
  return (frame);
}

/*******************************************************************************
* Function Name  : ETH_TxPkt_ChainMode
* Description    : Transmits a packet, from application buffer, pointed by ppkt.
* Input          : - FrameLength: Tx Packet size.
* Output         : None
* Return         : ETH_ERROR: in case of Tx desc owned by DMA
*                  ETH_SUCCESS: for correct transmission
*******************************************************************************/
u32 ETH_TxPkt_ChainMode(u16 FrameLength)
{
  /* Check if the descriptor is owned by the ETHERNET DMA (when set) or CPU (when reset) */
  if((DMATxDescToSet->Status & ETH_DMATxDesc_OWN) != (u32)RESET)
  {
	/* Return ERROR: OWN bit set */
    return ETH_ERROR;
  }

  /* Setting the Frame Length: bits[12:0] */
  DMATxDescToSet->ControlBufferSize = (FrameLength & ETH_DMATxDesc_TBS1);

  /* Setting the last segment and first segment bits (in this case a frame is transmitted in one descriptor) */
  DMATxDescToSet->Status |= ETH_DMATxDesc_LS | ETH_DMATxDesc_FS;

  /* Set Own bit of the Tx descriptor Status: gives the buffer back to ETHERNET DMA */
  DMATxDescToSet->Status |= ETH_DMATxDesc_OWN;

  /* When Tx Buffer unavailable flag is set: clear it and resume transmission */
  if ((ETH->DMASR & ETH_DMASR_TBUS) != (u32)RESET)
  {
    /* Clear TBUS ETHERNET DMA flag */
    ETH->DMASR = ETH_DMASR_TBUS;
    /* Resume DMA transmission*/
    ETH->DMATPDR = 0;
  }

  /* Update the ETHERNET DMA global Tx descriptor with next Tx decriptor */
  /* Chained Mode */
  /* Selects the next DMA Tx descriptor list for next buffer to send */
  DMATxDescToSet = (ETH_DMADESCTypeDef*) (DMATxDescToSet->Buffer2NextDescAddr);


  /* Return SUCCESS */
  return ETH_SUCCESS;
}


/*******************************************************************************
* Function Name  : ETH_GetCurrentTxBuffer
* Description    : Return the address of the buffer pointed by the current descritor.
* Input          : None
* Output         : None
* Return         : Buffer address
*******************************************************************************/
u32 ETH_GetCurrentTxBuffer(void)
{
  /* Return Buffer address */
  return (DMATxDescToSet->Buffer1Addr);
}

以上，就是 lwip协议栈层，是怎么与STM32底层数据进行传递处理的。

可以看出发送函数 low_level_output() 和接收 low_level_input() 相辅相成，作为与stm32底层连接的两个重要的函数，还需要两个次要的函数， ethernetif_init() 与 low_level_init()

二、驱动移植

主要是ETH的初始化以及对PHY芯片的配置过程

/* Includes ------------------------------------------------------------------*/
#include "stm32_eth.h"
#include "stm32f107.h"

/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/
#define LAN8720A_PHY        /* Ethernet pins mapped on STM3210C-EVAL Board */
#define PHY_ADDRESS       0 /* Relative to STM3210C-EVAL Board */

//#define MII_MODE          /* MII mode for STM3210C-EVAL Board (MB784) (check jumpers setting) */
#define RMII_MODE       /* RMII mode for STM3210C-EVAL Board (MB784) (check jumpers setting) */

/*--------------- LCD Messages ---------------*/
#define MESSAGE1   "     STM32F107      "
#define MESSAGE2   " Connectivity Line  "
#define MESSAGE3   "   * LwIP demos *   "
#define MESSAGE4   "                    "

/* Private macro -------------------------------------------------------------*/
/* Private variables ---------------------------------------------------------*/
/* Private functions ---------------------------------------------------------*/
void GPIO_Configuration(void);
void NVIC_Configuration(void);
void ADC_Configuration(void);
void Ethernet_Configuration(void);

void delay_ms(uint16_t ms)
{
	uint16_t i,j;
	for( i = 0; i < ms; i++ )
	{
		for( j = 0; j < 1141; j++ );
	}
}
/**
  * @brief  Setup STM32 system (clocks, Ethernet, GPIO, NVIC) and STM3210C-EVAL resources.
  * @param  None
  * @retval None
  */
void System_Setup(void)
{
  RCC_ClocksTypeDef RCC_Clocks;

  /* Setup STM32 clock, PLL and Flash configuration) */
  SystemInit();

  /* Enable USART2 clock */
  RCC_APB1PeriphClockCmd(RCC_APB1Periph_USART2, ENABLE);


  /* Enable ETHERNET clock  */
  RCC_AHBPeriphClockCmd(RCC_AHBPeriph_ETH_MAC | RCC_AHBPeriph_ETH_MAC_Tx |
                        RCC_AHBPeriph_ETH_MAC_Rx, ENABLE);

  /* Enable GPIOs and ADC1 clocks */
  RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA | RCC_APB2Periph_GPIOB | RCC_APB2Periph_GPIOC |
                         RCC_APB2Periph_GPIOD | RCC_APB2Periph_GPIOE | RCC_APB2Periph_AFIO, ENABLE);

  /* NVIC configuration */
  NVIC_Configuration();

  /* Configure the GPIO ports */
  GPIO_Configuration();

  /* Configure the Ethernet peripheral */
  Ethernet_Configuration();

  /* SystTick configuration: an interrupt every 10ms */
  RCC_GetClocksFreq(&RCC_Clocks);
  SysTick_Config(RCC_Clocks.SYSCLK_Frequency / 100);

  /* Update the SysTick IRQ priority should be higher than the Ethernet IRQ */
  /* The Localtime should be updated during the Ethernet packets processing */
  NVIC_SetPriority (SysTick_IRQn, 1);
  }

/**
  * @brief  Configures the Ethernet Interface
  * @param  None
  * @retval None
  */
void Ethernet_Configuration(void)
{
  ETH_InitTypeDef ETH_InitStructure;

  /* MII/RMII Media interface selection ------------------------------------------*/
#ifdef MII_MODE /* Mode MII with STM3210C-EVAL  */
  GPIO_ETH_MediaInterfaceConfig(GPIO_ETH_MediaInterface_MII);

  /* Get HSE clock = 25MHz on PA8 pin (MCO) */
  RCC_MCOConfig(RCC_MCO_HSE);

#elif defined RMII_MODE  /* Mode RMII with STM3210C-EVAL */
  GPIO_ETH_MediaInterfaceConfig(GPIO_ETH_MediaInterface_RMII);
    /* Set PLL3 clock output to 50MHz (25MHz /5 *10 =50MHz) */
  RCC_PLL3Config(RCC_PLL3Mul_10);
  /* Enable PLL3 */
  RCC_PLL3Cmd(ENABLE);
  /* Wait till PLL3 is ready */
  while (RCC_GetFlagStatus(RCC_FLAG_PLL3RDY) == RESET)
  {}

  /* Get PLL3 clock on PA8 pin (MCO) */
  RCC_MCOConfig(RCC_MCO_PLL3CLK);

#endif

  /* Reset ETHERNET on AHB Bus */
  ETH_DeInit();

  /* Software reset */
  ETH_SoftwareReset();

  /* Wait for software reset */
  while (ETH_GetSoftwareResetStatus() == SET);

  /* ETHERNET Configuration ------------------------------------------------------*/
  /* Call ETH_StructInit if you don't like to configure all ETH_InitStructure parameter */
  ETH_StructInit(&ETH_InitStructure);

  /* Fill ETH_InitStructure parametrs */
  /*------------------------   MAC   -----------------------------------*/
  ETH_InitStructure.ETH_AutoNegotiation = ETH_AutoNegotiation_Enable  ;
  ETH_InitStructure.ETH_LoopbackMode = ETH_LoopbackMode_Disable;
  ETH_InitStructure.ETH_RetryTransmission = ETH_RetryTransmission_Disable;
  ETH_InitStructure.ETH_AutomaticPadCRCStrip = ETH_AutomaticPadCRCStrip_Disable;
  ETH_InitStructure.ETH_ReceiveAll = ETH_ReceiveAll_Disable;
  ETH_InitStructure.ETH_BroadcastFramesReception = ETH_BroadcastFramesReception_Enable;
  ETH_InitStructure.ETH_PromiscuousMode = ETH_PromiscuousMode_Disable;
  ETH_InitStructure.ETH_MulticastFramesFilter = ETH_MulticastFramesFilter_Perfect;
  ETH_InitStructure.ETH_UnicastFramesFilter = ETH_UnicastFramesFilter_Perfect;
#ifdef CHECKSUM_BY_HARDWARE
  ETH_InitStructure.ETH_ChecksumOffload = ETH_ChecksumOffload_Enable;
#endif

  /*------------------------   DMA   -----------------------------------*/

  /* When we use the Checksum offload feature, we need to enable the Store and Forward mode:
  the store and forward guarantee that a whole frame is stored in the FIFO, so the MAC can insert/verify the checksum,
  if the checksum is OK the DMA can handle the frame otherwise the frame is dropped */
  ETH_InitStructure.ETH_DropTCPIPChecksumErrorFrame = ETH_DropTCPIPChecksumErrorFrame_Enable;
  ETH_InitStructure.ETH_ReceiveStoreForward = ETH_ReceiveStoreForward_Enable;
  ETH_InitStructure.ETH_TransmitStoreForward = ETH_TransmitStoreForward_Enable;

  ETH_InitStructure.ETH_ForwardErrorFrames = ETH_ForwardErrorFrames_Disable;
  ETH_InitStructure.ETH_ForwardUndersizedGoodFrames = ETH_ForwardUndersizedGoodFrames_Disable;
  ETH_InitStructure.ETH_SecondFrameOperate = ETH_SecondFrameOperate_Enable;
  ETH_InitStructure.ETH_AddressAlignedBeats = ETH_AddressAlignedBeats_Enable;
  ETH_InitStructure.ETH_FixedBurst = ETH_FixedBurst_Enable;
  ETH_InitStructure.ETH_RxDMABurstLength = ETH_RxDMABurstLength_32Beat;
  ETH_InitStructure.ETH_TxDMABurstLength = ETH_TxDMABurstLength_32Beat;
  ETH_InitStructure.ETH_DMAArbitration = ETH_DMAArbitration_RoundRobin_RxTx_2_1;

  /* Configure Ethernet */
  ETH_Init(&ETH_InitStructure, PHY_ADDRESS);

  /* Enable the Ethernet Rx Interrupt */
  ETH_DMAITConfig(ETH_DMA_IT_NIS | ETH_DMA_IT_R, ENABLE);

}

/**
  * @brief  Configures the different GPIO ports.
  * @param  None
  * @retval None
  */
void GPIO_Configuration(void)
{
  GPIO_InitTypeDef GPIO_InitStructure;

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_0 | GPIO_Pin_1 | GPIO_Pin_2;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
  GPIO_Init(GPIOE, &GPIO_InitStructure);

	GPIO_SetBits(GPIOE,GPIO_Pin_0 | GPIO_Pin_1 | GPIO_Pin_2);
	GPIO_ResetBits(GPIOE,GPIO_Pin_2);

  /* ETHERNET pins configuration */
  /* AF Output Push Pull:
  - ETH_MII_MDIO / ETH_RMII_MDIO: PA2
  - ETH_MII_MDC / ETH_RMII_MDC: PC1
  - ETH_MII_TXD2: PC2
  - ETH_MII_TX_EN / ETH_RMII_TX_EN: PB11
  - ETH_MII_TXD0 / ETH_RMII_TXD0: PB12
  - ETH_MII_TXD1 / ETH_RMII_TXD1: PB13
  - ETH_MII_PPS_OUT / ETH_RMII_PPS_OUT: PB5
  - ETH_MII_TXD3: PB8 */

  /* Configure PA2 as alternate function push-pull */
  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_2;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
  GPIO_Init(GPIOA, &GPIO_InitStructure);

  /* Configure PC1 as alternate function push-pull */
  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1 ;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
  GPIO_Init(GPIOC, &GPIO_InitStructure);

  /* Configure PB11, PB12 and PB13 as alternate function push-pull */
  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_11 |GPIO_Pin_12 | GPIO_Pin_13;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
  GPIO_Init(GPIOB, &GPIO_InitStructure);


  /* Configure PA0, PA1 and PA3 as input */
  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_0 | GPIO_Pin_1 | GPIO_Pin_3;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
  GPIO_Init(GPIOA, &GPIO_InitStructure);

  /* Configure PB10 as input */
  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_10;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
  GPIO_Init(GPIOB, &GPIO_InitStructure);

  /* Configure PC3 as input */
  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_3;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
  GPIO_Init(GPIOC, &GPIO_InitStructure);



	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_4 | GPIO_Pin_5 ;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
  GPIO_Init(GPIOC, &GPIO_InitStructure);

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_3 ;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
  GPIO_Init(GPIOA, &GPIO_InitStructure);


	 GPIO_ResetBits(GPIOA,GPIO_Pin_3);
 /// LAN8720_RST=0;					//硬件复位LAN8720
	delay_ms(500);
	GPIO_SetBits(GPIOA,GPIO_Pin_3);
}


void NVIC_Configuration(void)
{
  NVIC_InitTypeDef   NVIC_InitStructure;

  /* Set the Vector Table base location at 0x08000000 */
  NVIC_SetVectorTable(NVIC_VectTab_FLASH, 0x0);

  /* 2 bit for pre-emption priority, 2 bits for subpriority */
  NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);

  /* Enable the Ethernet global Interrupt */
  NVIC_InitStructure.NVIC_IRQChannel = ETH_IRQn;
  NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 2;
  NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0;
  NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
  NVIC_Init(&NVIC_InitStructure);


ETH工作模式、MCU的GPIO管脚配置（stm32f107.c）

void ETH_IRQHandler(void)
{
  /* Handles all the received frames */
  while(ETH_GetRxPktSize() != 0)
  {
    LwIP_Pkt_Handle();
  }

  /* Clear the Eth DMA Rx IT pending bits */
  ETH_DMAClearITPendingBit(ETH_DMA_IT_R);
  ETH_DMAClearITPendingBit(ETH_DMA_IT_NIS);
}

增加以太网中断处理函数   ETH_IRQHandler （stm32f10x_it.c）

/** @defgroup PHY_basic_status_register
  * @{
  */
#define PHY_AutoNego_Complete           ((u16)0x0020)      /*!< Auto-Negotioation process completed */
#define PHY_Linked_Status               ((u16)0x0004)      /*!< Valid link established */
#define PHY_Jabber_detection            ((u16)0x0002)      /*!< Jabber condition detected */


/** @defgroup PHY_status_register
  * @{
  */
/* The PHY status register value change from a PHY to another so the user have
   to update this value depending on the used external PHY */
/**
  * @brief  For LAN8700
  */
#define PHY_SR                           31         /*!< Tranceiver Status Register */
/**
  * @brief  For DP83848
  */
//#define PHY_SR                           16     /*!< Tranceiver Status Register */

/* The Speed and Duplex mask values change from a PHY to another so the user have to update
   this value depending on the used external PHY */
/**
  * @brief  For LAN8700
  */
#define PHY_Speed_Status            ((u16)0x0004)       /*!< Configured information of Speed: 10Mbps */
#define PHY_Duplex_Status           ((u16)0x0010)       /*!< Configured information of Duplex: Full-duplex */

/**
  * @brief  For DP83848
  */
//#define PHY_Speed_Status            ((u16)0x0002)    /*!< Configured information of Speed: 10Mbps */
//#define PHY_Duplex_Status           ((u16)0x0004)    /*!< Configured information of Duplex: Full-duplex */

PHY芯片的配置（stm32_eth.h）
