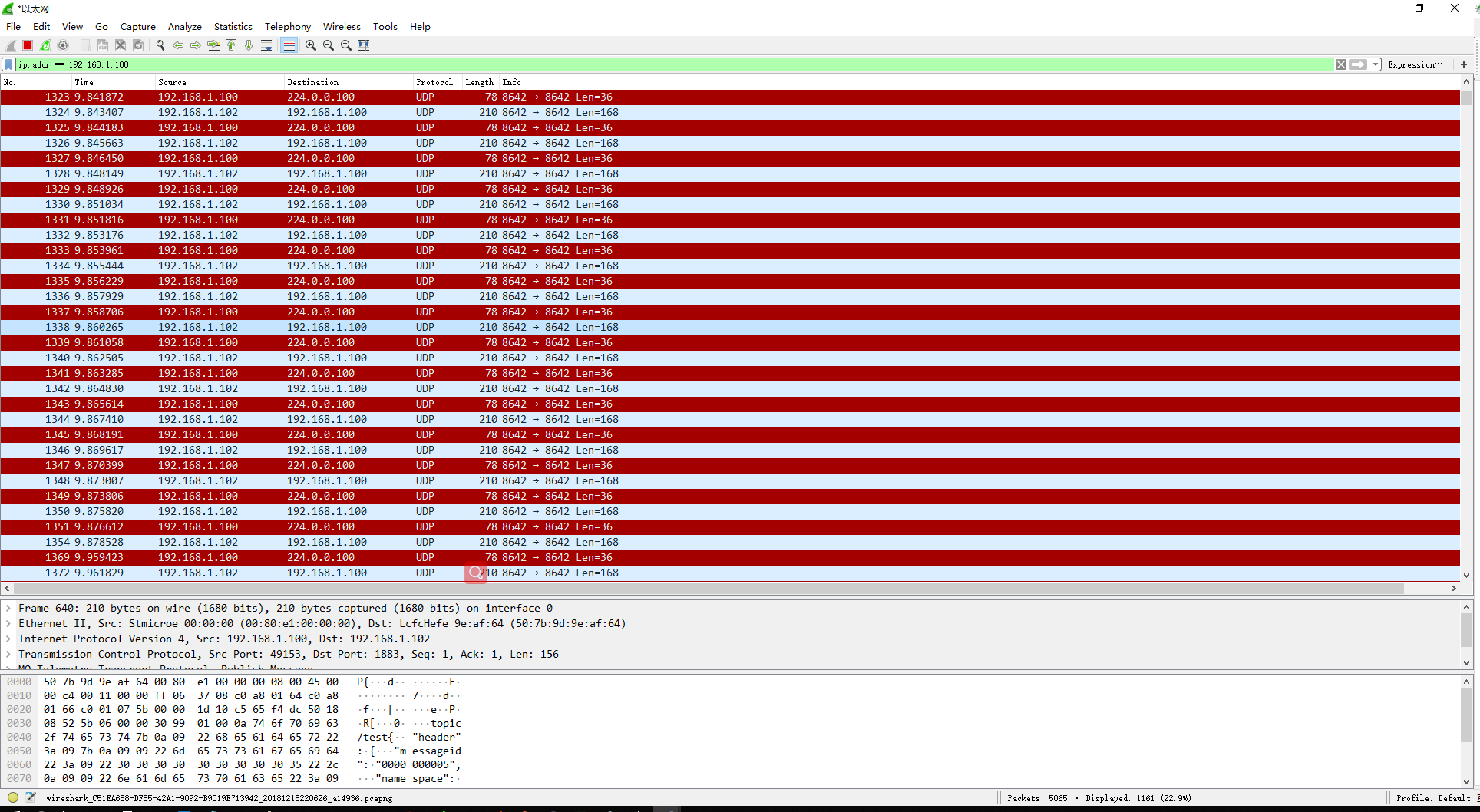

最近在做一个基于stm32f107 实现 UDP 组播通信的项目，项目基于 stm32cube 配置生成，如下图：
UDP组播头文件：
#ifndef __MULTICAST_H__
#define __MULTICAST_H__
#include "lwip/udp.h"
#include "lwip/pbuf.h"
#include "lwip/igmp.h"
#include "User.h"
/*port */
#define UDP_MULTICASE_RECV_PORT 8642 // multicast port for recive
#define UDP_MULTICASE_SEND_PORT 8642 // multicast port for send
#define MULTUDP_BUF_SIZE 2048
extern struct udp_pcb* udp_server_multi_pcb; //组播PCB控制块
extern ip4_addr_t ipgroup_rev,ipgroup_send;
void multicast_send_data(unsigned char * data,unsigned short len);
void udp_server_rev(void *arg, struct udp_pcb *pcb, struct pbuf *p,const ip_addr_t *addr, u16_t port);
void Multicast_Config( void );
void MulticastUDP_SendTest(void);
#endif /* __MULTICAST_H__ */
UDP组播C文件：
/**
******************************************************************************
* @file udp_echoserver.c
* @author MCD Application Team
* @version V1.1.0
* @date 31-July-2013
* @brief UDP echo server
******************************************************************************
* @attention
*
* <h2><center>© COPYRIGHT 2013 STMicroelectronics</center></h2>
*
* Licensed under MCD-ST Liberty SW License Agreement V2, (the "License");
* You may not use this file except in compliance with the License.
* You may obtain a copy of the License at:
*
* http://www.st.com/software_license_agreement_liberty_v2
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*
******************************************************************************
*/
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "lwip/pbuf.h"
#include "lwip/udp.h"
#include "lwip/tcp.h"
#include "lwip.h"
#include <string.h>
#include <stdio.h>
#include "multicast.h"
#include "User.h"
#define PRINT(...)
/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/
struct udp_pcb* udp_server_multi_pcb; // 组播PCB控制块
ip4_addr_t ipgroup_rev,ipgroup_send;
// UDP发送
void multicast_send_data(unsigned char * data,unsigned short len)
{
struct pbuf *p = pbuf_alloc(PBUF_TRANSPORT,len, PBUF_RAM);
memcpy(p->payload, data, len);
udp_sendto(udp_server_multi_pcb, p,&ipgroup_send,UDP_MULTICASE_SEND_PORT);
pbuf_free(p);
}
// 组播接收，回调函数
void udp_server_rev(void *arg, struct udp_pcb *pcb, struct pbuf *p,const ip_addr_t *addr, u16_t port)
{
#if 1
ProtoFrame_t UdpRxTemp;
if( p != NULL )
{
if( p->tot_len >= sizeof(ProtoFrame_t) )
memcpy( (void *)&UdpRxTemp, p->payload, sizeof(ProtoFrame_t) );
else memcpy( (void *)&UdpRxTemp,p ->payload,p->tot_len );
// 校验数据是否符合协议
if( (FrameCheck(&UdpRxTemp) == 1) || (FrameCheck(&UdpRxTemp) == 2) )
{
UdpRxCmd[UdpRxCmdWrite] = UdpRxTemp;
UdpRxCmdWrite = (UdpRxCmdWrite+1)%MAX_CMD_BUFF;
}
if( FrameCheck(&UdpRxTemp) > 1 ) // 转发数据到 485
{
TxCmd[TxCmdWrite] = UdpRxTemp;
TxCmdWrite = (TxCmdWrite+1)%MAX_CMD_BUFF;
}
/* Free the p buffer */
pbuf_free(p);
}
#else
// 回显功能
/* Connect to the remote client */
udp_connect(pcb, addr, UDP_MULTICASE_SEND_PORT);
/* Tell the client that we have accepted it */
//udp_send(pcb, p);
udp_sendto(pcb, p,&ipgroup_send,UDP_MULTICASE_SEND_PORT);
/* free the UDP connection, so we can accept new clients */
udp_disconnect(pcb);
/* Free the p buffer */
pbuf_free(p);
#endif
}
void Multicast_Config( void )
{
err_t err;
IP4_ADDR(&ipgroup_rev, 224,0,0,100); // 用于接收组播的地址
IP4_ADDR(&ipgroup_send, 224,0,0,100); // 用于发送组播的地址
#if LWIP_IGMP
igmp_joingroup(IP_ADDR_ANY,&ipgroup_rev); // 只需要将接收地址放入igmp组，发送的不需要
#endif
udp_server_multi_pcb = udp_new();
if ( udp_server_multi_pcb )
{
/* Bind the upcb to the UDP_PORT port */
/* Using IP_ADDR_ANY allow the upcb to be used by any local interface */
err = udp_bind(udp_server_multi_pcb,IP_ADDR_ANY,UDP_MULTICASE_RECV_PORT);
if(err == ERR_OK)
{
/* Set a receive callback for the upcb */
udp_recv(udp_server_multi_pcb,udp_server_rev,NULL);
}
else
{
udp_remove(udp_server_multi_pcb);
PRINT("can not bind pcb");
}
}
else
{
PRINT("can not create pcb");
}
}
// 测试发送的方法
void MulticastUDP_SendTest(void)
{
multicast_send_data("igmp test\r\n",11 );
}
/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/
注意，我在做好上面的代码后发现，能实现UDP发送，但收到不信号，经过多方查找发现是因为网络接口配置有些问题，

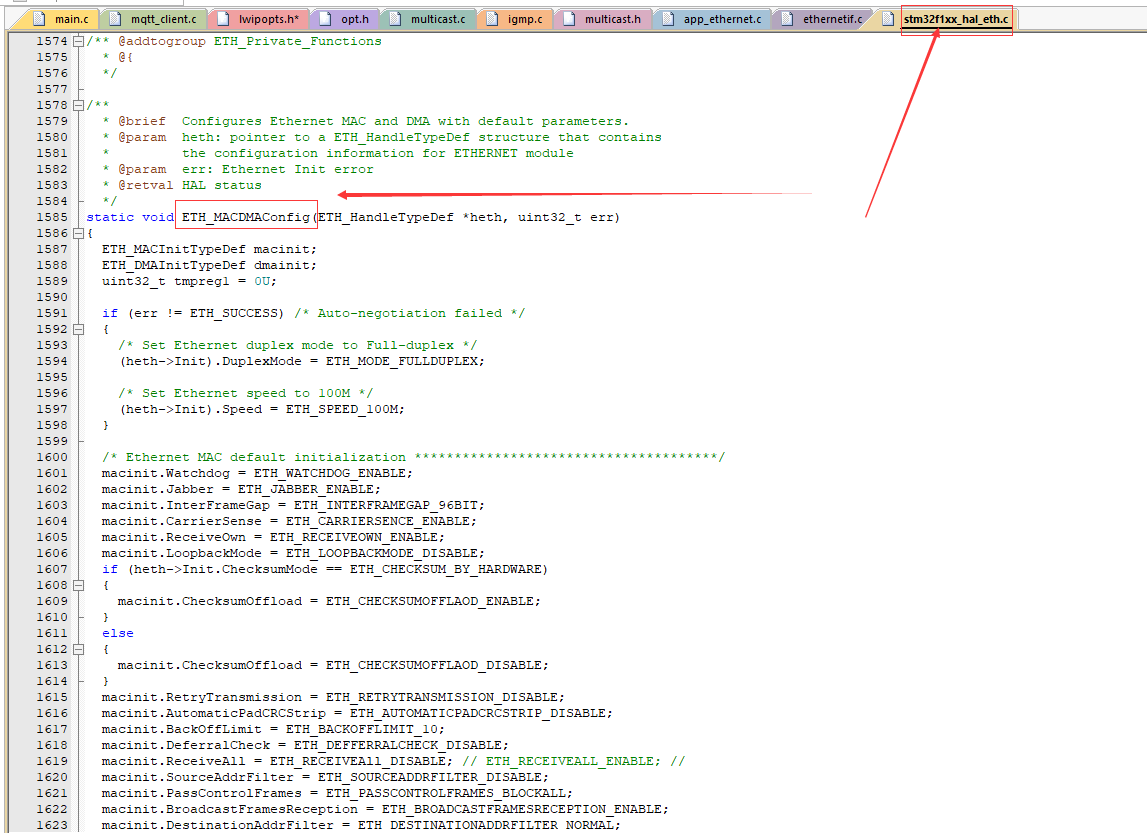

找到stm32f1xx_hal_eth.c文件中的 ETH_MACDMAConfig 函数 ，如下图，将代码改成：
/**
* @brief Configures Ethernet MAC and DMA with default parameters.
* @param heth: pointer to a ETH_HandleTypeDef structure that contains
* the configuration information for ETHERNET module
* @param err: Ethernet Init error
* @retval HAL status
*/
static void ETH_MACDMAConfig(ETH_HandleTypeDef *heth, uint32_t err)
{
ETH_MACInitTypeDef macinit;
ETH_DMAInitTypeDef dmainit;
uint32_t tmpreg1 = 0U;
if (err != ETH_SUCCESS) /* Auto-negotiation failed */
{
/* Set Ethernet duplex mode to Full-duplex */
(heth->Init).DuplexMode = ETH_MODE_FULLDUPLEX;
/* Set Ethernet speed to 100M */
(heth->Init).Speed = ETH_SPEED_100M;
}
/* Ethernet MAC default initialization **************************************/
macinit.Watchdog = ETH_WATCHDOG_ENABLE;
macinit.Jabber = ETH_JABBER_ENABLE;
macinit.InterFrameGap = ETH_INTERFRAMEGAP_96BIT;
macinit.CarrierSense = ETH_CARRIERSENCE_ENABLE;
macinit.ReceiveOwn = ETH_RECEIVEOWN_ENABLE;
macinit.LoopbackMode = ETH_LOOPBACKMODE_DISABLE;
if (heth->Init.ChecksumMode == ETH_CHECKSUM_BY_HARDWARE)
{
macinit.ChecksumOffload = ETH_CHECKSUMOFFLAOD_ENABLE;
}
else
{
macinit.ChecksumOffload = ETH_CHECKSUMOFFLAOD_DISABLE;
}
macinit.RetryTransmission = ETH_RETRYTRANSMISSION_DISABLE;
macinit.AutomaticPadCRCStrip = ETH_AUTOMATICPADCRCSTRIP_DISABLE;
macinit.BackOffLimit = ETH_BACKOFFLIMIT_10;
macinit.DeferralCheck = ETH_DEFFERRALCHECK_DISABLE;
macinit.ReceiveAll = ETH_RECEIVEAll_DISABLE; // ETH_RECEIVEALL_ENABLE; //
macinit.SourceAddrFilter = ETH_SOURCEADDRFILTER_DISABLE;
macinit.PassControlFrames = ETH_PASSCONTROLFRAMES_BLOCKALL;
macinit.BroadcastFramesReception = ETH_BROADCASTFRAMESRECEPTION_ENABLE;
macinit.DestinationAddrFilter = ETH_DESTINATIONADDRFILTER_NORMAL;
macinit.PromiscuousMode = ETH_PROMISCUOUS_MODE_DISABLE;
macinit.MulticastFramesFilter = ETH_MULTICASTFRAMESFILTER_NONE; // ETH_MULTICASTFRAMESFILTER_PERFECT;
macinit.UnicastFramesFilter = ETH_UNICASTFRAMESFILTER_PERFECT;
macinit.HashTableHigh = 0x0U;
macinit.HashTableLow = 0x0U;
macinit.PauseTime = 0x0U;
macinit.ZeroQuantaPause = ETH_ZEROQUANTAPAUSE_DISABLE;
macinit.PauseLowThreshold = ETH_PAUSELOWTHRESHOLD_MINUS4;
macinit.UnicastPauseFrameDetect = ETH_UNICASTPAUSEFRAMEDETECT_DISABLE;
macinit.ReceiveFlowControl = ETH_RECEIVEFLOWCONTROL_DISABLE;
macinit.TransmitFlowControl = ETH_TRANSMITFLOWCONTROL_DISABLE;
macinit.VLANTagComparison = ETH_VLANTAGCOMPARISON_16BIT;
macinit.VLANTagIdentifier = 0x0U;
/*------------------------ ETHERNET MACCR Configuration --------------------*/
/* Get the ETHERNET MACCR value */
tmpreg1 = (heth->Instance)->MACCR;
/* Clear WD, PCE, PS, TE and RE bits */
tmpreg1 &= ETH_MACCR_CLEAR_MASK;
/* Set the WD bit according to ETH Watchdog value */
/* Set the JD: bit according to ETH Jabber value */
/* Set the IFG bit according to ETH InterFrameGap value */
/* Set the DCRS bit according to ETH CarrierSense value */
/* Set the FES bit according to ETH Speed value */
/* Set the DO bit according to ETH ReceiveOwn value */
/* Set the LM bit according to ETH LoopbackMode value */
/* Set the DM bit according to ETH Mode value */
/* Set the IPCO bit according to ETH ChecksumOffload value */
/* Set the DR bit according to ETH RetryTransmission value */
/* Set the ACS bit according to ETH AutomaticPadCRCStrip value */
/* Set the BL bit according to ETH BackOffLimit value */
/* Set the DC bit according to ETH DeferralCheck value */
tmpreg1 |= (uint32_t)(macinit.Watchdog |
macinit.Jabber |
macinit.InterFrameGap |
macinit.CarrierSense |
(heth->Init).Speed |
macinit.ReceiveOwn |
macinit.LoopbackMode |
(heth->Init).DuplexMode |
macinit.ChecksumOffload |
macinit.RetryTransmission |
macinit.AutomaticPadCRCStrip |
macinit.BackOffLimit |
macinit.DeferralCheck);
/* Write to ETHERNET MACCR */
(heth->Instance)->MACCR = (uint32_t)tmpreg1;
/* Wait until the write operation will be taken into account:
at least four TX_CLK/RX_CLK clock cycles */
tmpreg1 = (heth->Instance)->MACCR;
HAL_Delay(ETH_REG_WRITE_DELAY);
(heth->Instance)->MACCR = tmpreg1;
/*----------------------- ETHERNET MACFFR Configuration --------------------*/
/* Set the RA bit according to ETH ReceiveAll value */
/* Set the SAF and SAIF bits according to ETH SourceAddrFilter value */
/* Set the PCF bit according to ETH PassControlFrames value */
/* Set the DBF bit according to ETH BroadcastFramesReception value */
/* Set the DAIF bit according to ETH DestinationAddrFilter value */
/* Set the PR bit according to ETH PromiscuousMode value */
/* Set the PM, HMC and HPF bits according to ETH MulticastFramesFilter value */
/* Set the HUC and HPF bits according to ETH UnicastFramesFilter value */
/* Write to ETHERNET MACFFR */
(heth->Instance)->MACFFR = (uint32_t)(macinit.ReceiveAll |
macinit.SourceAddrFilter |
macinit.PassControlFrames |
macinit.BroadcastFramesReception |
macinit.DestinationAddrFilter |
macinit.PromiscuousMode |
macinit.MulticastFramesFilter |
macinit.UnicastFramesFilter);
/* Wait until the write operation will be taken into account:
at least four TX_CLK/RX_CLK clock cycles */
tmpreg1 = (heth->Instance)->MACFFR;
HAL_Delay(ETH_REG_WRITE_DELAY);
(heth->Instance)->MACFFR = tmpreg1;
/*--------------- ETHERNET MACHTHR and MACHTLR Configuration --------------*/
/* Write to ETHERNET MACHTHR */
(heth->Instance)->MACHTHR = (uint32_t)macinit.HashTableHigh;
/* Write to ETHERNET MACHTLR */
(heth->Instance)->MACHTLR = (uint32_t)macinit.HashTableLow;
/*----------------------- ETHERNET MACFCR Configuration -------------------*/
/* Get the ETHERNET MACFCR value */
tmpreg1 = (heth->Instance)->MACFCR;
/* Clear xx bits */
tmpreg1 &= ETH_MACFCR_CLEAR_MASK;
/* Set the PT bit according to ETH PauseTime value */
/* Set the DZPQ bit according to ETH ZeroQuantaPause value */
/* Set the PLT bit according to ETH PauseLowThreshold value */
/* Set the UP bit according to ETH UnicastPauseFrameDetect value */
/* Set the RFE bit according to ETH ReceiveFlowControl value */
/* Set the TFE bit according to ETH TransmitFlowControl value */
tmpreg1 |= (uint32_t)((macinit.PauseTime << 16U) |
macinit.ZeroQuantaPause |
macinit.PauseLowThreshold |
macinit.UnicastPauseFrameDetect |
macinit.ReceiveFlowControl |
macinit.TransmitFlowControl);
/* Write to ETHERNET MACFCR */
(heth->Instance)->MACFCR = (uint32_t)tmpreg1;
/* Wait until the write operation will be taken into account:
at least four TX_CLK/RX_CLK clock cycles */
tmpreg1 = (heth->Instance)->MACFCR;
HAL_Delay(ETH_REG_WRITE_DELAY);
(heth->Instance)->MACFCR = tmpreg1;
/*----------------------- ETHERNET MACVLANTR Configuration ----------------*/
/* Set the ETV bit according to ETH VLANTagComparison value */
/* Set the VL bit according to ETH VLANTagIdentifier value */
(heth->Instance)->MACVLANTR = (uint32_t)(macinit.VLANTagComparison |
macinit.VLANTagIdentifier);
/* Wait until the write operation will be taken into account:
at least four TX_CLK/RX_CLK clock cycles */
tmpreg1 = (heth->Instance)->MACVLANTR;
HAL_Delay(ETH_REG_WRITE_DELAY);
(heth->Instance)->MACVLANTR = tmpreg1;
/* Ethernet DMA default initialization ************************************/
dmainit.DropTCPIPChecksumErrorFrame = ETH_DROPTCPIPCHECKSUMERRORFRAME_ENABLE;
dmainit.ReceiveStoreForward = ETH_RECEIVESTOREFORWARD_ENABLE;
dmainit.FlushReceivedFrame = ETH_FLUSHRECEIVEDFRAME_ENABLE;
dmainit.TransmitStoreForward = ETH_TRANSMITSTOREFORWARD_ENABLE;
dmainit.TransmitThresholdControl = ETH_TRANSMITTHRESHOLDCONTROL_64BYTES;
dmainit.ForwardErrorFrames = ETH_FORWARDERRORFRAMES_DISABLE;
dmainit.ForwardUndersizedGoodFrames = ETH_FORWARDUNDERSIZEDGOODFRAMES_DISABLE;
dmainit.ReceiveThresholdControl = ETH_RECEIVEDTHRESHOLDCONTROL_64BYTES;
dmainit.SecondFrameOperate = ETH_SECONDFRAMEOPERARTE_ENABLE;
dmainit.AddressAlignedBeats = ETH_ADDRESSALIGNEDBEATS_ENABLE;
dmainit.FixedBurst = ETH_FIXEDBURST_ENABLE;
dmainit.RxDMABurstLength = ETH_RXDMABURSTLENGTH_32BEAT;
dmainit.TxDMABurstLength = ETH_TXDMABURSTLENGTH_32BEAT;
dmainit.DescriptorSkipLength = 0x0U;
dmainit.DMAArbitration = ETH_DMAARBITRATION_ROUNDROBIN_RXTX_1_1;
/* Get the ETHERNET DMAOMR value */
tmpreg1 = (heth->Instance)->DMAOMR;
/* Clear xx bits */
tmpreg1 &= ETH_DMAOMR_CLEAR_MASK;
/* Set the DT bit according to ETH DropTCPIPChecksumErrorFrame value */
/* Set the RSF bit according to ETH ReceiveStoreForward value */
/* Set the DFF bit according to ETH FlushReceivedFrame value */
/* Set the TSF bit according to ETH TransmitStoreForward value */
/* Set the TTC bit according to ETH TransmitThresholdControl value */
/* Set the FEF bit according to ETH ForwardErrorFrames value */
/* Set the FUF bit according to ETH ForwardUndersizedGoodFrames value */
/* Set the RTC bit according to ETH ReceiveThresholdControl value */
/* Set the OSF bit according to ETH SecondFrameOperate value */
tmpreg1 |= (uint32_t)(dmainit.DropTCPIPChecksumErrorFrame |
dmainit.ReceiveStoreForward |
dmainit.FlushReceivedFrame |
dmainit.TransmitStoreForward |
dmainit.TransmitThresholdControl |
dmainit.ForwardErrorFrames |
dmainit.ForwardUndersizedGoodFrames |
dmainit.ReceiveThresholdControl |
dmainit.SecondFrameOperate);
/* Write to ETHERNET DMAOMR */
(heth->Instance)->DMAOMR = (uint32_t)tmpreg1;
/* Wait until the write operation will be taken into account:
at least four TX_CLK/RX_CLK clock cycles */
tmpreg1 = (heth->Instance)->DMAOMR;
HAL_Delay(ETH_REG_WRITE_DELAY);
(heth->Instance)->DMAOMR = tmpreg1;
/*----------------------- ETHERNET DMABMR Configuration ------------------*/
/* Set the AAL bit according to ETH AddressAlignedBeats value */
/* Set the FB bit according to ETH FixedBurst value */
/* Set the RPBL and 4*PBL bits according to ETH RxDMABurstLength value */
/* Set the PBL and 4*PBL bits according to ETH TxDMABurstLength value */
/* Set the DSL bit according to ETH DesciptorSkipLength value */
/* Set the PR and DA bits according to ETH DMAArbitration value */
(heth->Instance)->DMABMR = (uint32_t)(dmainit.AddressAlignedBeats |
dmainit.FixedBurst |
dmainit.RxDMABurstLength | /* !! if 4xPBL is selected for Tx or Rx it is applied for the other */
dmainit.TxDMABurstLength |
(dmainit.DescriptorSkipLength << 2U) |
dmainit.DMAArbitration |
ETH_DMABMR_USP); /* Enable use of separate PBL for Rx and Tx */
/* Wait until the write operation will be taken into account:
at least four TX_CLK/RX_CLK clock cycles */
tmpreg1 = (heth->Instance)->DMABMR;
HAL_Delay(ETH_REG_WRITE_DELAY);
(heth->Instance)->DMABMR = tmpreg1;
if ((heth->Init).RxMode == ETH_RXINTERRUPT_MODE)
{
/* Enable the Ethernet Rx Interrupt */
__HAL_ETH_DMA_ENABLE_IT((heth), ETH_DMA_IT_NIS | ETH_DMA_IT_R);
}
/* Initialize MAC address in ethernet MAC */
ETH_MACAddressConfig(heth, ETH_MAC_ADDRESS0, heth->Init.MACAddr);
}
这样就可以正常收到组播端口发来的数据了！！
而且实际发现，在我改了st32f1xx_hal_eth.c 中函数 后， LWIP_IGMP 宏即使为 0 也可以实现组播通信！！
代码量比开启 LWIP_IGMP 宏少了 2K 左右。但是就是所有的组播地址中的数据都会被收到，如果要针对某一地址进行组播通信， LWIP_IGMP 宏还是要设为1才行。
