SPI主机实现
一、硬件层
（1）外部引线
SPI通信的最小结构为一主一从结构，主机向从机提供信号发送接收时钟SCLK。主机与从机之间存有四根引线，即MOSI（主收从发）、MISO（主发从收）、SCK（通信时钟）、CS（从机片选信号）。其中，通过在主机上增加片选信号输出端的数目，或引入编码，译码结构可以使得主机控制更多的从机，实现一主多从的SPI通信。本设计中默认为一主一从最小结构。
（2）四种工作模式

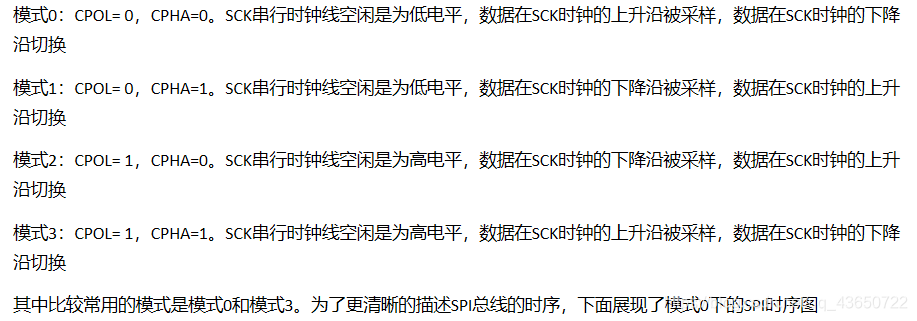

SPI通信协议规定了4钟工作模式，在实际应用中应当保证主机和从机工作在相同的工作模式下。SPI工作模式通过时钟极性CPOL和时钟相位CPHA联合指定。其中CPOL指定SCK在空闲状态时的电平，CPHA指定在SCK的何种边缘进行数据采样。其标识如下：
二、FPGA代码实现
（1）思路
SPI模式0主机控制器在SCK上升沿时对数据进行采样。由于在时钟上升沿进行数据采样，那么，接收/发送状态机的状态应当早于SCK时钟上升沿提前准备好接收/发送状态，也就是说在低电平期间就需要准备好
对于发送状态机，由于数据在SCK时钟的下降沿进行状态变换，又因为从机在上升沿采样，因此选择在SCK的低电平中心将需发送的数据压至MOSI线上。
对于接收状态机，同样采用SCK下降沿进行状态跳变。接收状态机在SCK上升沿时将数据采集至接收缓冲口，并在采集完一字节数据后生成信号标志脉冲。
对于SPI主机控制器，另一个重要的模块是控制模块，它是用来生成SCK时钟与CS片选信号的模块。由于本文设计只有一个从机，因此只单纯的控制CS的电平。SCK时钟的生成也是依靠状态机，其机理为当状态机处于IDLE空闲状态时，检测到读/写请求，在时钟相位变为下降沿时进入工作状态，并输出8个完整的SCK时钟。此后，状态机转入STOP状态，并在一个周期内检测是否有新的请求信号到来，若无抵达空闲状态，若有，转入工作状态。
（2）代码实现
宏定义文件
//////////////////////////////////////////////////////////////////////////////////
// Company: NanJing University of Information Science & Technology
// Engineer: Yang Cheng Yu
//
// Create Date: 2020/01/13 20:01:50
// Design Name: spi_master
// Module Name: global_define
// Project Name: SPI2
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
`define SCK_PEDG (phase==9'd499)//默认使用100KHZ的频率，50M/100k = 500
`define SCK_HIGH (phase==9'd124)
`define SCK_NEDG (phase==9'd249)
`define SCK_LOW (phase==9'd374)
控制模块
`include "global_definition.v"
//////////////////////////////////////////////////////////////////////////////////
// Company: NanJing University of Information Science & Technology
// Engineer: Yang Cheng Yu
//
// Create Date: 2020/01/13 20:01:50
// Design Name: spi_master
// Module Name: control_module
// Project Name: SPI2
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module control_module(
input clk,
input rst,
output reg sck,
output reg cs_n,
output reg[8:0] phase,
input wr_req,
input rd_req,
output reg[3:0] cnt//位数计数器
);
reg[1:0] state;
reg[1:0] next_state;
localparam IDLE=2'b00;
localparam WORK=2'b01;
localparam STOP=2'b11;
always@(posedge clk or negedge rst)begin
if(!rst)
phase <= 9'd0;
else
if(phase==9'd499)
phase <= 9'd0;
else
phase <= phase + 1'b1;
end
//状态机状态转移逻辑
always@(posedge clk or negedge rst)begin
if(!rst)
state <= IDLE;
else
if(`SCK_NEDG)
state <= next_state;
else
state <= state;
end
//状态组合判断
always@(wr_req or rd_req or cnt)begin
case(state)
IDLE:
if(wr_req||rd_req)
next_state <= WORK;
else
next_state <= IDLE;
WORK:
if(cnt==4'd8)
next_state <= STOP;
else
next_state <= WORK;
STOP:
if(wr_req||rd_req)
next_state <= WORK;
else
next_state <= IDLE;
default:
next_state <= IDLE;
endcase
end
//状态机输出
always@(posedge clk or negedge rst)begin
if(!rst)begin
sck <= 1'b0;
cs_n <= 1'b1;
cnt <= 4'd0;
end
else begin
case(state)
IDLE:begin
sck <= 1'b0;
cs_n <= 1'b1;
cnt <= 4'd0;
end
WORK:begin
cs_n <= 1'b0;
if(`SCK_PEDG)begin
sck <= 1'b1;
cnt <= cnt + 1'b1;
end
else if(`SCK_NEDG)
sck <= 1'b0;
else
sck <= sck;
end
STOP:begin
cnt <= 4'd0;
sck <= 1'b0;
cs_n <= 1'b1;
end
default:begin
cnt <= cnt;
sck <= sck;
cs_n <= cs_n;
end
endcase
end
end
endmodule
发送模块
`include "global_definition.v"
//////////////////////////////////////////////////////////////////////////////////
// Company: NanJing University of Information Science & Technology
// Engineer: Yang Cheng Yu
//
// Create Date: 2020/01/13 20:01:50
// Design Name: spi_master
// Module Name: spi_tx
// Project Name: SPI2
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module spi_tx(
input clk,
input rst,
input wr_req,
input [7:0] data_wr,
input [8:0] phase,
output reg wr,
output reg mosi,
input [3:0] cnt
);
reg[1:0] state;
reg[1:0] next_state;
localparam IDLE=2'b00;
localparam WORK=2'b01;
localparam STOP=2'b11;
//状态机状态转移
always@(posedge clk or negedge rst)begin
if(!rst)
state <= IDLE;
else
state <= next_state;
end
//状态组合判定
always@(wr_req or cnt)begin
case(state)
IDLE:
if(wr_req)
next_state <= WORK;
else
next_state <= IDLE;
WORK:
if(cnt==4'd8)
next_state <= STOP;
else
next_state <= WORK;
STOP:
if(wr_req)
next_state <= WORK;
else
next_state <= IDLE;
default:
next_state <= next_state;
endcase
end
//状态机输出
always@(posedge clk or negedge rst)begin
if(!rst)begin
mosi <= 1'b0;
wr <= 1'b1;
end
else begin
case(state)
IDLE:begin
mosi <= 1'b0;
wr <= 1'b1;
end
WORK:begin
wr <= 1'b0;
//由于上升沿采样，所以在上升沿到来前把数据给到MOSI
if(`SCK_LOW)begin
case(cnt)
4'd0:mosi <= data_wr[7];
4'd1:mosi <= data_wr[6];
4'd2:mosi <= data_wr[5];
4'd3:mosi <= data_wr[4];
4'd4:mosi <= data_wr[3];
4'd5:mosi <= data_wr[2];
4'd6:mosi <= data_wr[1];
4'd7:mosi <= data_wr[0];
default:mosi <= 1'b0;
endcase
end
end
STOP:begin
wr <= 1'b1;
mosi <= 1'b0;
end
default:begin
wr <= wr;
mosi <= mosi;
end
endcase
end
end
endmodule
接收模块
`include "global_definition.v"
//////////////////////////////////////////////////////////////////////////////////
// Company: NanJing University of Information Science & Technology
// Engineer: Yang Cheng Yu
//
// Create Date: 2020/01/13 20:01:50
// Design Name: spi_master
// Module Name: spi_rx
// Project Name: SPI2
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module spi_rx(
input clk,
input rst,
input rd_req,
output reg[7:0] data_rd,
input[8:0] phase,
output reg rd,
input miso,
input[3:0] cnt
);
reg[1:0] state;
reg[1:0] next_state;
localparam IDLE=2'b00;
localparam WORK=2'b01;
localparam STOP=2'b11;
//状态机状态转移
always@(posedge clk or negedge rst)begin
if(!rst)
state <= IDLE;
else
state <= next_state;
end
//状态组合判定
always@(rd_req or cnt)begin
case(state)
IDLE:
if(rd_req)
next_state <= WORK;
else
next_state <= IDLE;
WORK:
if(cnt==4'd8)
next_state <= STOP;
else
next_state <= WORK;
STOP:
if(rd_req)
next_state <= WORK;
else
next_state <= IDLE;
default:
next_state <= next_state;
endcase
end
//状态机输出
always@(posedge clk or negedge rst)begin
if(!rst)begin
rd <= 1'b1;
data_rd <= 8'b0000_0000;
end
else begin
case(state)
IDLE:begin
rd <= 1'b1;
data_rd <= 8'b0000_0000;
end
WORK:begin
rd <= 1'b0;
if(`SCK_PEDG)begin//下降沿采样
case(cnt)
4'd0:data_rd[7] <= miso;
4'd1:data_rd[6] <= miso;
4'd2:data_rd[5] <= miso;
4'd3:data_rd[4] <= miso;
4'd4:data_rd[3] <= miso;
4'd5:data_rd[2] <= miso;
4'd6:data_rd[1] <= miso;
4'd7:data_rd[0] <= miso;
default:data_rd <= data_rd;
endcase
end
else
data_rd <= data_rd;
end
STOP:begin
rd <= 1'b1;
data_rd <= data_rd;
end
default:begin
rd <= rd;
data_rd <= data_rd;
end
endcase
end
end
endmodule
顶层模块及例化
//////////////////////////////////////////////////////////////////////////////////
// Company: NanJing University of Information Science & Technology
// Engineer: Yang Cheng Yu
//
// Create Date: 2020/01/13 20:01:50
// Design Name: spi_master
// Module Name: spi_master
// Project Name: SPI2
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module spi_master(
input clk,
input rst,
input miso,
output mosi,
output sck,
output cs_n,
output wr,
output rd,
input[7:0] data_wr,
output[7:0] data_rd,
input wr_req,
input rd_req
);
wire[8:0] phase;
wire[3:0] cnt;
control_module control_module(
.clk (clk),
.rst (rst),
.sck (sck),
.cs_n (cs_n),
.phase (phase),
.wr_req (wr_req),
.rd_req (rd_req),
.cnt (cnt)//位数计数器
);
spi_tx spi_tx(
.clk (clk),
.rst (rst),
.wr_req (wr_req),
.data_wr (data_wr),
.phase (phase),
.wr (wr),
.mosi (mosi),
.cnt (cnt)
);
spi_rx spi_rx(
.clk (clk),
.rst (rst),
.rd_req (rd_req),
.data_rd (data_rd),
.phase (phase),
.rd (rd),
.miso (miso),
.cnt (cnt)
);
endmodule
RTL视图
状态机图
