1.内容回顾

网格划分是有限元和CAD的重要基础，具有良好形状的网格能给有限元分析带来更多优势，本例是2D层面的基于Laplacian Smoothing的网格mesh优化算法实现。

2.题目描述

Refer to the figure below. The boundary of the shaded region A is made of four curves: two arcs on the circle in the left, one vertical line segment, and one arc on the circle in the right.
在这里插入图片描述
(1) Derive the Coons patch formulation based on these four curves to establish a mapping between A and the unit uv square [0,1]x[0,1].

(2) Write a computer program, to calculate and display the points of the Coons patch corresponding to the equal-spaced sampling points on the uv square (please display between 100 – 200 points) and connect them to form the corresponding triangulation of A.

(3) Calculate the surface area of the Coons patch by adding up the areas of the triangles in the mesh. (Note that, in this special 2D case, different alpha(u)’s (and beta(v)’s) will actually have the same surface area (as the 2D boundary remains the same); however, if it is a 3D surface, then different alpha(u)’s (and beta(v)’s) will have different surface areas even though the 3D boundary curves remain the same.)

(4) Write a program that uses the Laplacian method to smooth the triangulation mesh of region A. You can assume the nodes on the boundary are fixed and only the interior nodes can move. Set an upper limit on the number of the iterations of Laplacian to 20, 40, and 100, and compare the results.

Note: Laplacian method is the averaging method. Let p1, p2, …, pk be the nodes in the triangulation that are connected to node q. Then, after one iteration for node q, the new location q becomes:

	q = (((p1+ p2 + …+ pk )/k) + q)/2

这个问题首先是需要把右图的初始网格映射到左图上，然后再采用Laplacian Smoothing来优化网格形状。

3.解决方案

3.1头文件引用和变量定义

import numpy as np
import matplotlib.pyplot as plt
import math

N = 10
step = 0.1
value_type = np.float64

网格的数量为N平方。这里取10.

3.2 边界曲线的定义

由于边界曲线是规则的，没有必要通过Bezier来描述。

S = 8.
R = 5.
gap = 1.5
Pi = 3.1415926
count = 10
count_rev = 0.1
#Q1
Q1 = np.array([],dtype=value_type)
arc = 2 * (R**2 - (R-gap)**2)**0.5
#Q2
Q2 = np.array([],dtype=value_type)
angleQ2 = math.acos(0.5*S / R)
#P1
P1 = np.array([],dtype=value_type)
angleP1 = math.acos((R-gap) / R)
#P2
P2 = np.array([],dtype=value_type)

for i in range(N+1):
  #Q1
  temp = np.array([-(R-gap),-0.5*arc+i*step*arc],dtype=value_type)
  Q1 = np.append(Q1,temp)
  #Q2
  temp = np.array([R*math.cos(Pi+angleQ2-i*step*2*angleQ2)+S,R*math.sin(Pi+angleQ2-i*step*2*angleQ2)],dtype=value_type)
  Q2 = np.append(Q2,temp)
  #P1
  temp = np.array([R*math.cos(Pi+angleP1+i*step*(Pi-angleP1-angleQ2)),R*math.sin(Pi+angleP1+i*step*(Pi-angleP1-angleQ2))],dtype=value_type)
  P1 = np.append(P1,temp)
  #P2
  temp = np.array([R*math.cos(Pi-angleP1-i*step*(Pi-angleP1-angleQ2)),R*math.sin(Pi-angleP1-i*step*(Pi-angleP1-angleQ2))],dtype=value_type)
  P2 = np.append(P2,temp)

Q1 = Q1.reshape((-1,2))
Q2 = Q2.reshape((-1,2))
P1 = P1.reshape((-1,2))
P2 = P2.reshape((-1,2))

3.3 Blending function

control_point = np.array([],dtype=value_type)#shape 3,2
def buildBlendingFunction(control_point,u,switch):
  #u is current step
  #control_point is a np.array,the shape should be (2,2)=>2 points, x-y(or called u-alpha) coordinates
  #return value is a scaler => alpha(u)
  #switch is to decide to make alpha the bezier one or normal one
  if(switch==1):
    P = np.array([0,1],dtype=value_type)
    P = np.append(P,control_point)
    P = np.append(P,[1,0])
    P = P.reshape((-1,2))
    alpha = np.array([],dtype=value_type) #shape should be (1,2)
    alpha = (1-u)**3 * P[0] + 3 * (1-u)**2 * u * P[1] + 3 * (1-u) * u**2 * P[2] + u**3 * P[3]
    #print("alpha\n",alpha)
    #print("alpha\n",alpha[0],alpha[1])
    #print(P[0],P[1])
    #plt.scatter(alpha[0],alpha[1],markersize=1)
  if(switch==2):
    alpha = np.array([0,0],dtype=value_type) #shape should be (1,2)
    alpha[1] = 1 - u*step
  return alpha[1]

3.4 获取Coons曲面的表达式

def coonsPatch(Q1,Q2,P1,P2):
  surface_item = np.array([],dtype=np.float64)
  Q00 = P1[0]
  Q01 = Q2[0]
  Q10 = P2[0]
  Q11 = P2[count]
  surface = np.array([],dtype=np.float64)
  for u in range(count+1):
    alpha_u = buildBlendingFunction(control_point,u,2)
    for v in range(count+1):
      beta_v = buildBlendingFunction(control_point,v,2)
      surface_item = alpha_u*Q1[v]+(1-alpha_u)*Q2[v] + beta_v*P1[u]+(1-beta_v)*P2[u] - (beta_v*(alpha_u*Q00+(1-alpha_u)*Q01)+(1-beta_v)*(alpha_u*Q10+(1-alpha_u)*Q11))
      surface = np.append(surface,surface_item)
  surface = surface.reshape((-1,2))
  return surface

surface = coonsPatch(Q1,Q2,P1,P2)

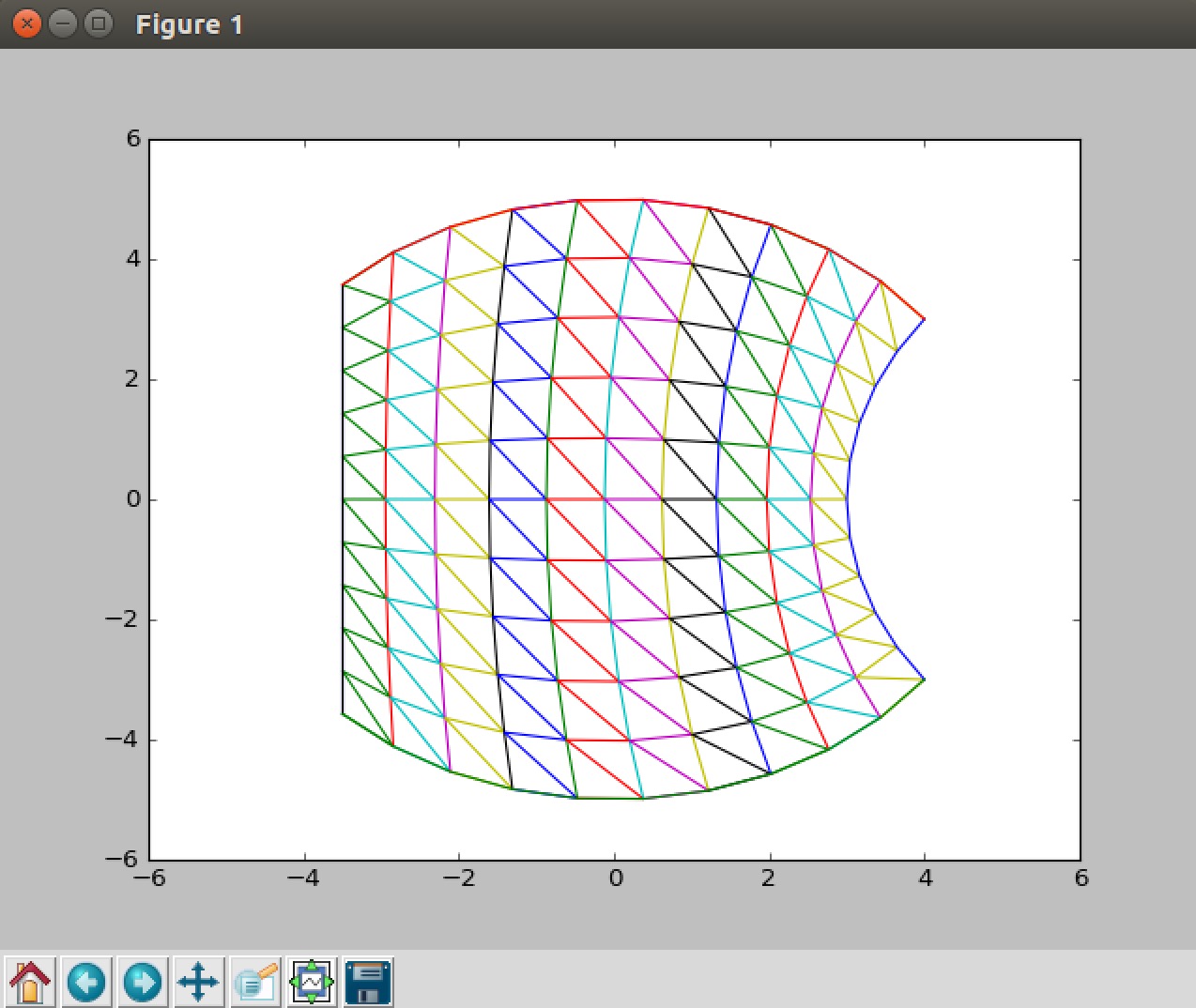

3.5 mapping

mash_grid = np.array([],dtype=np.float64)
for i in range(count):
  for j in range(count+1):
    mash_grid = np.append(mash_grid,surface[(count+1)*i+j])
    mash_grid = np.append(mash_grid,surface[(count+1)*(i+1)+j])
mash_grid = np.reshape(mash_grid,(-1,2))
for i in range(count):
  plt.plot(surface[(count+1)*i:(count+1)*(i+1),0],surface[(count+1)*i:(count+1)*(i+1),1])
  plt.plot(mash_grid[2*(count+1)*i:2*(count+1)*(i+1),0],mash_grid[2*(count+1)*i:2*(count+1)*(i+1),1])

#plt.subplot(121)
plt.plot(Q1[:,0],Q1[:,1])
plt.plot(Q2[:,0],Q2[:,1])
plt.plot(P1[:,0],P1[:,1])
plt.plot(P2[:,0],P2[:,1])
#plt.plot(surface[:,0],surface[:,1])
plt.xlim(-6,6)
plt.ylim(-6,6)

#plt.subplot(122)
#for i in range(mesh.shape[0]/100):
#  plt.plot(mesh[(count*i):(count+1)*i-1,0],mesh[count*i:(count+1)*i-1,1])
#plt.plot(mesh[:,0],mesh[:,1])
plt.show()

####5.calculate area####
#S=(x1y2-x1y3+x2y3-x2y1+x3y1-x2y2) which is 3 points of a triangle
area = 0.
for i in range(count):
  for j in range(count):
    x1 = surface[(count+1)*i+j][0]
    y1 = surface[(count+1)*i+j][1]
    x2 = surface[(count+1)*(i+1)+j][0]
    y2 = surface[(count+1)*(i+1)+j][1]
    x3 = surface[(count+1)*i+1+j][0]
    y3 = surface[(count+1)*i+1+j][1]
    area += abs((x1*y2+x2*y3+x3*y1-x1*y3-x2*y1-x3*y2)/2)#(x1*y2-x1*y3+x2*y3-x2*y1+x3*y1-x2*y2)
    x1 = surface[(count+1)*i+12+j][0]
    y1 = surface[(count+1)*i+12+j][1]
    area += abs((x1*y2+x2*y3+x3*y1-x1*y3-x2*y1-x3*y2)/2)# (x1*y2-x1*y3+x2*y3-x2*y1+x3*y1-x2*y2)
print("area is:",area)

在这里插入图片描述

3.6 拉氏光顺算法

def Laplacian(surface,iteration):
  surface2 = np.array([],dtype=np.float64)
  surface2 = np.append(surface,surface2)
  surface2 = surface2.reshape((-1,2))
  for k in range(iteration):
    for i in range(count-1):
      for j in range(count-1):
        surface2[(i+1)*(count+1)+j+1] = ((surface2[(i+1)*11+j] + surface2[(i+1)*(count+1)+j+2] + surface2[i*(count+1)+j+1] + surface2[(i+2)*(count+1)+j+1] + surface2[i*(count+1)+j+2] + surface2[(i+2)*(count+1)+j]) /6 + surface2[(i+1)*(count+1)+j+1])/2
  surface2 = np.reshape(surface2, (-1,2))
  mash_grid2 = np.array([],dtype=np.float64)
  for i in range(count):
    for j in range(count+1):
      mash_grid2 = np.append(mash_grid2,surface2[11*i+j])
      mash_grid2 = np.append(mash_grid2,surface2[11*(i+1)+j])
  mash_grid2 = mash_grid2.reshape((-1,2))
  return surface2,mash_grid2

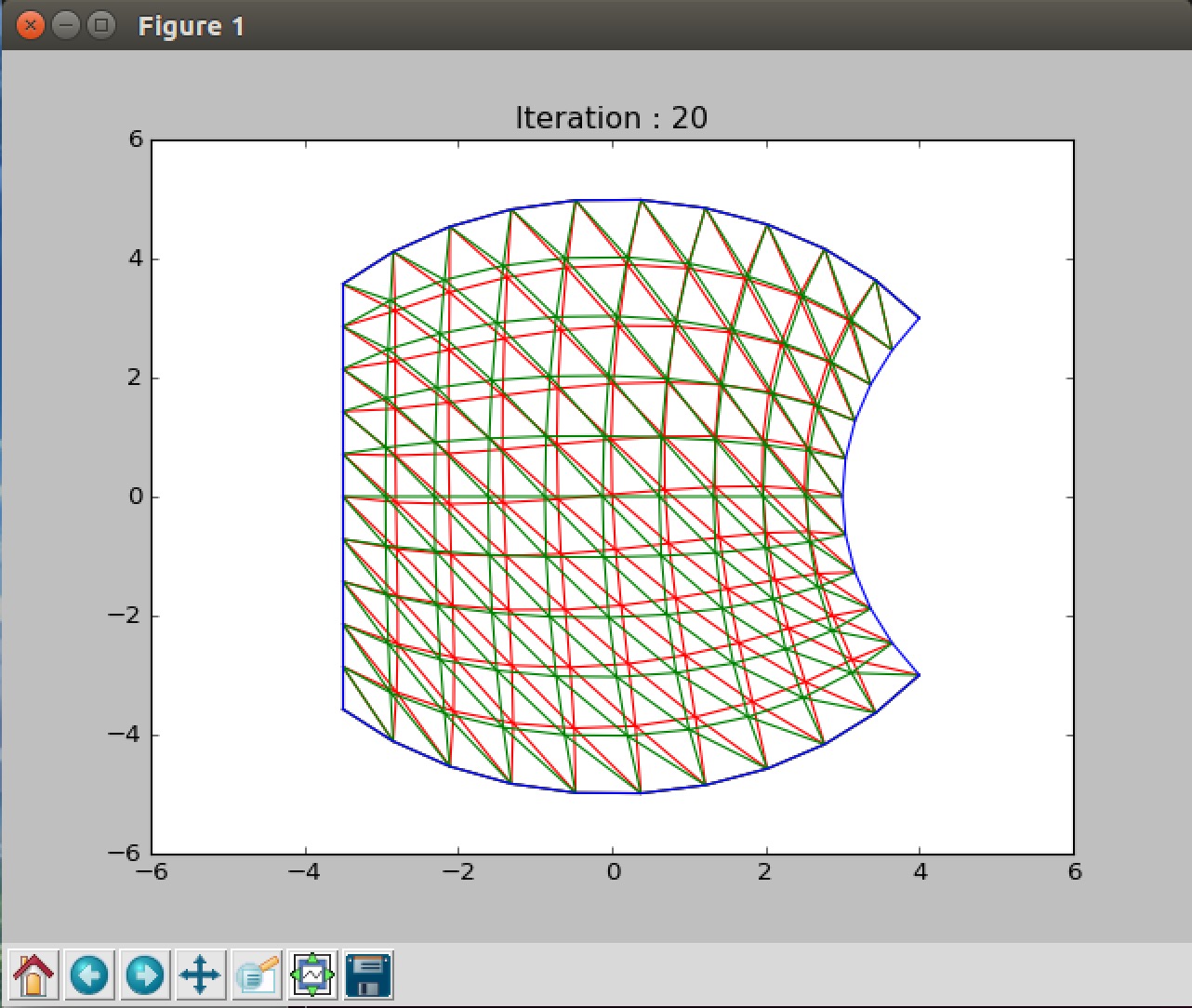

3.7 迭代优化

for i in range(3):
  surface2,mash_grid2 = Laplacian(surface,(2*i**2+2)*10)
  #ax = fig.add_subplot(1,3,i+1)
  plt.title("Iteration : {}".format((2*i**2+2)*10))
  #ax.grid()
  plt.xlim(-6 , 6)
  plt.ylim(-6 , 6)

  for i in range(count): #replace every 11 with (count+1) to make it more normalized!
    smooth1 = plt.plot(surface2[(count+1)*i:(i+1)*(count+1),0],surface2[(count+1)*i:(i+1)*(count+1),1], c='r')
    smooth2 = plt.plot(mash_grid2[(count+1)*2*i:22+22*i,0],mash_grid2[(count+1)*2*i:22+22*i,1], c='r')
  for i in range(count):
      origin1 = plt.plot(surface[(count+1)*i:(i+1)*(count+1),0],surface[(count+1)*i:(i+1)*(count+1),1], c='g')
      origin2 = plt.plot(mash_grid[(count+1)*2*i:22+22*i,0],mash_grid[(count+1)*2*i:22+22*i,1], c='g')
  #ax.plot(Q1[:,0],Q1[:,1], c='blue')
  #ax.plot(Q2[:,0],Q2[:,1], c='blue')
  #ax.plot(P1[:,0],P1[:,1], c='blue')
  #ax.plot(P2[:,0],P2[:,1], c='blue')
  plt.plot(Q1[:,0],Q1[:,1], c='blue')
  plt.plot(Q2[:,0],Q2[:,1], c='blue')
  plt.plot(P1[:,0],P1[:,1], c='blue')
  plt.plot(P2[:,0],P2[:,1], c='blue')
    #ax.legend((origin1,smooth1),('Before','after'))
  plt.show()
