近来有点烦，不想看论文，不想做项目，无聊之余把好久之前想到的用qt做一个图片透视变换的小工具的想法实现了一下。。。详细如下：
说明：对于有些平时拍的图片可能产生了透视效果，而你想得到正向拍摄的效果，你就可以根据opencv中的透视变换，选择矩形物体图片中的四个点，变换到正常图像状态，还有其他用处，自己去想吧，哈哈。

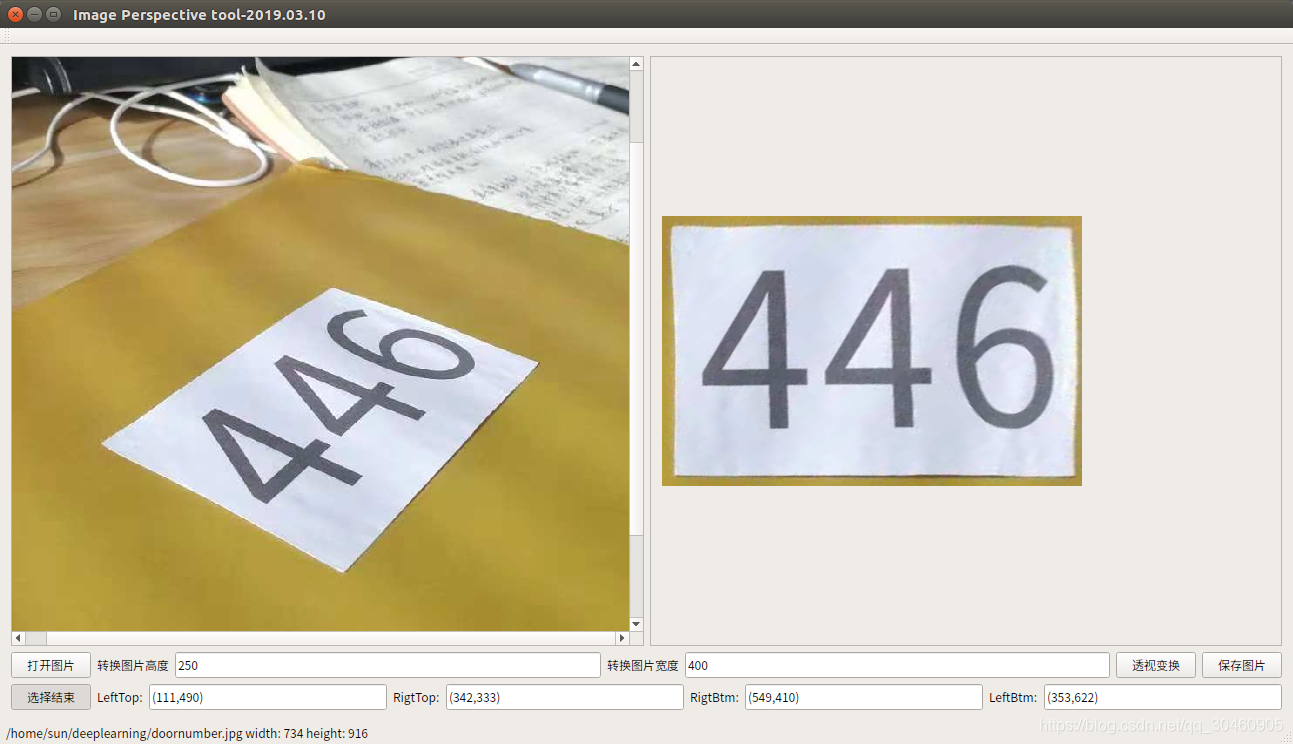

0. 首先看一下效果，有兴趣可以继续往下看,
1. 使用说明
（1）首先打开一张图片，调整需要透视变换物体在左边图形框中完全显示。
（2）点击左下角 ‘选择角点’ 按钮，然后按照顺时针顺序依次点击四个角点，点击“选择结束”，不点也没关系。
（3）输入转换后的图片高度和宽度，默认值为200，320，点击“透视变换“ 按钮即可显示变换后的图像。
（4）点击”保存图片“ 按钮，选择保存位置，输入文件名，不要忘了加后缀 ”.jpg“ 。
2.创建一个qt桌面项目，添加opencv库，pro文件如下
#-------------------------------------------------
#
# Project created by QtCreator 2019-03-04T09:22:39
#
#-------------------------------------------------
QT += core gui
greaterThan(QT_MAJOR_VERSION, 4): QT += widgets
TARGET = perspective_img
TEMPLATE = app
#include opencv files
INCLUDEPATH += /usr/include \
/usr/include/opencv \
/usr/include/opencv2
LIBS += /usr/lib/x86_64-linux-gnu/libopencv_highgui.so \
/usr/lib/x86_64-linux-gnu/libopencv_core.so \
/usr/lib/x86_64-linux-gnu/libopencv_imgproc.so
#作者：Shawn-HT
#来源：CSDN
#原文：https://blog.csdn.net/shawn_ht/article/details/40795039
版权声明：本文为博主原创文章，转载请附上博文链接！
DEFINES += QT_DEPRECATED_WARNINGS
SOURCES += \
main.cpp \
mainwindow.cpp
HEADERS += \
mainwindow.h
FORMS += \
mainwindow.ui3. 在界面.ui文件中对需要显示的部件进行布局
4. main.cpp 文件没变，主要修改mainwindow.h 和mainwindow.cpp文件
mainwindow.h 文件如下
#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include <QMainWindow>
#include <QFileDialog>
#include <opencv2/opencv.hpp>
using namespace cv;
namespace Ui {
class MainWindow;
}
class QLabel;
class MainWindow : public QMainWindow
{
Q_OBJECT
public:
explicit MainWindow(QWidget *parent = 0);
~MainWindow();
void DisplayMat(cv::Mat image);
void mousePressEvent(QMouseEvent *event);
//void paintEvent(QPaintEvent *event);
bool eventFilter(QObject *watched, QEvent *event);
Mat perspectivetransfer(Mat srcImage);
signals:
void button_click_update();
public slots:
void drawRedCircle();
//void drawRedPoint(int x,int y);
void on_actionAbout_triggered();
void on_actionSpecifications_triggered();
private slots:
void on_pushButton_open_clicked();
void on_pushButton_choose_clicked(bool checked);
void on_pushButton_perspective_clicked();
void on_pushButton_save_clicked();
private:
Ui::MainWindow *ui;
cv::Mat image;
QLabel *label;
int count;//initial for corners order
int point_x = 10;
int point_y = 10;
Point point_lt,point_rt,point_rb,point_lb;
Mat src_resize;
Mat save_image;
};
#endif // MAINWINDOW_H
5. mainwindow.cpp 文件如下
#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <iostream>
#include <QDebug>
#include <QMessageBox>
#include <QTextCodec>
#include <QLabel>
#include <QMouseEvent>
#include <QPoint>
#include <QPainter>
MainWindow::MainWindow(QWidget *parent) :
QMainWindow(parent),
ui(new Ui::MainWindow)
{
ui->setupUi(this);
setWindowTitle(tr("Image Perspective tool-2019.03.10"));
label = new QLabel(ui->scrollArea);
//构造函数中注册事件过滤器
//ui->labelimage->installEventFilter(this);
//QObject::connect(this,SIGNAL(button_click_update()),this,SLOT(drawRedCircle()));
}
MainWindow::~MainWindow()
{
delete ui;
}
void MainWindow::on_actionAbout_triggered() {
QMessageBox::about(this, tr("About ..."),tr("<h2>Image Perspective:1.0 </h2><p>Copyright 龙性的腾飞 </p>"
"<p>School of Electrical and Information Engineering,Tianjin University</p>"));
}
void MainWindow::on_actionSpecifications_triggered() {
QMessageBox::about(this, tr("Specifications"),tr("<h2>Steps as follows： </h2><p>1.Open a picture, do not contain chinese characters in the path. </p>"
"<p>2. Press 'Choose Corners' button and click four corners of the object you want to perspective transform in a clockwise. </p>"
"<p>3. Press 'Perspective Transform' button, then save the picture transformed.</p>"));
}
bool MainWindow::eventFilter(QObject *watched, QEvent *event)
{
if (watched == ui->labelimage && event->type() == QEvent::Paint)
drawRedCircle();
return QWidget::eventFilter(watched, event);
}
void MainWindow::drawRedCircle()
{
//在label上绘制图形---->一个红色圆点
QPainter painter(ui->labelimage);
painter.drawLine (QPoint(0,0),QPoint(100,100));
painter.setPen(Qt::NoPen);
painter.setRenderHint(QPainter::Antialiasing,true);
painter.setBrush(QColor(255,0,0));
painter.drawLine (QPoint(0,0),QPoint(100,100));
qDebug() << "left click";
painter.drawEllipse(point_x,point_y,4,4);
qDebug() << point_x;
//update();
}
void MainWindow::mousePressEvent(QMouseEvent *event)
{
// 如果是鼠标左键按下
//---------------------
//作者：祥知道
//来源：CSDN
//原文：https://blog.csdn.net/humanking7/article/details/80707591
//版权声明：本文为博主原创文章，转载请附上博文链接！
if (event->button() == Qt::LeftButton && ui->lineEdit_LB->isEnabled()){
QPoint global_pos = event->globalPos();
QPoint label_pos = label->mapFromGlobal(global_pos);
point_x = label_pos.x();
point_y = label_pos.y();
QString x = QString::number(label_pos.x(), 10);
QString y = QString::number(label_pos.y(), 10);
QString point = "("+x+","+y+")";
if (ui->pushButton_choose->isChecked()){
count += 1;
update();
//emit button_click_update();
//drawRedPoint(point_x,point_y);
switch (count) {
case 1:
ui->lineEdit_LT->setText(point);
point_lt.x = label_pos.x();
point_lt.y = label_pos.y();
break;
case 2:
ui->lineEdit_RT->setText(point);
point_rt.x = label_pos.x();
point_rt.y = label_pos.y();
break;
case 3:
ui->lineEdit_RB->setText(point);
point_rb.x = label_pos.x();
point_rb.y = label_pos.y();
break;
case 4:
ui->lineEdit_LB->setText(point);
point_lb.x = label_pos.x();
point_lb.y = label_pos.y();
break;
}
}
//qDebug() << "left click"<<event->pos()<<"global:"<<event->globalPos()<<"label_pos:"<<label_pos;
}
}
void MainWindow::on_pushButton_open_clicked()
{
QString filename = QFileDialog::getOpenFileName(this,
tr("Open Image"),"/home/sun/",tr("Image File (*.jpg *.png *.bmp)"));
qDebug()<<"filenames:"<<filename;
QTextCodec *code = QTextCodec::codecForName("gb18030");
std::string name = code->fromUnicode(filename).data();//filename.toAscii().data()
image = cv::imread(name);
QString w = QString::number(image.size().width, 10);
QString h = QString::number(image.size().height, 10);
QString w_h = " width: "+w+" height: "+h;
//https://blog.csdn.net/ei__nino/article/details/7297791
//QString s = QString::number(a, 10); // s == "63"
ui->statusBar->showMessage(filename+w_h);
if(!image.data)
{
ui->pushButton_perspective->setEnabled(false);
QMessageBox msgBox;
msgBox.setText(tr("Image Data Is Null"));
msgBox.exec();
}
else {
//DisplayMat(image);
//https://blog.csdn.net/xiezhongyuan07/article/details/79621467
//https://blog.csdn.net/qq_37233607/article/details/79082243
ui->pushButton_perspective->setEnabled(true);
QImage qimage(filename);
int q_width = qimage.size().width();
int q_height = qimage.size().height();
if (q_width>640 || q_height>480 )
{
//label = new QLabel(ui->scrollArea);
cv::resize(image,image,Size(640,q_height*640/q_width));
//sr= image.resize(640);
//resize(image, src_resize, Size(640,q_height*640/q_width));
label->setPixmap(QPixmap::fromImage(qimage).scaled(QSize(640,q_height*640/q_width),Qt::KeepAspectRatio));
label->setAlignment(Qt::AlignTop);
ui->scrollArea->setWidget(label);
qDebug()<<"labelsize:"<<qimage.size();
}
else{
label = new QLabel(ui->scrollArea);
label->setPixmap(QPixmap::fromImage(qimage));
label->setAlignment(Qt::AlignTop);
ui->scrollArea->setWidget(label);
}
}
}
void MainWindow::DisplayMat(cv::Mat image)
{
cv::Mat rgb;
QImage img;
if(image.channels() == 3)
{
cvtColor(image,rgb,CV_BGR2RGB);
img = QImage((const unsigned char*)(rgb.data),
rgb.cols,rgb.rows,rgb.cols*rgb.channels(),//rgb.cols*rgb.channels()可以替换为image.step
QImage::Format_RGB888);
}
else
{
img = QImage((const unsigned char*)(image.data),
image.cols,image.rows,rgb.cols*image.channels(),
QImage::Format_RGB888);
}
QSize label_resize = QSize(image.size().width,image.size().height);
//qDebug()<<"imagesize:"<<image.size();
ui->labelimage->setPixmap(QPixmap::fromImage(img).scaled(label_resize));//setPixelmap(QPixmap::fromImage(img));
ui->labelimage->resize(ui->labelimage->pixmap()->size());//resize(ui->label->pixmap()->size());
//ui->scrollArea->setWidget(ui->labelimage);会出现崩溃，必须QLabel创建才可以
//qDebug()<<"labelsize:"<<ui->labelimage->size();
}
//---------------------
//作者：call_me_yang
//来源：CSDN
//原文：https://blog.csdn.net/yang6464158/article/details/38109415
//版权声明：本文为博主原创文章，转载请附上博文链接！
void MainWindow::on_pushButton_choose_clicked(bool checked)
{
if(checked){
ui->pushButton_choose->setText("选择结束");
count = 0;
ui->lineEdit_LT->setEnabled(true);
ui->lineEdit_LT->clear();
ui->lineEdit_RT->setEnabled(true);
ui->lineEdit_RT->clear();
ui->lineEdit_RB->setEnabled(true);
ui->lineEdit_RB->clear();
ui->lineEdit_LB->setEnabled(true);
ui->lineEdit_LB->clear();
}
else
{ ui->pushButton_choose->setText("选择角点"); }
}
/*void MainWindow::paintEvent(QPaintEvent *)
{
QPainter painter(this);
qDebug()<<"labelsize";
QPen pen(Qt::red,5,Qt::SolidLine,Qt::RoundCap,Qt::RoundJoin);
painter.setPen(pen);
painter.drawLine (QPoint(0,0),QPoint(100,100));
//must use QImage
}*/
Mat MainWindow::perspectivetransfer(Mat srcImage)
{ //选择的待变换角点
Point2f pts_src[] = { point_lt,point_rt,point_rb,point_lb};
//透视变换后的角点
int height = ui->lineEdit_height->text().toInt();
int width = ui->lineEdit_width->text().toInt();
Point2f pts_dst[] = {Point(10, 10),Point(10+width, 10),
Point(10+width, 10+height) ,Point(10, 10+height) };
Mat &&M = cv::getPerspectiveTransform(pts_src, pts_dst);
Mat warp;
Mat PerspectivedImg(height+20, width+20, CV_8UC1);
PerspectivedImg.setTo(0);
cv::warpPerspective(srcImage, warp, M, PerspectivedImg.size(), cv::INTER_LINEAR , cv::BORDER_REPLICATE);
//imshow("After Perspectived", warp);
return warp;
}
void MainWindow::on_pushButton_perspective_clicked()
{
save_image = perspectivetransfer(image);
DisplayMat(save_image);
}
void MainWindow::on_pushButton_save_clicked()
{
QString filename =QFileDialog::getSaveFileName(this,
tr("Save Image..."),"/home/sun/deeplearning",tr("Image File (*.jpg *.png *.bmp)"));
qDebug()<<"filenames:"<<filename;
std::string After_perspective = filename.toStdString();
imwrite(After_perspective,save_image);
}
6.总结
代码都是现用现查的，相关代码来源网址已附在程序中，还有以前的一些代码稍微拼了拼就出来了，由于水平有限，代码写的不是那么规范，以及操作不当会出现崩溃情况，还大家多多交流。
代码中有关于绘图的代码没有用，我也没删除，主要是开始想在点击图片选点时没点一个点可以显示一个位置红点，无奈对paintevent理解不够，一直无法实现，没再花时间搞，对变换功能影响不大。
待我有时间把代码传到github，先留个空，有问题和想法欢迎留言交流！
