文章目录

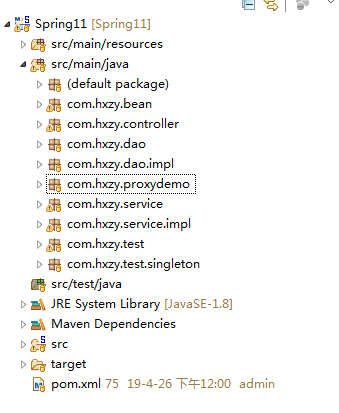

- 项目包结构
1. XML 配置 IoC
<bean id="teaDao" class="com.hxzy.dao.impl.TeacherDaoImpl"/>
<bean id="teaService" class="com.hxzy.service.impl.TeacherServiceImpl">
<property name="teacherDao" ref="teaDao"/>
</bean>
<bean id="teaController" class="com.hxzy.controller.TeacherController">
<property name="teacherService" ref="teaService"/>
</bean>
2. 注解配置 IoC
- 注解配置之前的准备工作
- Spring配置文件中添加context命名空间
- 开启注解自动扫描
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
<!-- 扫描注解包 , 扫描代码的先后决定着Spring加载bean的先后顺序 -->
<context:component-scan base-package="com.hxzy"/>
</beans>
- @Component
Component :组件
可用于标记任意的类,如实体类;
@Component(value = "tea")
@Scope(value = "singleton")
public class Teacher implements Serializable {
@Value("李老师")
private String teaName;
@Value("60")
private Integer teaAge;
public Teacher() {
// TODO Auto-generated constructor stub
}
public String getTeaName() {
return teaName;
}
public void setTeaName(String teaName) {
this.teaName = teaName;
}
public Integer getTeaAge() {
return teaAge;
}
public void setTeaAge(Integer teaAge) {
this.teaAge = teaAge;
}
}
- @Controller
Controller : 控制器
明确使用该注解标记 Web层的控制器;
import javax.annotation.Resource;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import com.hxzy.service.TeacherService;
@Controller // 控制器,teacherController -- 首字母小写
public class TeacherController {
// @Autowired -- 自动装配 , 根据Spring容器注册的bean的类型进行装配
@Resource(name = "teacherServiceImpl") // 根据id加载已经注册好的bean
private TeacherService teacherService;
public void setTeacherService(TeacherService teacherService) {
this.teacherService = teacherService;
}
public void dianMing() {
System.out.println("TeacherController ... dianMing()");
teacherService.dianMing();
}
}
- @Service
-
Service : 业务
明确使用该注解标记 业务层;
import javax.annotation.Resource;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.hxzy.dao.TeacherDao;
import com.hxzy.service.TeacherService;
@Service
public class TeacherServiceImpl implements TeacherService{
// @Autowired -- 自动装配 , 根据Spring容器注册的bean的类型进行装配
@Resource(name = "teacherDaoImpl")
private TeacherDao teacherDao;
public void setTeacherDao(TeacherDao teacherDao) {
this.teacherDao = teacherDao;
}
@Override
public void dianMing() {
System.out.println("TeacherServiceImpl ... dianMing()");
teacherDao.dianMing();
}
}
- @Repository
-
Repository: 持久层
明确使用该注解标记 DAO 的实现类 ;
import org.springframework.stereotype.Repository;
import com.hxzy.dao.TeacherDao;
@Repository // @Repository 持久层直接,标记dao,默认创建的对象名是类的首字母变小写
public class TeacherDaoImpl implements TeacherDao{
@Override
public void dianMing() {
System.out.println("TeacherDaoImpl ... dianMing()");
}

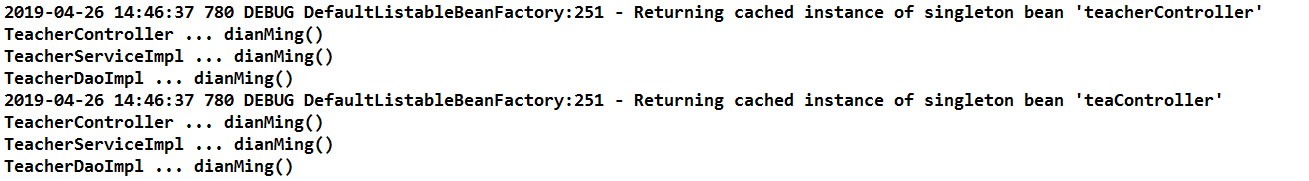

- 测试
public class TestClass05 {
@Test
public void testStudy() {
ApplicationContext context = new ClassPathXmlApplicationContext("spring/applicationContext.xml");
TeacherController controller = (TeacherController) context.getBean("teacherController");
controller.dianMing();
TeacherController teaController = (TeacherController) context.getBean("teaController");
teaController.dianMing();
}
}
