Three.js--6.使用dat.GUI库添加一个用户界面

使用dat.GUI 很容易可以创建一个简单的页面组件，用以修改代码中的变量；

示例中：

控制球体弹跳的速度
控制方块的旋转

首先，先引入库

<script src="./libs/dat.gui.js"></script>

接下来，我们定义一个JavaScript 对象，用来保存我们想要通过dat.GUI 库来修改的那些变量；

在这个JavaScript 对象里，定义了两个属性（this.rotationSpeed和this.bouncingSpeed）,以及它们的默认值；

 var controls = new function() {
        this.rotationSpeed = 0.02;
        this.bouncingSpeed = 0.03;
    }

再接下来，我们把这个对象传递给dat.GUI对象，并定义这两个属性值的范围：

 var gui = new dat.GUI();
 gui.add(controls, 'rotationSpeed', 0, 0.5);
 gui.add(controls, 'bouncingSpeed', 0, 0.5);

属性rotationSpeed和 bouncingSpeed 的取值范围都是从0到0.5；

现在要做的就是保证在animate 循环里直接引用这两个属性；

这样当我在dat.GUI 用户界面里修改时可以直接影响物体的旋转速度和弹跳速度；

 var animate = function() {
                ...
                step += controls.bouncingSpeed;
                requestAnimationFrame(animate);
                sphere.position.x = 8 + (15 * (Math.cos(step)));
                sphere.position.y = 2 + (5 * Math.abs(Math.sin(step)));
                cube.rotation.x += controls.rotationSpeed;
                cube.rotation.y += controls.rotationSpeed;
                cube.rotation.z += controls.rotationSpeed;
                 ...
            }

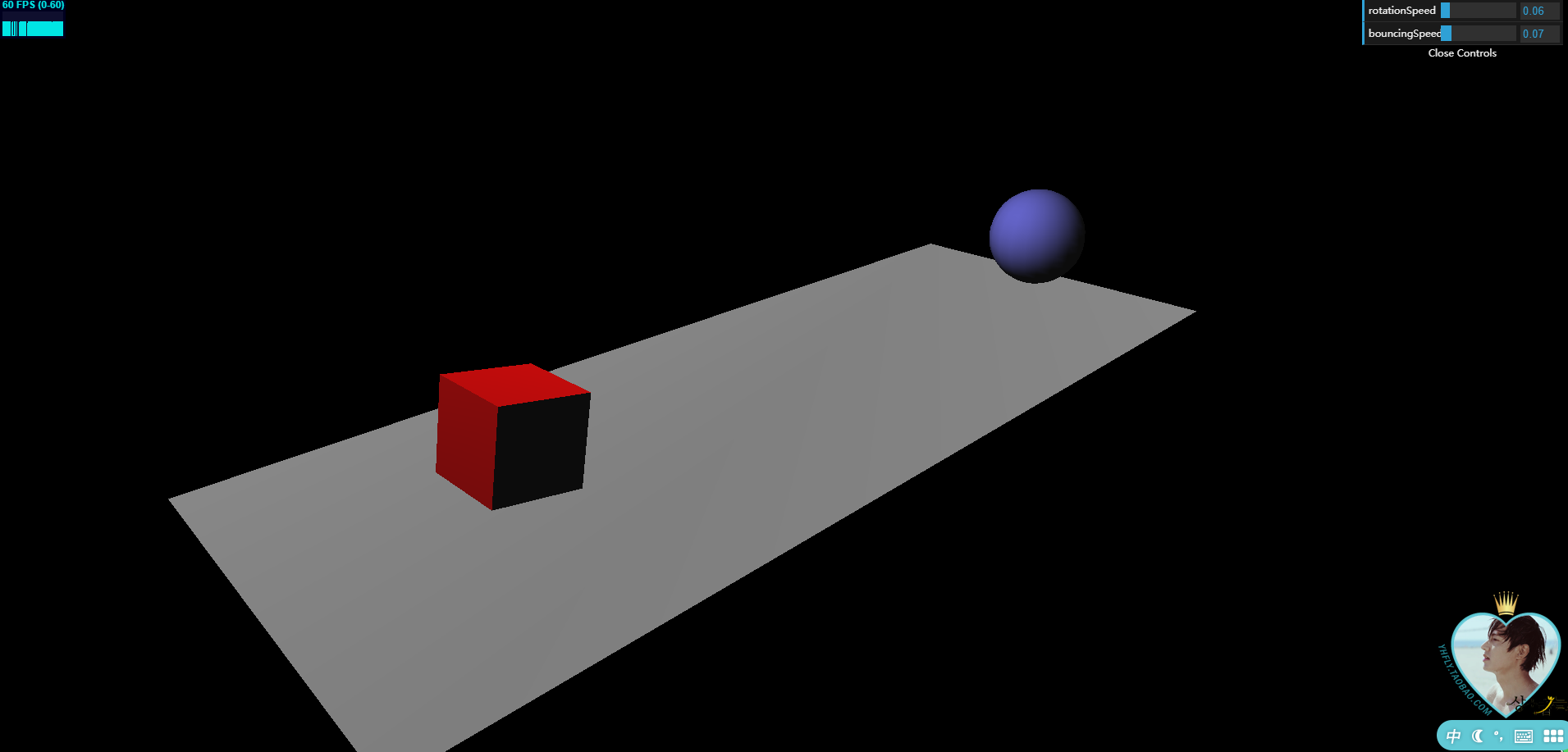

实现效果图和代码（请忽视效果图右下角的输入法图标哈）

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>这世界唯一的妳</title>
</head>
<style>
    body{
        margin: 0;
        overflow: hidden;
    }
</style>
<script src="./libs/three.js"></script>
<script src="./libs/stats.js"></script>
<script src="./libs/dat.gui.js"></script>
<body onload='init();'>
    <div id="dv">
    </div>
    <script>
        function init(){
            var stats = initStats();
            var scene = new THREE.Scene();
            var camera = new THREE.PerspectiveCamera(45,window.innerWidth/window.innerHeight,0.1,1000);

            var renderer = new THREE.WebGLRenderer();
            renderer.setClearColor(0x000000);
            renderer.setSize(window.innerWidth,window.innerHeight);
            document.getElementById('dv').appendChild(renderer.domElement);

            var spotLight = new THREE.SpotLight();
            spotLight.position.set(-40,60,-10);
            scene.add(spotLight);

            var ambientLight = new THREE.AmbientLight(0x0c0c0c);
            scene.add(ambientLight);

            var planeGeometry = new THREE.PlaneBufferGeometry(50, 20);
            var planeMaterial = new THREE.MeshLambertMaterial({
                color: 0xffffff
            });
            var plane = new THREE.Mesh(planeGeometry, planeMaterial);
            plane.rotation.x = -0.5 *Math.PI;
            scene.add(plane);

            var cubeGeometry = new THREE.BoxGeometry(4, 4, 4);
            var cubeMaterial = new THREE.MeshLambertMaterial({
                color: 0xff0000

            });
            var cube = new THREE.Mesh(cubeGeometry, cubeMaterial);
            cube.castShadow = true;
            cube.position.x = -15;
            cube.position.y = 3;
            cube.position.z = 0;
            scene.add(cube)

            var sphereGeometry = new THREE.SphereGeometry(3, 20, 20);
            var sphereMaterial = new THREE.MeshLambertMaterial({
                color: 0x7777ff

            });
            var sphere = new THREE.Mesh(sphereGeometry, sphereMaterial);

            sphere.position.x = -20;
            sphere.position.y = 4;
            sphere.position.z = 0;
            sphere.castShadow = true;
            scene.add(sphere)

            camera.position.x = -30;
            camera.position.y = 20;
            camera.position.z = 30;
            camera.lookAt(scene.position);

            function initStats(){
                var stats = new Stats();
                stats.setMode(0);
                stats.domElement.style.position = 'absolute';
                stats.domElement.style.left = '0px';
                stats.domElement.style.top = '0px';
                document.getElementById('dv').appendChild(stats.domElement);
                return stats;
             }

             var controls = new function() {
                    this.rotationSpeed = 0.02;
                    this.bouncingSpeed = 0.03;
                }
            // 设置取值范围
            var gui = new dat.GUI();
            gui.add(controls, 'rotationSpeed', 0, 0.5);
            gui.add(controls, 'bouncingSpeed', 0, 0.5);

            var step = 0
            var animate = function() {
                stats.update();
                //球的弹跳速度
                step += controls.bouncingSpeed;
                requestAnimationFrame(animate);
                sphere.position.x = 8 + (15 * (Math.cos(step)));
                sphere.position.y = 2 + (5 * Math.abs(Math.sin(step)));
                cube.rotation.x += controls.rotationSpeed;
                cube.rotation.y += controls.rotationSpeed;
                cube.rotation.z += controls.rotationSpeed;
                renderer.render(scene, camera);
            }
            animate();
        }
    </script>
</body>
</html>
