[Unity]简单剧情系统SimpleStorySystem

版权声明：本博客一本正经胡说八道，文章内容仅供参考。本文为博主原创文章，未经博主允许不得转载。该博客所用图片资源均作学习分享用途，仅供参考，请勿用于商业行为。传播者自负。 如果本博客所写文章侵犯到您的权益，请主动联系留言，我们将及时删除相关内容。 https://blog.csdn.net/BuladeMian/article/details/85225501

---

现在实现的功能较少。

当角色 进入 Cube 范围内，就可以显示 文本。

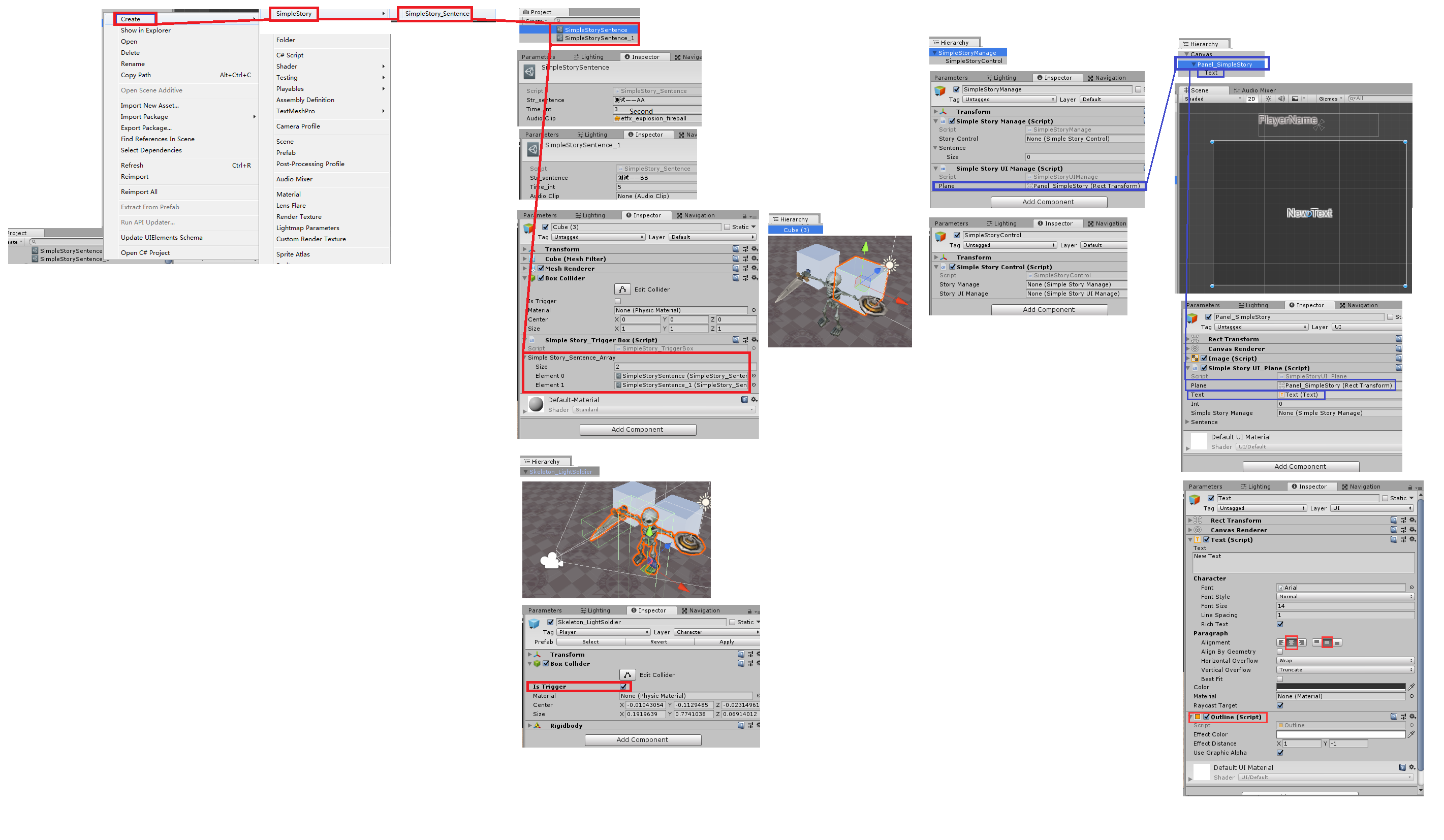

逻辑图

SimpleStoryManage.cs

using UnityEngine;

public class SimpleStoryManage : MonoBehaviour {

    #region Singleton

    public static SimpleStoryManage instance;

    void Awake()
    {
        instance = this;
    }

    #endregion

    [SerializeField]
    private SimpleStoryControl storyControl;
    public SimpleStory_Sentence[] _Sentence;
    // Use this for initialization
    void Start () {
        if (storyControl == null)
        {
            Transform controlTrans;
            controlTrans = this.transform.Find("SimpleStoryControl");
            Debug.Log("   "+controlTrans.name);
            if (controlTrans != null
                && controlTrans.GetComponent<SimpleStoryControl>() !=null)
            {
                storyControl = controlTrans.GetComponent<SimpleStoryControl>();
            }
        }
	}
    public void showUI(SimpleStoryUI_Plane simpleStoryUI_Plane)
    {
        _Sentence = simpleStoryUI_Plane.Sentence;
    }
    public void hideUI()
    {
        _Sentence = null;
    }
}

SimpleStoryControl.cs

using UnityEngine;

public class SimpleStoryControl : MonoBehaviour {

    [SerializeField]
    private SimpleStoryManage storyManage;
    [SerializeField]
    private SimpleStoryUIManage storyUIManage;

    private int time_int;

    private int sentence_int;

    private int _int;
    private int _int_1;

    // Use this for initialization
    void Start () {
        if (storyManage == null)
        {
            storyManage = SimpleStoryManage.instance;
        }
        if (storyUIManage == null)
        {
            storyUIManage = SimpleStoryUIManage.instance;
        }

        time_int = 50;// 1 second 30 time
        sentence_int = 0;
    }

	// Update is called once per frame
	void FixedUpdate() {

        if (storyManage._Sentence == null)
        {
            //Debug.Log("   storyManage._Sentence:null");
            _int = _int + 1;
            if (_int >= time_int)
            {
                //Debug.Log(">>>>>>>>>>>>>>>>>>>>>>.");
                _int = 0;
            }
        }
        else if (storyManage._Sentence.Length > 0)
        {
            //Debug.Log("   storyManage._Sentence:!null");
            storyUIManage.showText(storyManage._Sentence[sentence_int].str_sentence);
            _int_1 = storyManage._Sentence[sentence_int].time_int;
            _int_1 = _int_1 * time_int;

            if (_int >= _int_1
                && sentence_int < storyManage._Sentence.Length
                )
            {
                _int = 0;
                sentence_int = sentence_int + 1;
            }
            else
            {
                _int = _int + 1;
            }

            if (sentence_int >= storyManage._Sentence.Length)
            {
                sentence_int = 0;
            }
        }
    }
}

SimpleStory_Sentence.cs

using UnityEngine;

[CreateAssetMenu(fileName = "SimpleStorySentence", menuName = "SimpleStory/SimpleStory_Sentence")]
public class SimpleStory_Sentence : ScriptableObject
{
    public string str_sentence;
    public int time_int;
    public AudioClip audioClip;
}

SimpleStory_TriggerBox.cs

using UnityEngine;

public class SimpleStory_TriggerBox : MonoBehaviour {

    [SerializeField]
    private SimpleStory_Sentence[] SimpleStory_Sentence_Array;

    //OnTriggerEnter
    void OnTriggerEnter(Collider other)
    {
        SimpleStoryUIManage.instance.ssStart(SimpleStory_Sentence_Array);
    }
    void OnTriggerExit(Collider other)
    {
        SimpleStoryUIManage.instance.ssEnd();
    }
}

SimpleStoryUIManage.cs

using UnityEngine;

public class SimpleStoryUIManage : MonoBehaviour {

    #region Singleton

    public static SimpleStoryUIManage instance;

    void Awake()
    {
        instance = this;
    }

    #endregion

    [SerializeField]
    private Transform plane;

    public void ssStart(SimpleStory_Sentence[] simpleStory_)
    {
        if (plane != null
            && plane.GetComponent<SimpleStoryUI_Plane>() != null
            )
        {
            SimpleStoryUI_Plane _Plane = plane.GetComponent<SimpleStoryUI_Plane>();
            _Plane.showUI(simpleStory_);
        }
    }
    public void showText( string str)
    {
        if (plane != null
            && plane.GetComponent<SimpleStoryUI_Plane>() != null
            )
        {
            SimpleStoryUI_Plane _Plane = plane.GetComponent<SimpleStoryUI_Plane>();
            _Plane.showText(str);
        }
    }
    public void ssEnd()
    {
        if (plane != null
            && plane.GetComponent<SimpleStoryUI_Plane>() != null
            )
        {
            SimpleStoryUI_Plane _Plane = plane.GetComponent<SimpleStoryUI_Plane>();
            _Plane.hideUI();
        }
    }
}

SimpleStoryUI_Plane.cs

using UnityEngine;
using UnityEngine.UI;

public class SimpleStoryUI_Plane : MonoBehaviour {

    [SerializeField]
    private Transform plane;

    [SerializeField]
    private Text text;

    public int _int;//用于控制  SimpleStory_Sentence[] _Sentence

    [SerializeField]
    private SimpleStoryManage simpleStoryManage;

    public SimpleStory_Sentence[] Sentence;

    // Use this for initialization
    void Start () {
        if (plane == null)
        {
            plane = this.transform;
        }
        if (simpleStoryManage == null)
        {
            simpleStoryManage = SimpleStoryManage.instance;
        }
        _int = 0;
    }

    public void showUI(SimpleStory_Sentence[] _Sentence)
    {
        Sentence = _Sentence;
        simpleStoryManage.showUI(this);
        plane.localScale = new Vector3(1,1,1);
    }

    public void showText(string _str)
    {
        plane.localScale = new Vector3(1, 1, 1);
        if (text != null)
        {
            text.text = _str;
        }
    }

    public void hideUI()
    {
        Sentence = null;
        simpleStoryManage.hideUI();
        plane.localScale = new Vector3(0,0,0);
    }
}

---

参考资料：

1.unity update多久执行一次

2.
