之前win32.com.dll动态库只支持jdk32位的,而且版本比较老;
我建议RXTX串口通讯库
1、环境配置

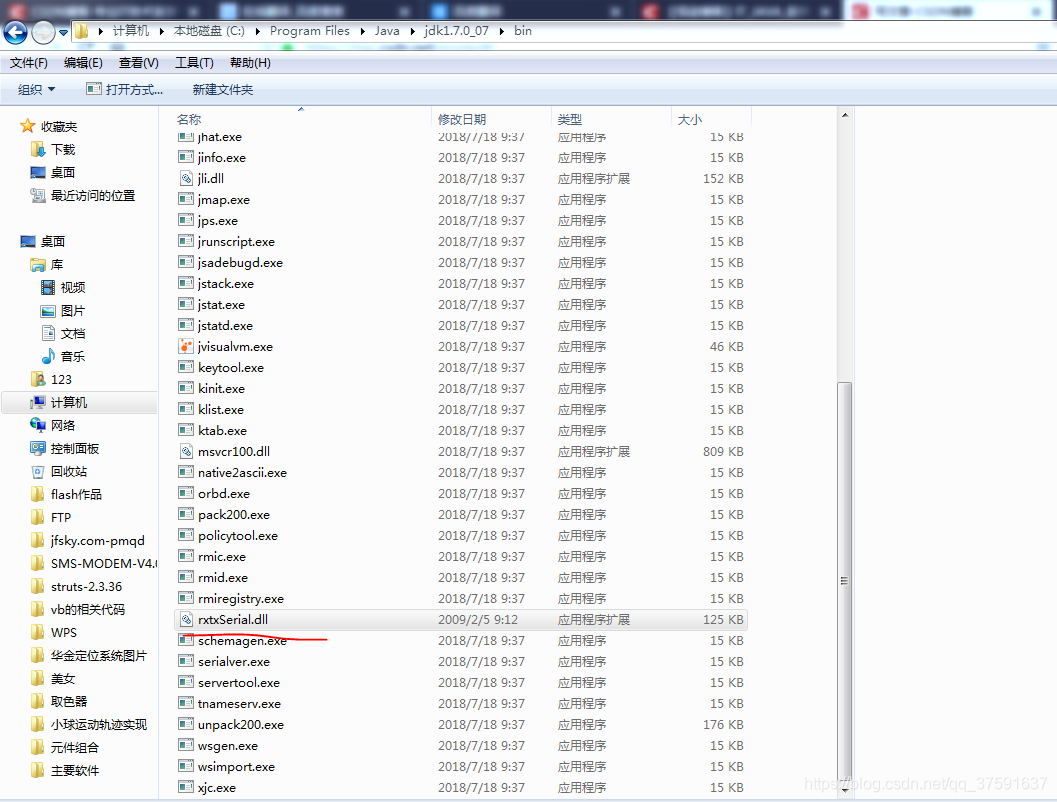

1.1、将rxtxSerial.dll复制到 JAVA_HOME\bin目录下
1.2、将RXTXcomm.jar复制到 JAVA_HOME\jre\lib\ext目录下
1.3、将javax.comm.properties复制到 JAVA_HOME\lib目录下

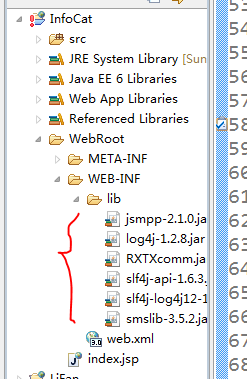

jar包导入lib包下面
注意,myelispe一定要配置这个java不能是myelispe自带的
代码如下
package cn.com.dao;
import java.io.IOException;
import org.smslib.AGateway;
import org.smslib.AGateway.Protocols;
import org.smslib.GatewayException;
import org.smslib.SMSLibException;
import org.smslib.Service;
import org.smslib.TimeoutException;
import org.smslib.modem.SerialModemGateway;
public class BeforeMessage {
/*
* author:命运的信徒 date:2019/1/5 arm:java版本的短信猫
*/
// 1.设置串行模块网关参数
private static final SerialModemGateway smg = new SerialModemGateway(
"modem.com3", "COM3", 115200, "Caimore", "6200");
// 2.服务启动的相关方法
public static Service doIt() {
// 1.实例化服务对象
Service service = Service.getInstance();
OutBoundMessageNotficationImpl obm = new OutBoundMessageNotficationImpl();
// 当短信发送出去以后就会回调函数
service.setOutboundMessageNotification(obm);
// 2.设置循环模式
try {
service.addGateway(getGateway());
// 3.设置
service.S.SERIAL_POLLING = true;
service.startService();
} catch (GatewayException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (TimeoutException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (SMSLibException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
return service;
}
public static AGateway getGateway() {
// 1.设置协议
smg.setProtocol(Protocols.PDU);
// 2.设置接收信息
smg.setInbound(true);
// 3.设置发送信息
smg.setOutbound(true);
// 4.设置sim卡的锁
smg.setSimPin("0000");
return smg;
}
}
package cn.com.dao;
import org.smslib.AGateway;
import org.smslib.IOutboundMessageNotification;
import org.smslib.OutboundMessage;
public class OutBoundMessageNotficationImpl implements
IOutboundMessageNotification {
//继承接口,返回发送短信之后的网关和信息对象,把这些参数传到process方法里面
@Override
public void process(AGateway arg0, OutboundMessage arg1) {
System.out.println("发送短信接收之后的网关id:"+arg0.getGatewayId());
System.out.println("发送出去短信的对象为"+arg1);
}
}
package cn.com.dao;
import java.io.IOException;
import org.smslib.GatewayException;
import org.smslib.Message.MessageEncodings;
import org.smslib.OutboundMessage;
import org.smslib.SMSLibException;
import org.smslib.Service;
import org.smslib.TimeoutException;
public class SendMeaages {
/*author:命运的信徒
* date:2019/1/5
* arm:短信猫
*/
private static Service service=BeforeMessage.doIt();
private long lasttime=0;
//1.开启服务
public void startService(){
BeforeMessage.doIt();
}
//2.关闭服务
public void stopService(){
try {
service.startService();
service.removeGateway(BeforeMessage.getGateway());
} catch (TimeoutException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (GatewayException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (SMSLibException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
//3.发送信息
public boolean doSend(String phone,String text) throws TimeoutException, GatewayException, IOException, InterruptedException{
boolean flag=false;
//1.发送信息
OutboundMessage obm=new OutboundMessage(phone,text);
//2.发送中文信息一定要添加这一句
obm.setEncoding(MessageEncodings.ENCUCS2);
//3.开始判断,从1970年1月1日0点到现在的时间-最后一次的时候,如果时间小于5000,就等待一段时间
long diff=System.currentTimeMillis()-lasttime;
if(diff<5000){
try {
Thread.sleep(5000-diff);
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
//4.信息对象不为空的话,就发送数据
if(null!=obm){
flag=service.sendMessage(obm);
if(flag){
System.out.println("发送成功....");
}else{
System.out.println("发送失败...");
}
}
//把最后一次的时间设置为当前的时候,每隔5000以后才能发一次信息
lasttime = System.currentTimeMillis();
return flag;
}
}
简洁版本
package cn.com.way02;
import java.io.IOException;
import org.smslib.AGateway.Protocols;
import org.smslib.Message.MessageEncodings;
import org.smslib.OutboundMessage;
import org.smslib.SMSLibException;
import org.smslib.Service;
import org.smslib.TimeoutException;
import org.smslib.modem.SerialModemGateway;
public class TestWay01 {
public static boolean SmsMessage(String phone, String text)
throws TimeoutException, SMSLibException, IOException,
InterruptedException {
boolean result = false;
// 1.创建模块实例
SerialModemGateway smg = new SerialModemGateway("modem.com3", "COM3",
115200, "Caimore", "");
smg.setProtocol(Protocols.PDU);// 设置协议为pdu
smg.setInbound(true);// 设置可以接收信息
smg.setOutbound(true);// 设置可以发生信息
// 2.获取单例的服务
Service service = Service.getInstance();
try {
// 服务添加网关
service.addGateway(smg);
// 启用轮循模式
service.S.SERIAL_POLLING = true;
// 开启服务
service.startService();
// 3、发送短信
OutboundMessage obg = new OutboundMessage(phone, text);
// 如果发生的是中文的短信的话,一定要加上这一句话
obg.setEncoding(MessageEncodings.ENCUCS2);
result = service.sendMessage(obg);
// 4、关闭程序
service.stopService();
service.removeGateway(smg);
} catch (Exception e) {
e.printStackTrace();
service.stopService();
service.removeGateway(smg);
return false;
}
return result;
}
public static void main(String[] args) {
try {
SmsMessage("15656215623", "java版本RXTX包的短信猫测试成功!");
} catch (Exception e) {
}
}
}
