MKL库性能对比（转载）

英特尔数学核心函数库(Intel Math Kernel Library,MKL)是一套经过高度优化和广泛线程化的数学例程，专为需要极致性能的科学、工程及金融等领域的应用而设计。核心数学函数包括BLAS、LAPACK、ScaLAPACK1、稀疏矩阵解算器、快速傅立叶转换、矢量数学及其它函数。其可以为英特尔处理器提供性能优化，并且更出色地与 Microsoft Visual Studio相集成。Intel MKL是一套经过高度优化和线程化的函数库，并提供了C和Fortran接口。

使用矩阵乘法(cblas_cgemm)为例来对比不同环境与配置的性能差距。

#include<stdio.h>#include<stdlib.h>#include"mkl.h"		// 调用mkl头文件#define min(x,y) (((x) < (y)) ? (x) : (y))

double* A, * B, * C;		//声明三个矩阵变量，并分配内存int m, n, k, i, j;			//声明矩阵的维度，其中double alpha, beta;

m = 2000, k = 200, n = 1000;
alpha = 1.0; beta = 0.0;

A = (double*)mkl_malloc(m * k * sizeof(double), 64);	//按照矩阵维度分配内存
B = (double*)mkl_malloc(k * n * sizeof(double), 64);	//mkl_malloc用法与malloc相似，64表示64位
C = (double*)mkl_malloc(m * n * sizeof(double), 64);
if (A == NULL || B == NULL || C == NULL) {		//判空

    mkl_free(A);
    mkl_free(B);
    mkl_free(C);
    return1;
}

for (i = 0; i < (m * k); i++) {		//赋值
    A[i] = (double)(i + 1);
}

for (i = 0; i < (k * n); i++) {
    B[i] = (double)(-i - 1);
}

for (i = 0; i < (m * n); i++) {
    C[i] = 0.0;
}

先定义出待乘矩阵AA和BB，拟执行C=A∗BC=A∗B。其中CC矩阵为全0，AA和BB矩阵设置为：

A=⎡⎣⎢⎢⎢⎢⎢1.01001.0⋮999001.02.01002.0⋮999002.0⋯⋯⋱⋯1000.02000.0⋯1000000.0⎤⎦⎥⎥⎥⎥⎥ B=⎡⎣⎢⎢⎢⎢⎢−1.0−1001.0⋮−999001.0−2.0−1002.0⋮−999002.0⋯⋯⋱⋯−1000.0−2000.0⋯−1000000.0⎤⎦⎥⎥⎥⎥⎥A=[1.02.0⋯1000.01001.01002.0⋯2000.0⋮⋮⋱⋯999001.0999002.0⋯1000000.0] B=[−1.0−2.0⋯−1000.0−1001.0−1002.0⋯−2000.0⋮⋮⋱⋯−999001.0−999002.0⋯−1000000.0]

1 对比普通CPU与MKL库性能差距

1.1 使用dgemm(Sequential 串行)

printf (" Making the first run of matrix product using Intel(R) MKL dgemm function \n"" via CBLAS interface to get stable run time measurements \n\n");
cblas_dgemm(CblasRowMajor, CblasNoTrans, CblasNoTrans,
            m, n, p, alpha, A, p, B, n, beta, C, n);

printf (" Measuring performance of matrix product using Intel(R) MKL dgemm function \n"" via CBLAS interface \n\n");
s_initial = dsecnd();
for (r = 0; r < LOOP_COUNT; r++) {
    cblas_dgemm(CblasRowMajor, CblasNoTrans, CblasNoTrans,
                m, n, p, alpha, A, p, B, n, beta, C, n);
}
s_elapsed = (dsecnd() - s_initial) / LOOP_COUNT;

printf (" == Matrix multiplication using Intel(R) MKL dgemm completed == \n"" == at %.5f milliseconds == \n\n", (s_elapsed * 1000));

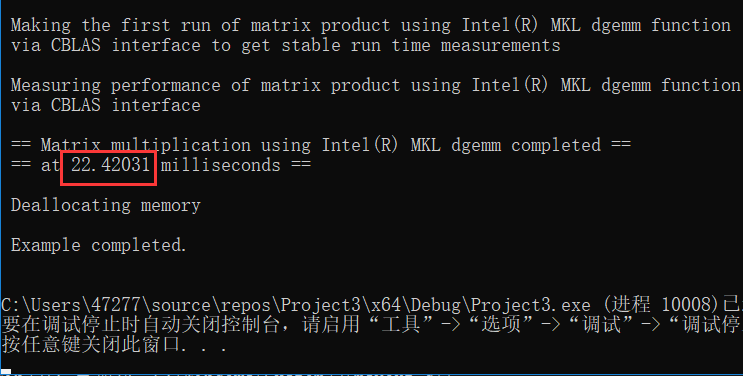

输出为：

1.2 使用嵌套循环(C)计算矩阵乘法

printf(" Measuring performance of matrix product using triple nested loop \n\n");
s_initial = dsecnd();
for (r = 0; r < LOOP_COUNT; r++) {
    for (i = 0; i < m; i++) {
        for (j = 0; j < n; j++) {
            sum = 0.0;
            for (k = 0; k < p; k++)
                sum += A[p * i + k] * B[n * k + j];
            C[n * i + j] = sum;
        }
    }
}
s_elapsed = (dsecnd() - s_initial) / LOOP_COUNT;

printf(" == Matrix multiplication using triple nested loop completed == \n"" == at %.5f milliseconds == \n\n", (s_elapsed * 1000));

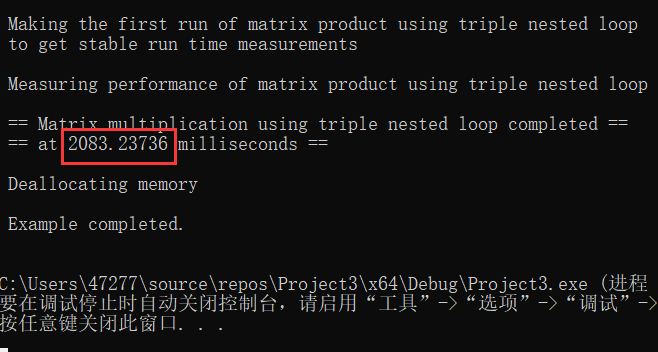

输出为：

2 对比串、并行与多线程差距

2.1 并行模式(Parallel)

2.2 多线程并行

默认情况下，英特尔 MKL 使用 nn个线程，其中 nn 是系统上的物理内核数。 通过限制线程数量、观察 dgemm 的性能变化，以下示例展示了线程如何影响性能。

max_threads = mkl_get_max_threads();
printf (" Finding max number %d of threads Intel(R) MKL can use for parallel runs \n\n", max_threads);

printf (" Running Intel(R) MKL from 1 to %i threads \n\n", max_threads*2);
for (i = 1; i <= max_threads*2; i++) {
    for (j = 0; j < (m*n); j++)
        C[j] = 0.0;

    mkl_set_num_threads(i);

    cblas_dgemm(CblasRowMajor, CblasNoTrans, CblasNoTrans,
                m, n, p, alpha, A, p, B, n, beta, C, n);

    s_initial = dsecnd();
    for (r = 0; r < LOOP_COUNT; r++) {
        cblas_dgemm(CblasRowMajor, CblasNoTrans, CblasNoTrans,
                    m, n, p, alpha, A, p, B, n, beta, C, n);
    }
    s_elapsed = (dsecnd() - s_initial) / LOOP_COUNT;

    printf (" == Matrix multiplication using Intel(R) MKL dgemm completed ==\n"" == at %.5f milliseconds using %d thread(s) ==\n\n", (s_elapsed * 1000), i);
}

输出为：

完整代码

(I) dgemm_with_timing.c

#include<stdio.h>#include<stdlib.h>#include"mkl.h"#define LOOP_COUNT 10intmain()
{
    double *A, *B, *C;
    int m, n, p, i, r;
    double alpha, beta;
    double s_initial, s_elapsed;

    printf ("\n This example measures performance of Intel(R) MKL function dgemm \n"" computing real matrix C=alpha*A*B+beta*C, where A, B, and C \n"" are matrices and alpha and beta are double precision scalars\n\n");

    m = 2000, p = 200, n = 1000;
    printf (" Initializing data for matrix multiplication C=A*B for matrix \n"" A(%ix%i) and matrix B(%ix%i)\n\n", m, p, p, n);
    alpha = 1.0; beta = 0.0;

    printf (" Allocating memory for matrices aligned on 64-byte boundary for better \n"" performance \n\n");
    A = (double *)mkl_malloc( m*p*sizeof( double ), 64 );
    B = (double *)mkl_malloc( p*n*sizeof( double ), 64 );
    C = (double *)mkl_malloc( m*n*sizeof( double ), 64 );
    if (A == NULL || B == NULL || C == NULL) {
        printf( "\n ERROR: Can't allocate memory for matrices. Aborting... \n\n");
        mkl_free(A);
        mkl_free(B);
        mkl_free(C);
        return1;
    }

    printf (" Intializing matrix data \n\n");
    for (i = 0; i < (m*p); i++) {
        A[i] = (double)(i+1);
    }

    for (i = 0; i < (p*n); i++) {
        B[i] = (double)(-i-1);
    }

    for (i = 0; i < (m*n); i++) {
        C[i] = 0.0;
    }

    printf (" Making the first run of matrix product using Intel(R) MKL dgemm function \n"" via CBLAS interface to get stable run time measurements \n\n");
    cblas_dgemm(CblasRowMajor, CblasNoTrans, CblasNoTrans,
                m, n, p, alpha, A, p, B, n, beta, C, n);

    printf (" Measuring performance of matrix product using Intel(R) MKL dgemm function \n"" via CBLAS interface \n\n");
    s_initial = dsecnd();
    for (r = 0; r < LOOP_COUNT; r++) {
        cblas_dgemm(CblasRowMajor, CblasNoTrans, CblasNoTrans,
                    m, n, p, alpha, A, p, B, n, beta, C, n);
    }
    s_elapsed = (dsecnd() - s_initial) / LOOP_COUNT;

    printf (" == Matrix multiplication using Intel(R) MKL dgemm completed == \n"" == at %.5f milliseconds == \n\n", (s_elapsed * 1000));

    printf (" Deallocating memory \n\n");
    mkl_free(A);
    mkl_free(B);
    mkl_free(C);

    printf (" Example completed. \n\n");
    return0;
}

(II) matrix_multiplication.c

#include<stdio.h>#include<stdlib.h>#include"mkl.h"#define min(x,y) (((x) < (y)) ? (x) : (y))#define LOOP_COUNT 10intmain()
{
    double* A, * B, * C;
    int m, n, p, i, j, k, r;
    double alpha, beta;
    double sum;
    double s_initial, s_elapsed;

    printf("\n This example measures performance of rcomputing the real matrix product \n"" C=alpha*A*B+beta*C using a triple nested loop, where A, B, and C are \n"" matrices and alpha and beta are double precision scalars \n\n");

    m = 2000, p = 200, n = 1000;
    printf(" Initializing data for matrix multiplication C=A*B for matrix \n"" A(%ix%i) and matrix B(%ix%i)\n\n", m, p, p, n);
    alpha = 1.0; beta = 0.0;

    printf(" Allocating memory for matrices aligned on 64-byte boundary for better \n"" performance \n\n");
    A = (double*)mkl_malloc(m * p * sizeof(double), 64);
    B = (double*)mkl_malloc(p * n * sizeof(double), 64);
    C = (double*)mkl_malloc(m * n * sizeof(double), 64);
    if (A == NULL || B == NULL || C == NULL) {
        printf("\n ERROR: Can't allocate memory for matrices. Aborting... \n\n");
        mkl_free(A);
        mkl_free(B);
        mkl_free(C);
        return1;
    }

    printf(" Intializing matrix data \n\n");
    for (i = 0; i < (m * p); i++) {
        A[i] = (double)(i + 1);
    }

    for (i = 0; i < (p * n); i++) {
        B[i] = (double)(-i - 1);
    }

    for (i = 0; i < (m * n); i++) {
        C[i] = 0.0;
    }

    printf(" Making the first run of matrix product using triple nested loop\n"" to get stable run time measurements \n\n");
    for (i = 0; i < m; i++) {
        for (j = 0; j < n; j++) {
            sum = 0.0;
            for (k = 0; k < p; k++)
                sum += A[p * i + k] * B[n * k + j];
            C[n * i + j] = sum;
        }
    }

    printf(" Measuring performance of matrix product using triple nested loop \n\n");
    s_initial = dsecnd();
    for (r = 0; r < LOOP_COUNT; r++) {
        for (i = 0; i < m; i++) {
            for (j = 0; j < n; j++) {
                sum = 0.0;
                for (k = 0; k < p; k++)
                    sum += A[p * i + k] * B[n * k + j];
                C[n * i + j] = sum;
            }
        }
    }
    s_elapsed = (dsecnd() - s_initial) / LOOP_COUNT;

    printf(" == Matrix multiplication using triple nested loop completed == \n"" == at %.5f milliseconds == \n\n", (s_elapsed * 1000));

    printf(" Deallocating memory \n\n");
    mkl_free(A);
    mkl_free(B);
    mkl_free(C);

    printf(" Example completed. \n\n");
    return0;
}

(III) dgemm_threading_effect_example.c

#include<stdio.h>#include<stdlib.h>#include"mkl.h"#define LOOP_COUNT 10  intmain()
{
    double *A, *B, *C;
    int m, n, p, i, j, r, max_threads;
    double alpha, beta;
    double s_initial, s_elapsed;

    printf ("\n This example demonstrates threading impact on computing real matrix product \n"" C=alpha*A*B+beta*C using Intel(R) MKL function dgemm, where A, B, and C are \n"" matrices and alpha and beta are double precision scalars \n\n");

    m = 2000, p = 200, n = 1000;
    printf (" Initializing data for matrix multiplication C=A*B for matrix \n"" A(%ix%i) and matrix B(%ix%i)\n\n", m, p, p, n);
    alpha = 1.0; beta = 0.0;

    printf (" Allocating memory for matrices aligned on 64-byte boundary for better \n"" performance \n\n");
    A = (double *)mkl_malloc( m*p*sizeof( double ), 64 );
    B = (double *)mkl_malloc( p*n*sizeof( double ), 64 );
    C = (double *)mkl_malloc( m*n*sizeof( double ), 64 );
    if (A == NULL || B == NULL || C == NULL) {
        printf( "\n ERROR: Can't allocate memory for matrices. Aborting... \n\n");
        mkl_free(A);
        mkl_free(B);
        mkl_free(C);
        return1;
    }

    printf (" Intializing matrix data \n\n");
    for (i = 0; i < (m*p); i++) {
        A[i] = (double)(i+1);
    }

    for (i = 0; i < (p*n); i++) {
        B[i] = (double)(-i-1);
    }

    for (i = 0; i < (m*n); i++) {
        C[i] = 0.0;
    }

    max_threads = mkl_get_max_threads();
    printf (" Finding max number %d of threads Intel(R) MKL can use for parallel runs \n\n", max_threads);

    printf (" Running Intel(R) MKL from 1 to %i threads \n\n", max_threads*2);
    for (i = 1; i <= max_threads*2; i++) {
        for (j = 0; j < (m*n); j++)
            C[j] = 0.0;

        mkl_set_num_threads(i);

        cblas_dgemm(CblasRowMajor, CblasNoTrans, CblasNoTrans,
                    m, n, p, alpha, A, p, B, n, beta, C, n);

        s_initial = dsecnd();
        for (r = 0; r < LOOP_COUNT; r++) {
            cblas_dgemm(CblasRowMajor, CblasNoTrans, CblasNoTrans,
                        m, n, p, alpha, A, p, B, n, beta, C, n);
        }
        s_elapsed = (dsecnd() - s_initial) / LOOP_COUNT;

        printf (" == Matrix multiplication using Intel(R) MKL dgemm completed ==\n"" == at %.5f milliseconds using %d thread(s) ==\n\n", (s_elapsed * 1000), i);
    }

    printf (" Deallocating memory \n\n");
    mkl_free(A);
    mkl_free(B);
    mkl_free(C);

    printf (" Example completed. \n\n");
    return0;
}
