springcloud（2）——zookeeper、consul作为注册中心

企业开发 2023-06-05 14:37:20 阅读次数: 0

一、zookeeper

1.1 下载和安装

zookeeper之前有博文专门介绍，不做赘述，安装参考：Zookeeper的简单介绍以及windows下的安装

1.2 构建服务提供者

cloud-provider-zk-payment8004
<dependencies>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
            <!--先排除自带的zookeeper3.5.3 防止与3.4.9起冲突-->
            <exclusions>
                <exclusion>
                    <groupId>org.apache.zookeeper</groupId>
                    <artifactId>zookeeper</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!--添加zookeeper3.4.9版本-->
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.9</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
#8004表示注册到zookeeper服务器的支付服务提供者端口号
server:
  port: 8004

#服务别名----注册zookeeper到注册中心名称
spring:
  application:
    name: cloud-provider-payment
  cloud:
    zookeeper:
      connect-string: 127.0.0.1:2181

package com.cjian.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 19:50
 */
@SpringBootApplication
@EnableDiscoveryClient//该注解用于向使用consul或者zookeeper作为注册中心时注册服务
public class PaymentMain8004 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8004.class, args);
    }
}

package com.cjian.springcloud.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.UUID;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 19:51
 */
@RestController
public class PaymentController
{
    @Value("${server.port}")
    private String serverPort;

    @RequestMapping(value = "/payment/zk")
    public String paymentzk()
    {
        return "springcloud with zookeeper: "+serverPort+"\t"+ UUID.randomUUID().toString();
    }
}

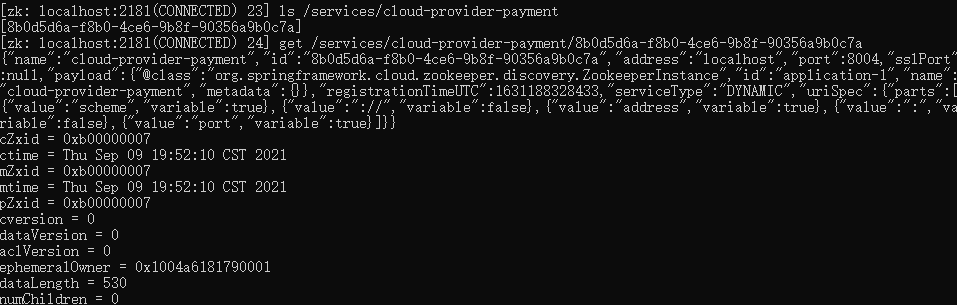

运行项目查看zookeeper

{
    "name":"cloud-provider-payment",
    "id":"8b0d5d6a-f8b0-4ce6-9b8f-90356a9b0c7a",
    "address":"localhost",
    "port":8004,
    "sslPort":null,
    "payload":{
        "@class":"org.springframework.cloud.zookeeper.discovery.ZookeeperInstance",
        "id":"application-1",
        "name":"cloud-provider-payment",
        "metadata":{

        }
    },
    "registrationTimeUTC":1631188328433,
    "serviceType":"DYNAMIC",
    "uriSpec":{
        "parts":[
            {
                "value":"scheme",
                "variable":true
            },
            {
                "value":"://",
                "variable":false
            },
            {
                "value":"address",
                "variable":true
            },
            {
                "value":":",
                "variable":false
            },
            {
                "value":"port",
                "variable":true
            }
        ]
    }
}

1.3 构建消费者

cloud-consumer-zk-order81
<dependencies>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
            <!--先排除自带的zookeeper-->
            <exclusions>
                <exclusion>
                    <groupId>org.apache.zookeeper</groupId>
                    <artifactId>zookeeper</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!--添加zookeeper3.4.9版本-->
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.9</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
server:
  port: 81

#服务别名----注册zookeeper到注册中心名称
spring:
  application:
    name: cloud-consumer-order
  cloud:
    zookeeper:
      connect-string: 127.0.0.1:2181

package com.cjian.springclud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 20:01
 */
@SpringBootApplication
@EnableDiscoveryClient
public class OrderZKMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderZKMain80.class, args);
    }
}

package com.cjian.springclud.config;

import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 20:01
 */
@Configuration
public class ApplicationContextConfig
{
    @Bean
    @LoadBalanced
    public RestTemplate getRestTemplate()
    {
        return new RestTemplate();
    }
}

package com.cjian.springclud.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 20:01
 */
@RestController
public class OrderZKController
{
    public static final String INVOKE_URL = "http://cloud-provider-payment";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping(value = "/consumer/payment/zk")
    public String paymentInfo()
    {
        String result = restTemplate.getForObject(INVOKE_URL+"/payment/zk",String.class);
        return result;
    }
}

启动后查看zookeeper

 1.4 测试

访问  http://localhost:81/consumer/payment/zk



二、consul

Consul是一套开源的分布式服务发现和配置管理系统，由HashiCorp 公司用Go语言开发。

提供了微服务系统中的服务治理、配置中心、控制总线等功能。这些功能中的每一个都可以根据需要单独使用，也可以一起使用以构建全方位的服务网格，总之Consul提供了一种完整的服务网格解决方案。

它具有很多优点。包括：基于raft协议，比较简洁；支持健康检查，同时支持HTTP和DNS协议支持跨数据中心的WAN集群提供图形界面跨平台，支持Linux、Mac、Windows。

能干嘛？

  • 服务发现 - 提供HTTP和DNS两种发现方式。
  • 健康监测 - 支持多种方式，HTTP、TCP、Docker、Shell脚本定制化
  • KV存储 - Key、Value的存储方式
  • 多数据中心 - Consul支持多数据中心
  • 可视化Web界面

2.1、下载和安装

下载consul: https://www.consul.io/downloads

windows版解压缩后，得consul.exe，目录下打开cmd

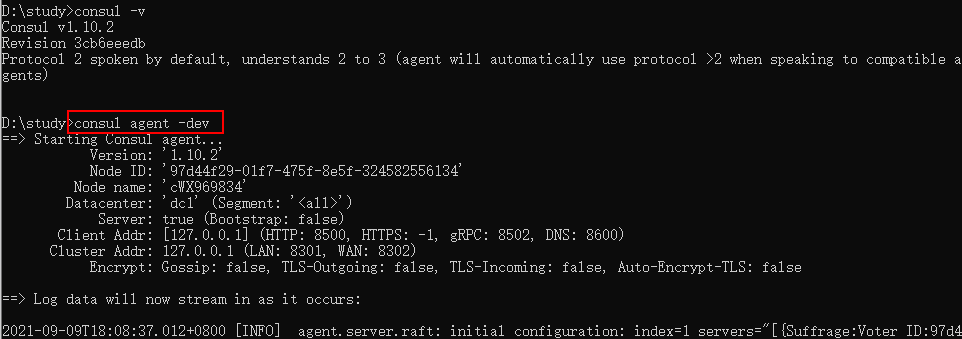

查看版本consul -v

开发模式启动 consul agent -dev

 浏览器输入 - http://localhost:8500/ - 打开Consul控制页

2.2、构建服务提供者

新建module：

cloud-provider-consul-payment8006
<dependencies>
        <!--SpringCloud consul-server -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-discovery</artifactId>
        </dependency>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--日常通用jar包配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
package com.cjian.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 18:12
 */
@SpringBootApplication
@EnableDiscoveryClient
public class PaymentMain8006
{
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8006.class, args);
    }
}


package com.cjian.springcloud.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.UUID;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 18:12
 */
@RestController
public class PaymentController
{
    @Value("${server.port}")
    private String serverPort;

    @RequestMapping(value = "/payment/consul")
    public String paymentConsul()
    {
        return "springcloud with consul: "+serverPort+"\t   "+ UUID.randomUUID().toString();
    }
}

###consul服务端口号
server:
  port: 8006

spring:
  application:
    name: consul-provider-payment
  ####consul注册中心地址
  cloud:
    consul:
      host: localhost
      port: 8500
      discovery:
        #hostname: 127.0.0.1
        service-name: ${spring.application.name}

2.3 构建消费者

新建module

cloud-consumer-consul-order81
<dependencies>
        <!--SpringCloud consul-server -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-consul-discovery</artifactId>
        </dependency>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--日常通用jar包配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

package com.cjian.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 18:58
 */
@SpringBootApplication
@EnableDiscoveryClient //该注解用于向使用consul或者zookeeper作为注册中心时注册服务
public class OrderConsulMain81
{
    public static void main(String[] args) {
        SpringApplication.run(OrderConsulMain81.class, args);
    }
}

package com.cjian.springcloud.config;

import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 18:59
 */
@Configuration
public class ApplicationContextConfig
{
    @Bean
    @LoadBalanced
    public RestTemplate getRestTemplate()
    {
        return new RestTemplate();
    }
}


package com.cjian.springcloud.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

/**
 * @description:
 * @author: CJ
 * @time: 2021/9/9 18:59
 */
@RestController
public class OrderConsulController
{
    public static final String INVOKE_URL = "http://consul-provider-payment";

    @Resource
    private RestTemplate restTemplate;

    @GetMapping(value = "/consumer/payment/consul")
    public String paymentInfo()
    {
        String result = restTemplate.getForObject(INVOKE_URL+"/payment/consul",String.class);
        return result;
    }
}

2.4 测试

分别启动消费者和服务提供者，查看consul控制台

访问： http://localhost:81/consumer/payment/consul



猜你喜欢

转载自blog.csdn.net/cj_eryue/article/details/120205850
今日推荐
火速冲上 GitHub 热榜 —— 开源编程语言、框架哪有这么可爱？
北京人形机器人创新中心发布全球首个纯电驱拟人奔跑的全尺寸人形机器人“天工”
LFOSSA 源来如此公开课 | 掌握云原生未来：CNCF 认证全面攻略与备考秘籍
国产云输入法——仅华为无云端数据上传安全问题
开源日报 | 工业开源项目OGG 1.0；姐姐，你要和我一起配置火狐吗；苹果AI遥遥落后？Fedora 40
开放签电子签章：停止新增，优化体验，前进更进（五一假期前工作）
开源日报 | 中学生开源前端动画引擎；全球首个Llama3 8B中文版开源模型；联想电脑恐出局；Linus讽刺AI炒作
周排行
浏览器对同一域名进行请求的最大并发连接数
React Hook之自定义Hook
【转】MyBatis缓存机制
-Java-泛型
自动化测试常用脚本-发送邮件
LeetCode#859: Buddy Strings
java、Python处理字符串
第二篇の博客
Hadoop伪分布式环境安装
SQL Server进阶（十一）临时表、表变量
每日归档
更多
2024-04-27(56)
2024-04-26(39)
2024-04-25(22)
2024-04-24(36)
2024-04-23(26)
2024-04-22(39)
2024-04-21(0)
2024-04-20(6)
2024-04-19(5)
2024-04-18(0)

代码天地 © 2018 codetd.com

境外服务器   最新电视剧2022
