Unity: 打飞碟简单版
游戏规则
- 一共有三个回合，随着回合增加，单位时间出现的飞碟数合飞碟的速度都会增加
- 分数由玩家点击的飞碟颜色决定，黑色3分，红色2分，黄色1分
- 每个回合有20个飞碟
- 没有失败的条件，最后看分数多少

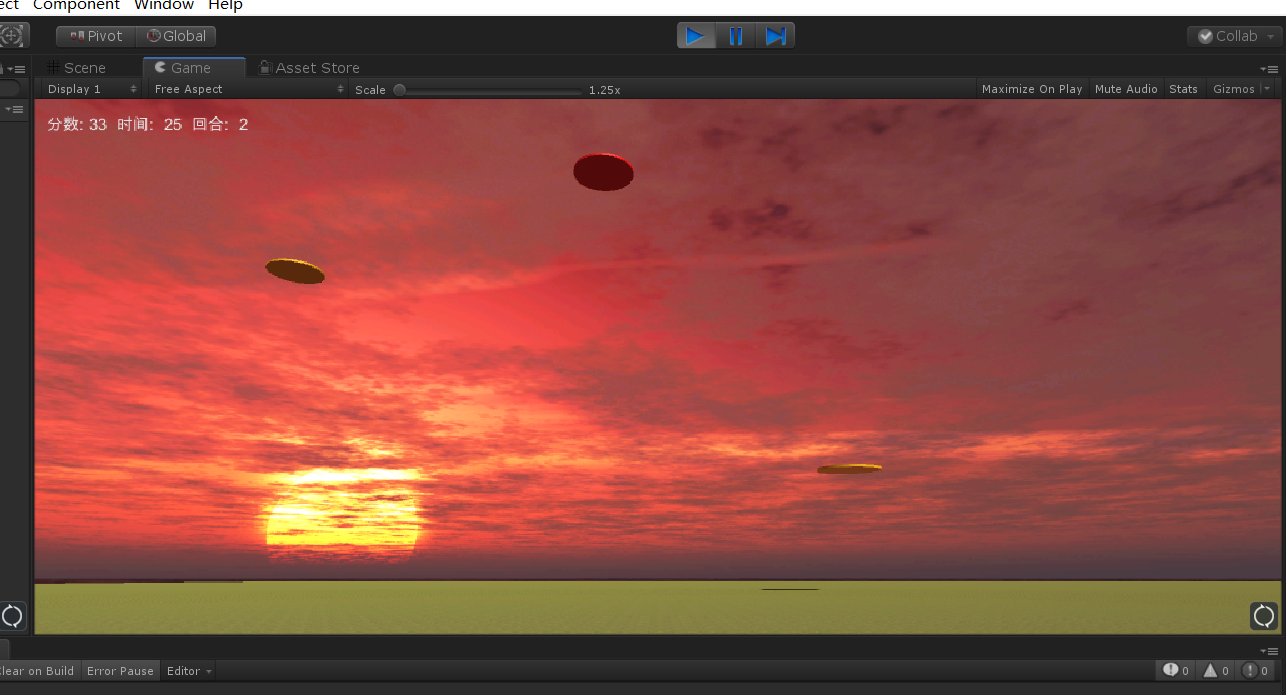

游戏场景

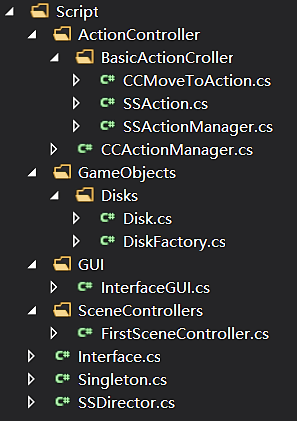

代码组织结构
代码结构
在老师给的框架下做一些扩展即可
代码
Disk.cs 飞碟的属性脚本
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class Disk : MonoBehaviour {
//初始化的位置
public Vector3 StartPoint {
get {
return gameObject.transform.position; } set {
gameObject.transform.position = value; } }
public Color color {
get {
return gameObject.GetComponent<Renderer>().material.color; } set {
gameObject.GetComponent<Renderer>().material.color = value; } }
//初始速度
public float speed {
get;set; }
//方向
public Vector3 Direction {
get {
return Direction; } set {
gameObject.transform.Rotate(value); } }
public int score; //后面没用到
}
DiskFactory.cs 飞碟工厂，管理飞碟的产生、销毁
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class DiskFactory {
public GameObject diskPrefab;
public static DiskFactory DF = new DiskFactory();
private Dictionary<int, Disk> used = new Dictionary<int, Disk>();//used是用来保存正在使用的飞碟
private List<Disk> free = new List<Disk>();//free是用来保存未激活的飞碟
private DiskFactory()
{
diskPrefab = GameObject.Instantiate<GameObject>(Resources.Load<GameObject>("Prefabs/disk"));//获取预制的游戏对象
diskPrefab.AddComponent<Disk>();
diskPrefab.SetActive(false);
}
//更新used和free列表里的飞碟
public void FreeDisk()
{
foreach (Disk x in used.Values)
{
if (!x.gameObject.activeSelf)
{
free.Add(x);
used.Remove(x.GetInstanceID());
return;
}
}
}
//获取一个free的飞碟
public Disk GetDisk(int round)
{
FreeDisk();
GameObject newDisk = null;
Disk disk;
if (free.Count > 0)
{
//从之前生产的Disk中拿出可用的
newDisk = free[0].gameObject;
free.Remove(free[0]);
}
else
{
//克隆预制对象，生产新Disk
newDisk = GameObject.Instantiate<GameObject>(diskPrefab, Vector3.zero, Quaternion.identity);
}
newDisk.SetActive(true);
disk = newDisk.AddComponent<Disk>(); //添加属性脚本
int initCase;
initCase = Random.Range(0, 5);
/**
* 根据回合数来生成相应的飞碟,难度逐渐增加。
*/
float initSpeed;
if (round == 1)
{
initSpeed = Random.Range(40, 60);
}
else if (round == 2)
{
initSpeed = Random.Range(60, 90);
}
else {
initSpeed = Random.Range(90, 120);
}
//根据initCase的不同设计飞碟的颜色、初速度、初始化位置等
switch (initCase)
{
case 0:
{
disk.color = Color.yellow;
disk.speed = initSpeed;
float RanX = UnityEngine.Random.Range(-1f, 1f) < 0 ? -1 : 1;
disk.Direction = new Vector3(RanX, 1, 0);
disk.StartPoint = new Vector3(Random.Range(-130, -110), Random.Range(30,90), Random.Range(110,140));
break;
}
case 1:
{
disk.color = Color.red;
disk.speed = initSpeed + 10;
float RanX = UnityEngine.Random.Range(-1f, 1f) < 0 ? -1 : 1;
disk.Direction = new Vector3(RanX, 1, 0);
disk.StartPoint = new Vector3(Random.Range(-130, -110), Random.Range(30, 80), Random.Range(110, 130));
break;
}
case 2:
{
disk.color = Color.black;
disk.speed = initSpeed + 15;
float RanX = UnityEngine.Random.Range(-1f, 1f) < 0 ? -1 : 1;
disk.Direction = new Vector3(RanX, 1, 0);
disk.StartPoint = new Vector3(Random.Range(-130,-110), Random.Range(30, 70), Random.Range(90, 120));
break;
}
case 3:
{
disk.color = Color.yellow;
disk.speed = -initSpeed;
float RanX = UnityEngine.Random.Range(-1f, 1f) < 0 ? -1 : 1;
disk.Direction = new Vector3(RanX, 1, 0);
disk.StartPoint = new Vector3(Random.Range(130, 110), Random.Range(30, 90), Random.Range(110, 140));
break;
}
case 4:
{
disk.color = Color.red;
disk.speed = -initSpeed - 10;
float RanX = UnityEngine.Random.Range(-1f, 1f) < 0 ? -1 : 1;
disk.Direction = new Vector3(RanX, 1, 0);
disk.StartPoint = new Vector3(Random.Range(130, 110), Random.Range(30, 80), Random.Range(110, 130));
break;
}
case 5:
{
disk.color = Color.black;
disk.speed = -initSpeed - 15;
float RanX = UnityEngine.Random.Range(-1f, 1f) < 0 ? -1 : 1;
disk.Direction = new Vector3(RanX, 1, 0);
disk.StartPoint = new Vector3(Random.Range(130, 110), Random.Range(30, 70), Random.Range(90, 120));
break;
}
}
if (disk.color == Color.black) disk.score = 3;
else if (disk.color == Color.red) disk.score = 2;
else disk.score = 1;
used.Add(disk.GetInstanceID(), disk); //添加到使用队列里
disk.name = disk.GetInstanceID().ToString();
return disk;
}
}
CCFlyAction.cs 具体的飞行动作
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
//飞行的动作，由上个游戏的CCMoveToAction改动过来的
public class CCFlyAction : SSAction
{
//速度分解为x和y方向，y方向初始为0
public float speedx;
public float speedy = 0;
private CCFlyAction() {
}
//单例模式，给定初始的x方向速度
public static CCFlyAction getAction(float speedx)
{
CCFlyAction action = CreateInstance<CCFlyAction>();
action.speedx = speedx;
return action;
}
//运动
public override void Update()
{
// dx = vt
float deltax = speedx * Time.deltaTime;
// dy = yt + 0.5at^2
float deltay = -speedy * Time.deltaTime + (float)-0.5 * 10 * Time.deltaTime * Time.deltaTime;
this.transform.position += new Vector3(deltax, deltay,0);
// y' = y + at
speedy += 10*Time.deltaTime;
//当飞碟的位置的y坐标小于阈值，认为消失在用户视野中，执行销毁
if (transform.position.y <= 1)
{
destroy = true;
CallBack.SSActionCallback(this);
}
}
public override void Start()
{
}
}
Interfaces.cs：接口定义，主要修改UserAction接口
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
namespace Interfaces
{
public interface ISceneController
{
void LoadResources();
}
public interface UserAction
{
void Hit(Vector3 pos); //鼠标点击
void Restart(); //开始和重新开始都一样
int GetScore();
bool RoundStop(); //最后的回合结束
int GetRound();
}
public enum SSActionEventType : int {
Started, Completed }
public interface SSActionCallback
{
void SSActionCallback(SSAction source);
}
}
FirstSceneController.cs：挂在空项目上的脚本，场景控制器
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Interfaces;
public class FirstSceneController : MonoBehaviour, ISceneController, UserAction
{
int score = 0; //分数
int round = 1; //回合，设置了3个
int producedDiskNum = 0; //每回合已经产生的飞碟数目
bool start = false;
CCActionManager Manager;
DiskFactory DF;
void Awake()
{
SSDirector director = SSDirector.getInstance();
director.currentScenceController = this;
DF = DiskFactory.DF;
Manager = GetComponent<CCActionManager>();
}
// Use this for initialization
void Start () {
}
// Update is called once per frame
int count = 0;
void Update () {
//val帧产生一个飞碟
int val;
switch (round)
{
case 1:
val = Random.Range(60, 80);
break;
case 2:
val = Random.Range(45, 60);
break;
default:
val = 40;
break;
}
if(start)
{
count++;
if (count >= val) //val帧一个飞碟
{
count = 0;
if(DF == null)
{
Debug.LogWarning("DF is NUll!");
return;
}
producedDiskNum++;
Disk d = DF.GetDisk(round);
Manager.MoveDisk(d);
if (producedDiskNum == 15) //15个飞碟进入下一个回合
{
round++;
producedDiskNum = 0;
}
}
}
}
public void LoadResources()
{
}
public void Hit(Vector3 pos)
{
Ray ray = Camera.main.ScreenPointToRay(pos);
RaycastHit[] hits;
hits = Physics.RaycastAll(ray);
for (int i = 0; i < hits.Length; i++)
{
RaycastHit hit = hits[i];
//根据颜色加分
if (hit.collider.gameObject.GetComponent<Disk>() != null)
{
Color c = hit.collider.gameObject.GetComponent<Renderer>().material.color;
if (c == Color.yellow) score += 1;
if (c == Color.red) score += 2;
if (c == Color.black) score += 3;
hit.collider.gameObject.transform.position = new Vector3(0, -5, 0);
}
}
}
public int GetScore()
{
return score;
}
//初始化各变量
public void Restart()
{
score = 0;
round = 1;
start = true;
}
//到了第三回合要判断是否结束
public bool RoundStop()
{
if (round > 3)
{
start = false;
return Manager.IsAllFinished();//是否还有飞碟留在used列表里
}
else return false;
}
public int GetRound()
{
return round;
}
}
InterfaceGUI.cs：挂在相机的脚本，负责管理与玩家的界面管理
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Interfaces;
using UnityEngine.UI;
//挂在相机的脚本
public class InterfaceGUI : MonoBehaviour {
UserAction userAction;
bool isPlaying = false;
float S;
int round = 1;
// Use this for initialization
void Start () {
userAction = SSDirector.getInstance().currentScenceController as UserAction;
S = Time.time;
}
private void OnGUI()
{
if(!isPlaying) S = Time.time;
//分数、时间、回合
string text = "分数: " + userAction.GetScore().ToString() + " 时间: " + ((int)(Time.time - S)).ToString() + " 回合: " + round;
GUI.Label(new Rect(10, 10, Screen.width, 50),text);
if (!isPlaying && GUI.Button(new Rect(Screen.width / 2 - 75, Screen.height / 2 - 25, 150, 50), "开始游戏"))
{
S = Time.time;
isPlaying = true;
userAction.Restart(); //点击开始游戏，FirstSceneController开始游戏
}
if (isPlaying)
{
round = userAction.GetRound();
if (Input.GetButtonDown("Fire1"))
{
//把鼠标点击的位置传给FirstScenceController，处理点击事件
Vector3 pos = Input.mousePosition;
userAction.Hit(pos);
}
if (round > 3) //round>3要等待飞碟都用完了
{
round = 3;
if (userAction.RoundStop())
{
isPlaying = false;
}
}
}
}
其他类基本没有变化
总结
本次代码因为规则的设计比较简单而简单，其实可以加上生命之之类的功能。
