简单讲一下B树B+树
这些树的作用,主要都体现于增删改查。
而为了性能的增强,从二叉树开始一步步进化,有了有序二叉树,然后到平衡二叉树,然后到了23树。
但23树依然不太优越。
假如有1w的数据,那么23树的层数就会很多,层数越多,增删改查消耗的时间也就越多。
如果我们希望它能够在数据量多的时候,层数少,那么就是每一层能够保存更多的数据,这样子虽然查找快了一些,但每一层又臃肿了一些。
不同的数据结构各有优越,要考虑不同情况使用不同的数据结构。
B树(B_ B-):
在23树的基础上引入M值的概念,M值是变化的,相对23树而言更加灵活。
简单举例:23树就是M值为3的B树。

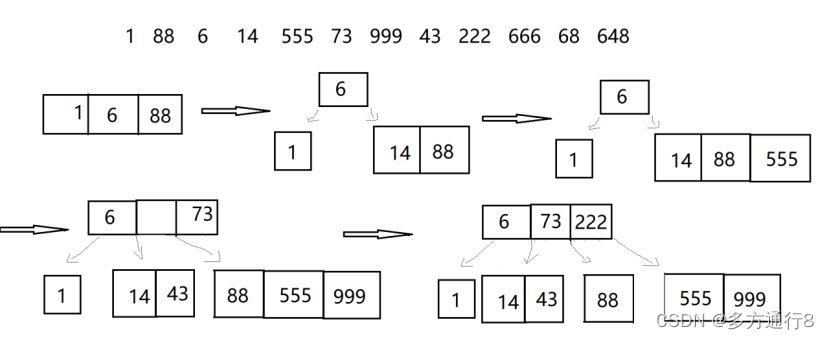

如图,B树和23树的原理一样,B的M为4,即表示到达4个分裂:

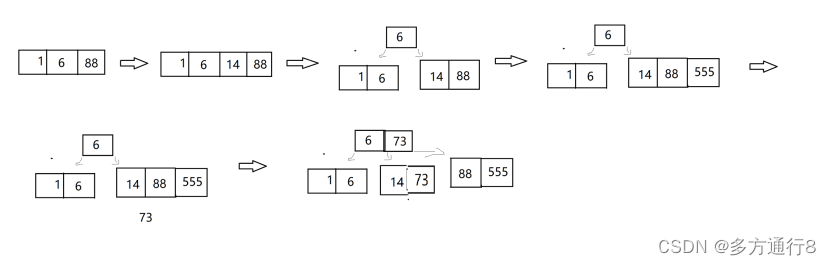

B+树:
B树加上2个特性。
- 数据只存在叶子节点上
- 叶子节点之间用指针连接

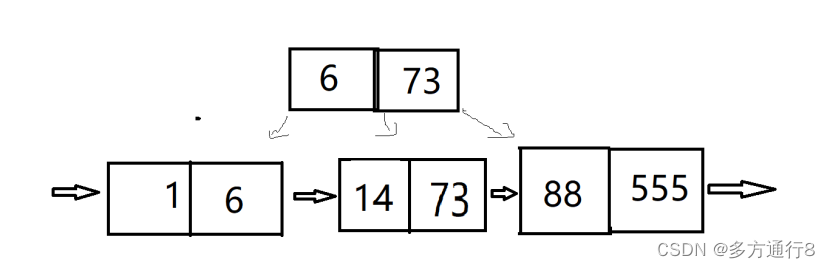

- 这样之后,nb的就是第二个特性(叶子节点之间用指针连接):
做链表一样,而上面的6和73是索引。
比如要找14,链表的话是一个一个找过去。
而这个通过索引6和73,直接找到大致区间进行搜索。
平衡二叉树优化,为红黑二叉树:
在不怎么降低AVL查找效率的情况下,大幅度优化增删效率。
红黑二叉树相对AVL树:稍微降低查找效率(不是绝对平衡),增删效率加快很多(3次旋转可以搞定)
红黑二叉树规则:
- 树中节点 非红即黑
- 根和叶子都是黑节点(空节点算黑节点),枝干非红即黑
- 红色节点的孩子必定是黑色
- 从一个节点到这个节点的任意一个子孙节点,路径上包含相同个数的黑色节点

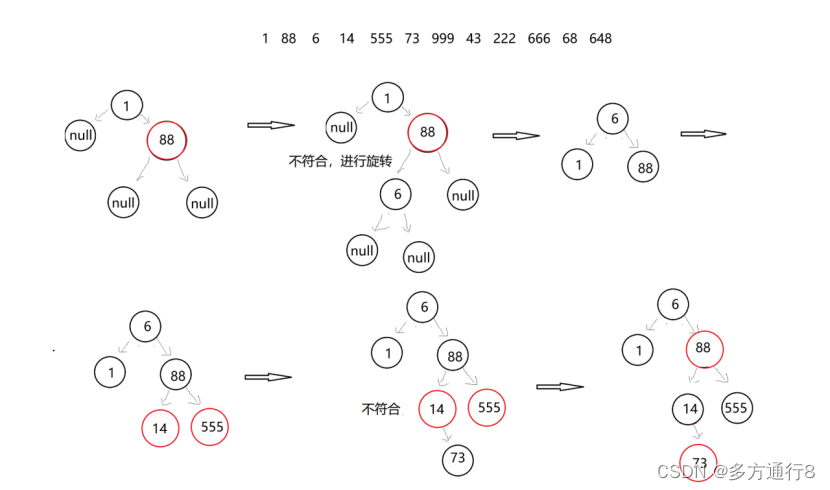

如图:
红黑二叉树插入步骤:
- 新节点统一着色为红色
情况一:新节点为根节点,着色为黑
情况二:新节点的父节点颜色为黑,啥都不干
情况三:新节点的父节点颜色为红:
3.1被插入节点父节点颜色为红色,并且叔叔节点颜色为黑色,并且插入节点是其父节点的左孩子
怎么做:3.1.1父节点设置为黑色
3.1.2爷爷节点设置为红色
3.1.3以其父节点为轴右旋
3.2被插入节点父节点颜色为红色,并且叔叔节点颜色为黑色,并且插入节点是其父节点的右孩子
怎么做:3.2.1以其父节点为轴左旋
3.2.2新节点设置为黑色
3.3被插入节点父节点颜色为红色,并且叔叔节点颜色为红色
怎么做:3.3.1父节点设置为黑色
3.3.2叔叔节点设置为黑色
3.3.3爷爷节点设置为红色
3.3.4把爷爷节点当成新节点插入
代码如下:
#include <stdio.h>
#include <stdlib.h>
//辅助宏
#define RED 0
#define BLACK 1
//获取节点的颜色
#define COLOR(x) ((x)->color)
//获取当前节点的父节点
#define PARENTNODE(x) ((x)->parentNode)
//设置当前节点的父节点
#define SET_PARENT(x,p) ((x)->parentNode=(p))
//设置当前节点的颜色
#define SET_COLOR(x,c) ((x)->color=(c))
//设置当前节点颜色为黑色
#define SET_BLACK(x) ((x)->color=BLACK)
//设置当前节点颜色为红色
#define SET_RED(x) ((x)->color=RED)
//判断当前节点颜色是否为黑色
#define IS_BLACK(x) ((x)->color==BLACK)
//判断当前节点颜色是否为红色
#define IS_RED(x) ((x)->color==RED)
//红黑树的结构体
struct RBTreeNode
{
unsigned int color; //颜色
int key; //关键字
struct RBTreeNode* LChild;
struct RBTreeNode* RChild;
struct RBTreeNode* parentNode;
}
typedef; struct RBTreeNode NODE;
typedef struct RBTreeNode* LPNODE;
struct RBTree
{
LPNODE root;
int treeSize;
}
typedef; struct RBTree RBTREE;
typedef struct RBTree* LPRBTREE;
LPNODE createNode(int key)
{
LPNODE newNode = (LPNODE)malloc(sizeof(NODE));
newNode->key = key;
newNode->LChild = NULL;
newNode->RChild = NULL;
newNode->parentNode = NULL;
newNode->color = BLACK;
return newNode;
}
//创建树
LPRBTREE createRBTree()
{
LPRBTREE tree = (LPRBTREE)malloc(sizeof(RBTREE));
tree->root = NULL;
return tree;
}
//左旋
void L_Rotation(LPRBTREE tree, LPNODE x)
{
//1.拿到x的右边 y怎么表示?
LPNODE y = x->RChild;
//2.y的左边成为x的右边
x->RChild = y->LChild;
//3.判断下y的左边是不是空的
//父节点的处理
if (y->LChild != NULL) {
y->LChild->parentNode = x;
}
//y替换了x ,所以x的父节点就是y的父节点
y->parentNode = x->parentNode;
//如果x是根不,循环后,红黑树的根改变
if (x->parentNode == NULL) {
tree->root = y;
}
else {
//不是根部判断x是在原来父节点左边还是右边
if (x->parentNode->LChild == x) {
x->parentNode->LChild = y;
}
else {
x->parentNode->RChild = y;
}
}
//处理一下x的位置
y->LChild = x;
x->parentNode = y;
}
//右旋
void R_Rotation(LPRBTREE tree, LPNODE y)
{
//拿到x节点
LPNODE x = y->LChild;
y->LChild = x->RChild;
if (x->RChild != NULL)
{
x->RChild->parentNode = y;
}
//处理x和y的父节点
x->parentNode = y->parentNode;
if (y->parentNode == NULL)
{
tree->root = x;
}
else
{
if (y == y->parentNode->LChild)
{
y->parentNode->LChild = x;
}
else
{
y->parentNode->RChild = x;
}
}
//
x->RChild = y;
y->parentNode = x;
}
//1.插入
//1.1 当作BST(有序二叉树)做一个插入
//1.2 调整成为红黑树
void insertAdjustTree(LPRBTREE tree, LPNODE node)
{
LPNODE parent, gparent;
while ((parent = PARENTNODE(node)) && IS_RED(parent))
{
gparent = PARENTNODE(parent);
//三种情况分析
if (parent == gparent->LChild)
{//父节点是祖父节点的左孩子
//No.1 U=RED;//对应笔记中的情况三 . 3
{
LPNODE uncle = gparent->RChild;
if (uncle && IS_RED(uncle))
{
SET_BLACK(uncle); //uncle->color=BLACK;
SET_BLACK(parent); //parent->color=BLACK;
SET_RED(gparent); //gpranet->color=RED;
node = gparent;
continue;
}
}
//No.2 u=BLACK S=R //对应笔记中 情况三.1
if (parent->RChild == node)
{
LPNODE temp;
L_Rotation(tree, parent);
temp = parent;
parent = node;
node = temp;
}
//No.3 U=BLACK S=L //对应笔记中 情况三.2
SET_BLACK(parent);
SET_RED(gparent);
R_Rotation(tree, gparent);
}
else
{//父节点是祖父节点的右孩子
//No.1 //对应笔记中的情况三 . 3
{
LPNODE uncle = gparent->LChild;
if (uncle && IS_RED(uncle))
{
SET_BLACK(uncle); //uncle->color=BLACK;
SET_BLACK(parent); //parent->color=BLACK;
SET_RED(gparent); //gpranet->color=RED;
node = gparent;
continue;
}
}
//No.2
if (parent->LChild == node) //对应笔记中 情况三.1
{
LPNODE temp;
R_Rotation(tree, parent);
temp = parent;
parent = node;
node = temp;
}
SET_BLACK(parent);//对应笔记中 情况三.2
SET_RED(gparent);
L_Rotation(tree, gparent);
}
}
SET_BLACK(tree->root);// 对应笔记中 情况一:新节点是根节点
}
//1.1 当作BST做一个插入
void insertNode(LPRBTREE tree, LPNODE node)
{
//当作BST做一个插入
LPNODE y = NULL;
LPNODE x = tree->root;
while (x != NULL)
{
y = x; //记录父节点
if (node->key < x->key)
{
x = x->LChild;
}
else
{
x = x->RChild;
}
}
//新节点应该插在y节点的下面
SET_PARENT(node, y);
if (y != NULL)
{
if (node->key < y->key)
{
y->LChild = node;
}
else
{
y->RChild = node;
}
}
else //树是空的,第一次插入节点就要成为根节点
{
tree->root = node;
}
SET_COLOR(node, RED); //插入节点着色红色
//2.按照红黑树的规则情况去调整二叉树成为红黑树
insertAdjustTree(tree, node);
}
void printCurNode(LPNODE curNode)
{
printf("%d:%s\n", curNode->key, curNode->color ? "BLACK" : "RED");
}
void preOrder(LPNODE root)
{
if (root != NULL)
{
printCurNode(root); //printf("%d:%s\n", curNode->key, curNode->color ? "BLACK" : "RED");
preOrder(root->LChild);
preOrder(root->RChild);
}
}
//2.红黑树的删除
//2.1 当做BST 去做删除
//2.2 调整
void deleteAdjustTree(LPRBTREE tree, LPNODE node, LPNODE parent)
{
LPNODE other;
while (!node || IS_BLACK(node) && node != tree->root)
{
if (parent->LChild == node) //node是其父节点的左孩子
{
other = parent->RChild;
if (IS_RED(other))//node的兄弟为红色节点
{
//No.1 xB=RED
SET_BLACK(other);
SET_RED(parent);
L_Rotation(tree, parent);
other = parent->RChild;
}
if ((!other->LChild) || IS_BLACK(other->LChild) &&
(!other->RChild) || IS_BLACK(other->RChild))
{
//No.2 xB=BLACK
SET_RED(other);
node = parent;
parent = PARENTNODE(node);
}
else
{
if (!other->RChild || IS_BLACK(other->RChild))
{
//No.3 xB=BLACK xB->LChild=RED, xB->RChild=BLACK;
SET_BLACK(other->LChild);
SET_RED(other);
R_Rotation(tree, other);
other = parent->RChild;
}
//No.4 xB=BLACK xB=RChild=RED
SET_COLOR(other, COLOR(parent));
SET_BLACK(parent);
SET_BLACK(other->RChild);
L_Rotation(tree, parent);
node = tree->root;
break;
}
}
else //node是其父节点的右孩子
{
other = parent->LChild;
if (IS_RED(other))
{
//No.1 xB=RED
SET_BLACK(other);
SET_RED(parent);
L_Rotation(tree, parent);
other = parent->LChild;
}
if ((!other->LChild) || IS_BLACK(other->LChild) &&
(!other->RChild) || IS_BLACK(other->RChild))
{
//No.2 xB=BLACK
SET_RED(other);
node = parent;
parent = PARENTNODE(node);
}
else
{
if (!other->LChild || IS_BLACK(other->LChild))
{
//No.3 xB=BLACK xB->RChild=RED, xB->LChild=BLACK;
SET_BLACK(other->RChild);
SET_RED(other);
L_Rotation(tree, other);
other = parent->LChild;
}
//No.4 xB=BLACK xB=LChild=RED
SET_COLOR(other, COLOR(parent));
SET_BLACK(parent);
SET_BLACK(other->LChild);
R_Rotation(tree, parent);
node = tree->root;
break;
}
}
}
if (node)
{
SET_BLACK(node);
}
}
//2.1 当做BST 去做删除
void deleteNode(LPRBTREE tree, LPNODE node)
{
LPNODE child, parent;
int color; //删除节点兄弟的颜色
//左右子树都存在
if ((node->LChild) != NULL && (node->RChild) != NULL)
{
LPNODE replace = node;
replace = replace->RChild; //调整树:从右子树中拿最左边
while (replace->LChild != NULL)
{
replace = replace->LChild;
}
//讨论删除节点是不是根节点
if (PARENTNODE(node))
{
if (PARENTNODE(node)->LChild == node)
{
PARENTNODE(node)->LChild = replace;
}
else
{
PARENTNODE(node)->RChild = replace;
}
}
else
{
tree->root = replace;
}
child = replace->RChild;
parent = PARENTNODE(replace);
color = COLOR(replace);
if (parent == node)
{
parent = replace;
}
else
{
if (child)
{
SET_PARENT(child, parent);
}
parent->LChild = child;
replace->RChild = node->RChild;
SET_PARENT(node->RChild, replace);
}
//调整替换节点父节点
replace->parentNode = node->parentNode;
replace->color = node->color;
replace->LChild = node->LChild;
//调整删除节点父节点
node->LChild->parentNode = replace;
if (color == BLACK)
{
//调整树:
deleteAdjustTree(tree, child, parent);
}
free(node);
return;
}
if (node->LChild != NULL)
{
child = node->LChild;
}
else
{
child = node->RChild;
}
parent = node->parentNode;
color = node->color;
if (parent)
{
if (parent->LChild == node)
{
parent->LChild = child;
}
else
{
parent->RChild = child;
}
}
else
{
tree->root = child;
}
if (color == BLACK)
{
//调整二叉树
deleteAdjustTree(tree, child, parent);
}
free(node);
}
LPNODE search(LPNODE x, int key)
{
if (x == NULL || x->key == key)
return x;
if (key < x->key)
{
return search(x->LChild, key);
}
else
{
return search(x->RChild, key);
}
}
void deleteTreeNode(LPRBTREE tree, int key)
{
LPNODE result = search(tree->root, key);
if (result != NULL)
deleteNode(tree, result);
}
int main()
{
int array[] = { 10,40,30,60,90,70,20,50,80 };
int arrayNum = 9;
LPRBTREE tree = createRBTree();
for (int i = 0; i < arrayNum; i++)
{
insertNode(tree, createNode(array[i]));
}
preOrder(tree->root);
printf("\n");
printf("删除:\n");
deleteTreeNode(tree, 10);
preOrder(tree->root);
printf("\n");
printf("删除:\n");
deleteTreeNode(tree, 80);
preOrder(tree->root);
printf("\n");
while (1);//防止闪屏
return 0;
}
